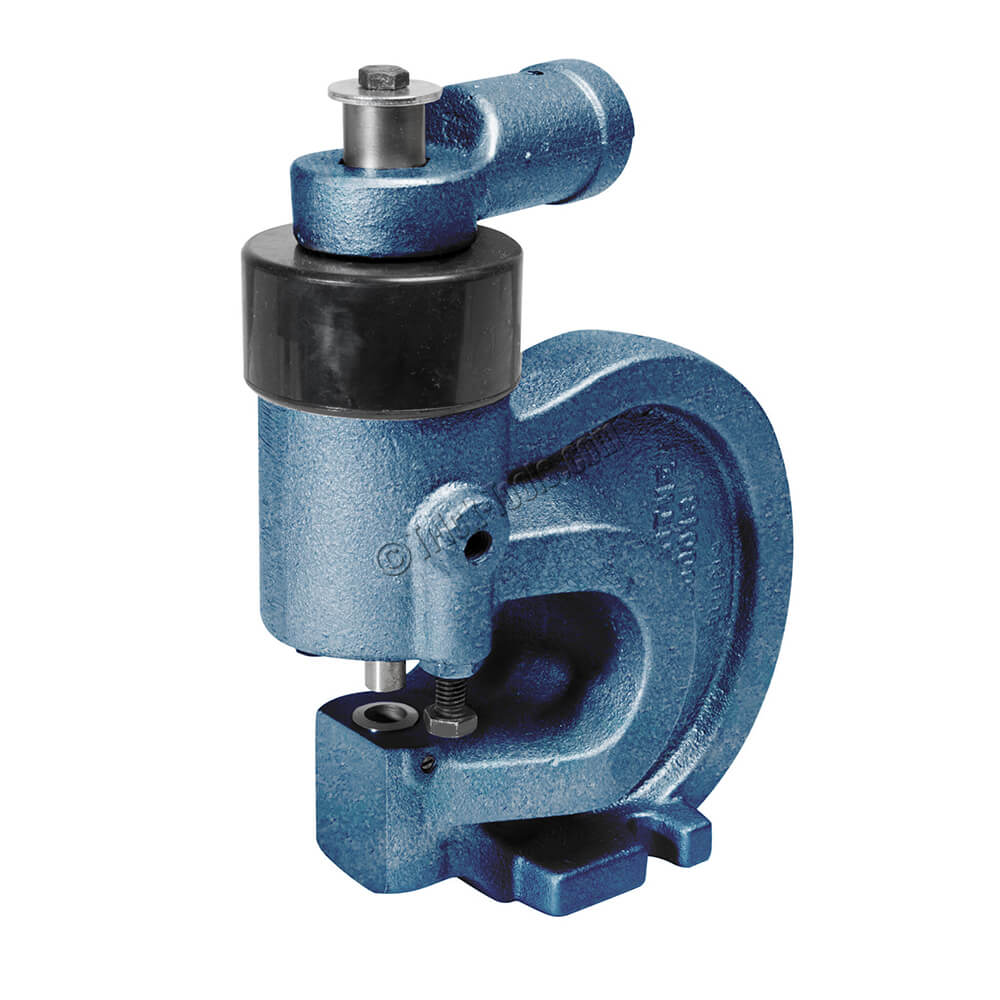

Roper Whitney No. 20 CTL Heavy Duty Portable Punch

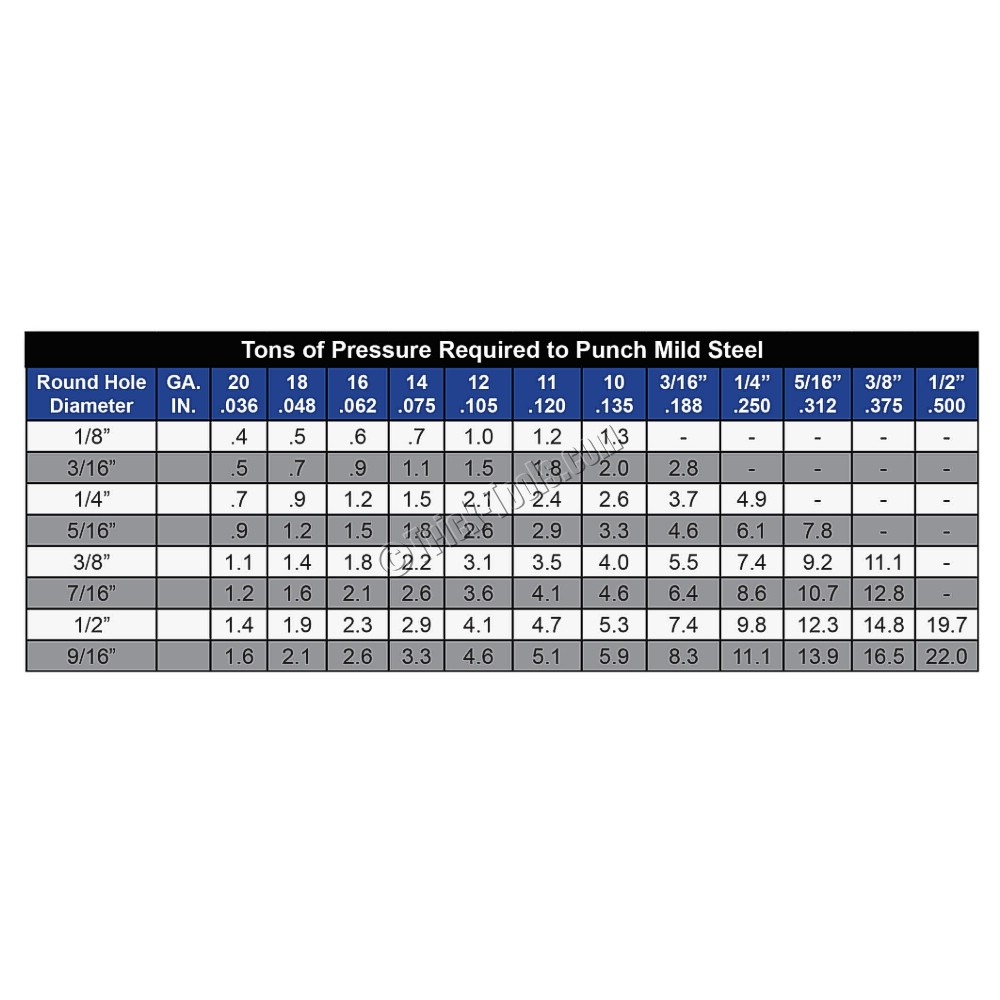

The Roper Whitney No. 20 CTL Heavy Duty punch delivers 20 tons of punching power and can be mounted to a bench or taken into the field for work on the job site. This CTL version of the number 20 has a notched frame for punching angle iron. A hole can be punched within 9/16 of an inch from the web. The rotary style punch generates more than enough power to punch a 1/2 inch hole through 3/8 inch mild steel plate. The throat of the punch allows for punching holes up to 2-1/4 inches from the edge of the material.

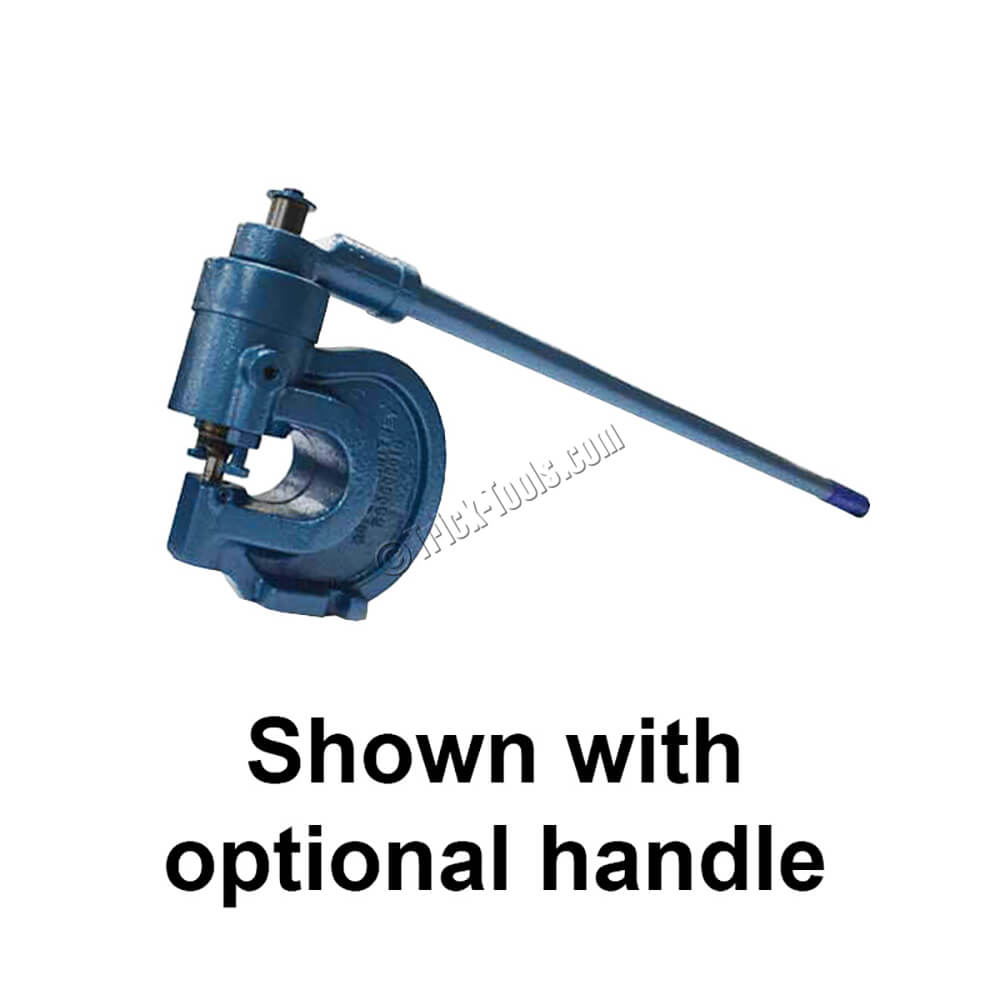

3/4 inch pipe (1.050 in OD) up to 4 ft long can be used for a handle. A 4 ft section of handle material with a grip is available for purchase as well as an optional ratchet handle for working in close quarters. See the Accessories tab.

Warranty:

3 year manufacturer's warranty

•Maximum Capacity: 20 tons
•Tool Opening (inches): .75
•Throat Depth (inches): 2.25
•Throat Height (inches): 1.625
•Weight (pounds): 25
•Dimensions (LxWxH): 7 x 11.5 x 6 (less handle)

• No. 20 CTL portable punch
• 1/2 inch round punch and die set
• ratchet attachment and handle sold separately
