Chicago 10 foot Heavy Duty Straight Brake, 16 gauge

Name: Chicago 10 foot Heavy Duty Straight Brake, 16 gauge
Brand: Chicago
SKU: SB-1016
Price: 11800.00 USD
Availability: InStock

Part #: SB-1016
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $11,800.00

NEW

Heavy steel construction
Easily beam adjustments
Full length, 16 gauge mild steel capacity
Optional 25-1/2 inch back gauge

FREIGHT:

ORIGIN:

DESCRIPTION

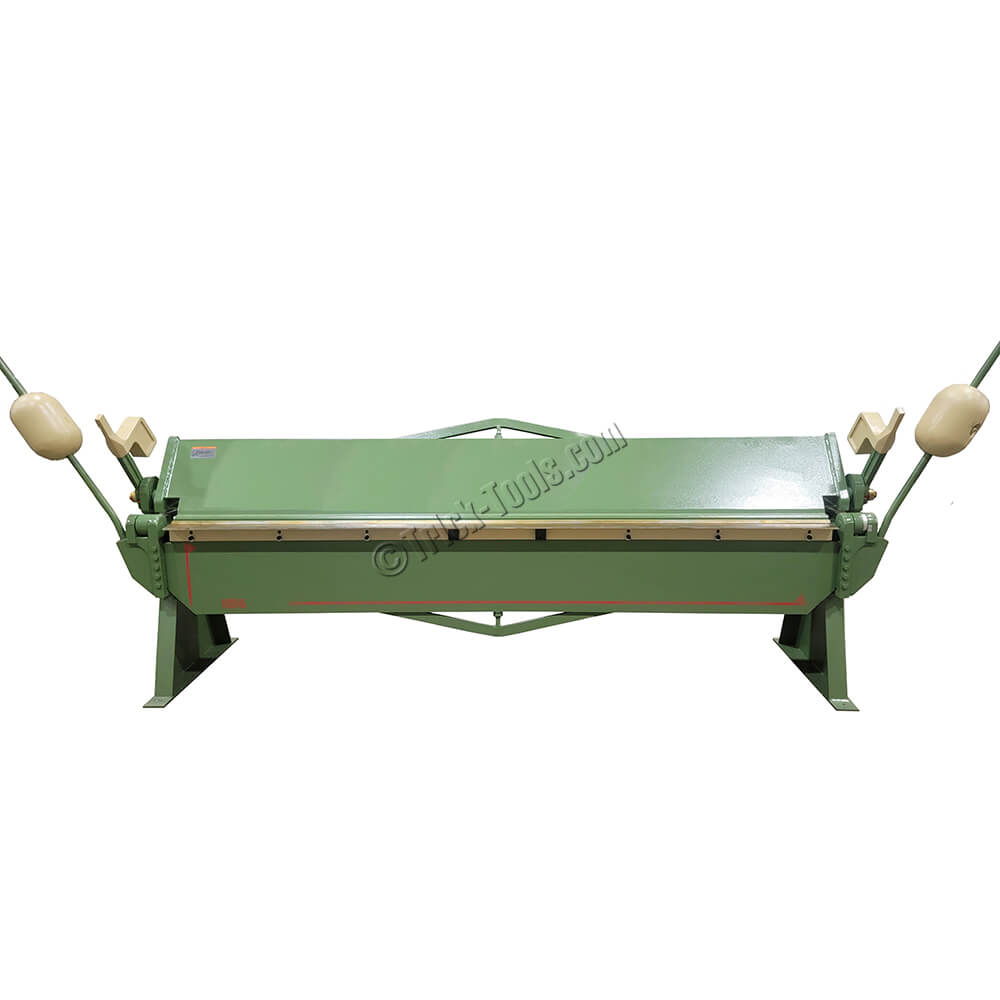

Since 1896, Dreis & Krump has been providing quality bending tools for sheet metal shops, industrial manufacturers, and schools. The Chicago 10-foot Heavy Duty Straight Brake is a must-have machine for metal roofing, HVAC, and general fabrication shops. The fully welded steel frame is robust enough to bend up to 16-gauge mild steel across the full width and features brass hinge pins for smooth operation, removable bottom bar, replaceable nose bar, degree scale, adjustable counterweights, and stop rod for making repeatable bends.

Made in Taiwan to Dreis and Krump's high standards, these brakes are in stock and ready to go to work for you.

Note: For a shipping quote, please reach out to our sales staff via phone or email

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 120
•Min Reverse Bend (inches): .25
•Minimum Flange Capacity (inches): 1
•Max Forming Length (inches): 121
•Weight (pounds): 3400
•Dimensions (LxWxH): 165 x 53 x 64
