Swag Off Road Dimple Die Kit, 8 piece

Part #: 6DD8A
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $614.95

CNC machined from 4140 Chrome Moly
Through hole design for a variety of uses
Use for cosmetic applications and strengthening sheet metal

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

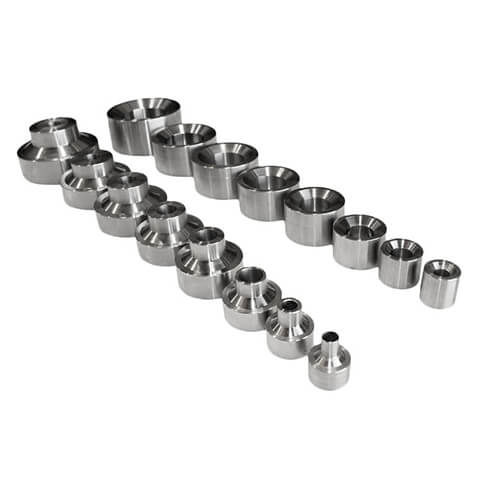

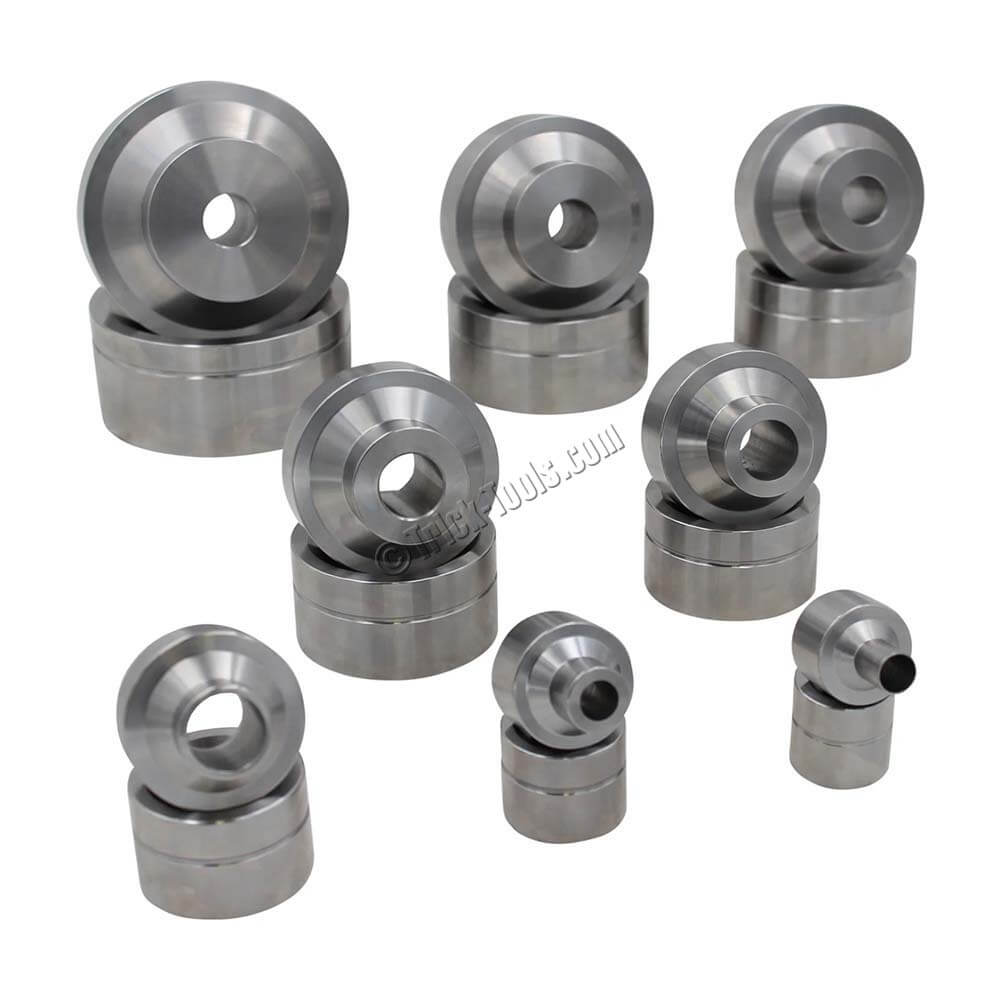

Swag Off Road Dimple Dies are CNC machined from 4140 quenched and tempered chrome-moly steel and are capable of dimpling up to 3/16 inch steel.

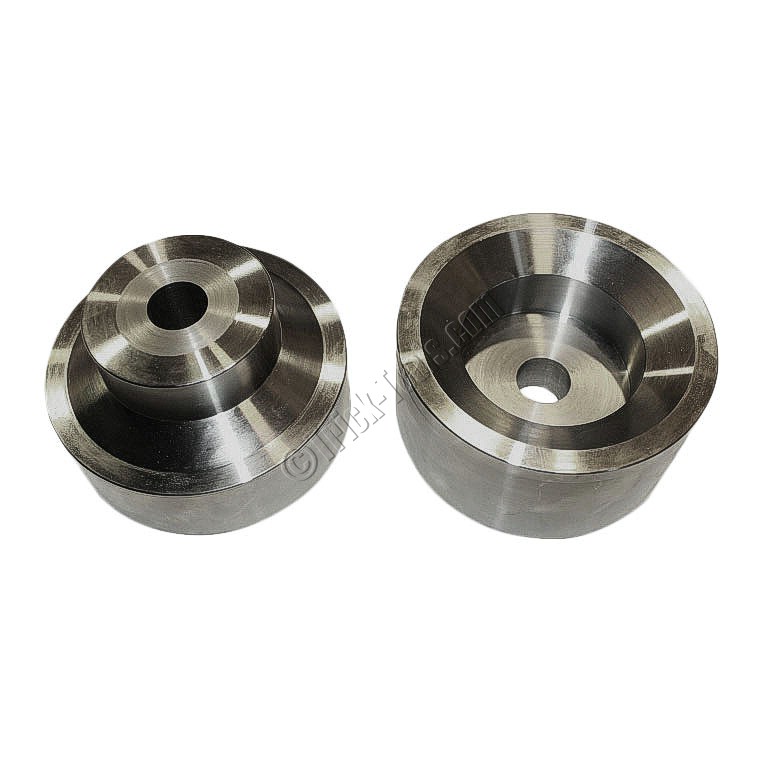

Each dimple die features a through-hole design in both the male and female dies, allowing them to be used in a variety of different ways. These dies can be used in an H-Frame press, hydraulic punch driver, and even with a 3/4 inch or 7/16 draw bolt for dimpling on a vehicle, or after the fact. These Made in the USA dies are great for both cosmetic applications, strengthening sheet metal, and partner well with our line-up of knock-out punches and sheet metal cutters!

The over all outside diameter of the dimple dies are as follows:
.500 inch dimple die OD = 1.20 inch
.750 inch dimple die OD = 1.45 inch
1.00 inch dimple die OD = 1.95 inch
1.25 inch dimple die OD = 2.40 inch
1.50 inch dimple die OD = 2.70 inch
1.75 inch dimple die OD = 3.17 inch
2.00 inch dimple die OD = 3.40 inch
2.50 inch dimple die OD = 4.20 inch

Warranty:

Lifetime manufacturer's warranty
