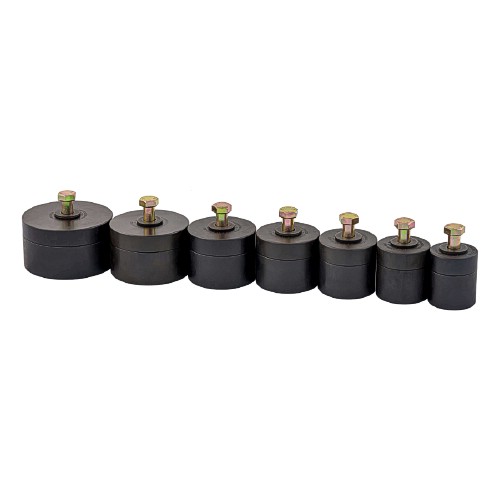

Mittler Bros. Punch & Flare Set, 1 to 3 inch (7 piece)

Part #: 1300-403
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $960.00
Sale Price: $860.00

Punch and flare a hole in up to 16 gauge steel
Use with draw-bolt or in MB Bench Press
Heat treated steel, made in the USA

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

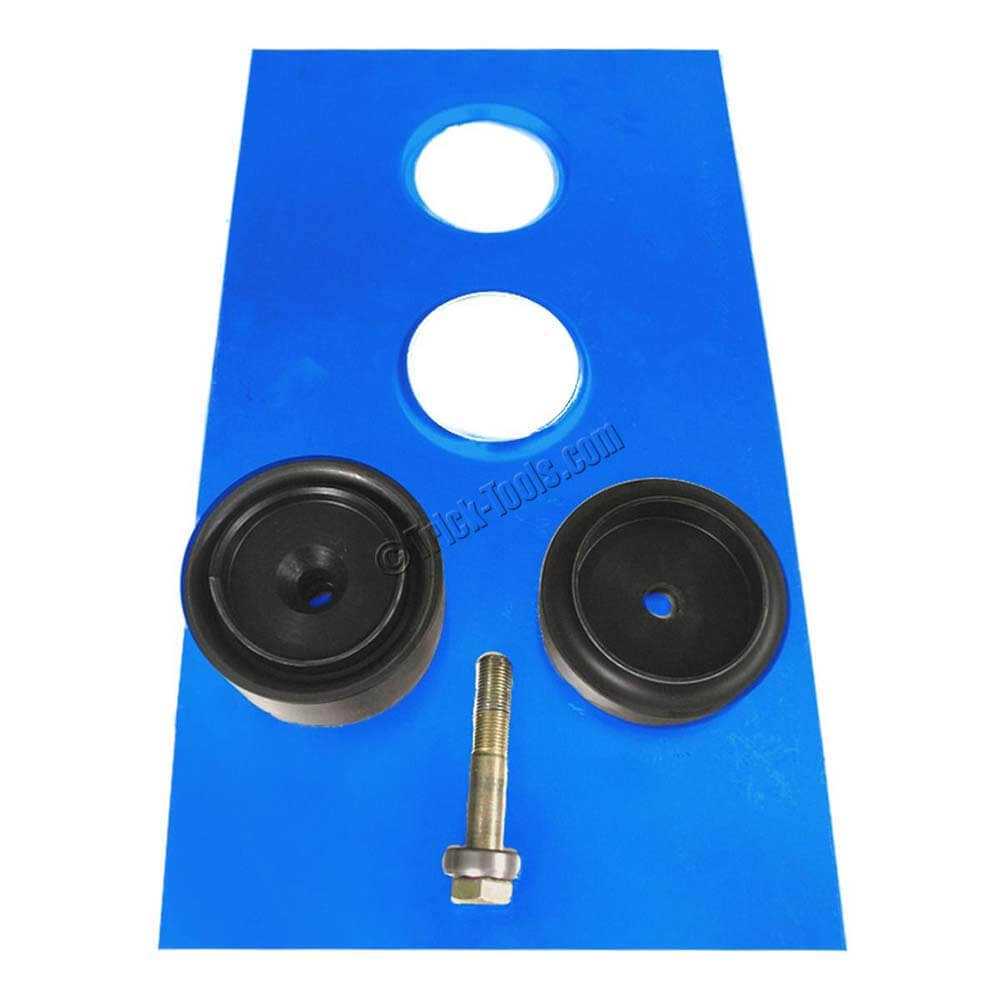

The Mittler Bros. Punch & Flare tools can create a smooth hole, with or without a flare in one easy step. Simply drill a pilot hole for the draw bolt, then apply the tool and tighten the bolt. They work great in the Mittler Bros. 3, 5, or 10 ton Bench Press with no drilling needed for even faster production. 16 gauge mild steel maximum. Precision machined from heat-treated steel for years of use.

The overall outside diameter of the punch & flare tools are as follows:
1.00 inch OD = 1.95 inch
1.25 inch OD = 2.20 inch
1.50 inch OD = 2.45 inch
1.75 inch OD = 2.70 inch
2.00 inch OD = 2.95 inch
2.50 inch OD = 3.45 inch
3.00 inch OD = 3.95 inch

SPECIFICATIONS

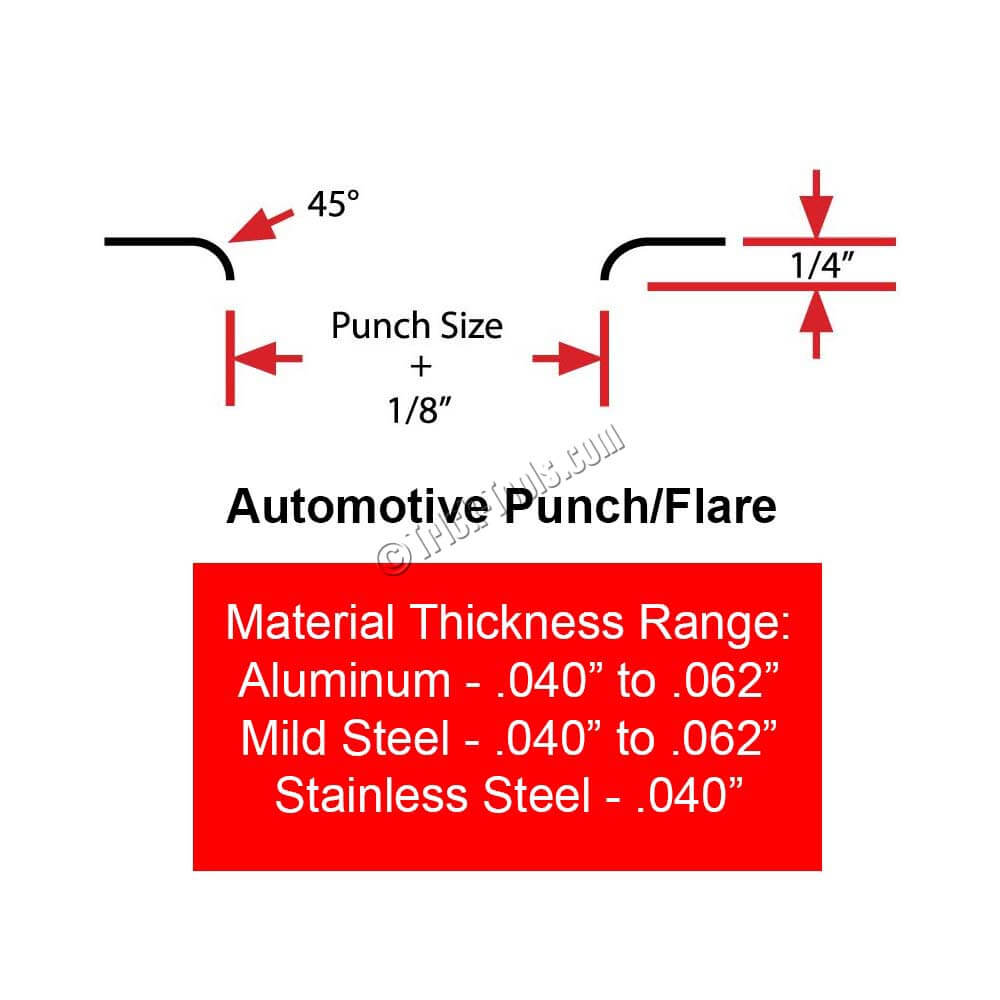

•Sizes (inches): 1, 1-1/4, 1-1/2, 1-3/4, 2, 2-1/2 and 3
•Finish Hole (inches): +1/8 (approximate)
•Flare Height (inches): 1/4 (approximate)
•Construction: steel
