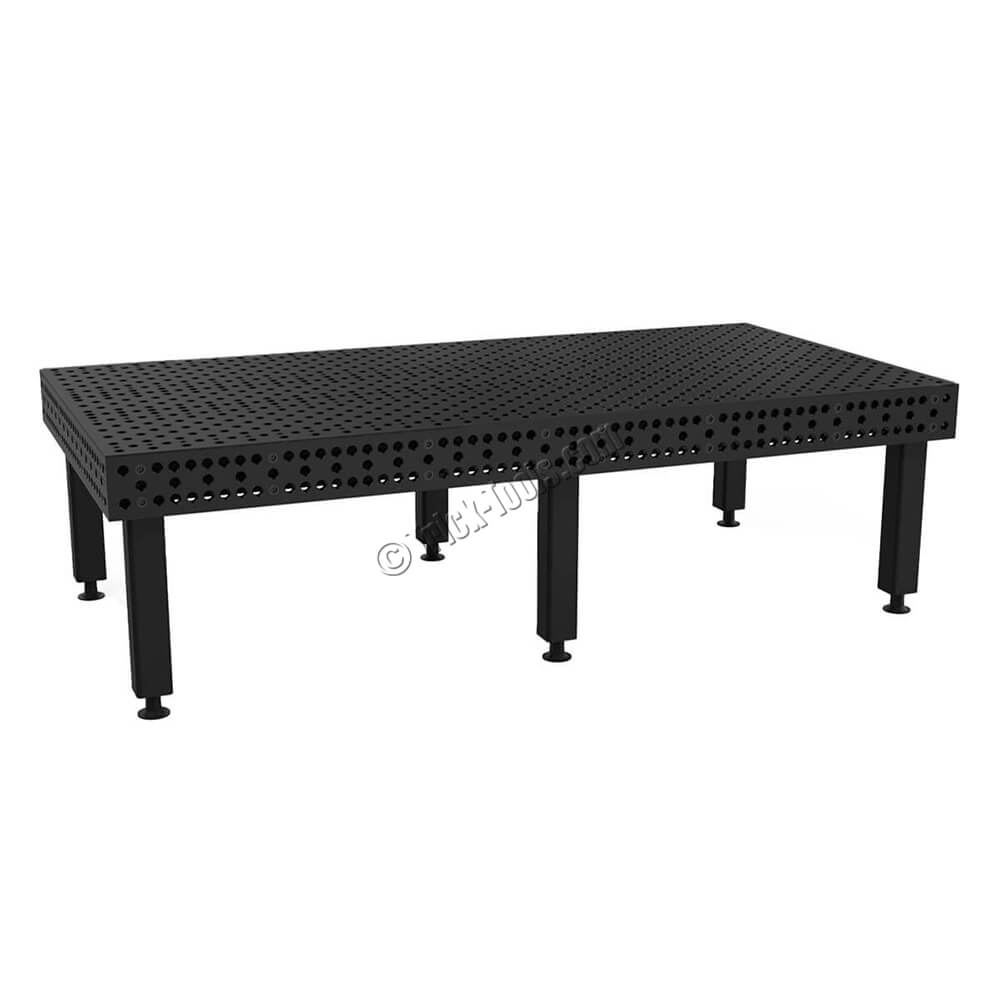

BuildPro ALPHA28 Modular Welding Table, 118 x 59 inch

Part #: T28-3015XQ
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $14,085.00

NEW

Five fixturing surfaces
28mm holes spaced 100mm apart
Nitride plasma finish for corrosion protection and anti-spatter
Moveable, reversible, replaceable plates

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The ALPHA28 welding tables are designed with fabricators and production manufacturing in mind. These 5 sided fixturing tables use 28mm holes on a 100mm grid for 8-90% more fixture locations. The tables can be re-configured or joined together to fit any size requirement and modular plate design can be offset, removed, flipped, and replaced making it one of the most versatile 28mm tables on the market. A Nitride finish helps reduce corrosion and eliminate sticking of weld spatter. Top plates have a hardness rating of 750 Vickers (60.5 HRC) with the side plates rating at 550 Vickers (52.5 HRC).

Choose from 6 different leg options from a fixed height to adjustable height and with or without casters.

Standard legs - 4,400 lbs per leg capacity
Legs with casters - 1,760 lbs per leg capacity

Shipping Note: Flatbed shipping is recommended for this table. Please call or email for a quote.

Warranty:

90 day manufacturer's warranty

SPECIFICATIONS

•Size: 59 x 118 inches
•Flatness: +/- .004 inches per foot
•Finish: Nitrided
•Hole diameter: 28mm
•Hole spacing: 100mm
•Plate thickness: 1 inch +/- .002 (25mm)
•Weight (pounds): 3500
•Dimensions (LxWxH): 118 x 59 x 7.87 inches
