Siegmund Imperial 28 Rail System, 184 Piece Bundle

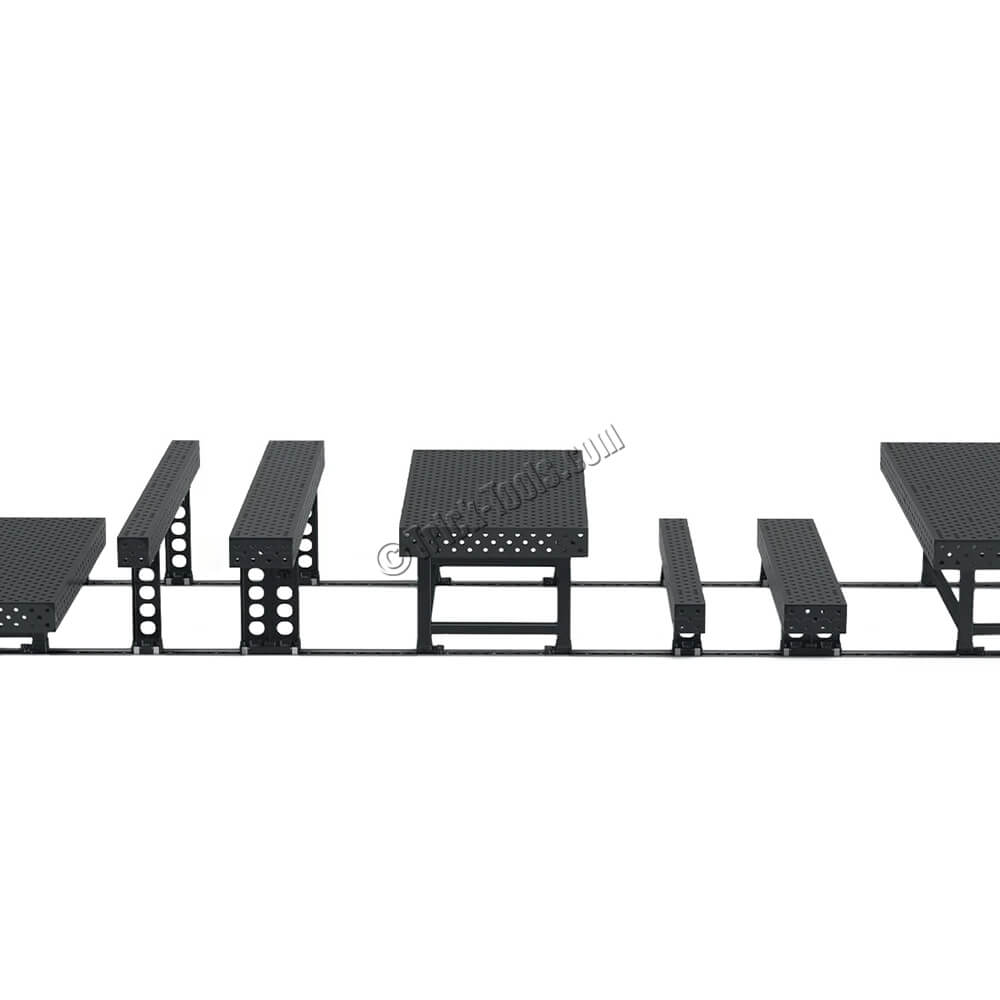

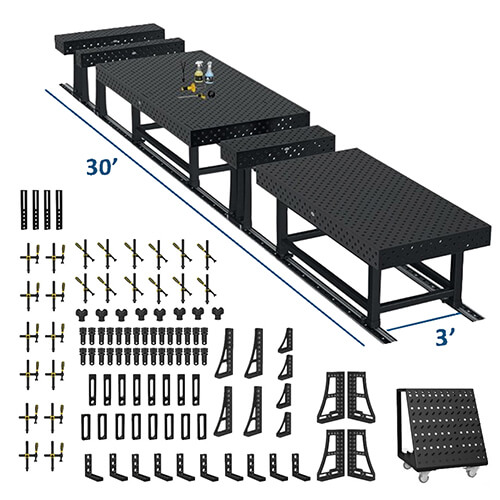

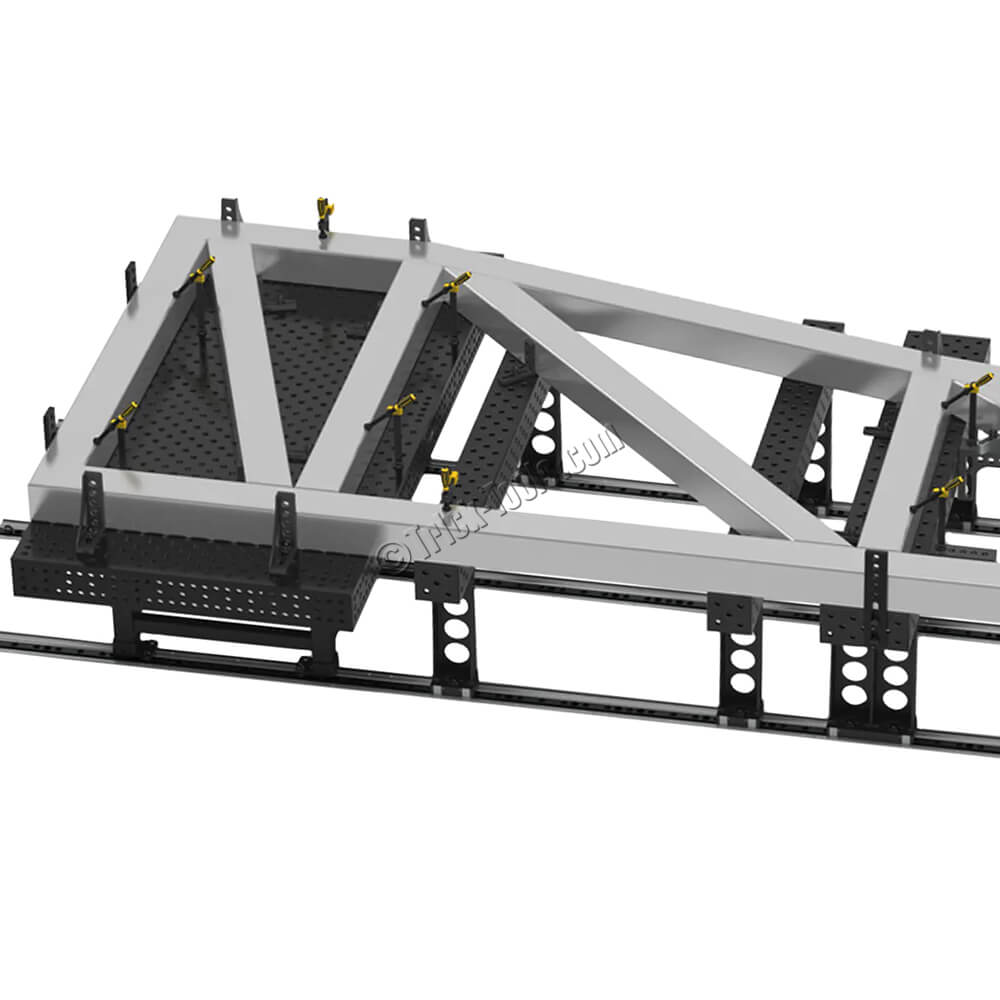

The Siegmund Rail System adds even more versatility to your operation and allows for the creation of large, accurate parts. This kit includes 30 feet of track along with a 4x8 table, 5x10 table, and 3 additional U-Squares to ensure you have supports where you need them. Choose from above or below ground rails and your leg height of 8 inches or 28-1/8 inches. Professional onsite installation is available. Please call to discuss custom applications and packages or to get a quote.

Siegmund XD7 Professional Extreme Series Welding Tables are second to none for modular fixturing.These German-constructed tables are built from hardened steel to begin with and then go through an additional plasma nitride process to harden the top work surface to a Vickers rating of more than 750.The tables feature five fixturing surfaces constructed from 1 inch (25mm) thick plate with additional reinforcement underneath the work surface. Fixture mounting holes are CNC machined to 28mm diameter, feature radiused edges, and are laid out in a diagonal grid for superior clamping flexibility. The tables also feature a flatness rating of +/- .0025 inches per foot, and radiused edges to prevent damage to fixture components and workpieces.

A wide variety of clamps and fixturing components are available for these tables to make them useful for virtually any welding project. See the Accessories tab for more information.

(6) USRSR120.P - 10 foot Foundation Rail with Round Rail
• (1) USRST2830.XD7 - 4x8 foot Siegmund Imperial Fixture Table
• (1) USRST2840.XD7 - 5x10 foot Siegmund Imperial Fixture Table
• (2) USRSF28 - 3x6 footSB Connecting Frame with Inserted Rollers

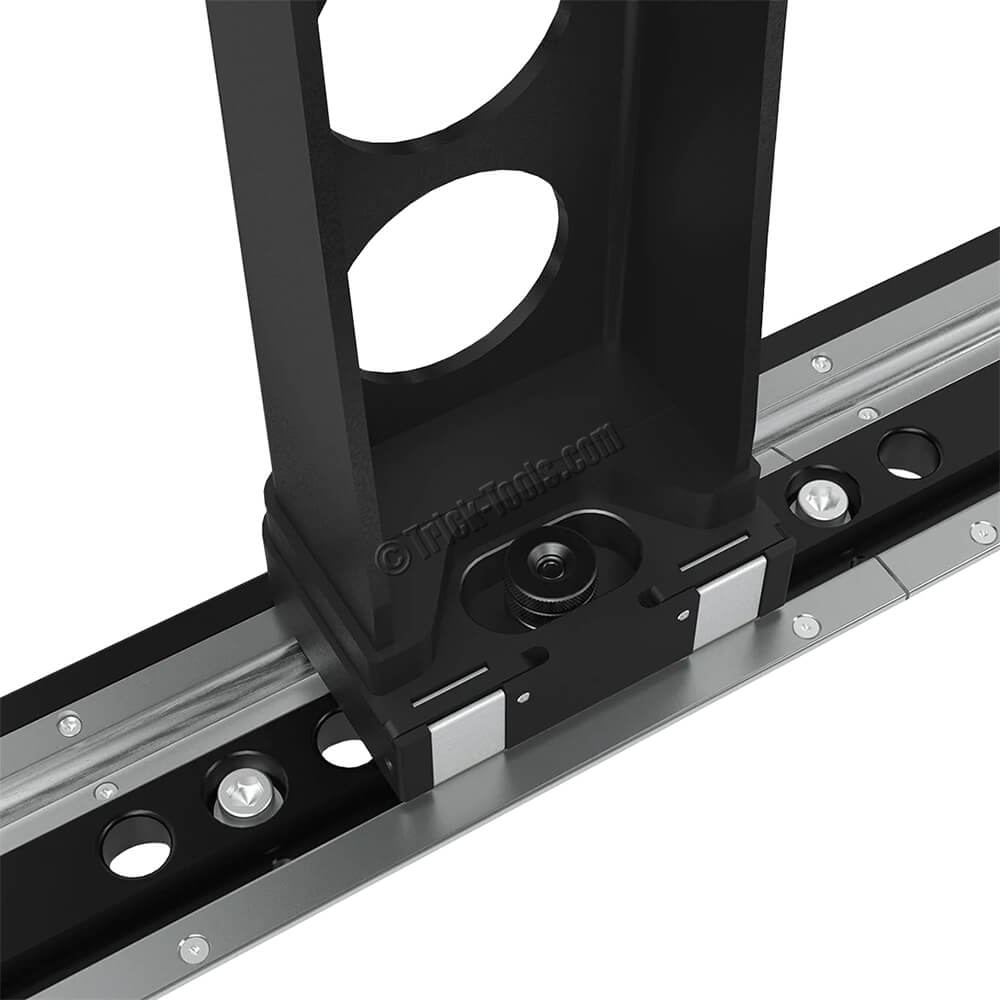

• (2) USRSUF28 - Rail System Leg with Inserted Roller for 8x8 inch Square
• (4) USRSUF28W - Rail System Leg with Inserted Roller for 8x16 inch Square
• (4) US280241 - Rail System Stopping Bolt
• (1) USRSU48W.P - 4 foot long, 8 x 16 inch U-Shape Square
• (1) USRSU60.P - 5 foot long, 8 x 8 inch U-Shape Square
• (1) USRSU60W.P - 5 foot long, 8 x 16 inch U-Shape Square
• (12) US280513 - Fast Clamping Bolt, Long
• (34) US280511 - Fast Clamping Bolt, Short
• (20) US280528 - Flush Mount Bolt
• (8) US280645.1 - 2 inch OD Vario Prism 90/120 degree
• (12) US280610.N - Professional Screw Clamp
• (12) US280630.N - Professional Screw Clamp 45/90 degree
• (8) US280410.N - 6 inch Universal Stop
• (8) US280420.N - 9 inch Universal Stop
• (4) US280430.N - 24 inch Universal Stop
• (10) US280110.N - 7 inch Tall Stop and Clamping Square
• (4) US280152.N - 12 inch Stop and Clamping Square
• (4) US280162.N - 20 inch Stop and Clamping Square
• (2) US280134.N - 24 inch Left Stop and Clamping Square
• (2) US280136.N - 24 inch Right Stop and Clamping Square
• (1) US280910 - Tool Cart
• (12) USRSR60.P.H - Hardware Accessories for Rail System
• (2) USRSR60.P.IT - Installation Tools for Rail System
• (1) US283999 - Maintenance Set
