BuildPro Fixturing Plate, 24 x 18 inches

Part #: T52418
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $560.00

NEW

5/8 inch holes on 2 inch spacing
1/2-13 tapped holes

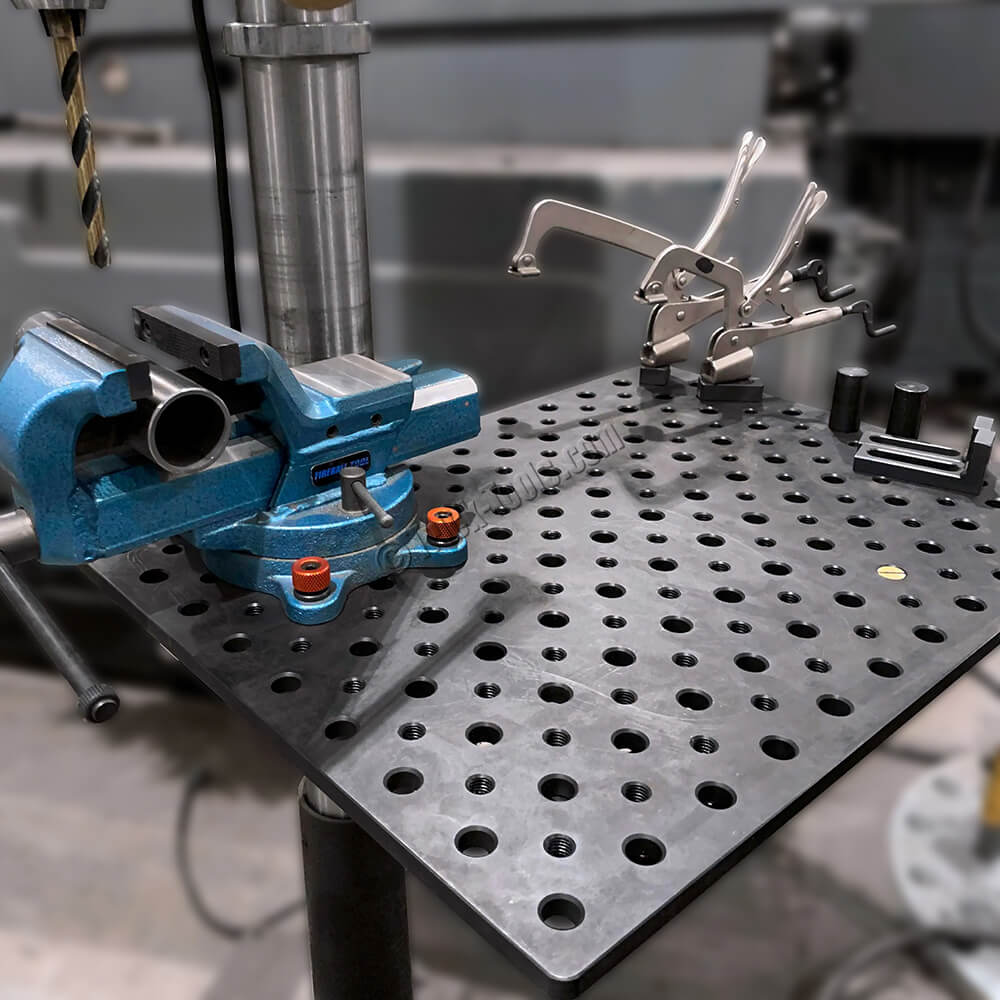

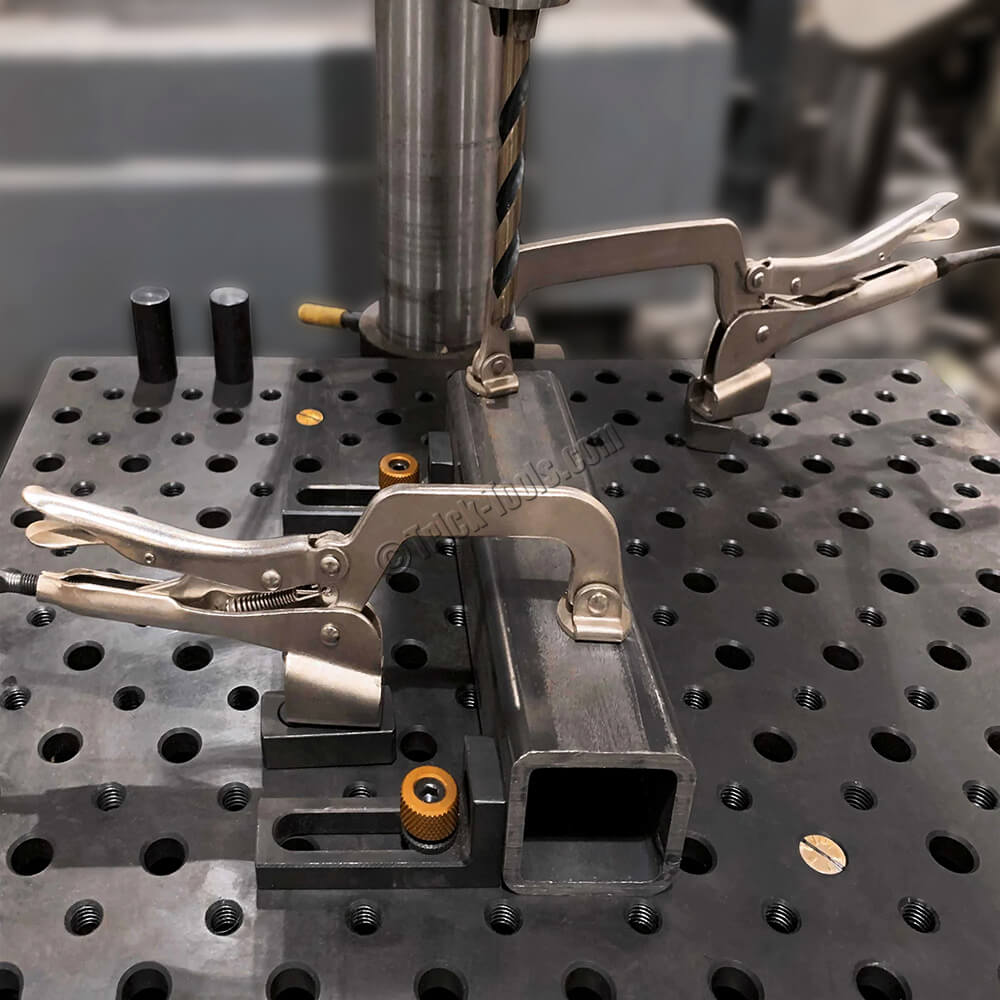

Great for small projects or even mount to a drill press
Nitride coating for corrosion protection and anti-spatter

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

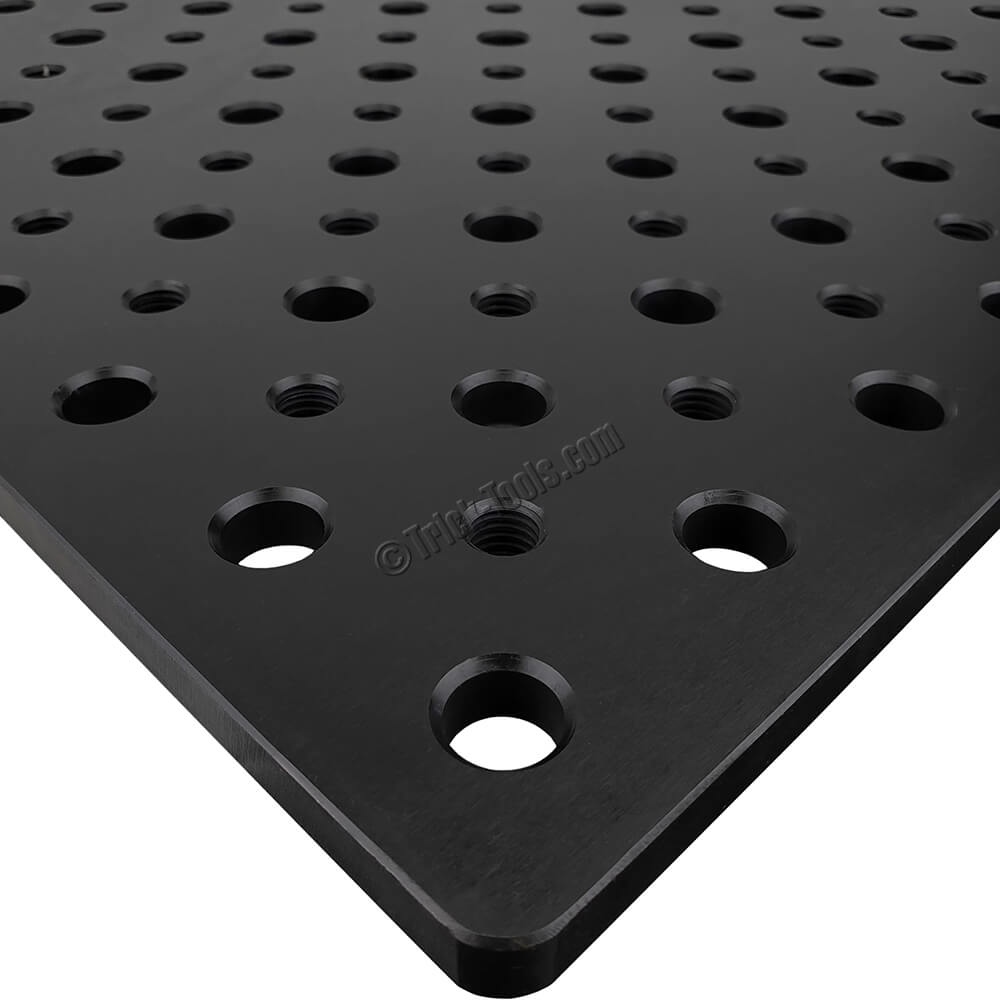

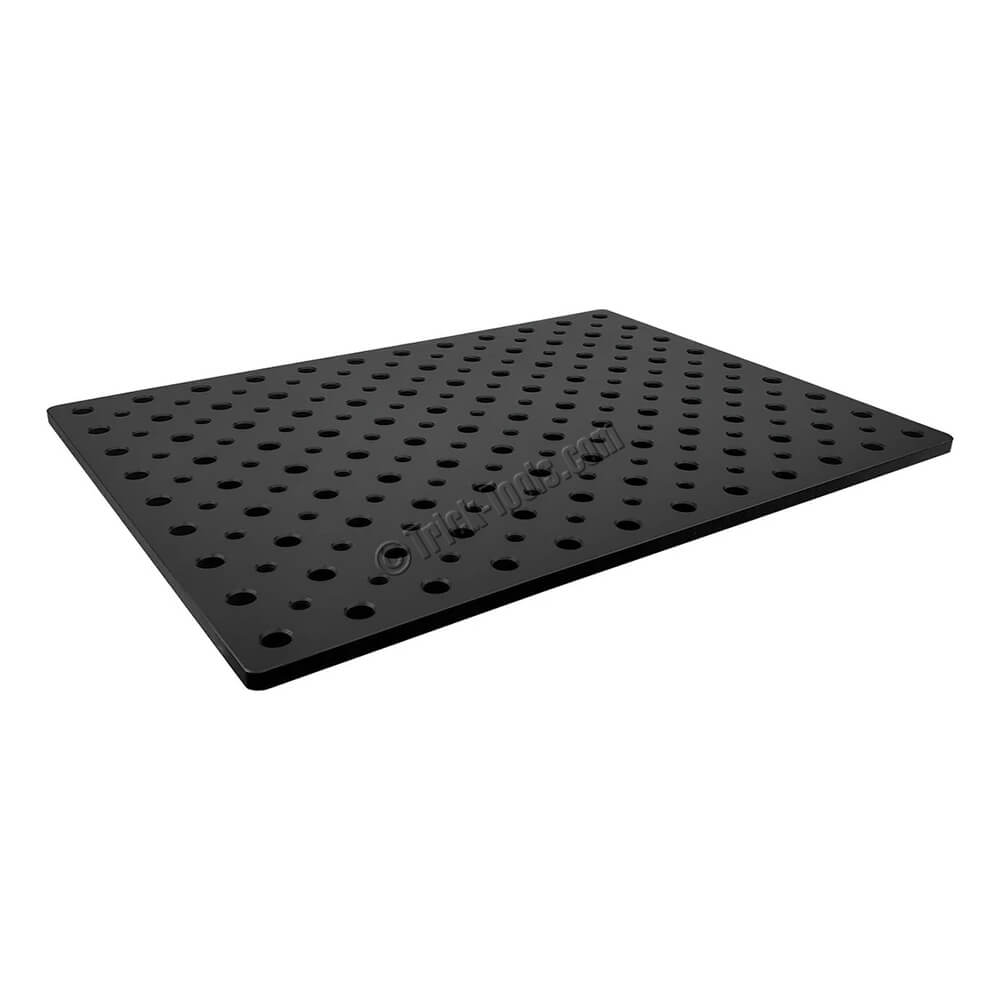

The BuildPro 24 x 18 inch Fixturing Plate features a nitride coating for corrosion protection and to help with weld spatter. The 5/8 inch holes on 2 inch grid pattern along with 1/2-13 threaded holes making this plate extremely versatile for many applications. This plate is great for small projects, additional fixturing, mounted to a drill press, or a multitude of other possible custom applications.

SPECIFICATIONS

•Size: 18 x 24 inches
•Finish: Nitrided
•Hole diameter: 5/8 (.625)
•Hole spacing: 2 inches
•Plate thickness: .625 inch
•Weight (pounds): 70
•Dimensions (LxWxH): 24 x 18 x .0625
