Trick-Tools Bench-Top Welding Fixture Bundle

Part #: TT-160290
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $1,448.00

EXCLUSIVE

Great for small spaces or on the jobsite
16mm holes on 50mm spacing
Includes 16 piece fixture kit
Plasma nitride coating

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

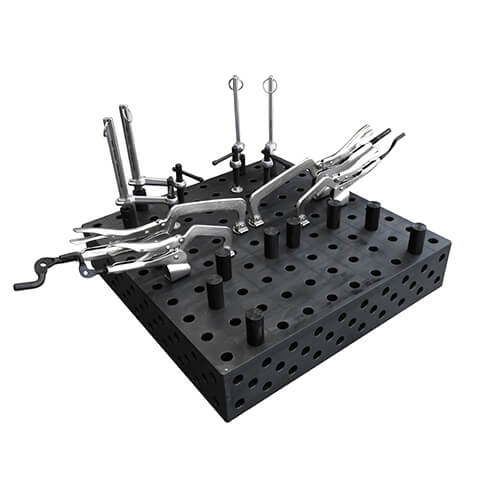

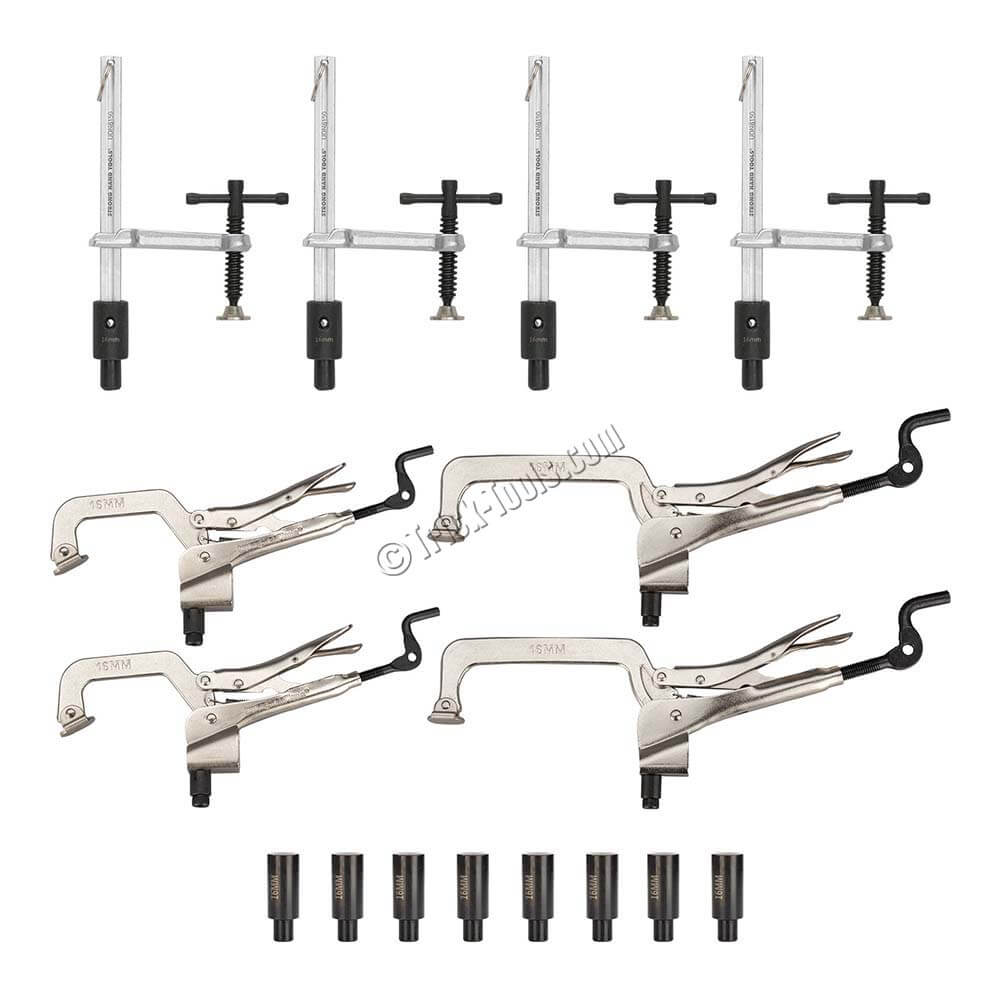

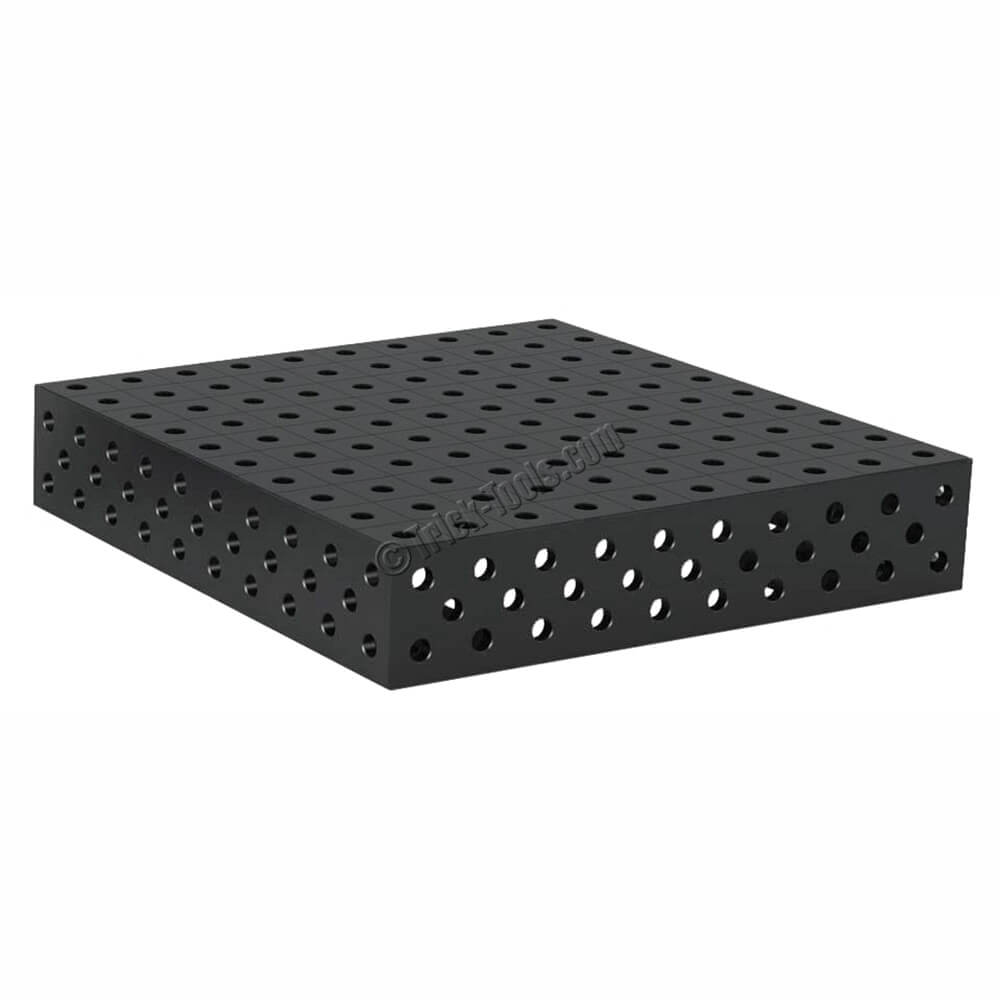

Introducing the ultimate bench-top welding fixture solution for your garage, shop, service truck, and more. This 500mm x 500mm x 100mm (19.68 x 19.68 x 3.94 inch) Siegmund fixture block features 16mm holes on a 50mm grid along with a plasma nitride coating to reduce weld spatter from sticking and is .472 inches (12mm) thick. We paired this bundle alongside the BuildPro BP16-TMK01 16mm fixture kit to ensure you had what you need to make a perfect 90-degree with your material and the right fixtures to hold them tight while welding in place. Combine multiple blocks for a larger workspace or add to your stop, square, and clamping collection with Siegmund, BuildPro, or Bessey 16mm fixturing.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Size: 20 x 20 inches
•Finish: Nitrided
•Hole diameter: 16mm
•Hole spacing: 50mm
•Plate thickness: .472 inches (12mm)
•Weight (pounds): 88
•Dimensions (LxWxH): 500mm x 500mm x 100
