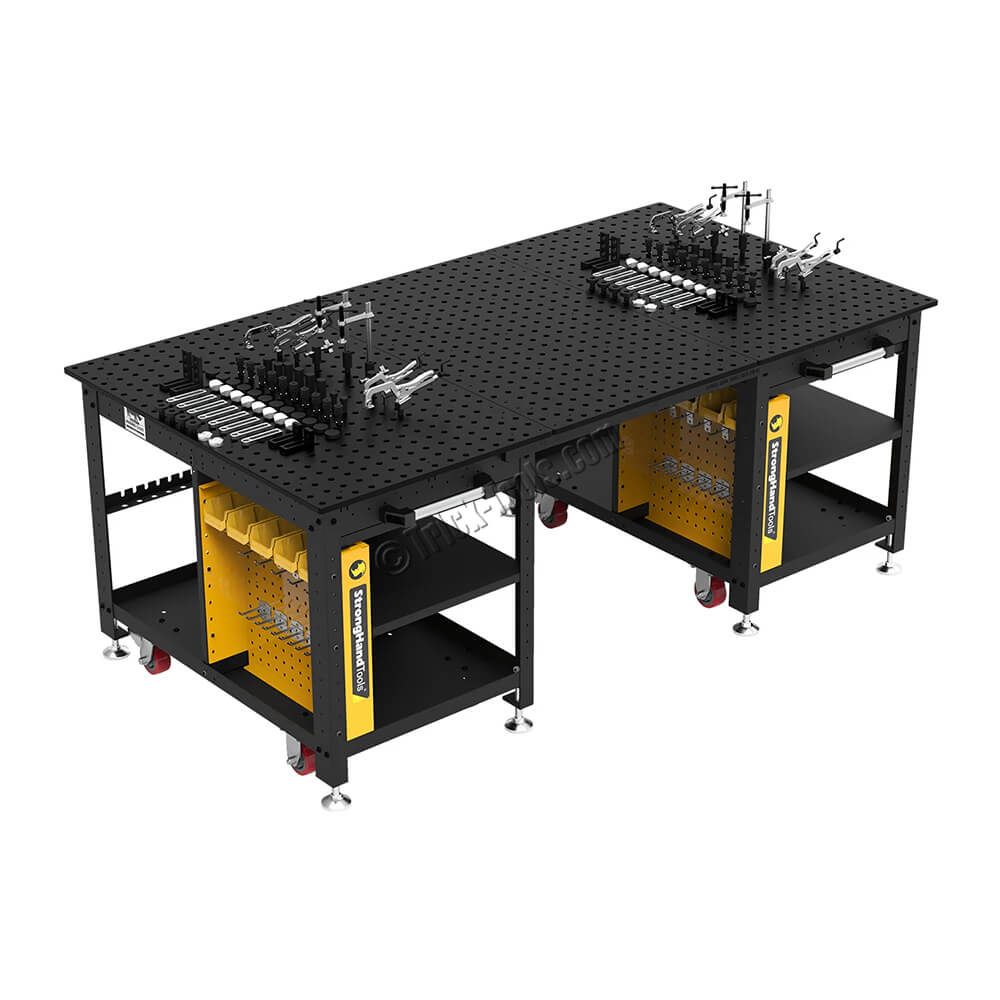

Strong Hand Rhino Cart Bridge Package, 48 x 90 inch

Part #: TD5-4830Q-EX3
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $8,345.00

FREE SHIPPING

Two 48 x 30 inch mobile tables with bridge plate
Includes casters, leveling feet, and two fixture kits
5/8 inch holes spaced 2 inches apart
Accepts all BuildPro clamps and accessories

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

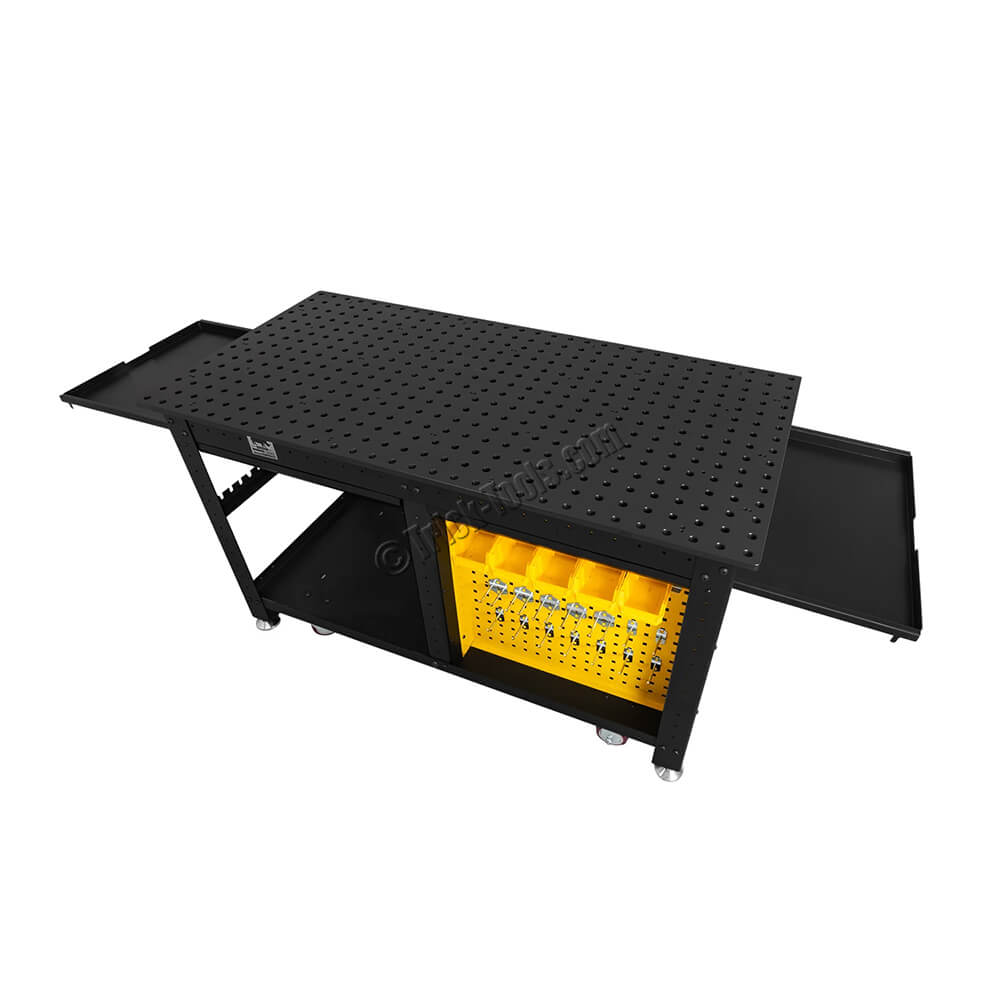

What's better than one Rhino Cart? That's right, two Rhino Carts paired with another 48 x 30 inch plate to make one large 48 x 90 inch mobile fixture table! The Rhino Cart Mobile Fixturing Station is unlike any welding table on the market! This revolutionary design takes the popular BuildPro welding table top, with its precision finish and unique modular fixturing design, and combines it with a handy mobile cart. The nitride treated steel top features a black oxide finish and is reversible if one side is eventually damaged.

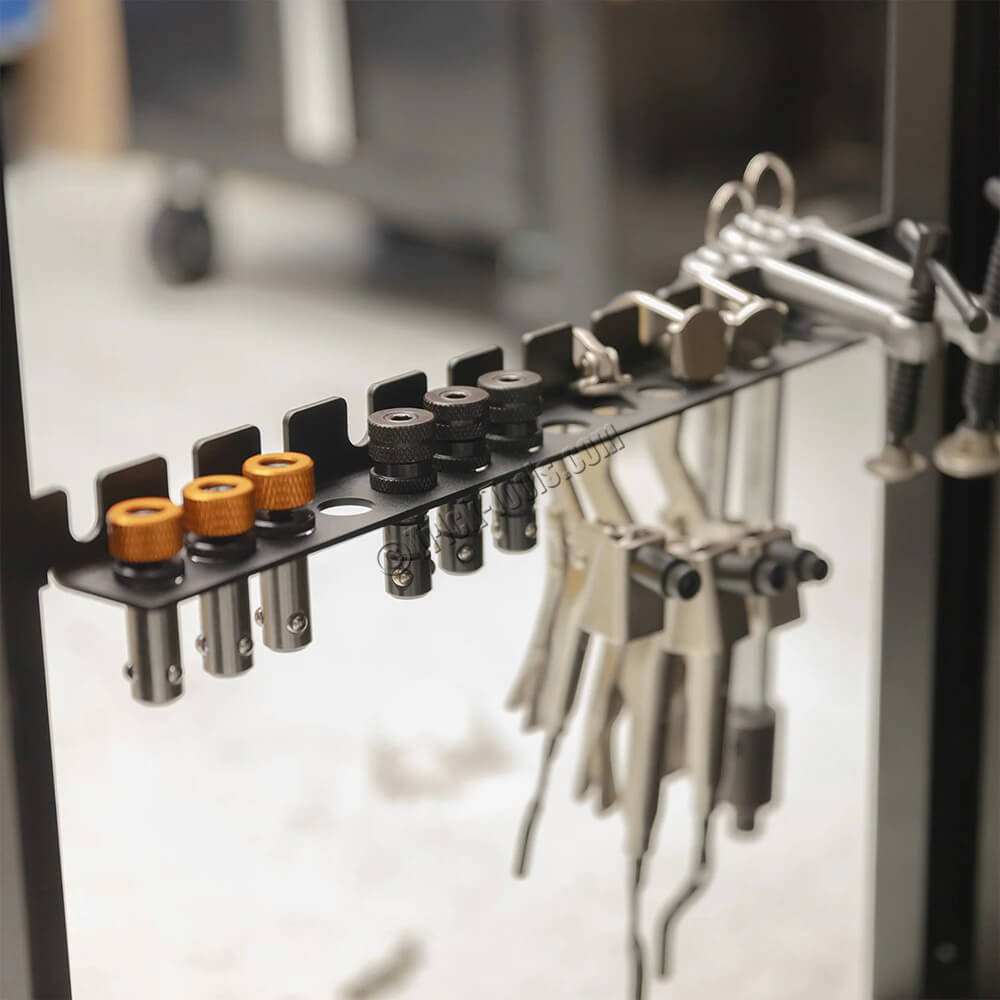

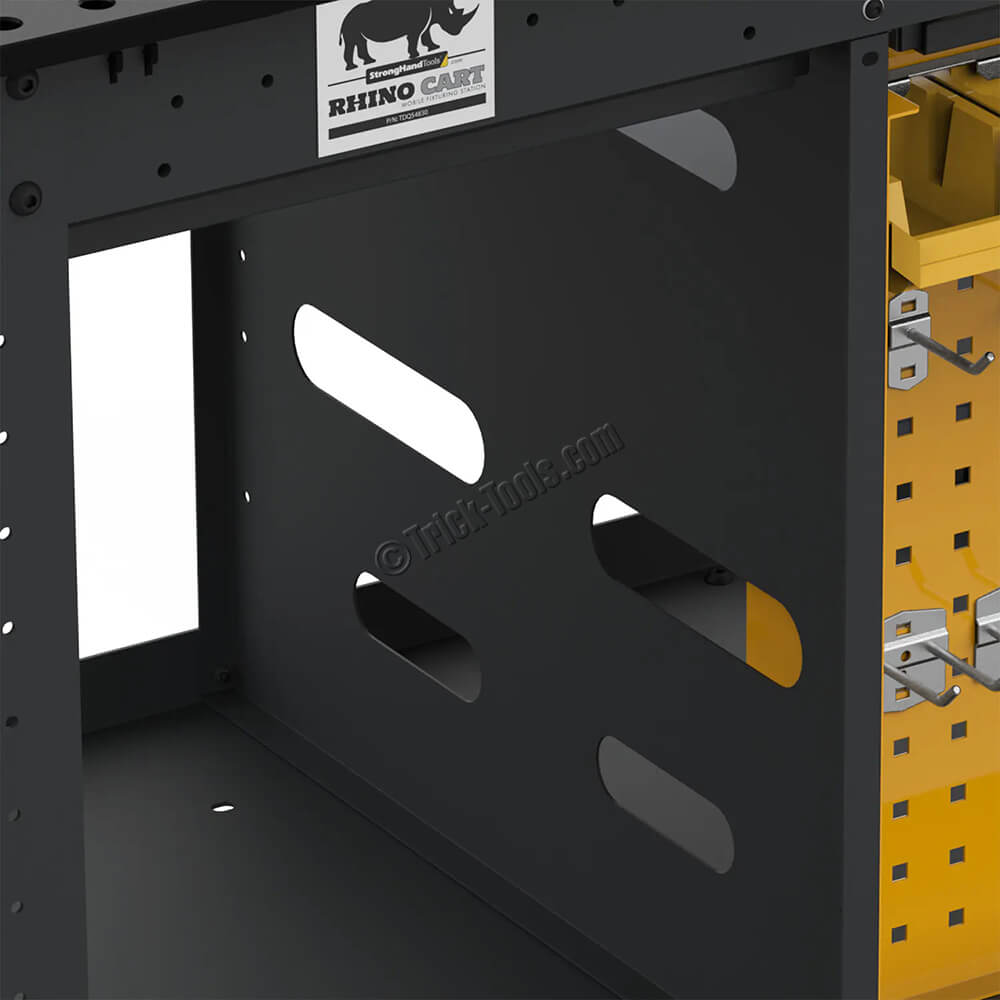

The Rhino Cart Bridge Package comes complete with a two 48 x 30 Rhino carts, two 66-piece fixturing kits, and the TDPK311 bridge kit. The carts also feature heavy-duty casters as well as leveling feet for more permanent placement. The 36-inch tall cart features plenty of storage to keep necessary fabrication tools readily at hand and a multitude of accessories for customizing it to fit your needs. The new F3 series includes some new improvements including removable slag trays, pass through cable slots, and improved storage for ball lock bolts and clamps.

Table Top Specifications

Hole diameter: .625 +.001/+.003
Hole spacing: 2.000 +/- .002
Plate thickness: .625

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Size: 48 x 90 inches
•Flatness: ±0.015 inch per 24 inches
•Finish: Nitrided
•Hole diameter: 5/8 (.625)
•Hole spacing: 2.000 inches
•Plate thickness: .625 inch
•Weight (pounds): 1260
•Dimensions (LxWxH): 48 x 90 x 36

INCLUDES

(2)48 x 30 x 36 inch tall fixturing carts with casters, leveling feet, slag tray, and storage
(1) TDPK311 - Bridge kit with 48 x 30 plate
(20) T55055 - Adjustable Lock Bolts
(4) T54201 - Locating Pins
(4) PTT522K - 2.3 inch Inserta Pliers
(4) PTT634K - 4 inch Inserta Pliers
(4) UDN5150 - Inserta Clamps
(4) T54217 - Inserta Clamp Top V-Pads
(4) TCX5210 - Side Clamps
(8) T54205 - 2 inch Locate Stops
(8) T54203 - 1.5 inch Locate Stops
(16) T54216 - V-Block
(8) T54211 - V-Block Spacers
(16) T50632-01 - D-Stop Bars
(24) T50737 - Magnetic Rest Spacers
(4) T50304 - 2 inch Right Angle Brackets
(4) T50305 - 4 inch Right Angle Brackets
