BuildPro Welding Table Bundle, 78 x 46 inch, Nitrided

Part #: TMQ57846-TMK810
 Ships From: Factory shipped
Lead Time: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $7,018.80
Sale Price: $5,891.35
FREE SHIPPING
  • Save 15% on this BuildPro Welding Table for a Limited Time!
  • Includes 34-piece fixture kit
  • 5/8 inch holes spaced 2 inches apart
  • Table flatness of .004 per foot
  • Nitride coating for corrosion protection and anti-spatter
FREIGHT:
Freight
ORIGIN:
Import
BRAND:
Strong Hand Tools logo
Options:
Quantity:

Configuration

DESCRIPTION

This BuildPro 78 x 46 inch nitrided welding table by Strong Hand Tools offers faster fixturing and greater productivity with more consistent results. Their flexible, modular design makes them easy to adapt to your project, no matter the size. All tables feature a 4-beam support base, precision-ground steel plates, and heavy-duty steel legs with self-leveling feet. The nitrided finish of this table prevents weld spatter from sticking and makes for a rust-resistant work surface.

The nitride finish featured on this table is a heat-treat oxidative process that will keep your table looking and working great for years. The benefits of this process include: anti-spatter, corrosion protection, lubricity, and resistance to wear.

The BuildPro Welding table will decrease fixture set-up time, and increase work space and efficiency. Utilize the many BuildPro clamps and accessories for the ultimate welding system.

Tolerances

  • 1-3/4 inch spacing between plates
  • Table flatness of .004 per foot
  • Hole diameter: .625 +/- .002
  • Hole spacing: 2.000 +/- .0015
  • Plate thickness: .625


Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Capacity: Total static load based on even distribution
  • Standard Legs: 9,000 lbs
  • Caster Legs: 3,900 lbs

•Size: 46 x 78 inches
•Flatness: +/- .004 inches per foot
•Finish: Nitrided
•Hole diameter: 5/8 (.625)
•Hole spacing: 2.000 inches
•Plate thickness: .625 inch
•Weight (pounds): 764

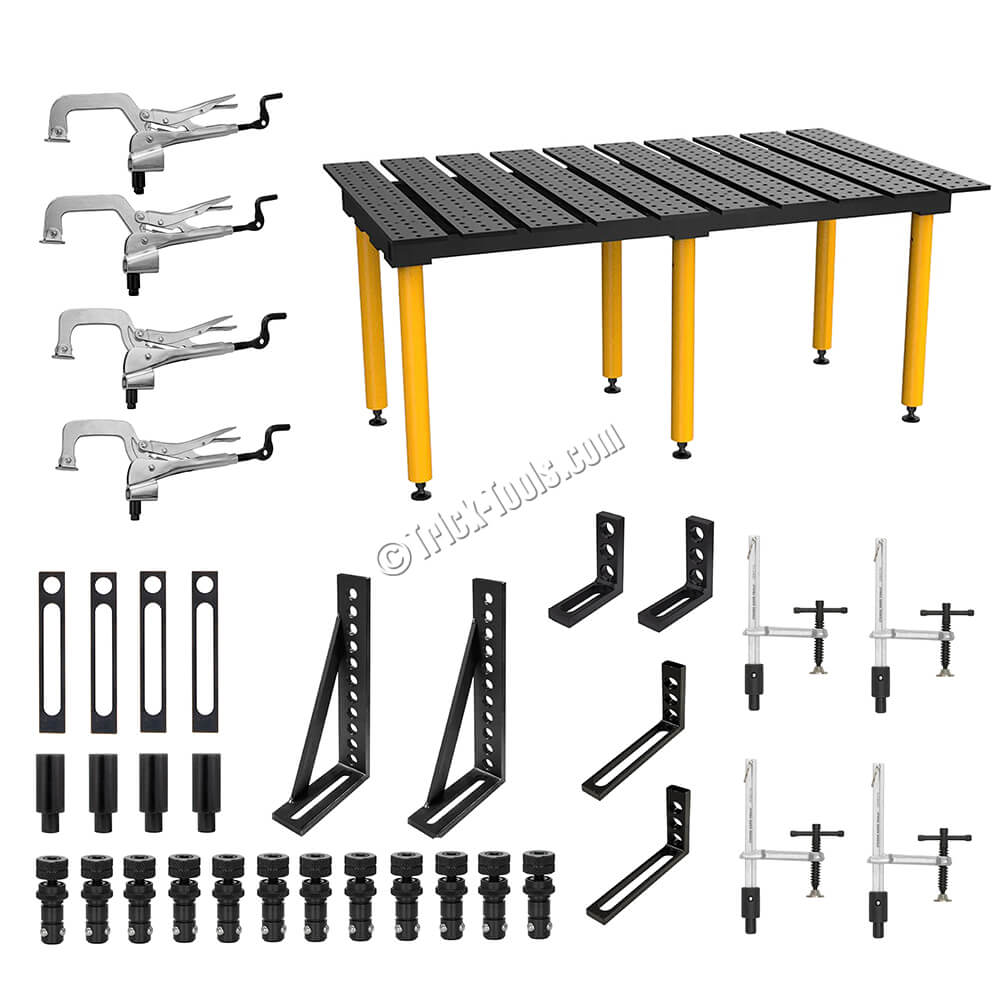

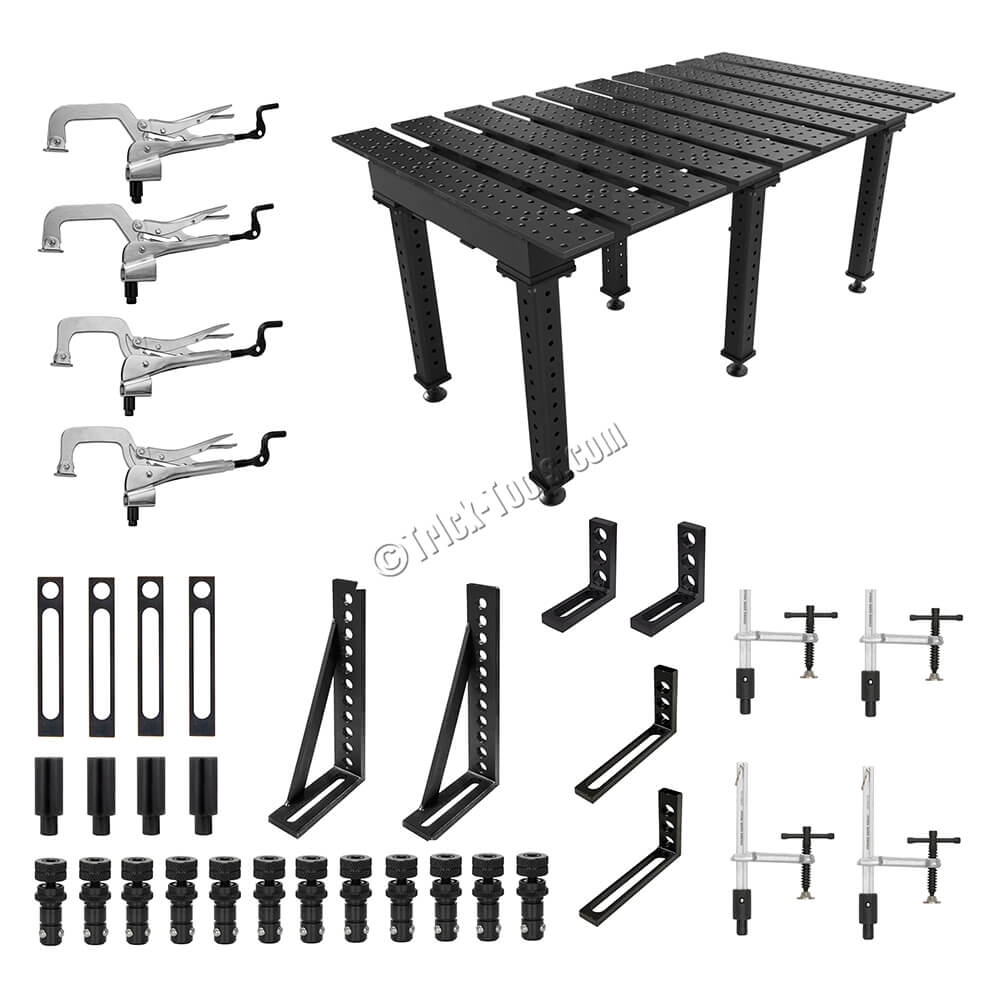

INCLUDES

  • (1) TMQ57846 6 x 4 foot Build Pro MAX Slotted Table (choose leg option from drop down box)
  • (4) UDN5150 - Inserta Clamps
  • (2) PTT634K - Inserta Pliers
  • (2) PTT934K - Inserta Pliers
  • (12) T55057 - Adjustable Ball Lock Bolts
  • (4) T50505 - Straight Edge Stops
  • (2) T50305 - Right Angle Brackets
  • (2) T50310 - Right Angle Brackets
  • (2) T50330 - Right Angle Brackets
  • (4) T54205 - Stops

DOCUMENTATION

PDFAdditional literature
