Tennsmith 24 inch Slip Roll, 20 gauge

Part #: SR24
Model: 86000
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $1,100.00

Precision ground rolls
Heavy cast end frames
Set up scales for repeatability

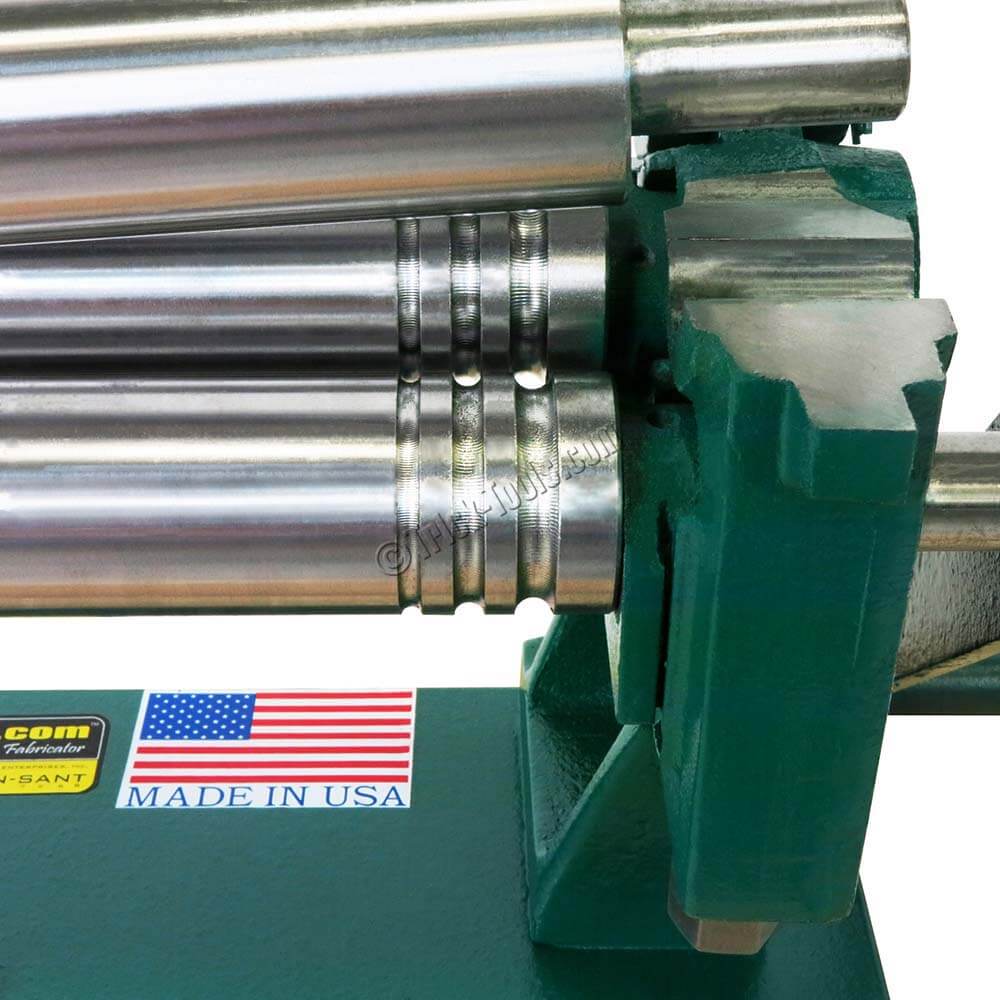

Includes wire grooves

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

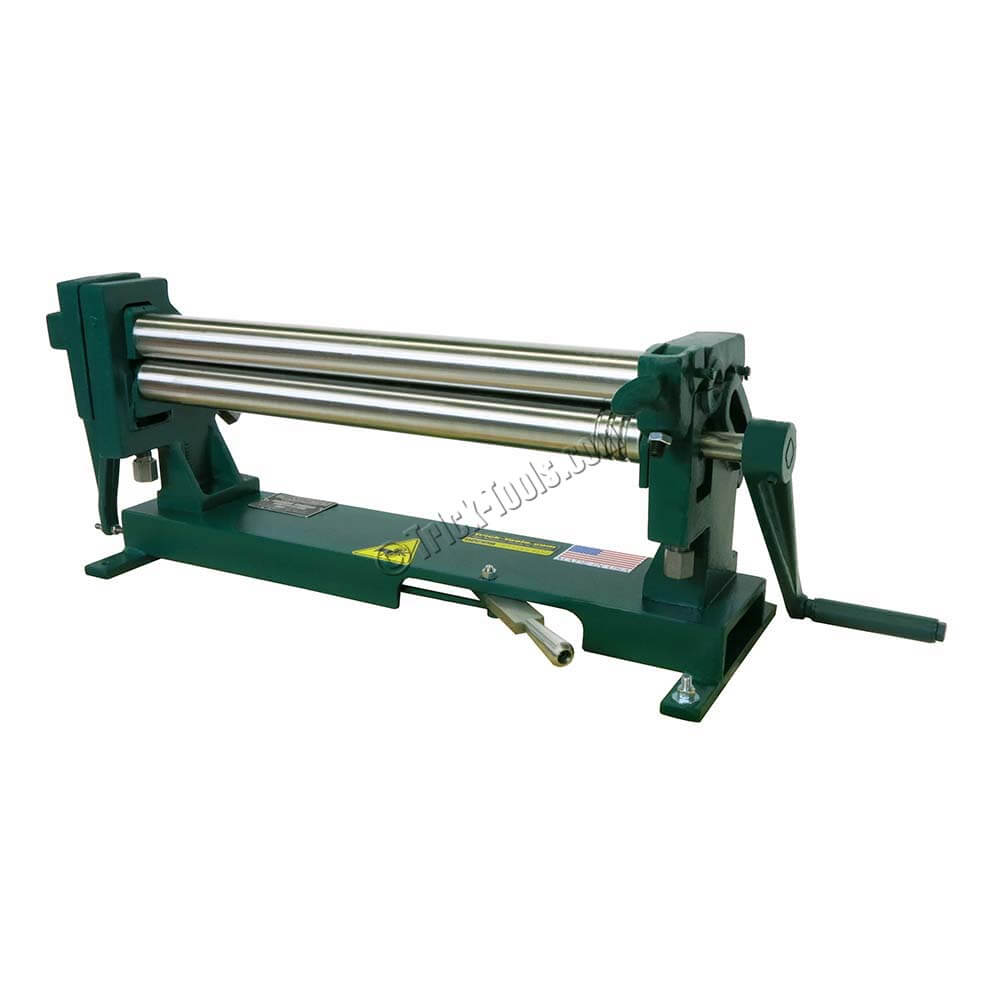

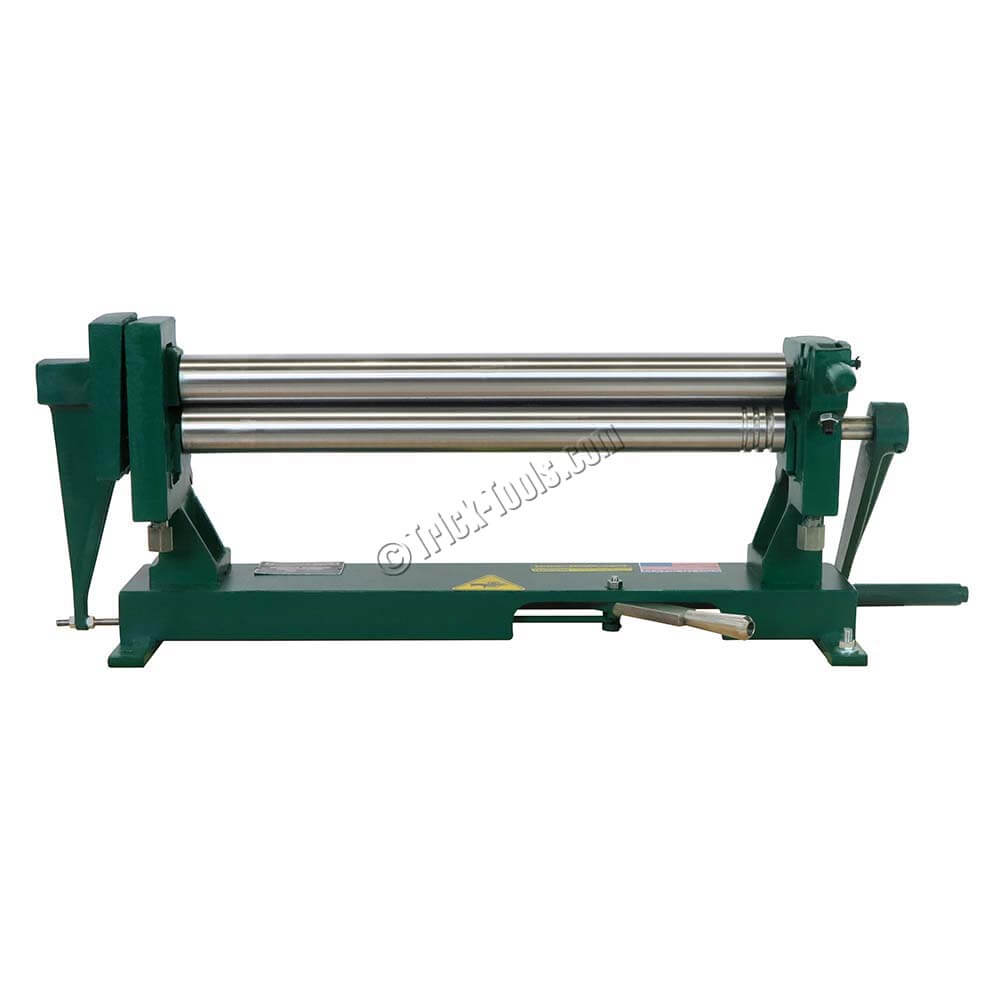

Tennsmith's SR24 slip roll combines precision-turned, ground, and polished high carbon steel rolls with heavy-duty cast iron end frames.

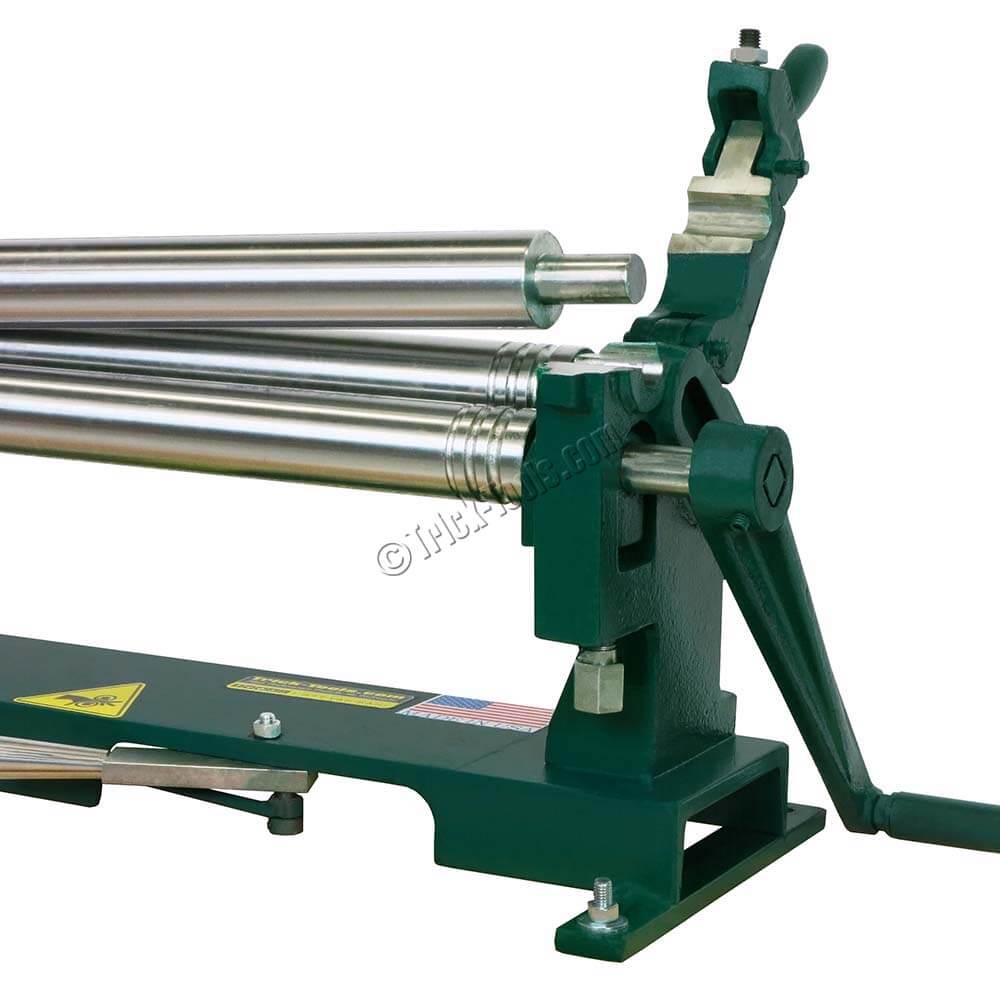

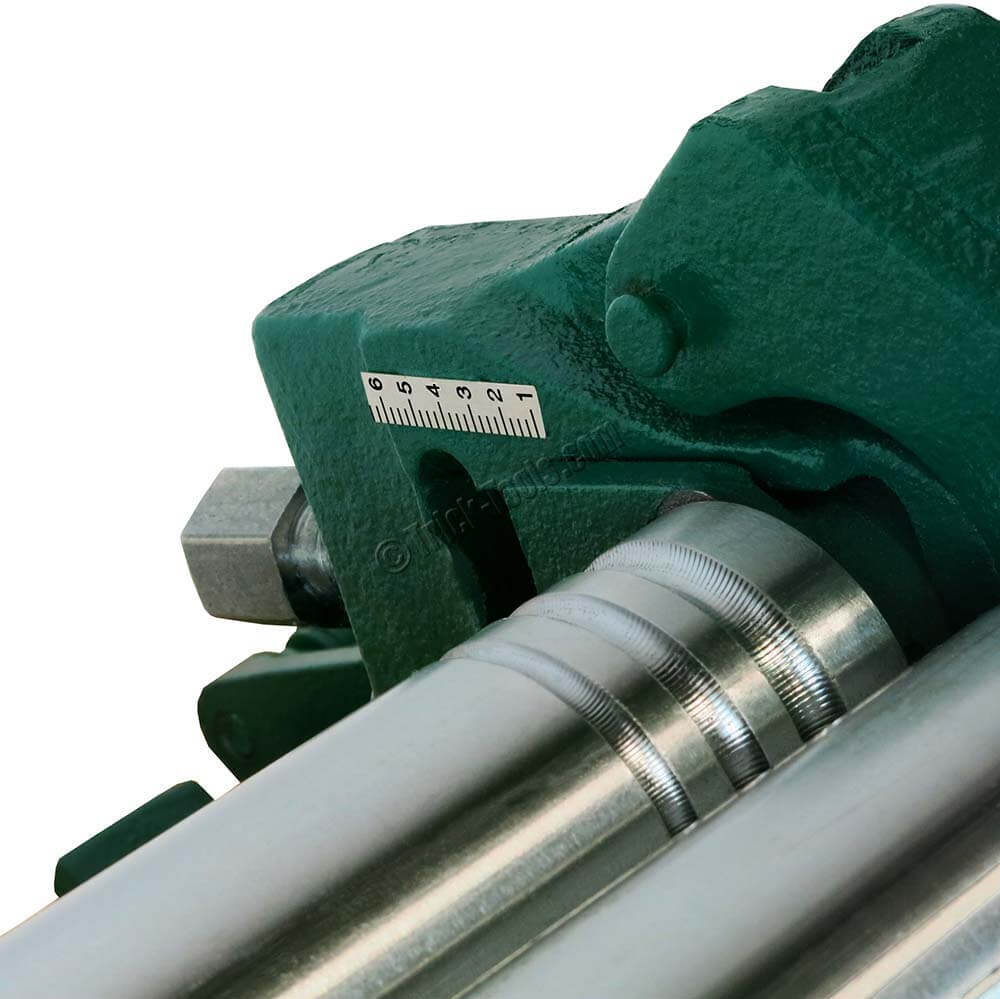

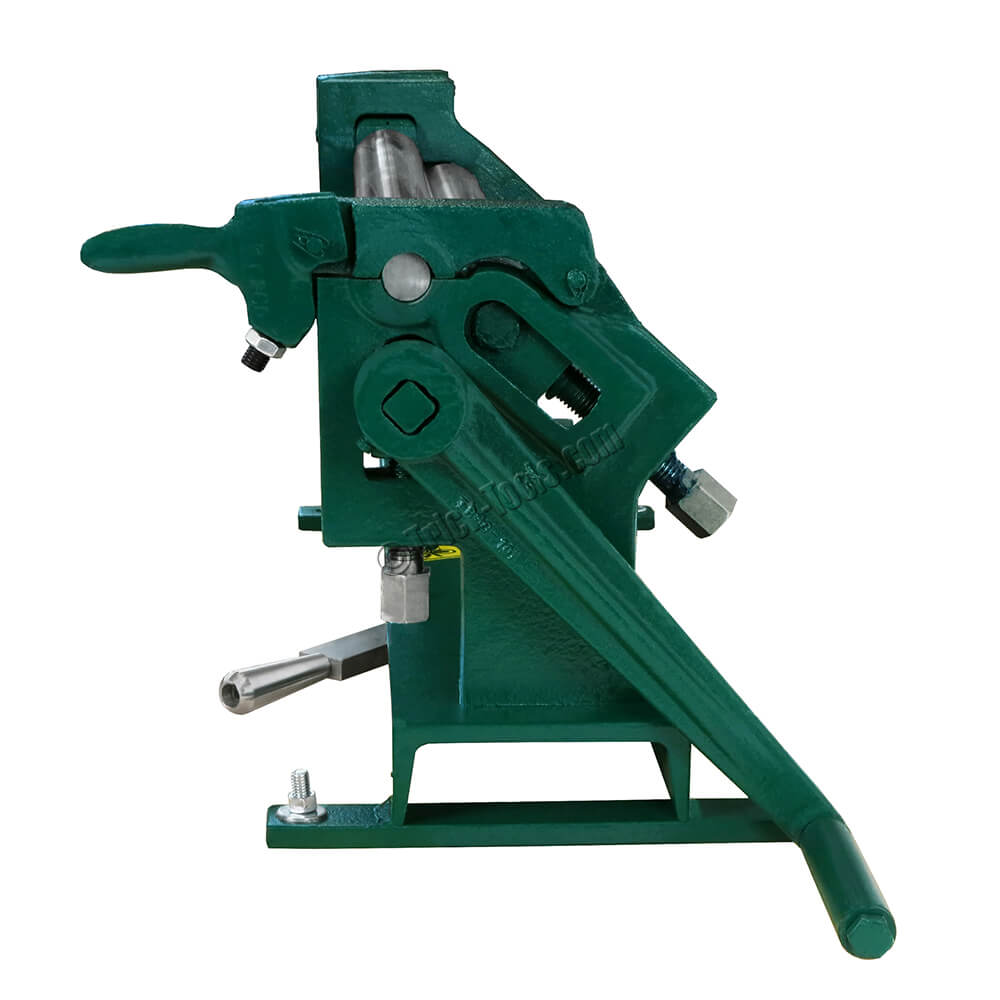

Convenient operating features include large roll adjusting screws, scales for speeding repeat set-up, and a front mounted handle to lift the upper roll for material removal. Wire grooves are also standard.

See accessories tab for optional stand, along with other slip roll accessories.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 20 gauge (.9mm)
•Stainless Capacity: 24 gauge (.6mm)
•Working Length (inches): 24
•Min Forming Radius (inches): 1
•Number/Dia Of Rolls: (3) 2 inch
•Driven Rolls: 2
•Wire Grooves: 3/16 inch, 1/4 inch, 5/16 inch
•Weight (pounds): 190
•Dimensions (LxWxH): 38 x 19 x 19
