Tennsmith 48 inch Slip Roll, 16 gauge

Part #: SR48
Model: 86015
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $4,775.00

Precision ground rolls
Heavy cast end frames
Set up scales for repeatability
3 driven rolls

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

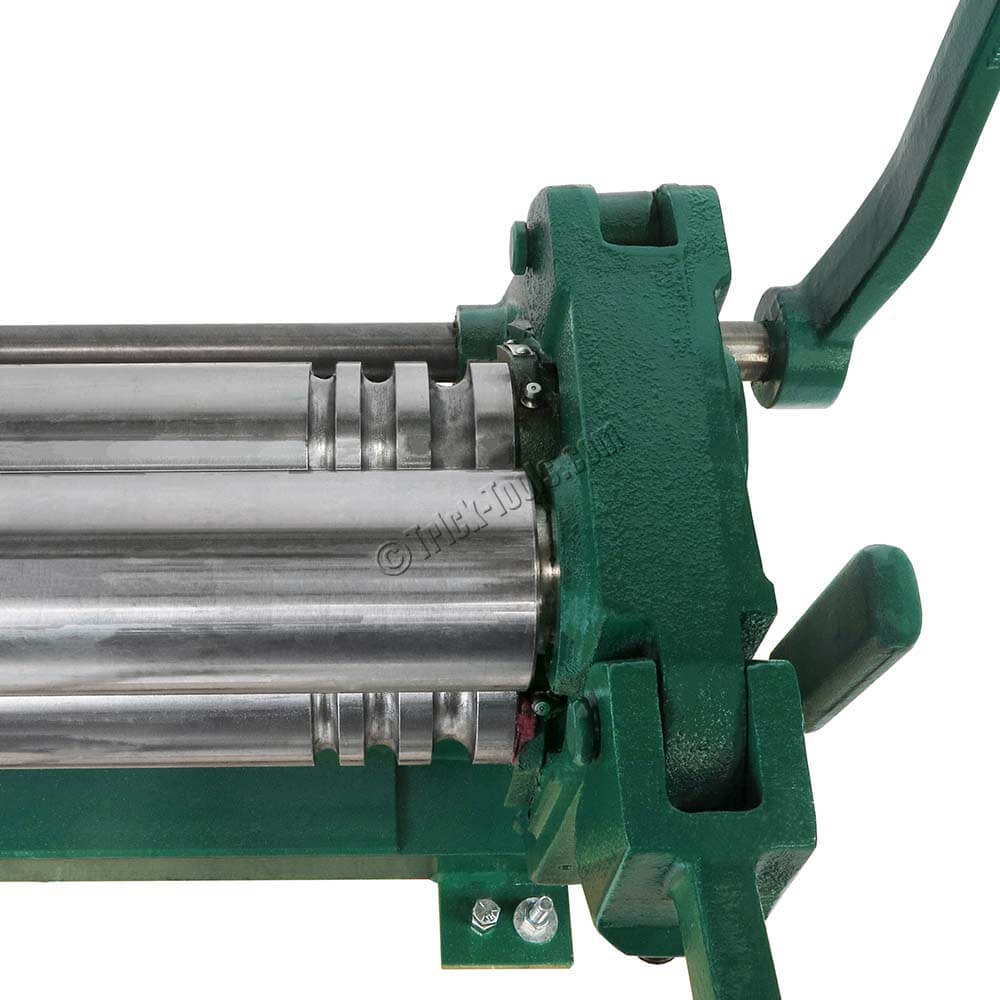

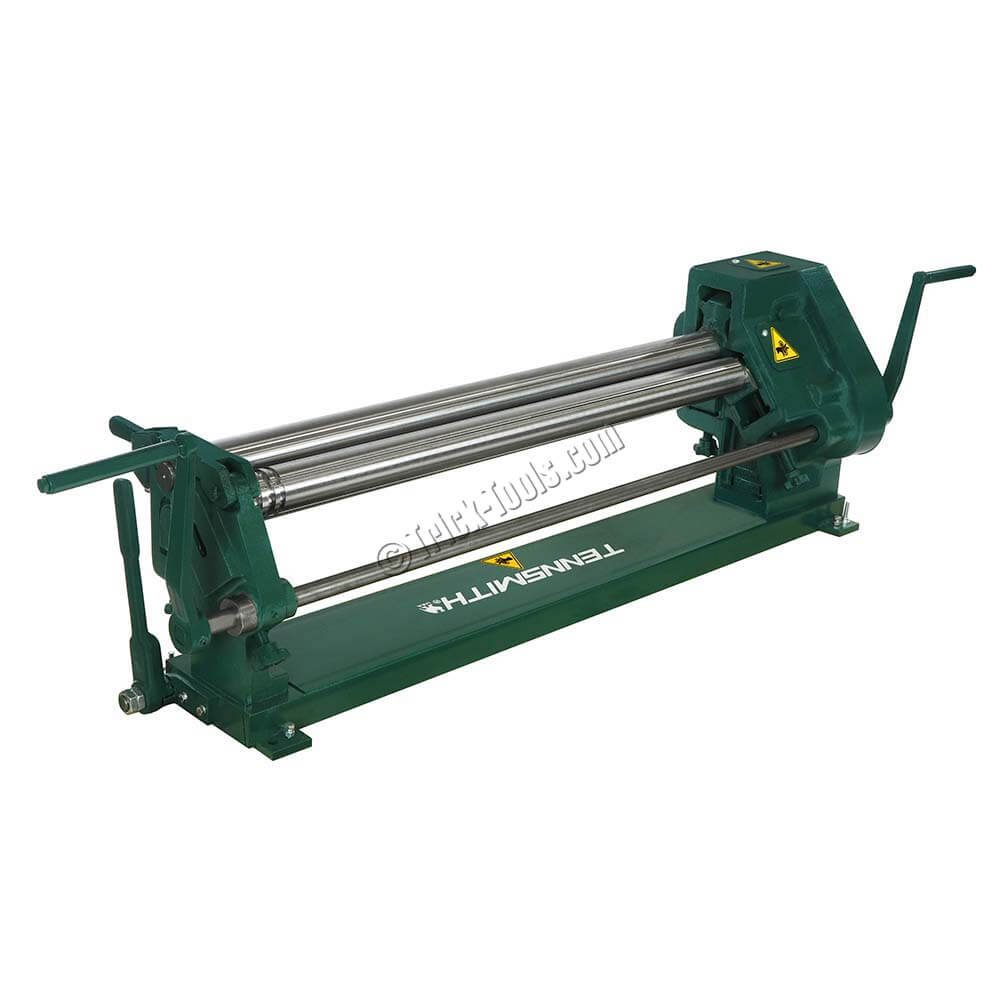

Tennsmith's SR48 slip roll combines precision-turned, ground, and polished high carbon steel rolls with heavy-duty cast iron end frames.

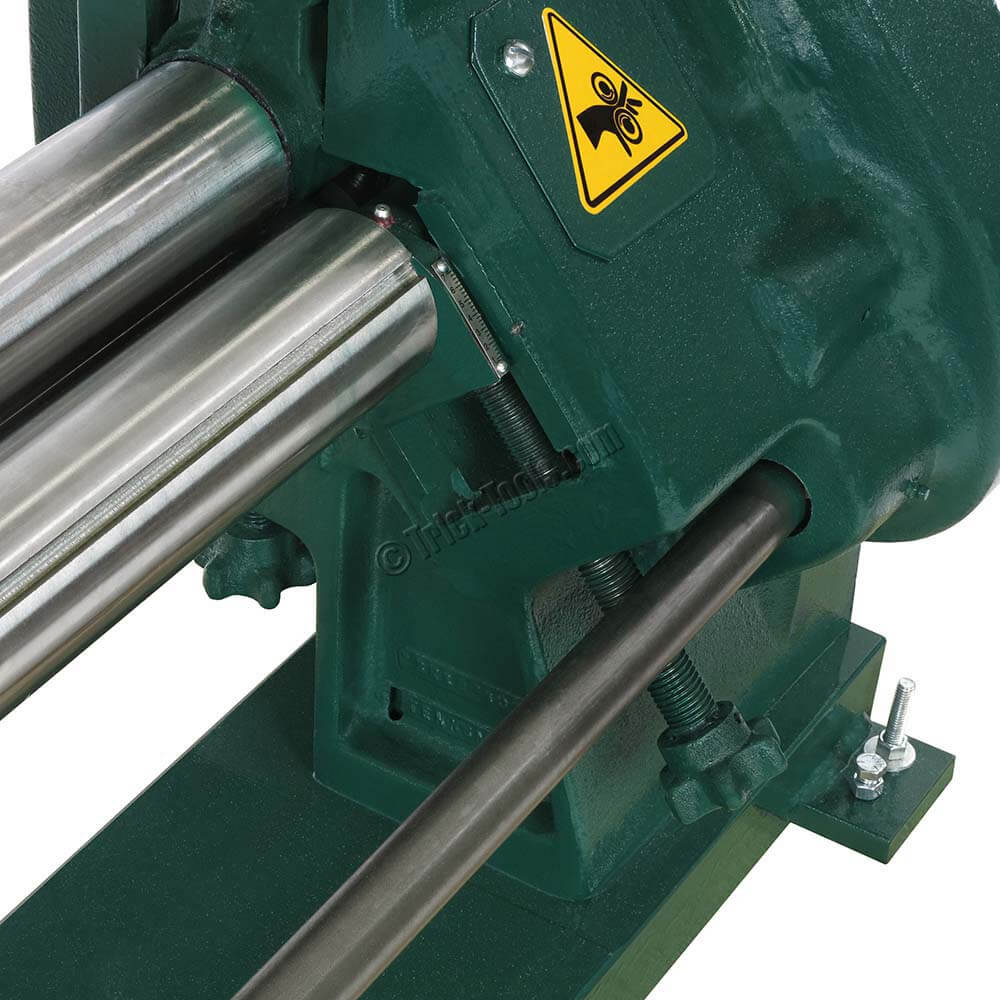

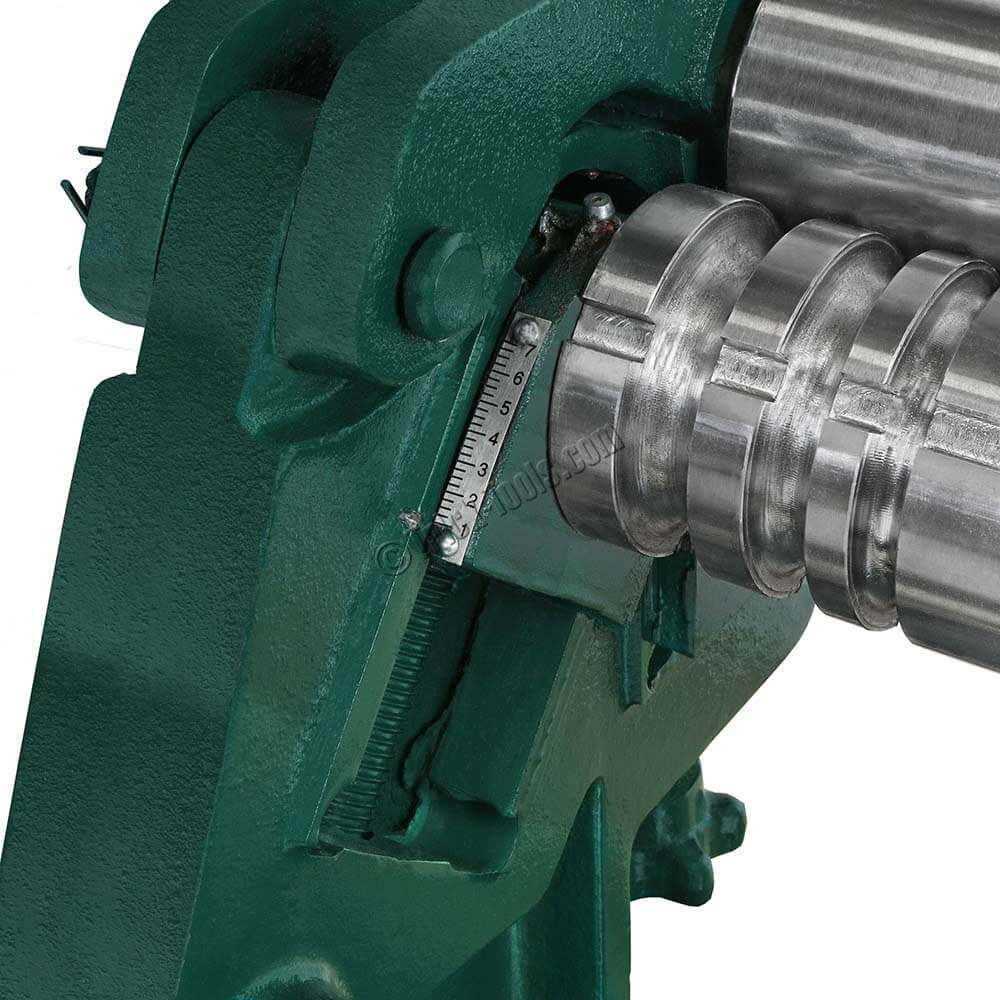

Convenient operating features include large roll adjusting screws, scales for speeding repeat set-up, and a front mounted handle to lift the upper roll for material removal.

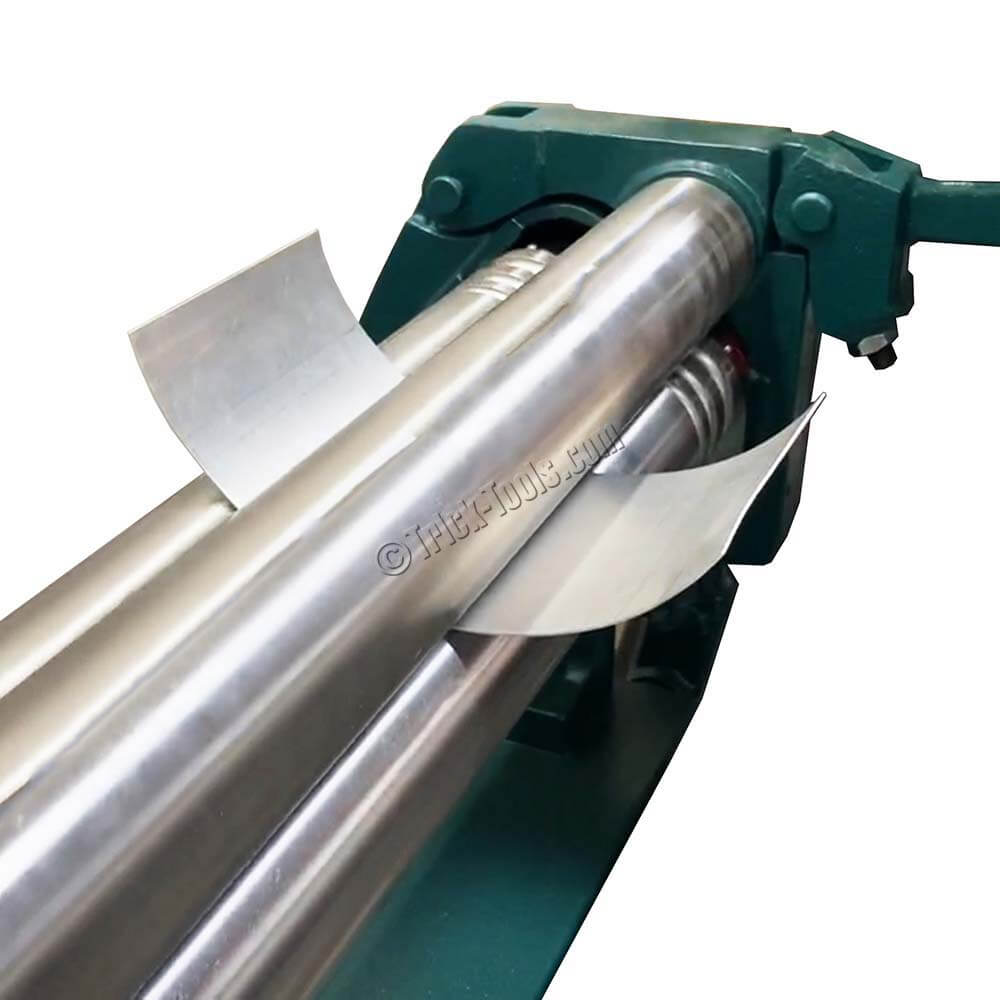

The SR48 also has 3 gear-driven rolls that ensure even starting and feeding of capacity materials. The SR48 also features constant drive of the rolls. All three rolls continue to drive throughout their adjustment range. Wire grooves are also standard.

See accessories tab for optional stand, along with other slip roll accessories.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 16 gauge (1.5mm)
•Stainless Capacity: 20 gauge (.9mm)
•Working Length (inches): 48
•Min Forming Radius (inches): 1.5
•Number/Dia Of Rolls: (3) 3 inch
•Driven Rolls: 3
•Wire Grooves: 3/8 inch, 1/2 inch, 5/8 inch
•Gear Ratio: 4:01
•Weight (pounds): 1100
•Dimensions (LxWxH): 77 x 30 x 22
