MetalAce 6 foot Radius Brake with 5 Radius Rolls, 16 gauge

The MetalAce RB7216 6-Foot Radius Brake is a professional sheet metal forming machine designed to produce smooth, consistent radius bends that are impossible to achieve with a conventional straight brake. With a full 72-inch working length and 16-gauge mild steel capacity, this heavy-duty manual brake is an excellent choice for race car fabrication, automotive restoration, aircraft work, architectural metal, trailer fabrication, and custom sheet metal shops.

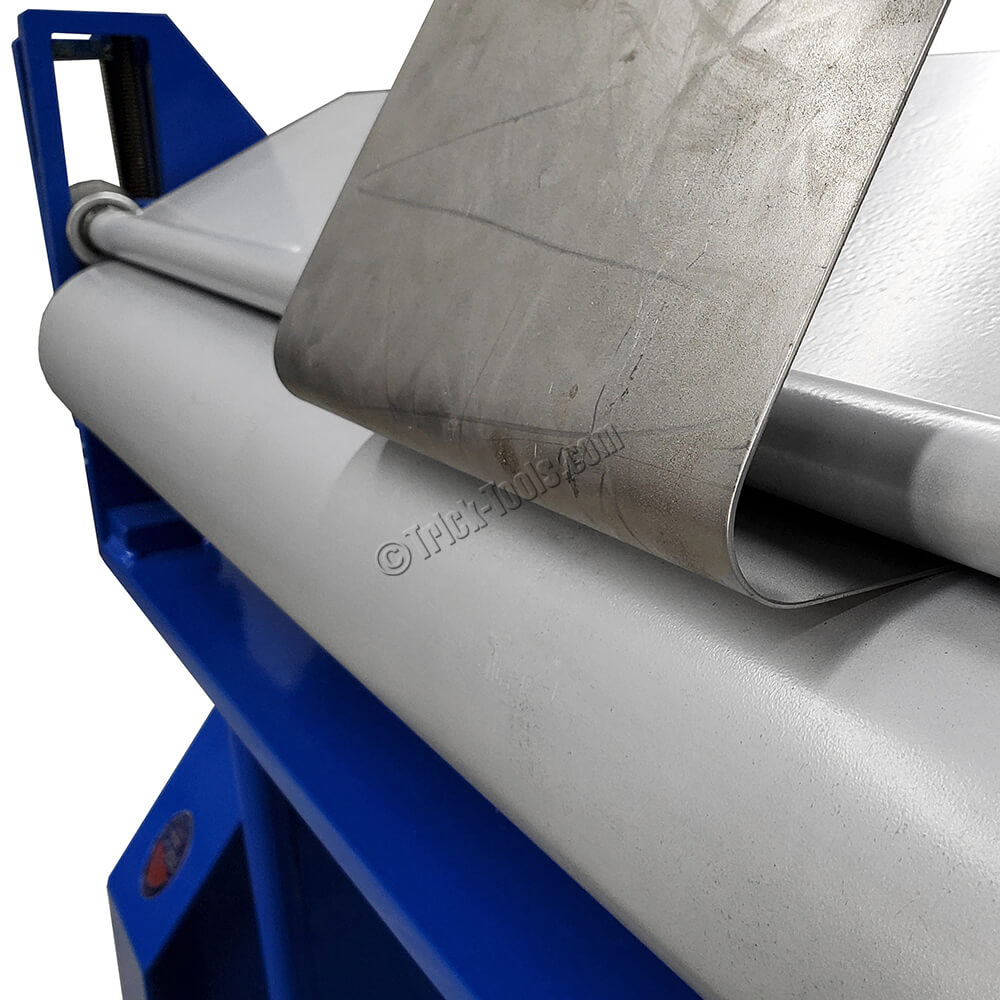

Unlike a traditional sheet metal brake that folds material over a sharp nose bar, the MetalAce Radius Brake forms the panel around interchangeable radius rolls. Its unique apron design swings outside the radius and rolls the material around the selected former, helping minimize stretching, stress, distortion, and cracking during the bending process. This is especially valuable when forming aluminum panels and other materials where maintaining a smooth, consistent bend is critical.

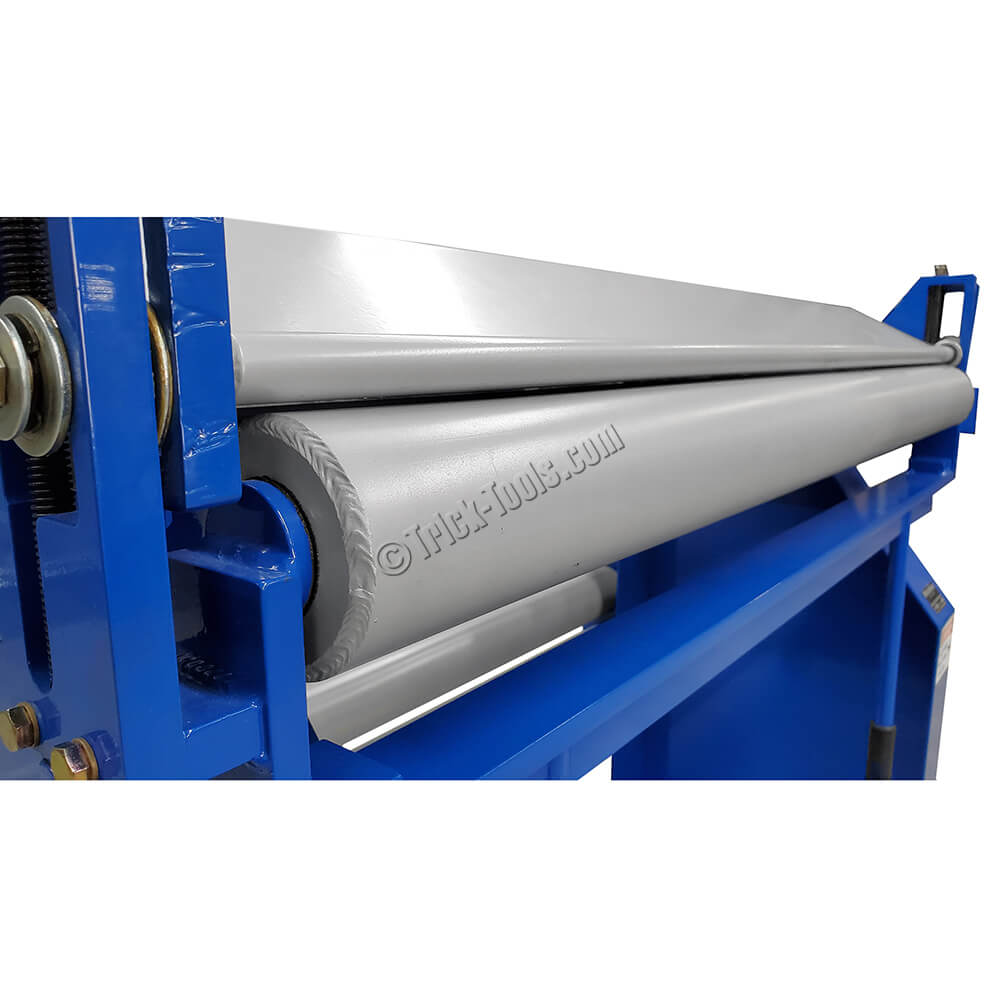

The RB7216 includes five interchangeable radius rolls, giving you the flexibility to create bends ranging from a tight 1/2 inch radius all the way up to a broad 2 inch radius. Tooling changes are quick and straightforward, allowing fabricators to move between different bend radii without complicated setup. Convenient onboard roll storage keeps the tooling organized and close at hand when it is not being used.

With capacity for 16 gauge mild steel, .090 inch aluminum, and 20 gauge stainless steel across its 72 inch working length, the RB7216 has the capacity and versatility needed for serious fabrication work. Its heavy plate construction provides the rigidity required to maintain consistent bends across long panels while standing up to years of demanding shop use.

Included Radius Rolls:

• 1 inch OD former for a 1/2 inch bend radius
• 2 inch OD former for a 1 inch bend radius
• 2-1/2 inch OD former for a 1-1/4 inch bend radius
• 3 inch OD former for a 1-1/2 inch bend radius
• 4 inch OD former for a 2 inch bend radius

Key Features & Benefits:

• 72 inch working length accommodates large sheet metal panels
• 16 gauge mild steel capacity for demanding fabrication work
• .090 inch aluminum capacity makes it an excellent choice for race car and aircraft panels
• 20 gauge stainless steel capacity expands its versatility
• Creates smooth bends from 1/2 inch through 2 inch radius
• Includes five interchangeable radius forming rolls
• Quick tooling changes make switching between bend radii fast and easy

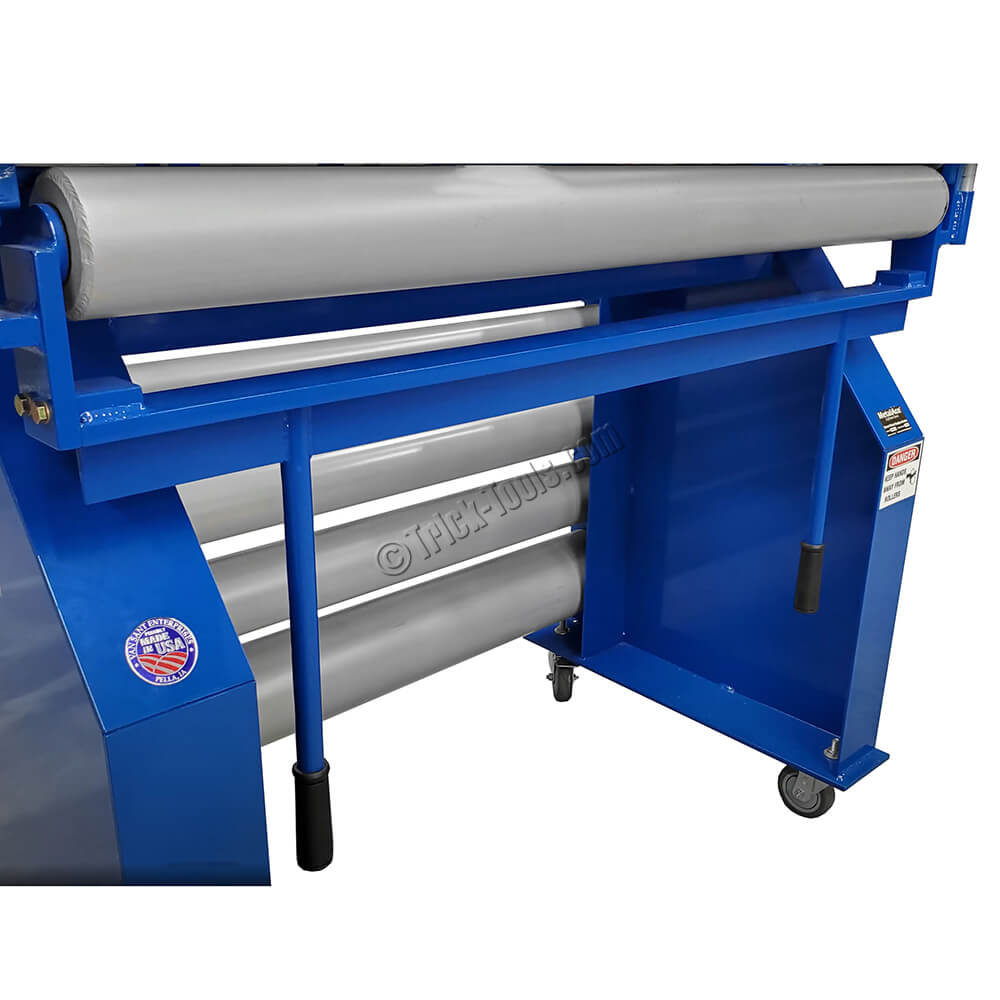

• Built-in radius roll storage keeps tooling organized and readily accessible
• Heavy-duty plate construction provides excellent rigidity and durability
