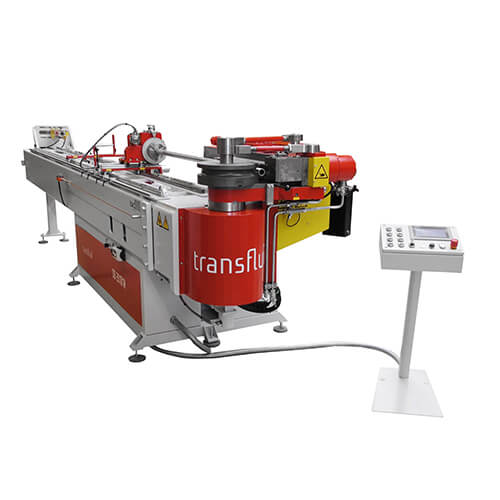

Transfluid 20101k Mandrel Bending Machine

Part #: DB20101k
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $154,660.00

4 inch OD capacity
Programmable bend angle with manual movement of the tube
Controlled mandrel withdrawal
Boosted pressure die
Optional length stops

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

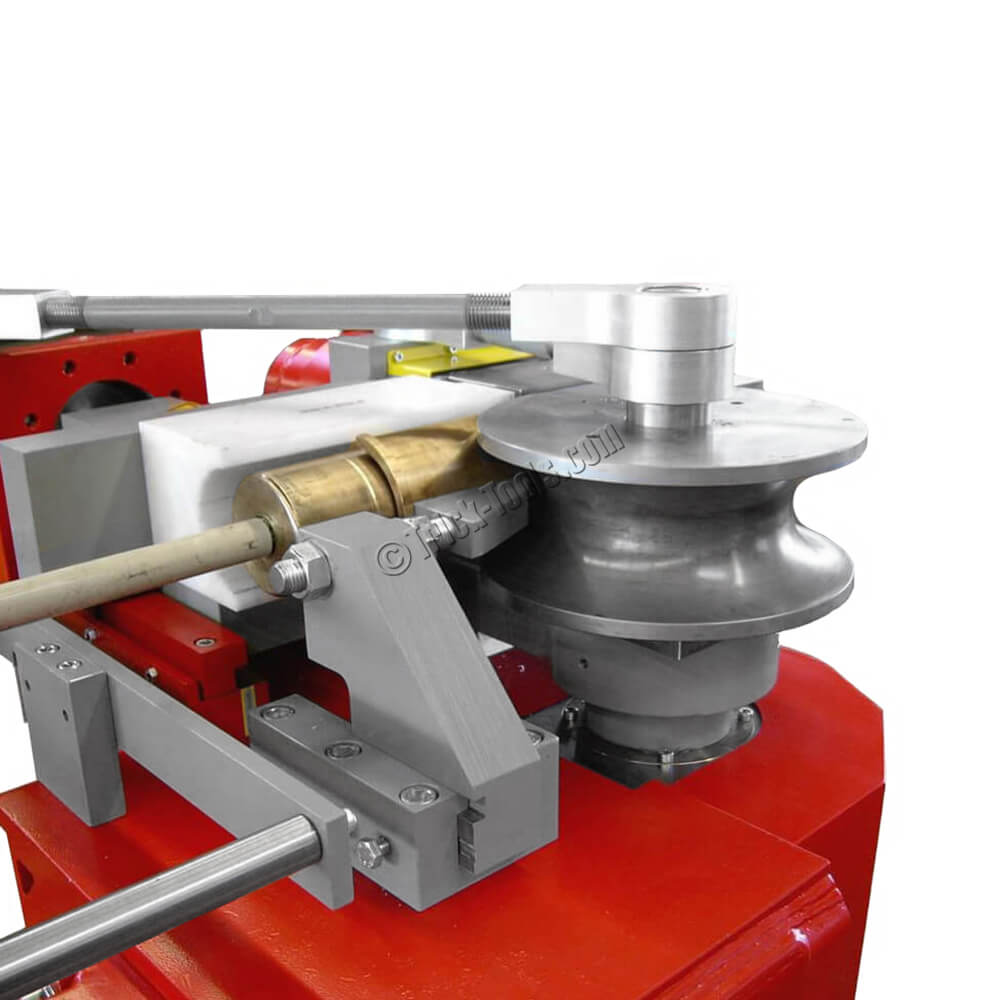

The Transfluid K Series machines are built with simplicity and ease of use in mind. These benders offer hydraulic muscle with digital accuracy. With capacity up to 4 inches, bend radii as tight as 1.5 X Diameter in their standard configuration and tolerance of +/- .1 degree, these machines are as versatile as they are economical. We also offer a new following pressure die option for even tighter bend to bend distances or tighter CLR's. Lengths available from 10 to 20 feet. The 20101k includes programmable mandrel withdrawal during bending which is the key to bending thin wall materials like automotive exhaust systems.

Features include:

PLC touchscreen control with 500 bend memory
Automatic bending sequence
10 foot bending length
Hydraulic clamping and pressure die closure
Removable bend shaft for small diameter bend radius
Boosted pressure die to minimize wall thinning
Mandrel lubrication pump

Available options:

Arbor extension up to 20 feet
Plane of bend and length stops
Digital display for length and rotation

Starting prices listed. Please call us with your application for a quote.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 4 x .134
•Nominal PIPE Capacity: 2-1/2 inch schedule 40
•Square Mild Steel Capacity (inches): 3 x .118
•Minimum OD (inches): 1/4
•Max Bending Speed: 9 seconds to 90 degrees
•Bending Style: mandrel
•Max Center Line Radius (inches): 8
•Max Degree of Bend: 190
•Control Method: 500 part / 20 bends per part touch screen control
•Accuracy: .2 degrees
•Maximum OD (inches): 4
•Weight (pounds): 5500
