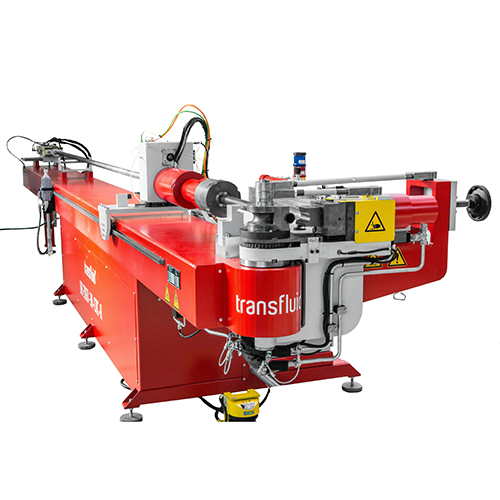

Transfluid 2060-3A CNC Mandrel Tube Bending Machine

Part #: DB2060-3A-CNC-R
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $246,020.00

NEW

3 inch OD max capacity
3-axis CNC controlled with Siemens electrics
Hydraulic clamping and bending with servo-electric positioning

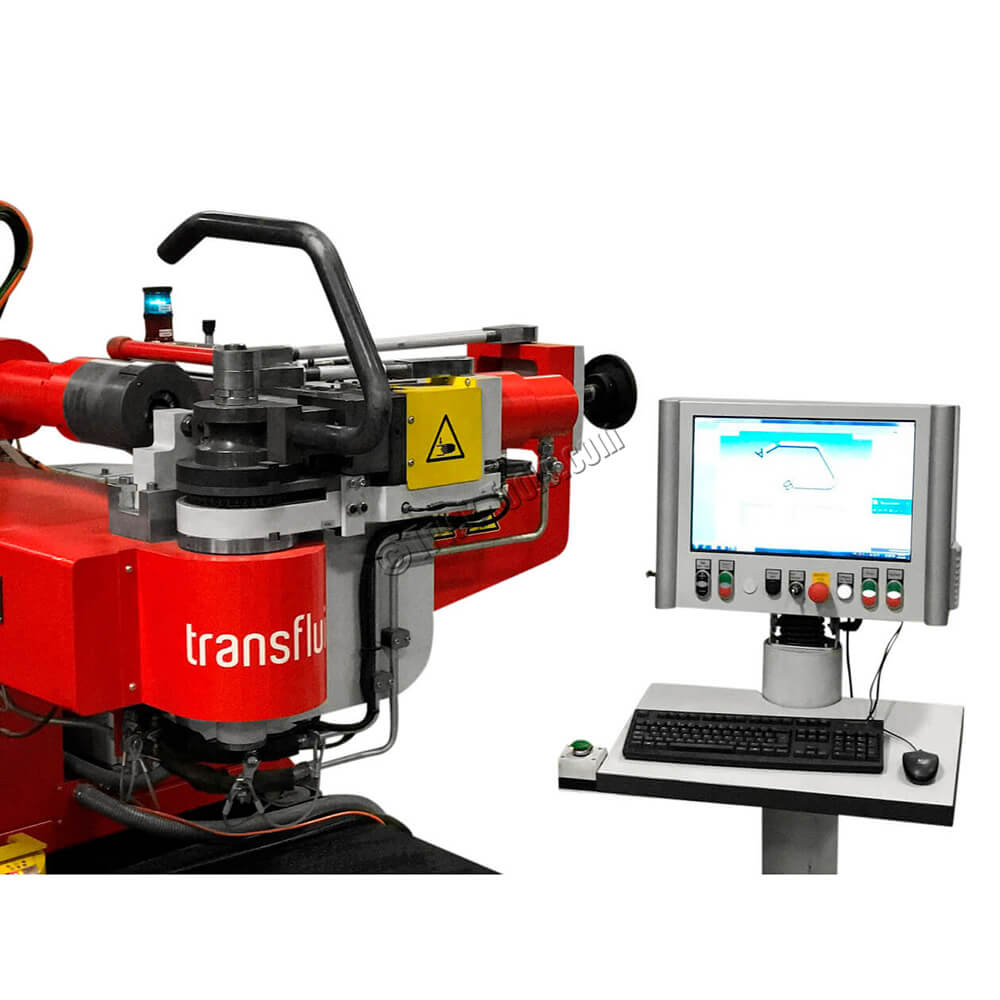

Includes computer with cabinet and software

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The Transfluid 2060-3A-CNC is a robust CNC tube bender, perfect for roll cages, exhaust headers, handrails, and much more. The innovative servo-hydraulic system only runs when hydraulic pressure is required which reduces energy consumption by up to 70% and extends the life of involved components. The computer control stores virtually unlimited parts with up to 20 bends per part along with all required data to reproduce parts quickly and consistently. Once the tube is loaded, the operator can simply press the start button and create a multiple bend part completely hands-free. Typical 4-bend parts can be created in under 2 minutes.

Features include:

Windows based control with up to 20 bends per part
10 foot bending length up to 3 inch OD, 20 foot bending length up to 2-3/8 inch OD

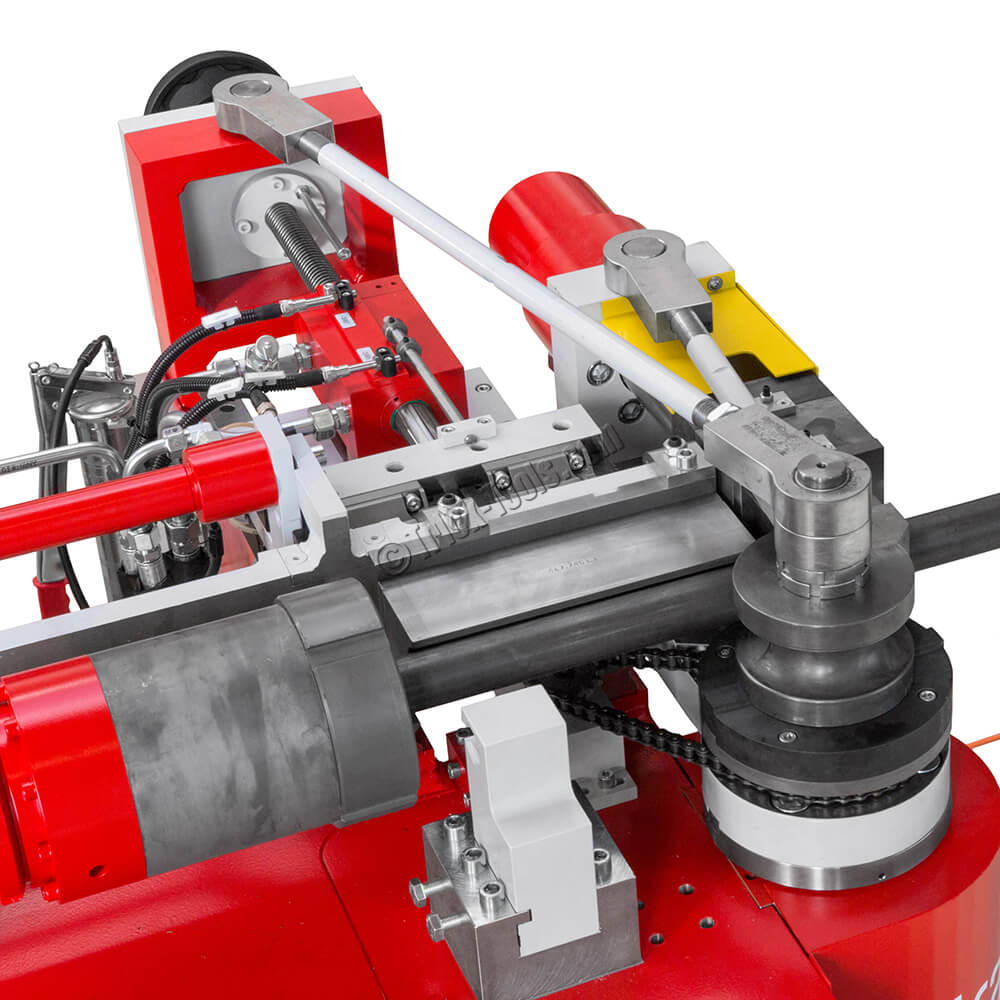

Controlled mandrel withdrawal
Following pressure die
Central lubrication of all movable parts
Mandrel lubrication
Tele-diagnostic system

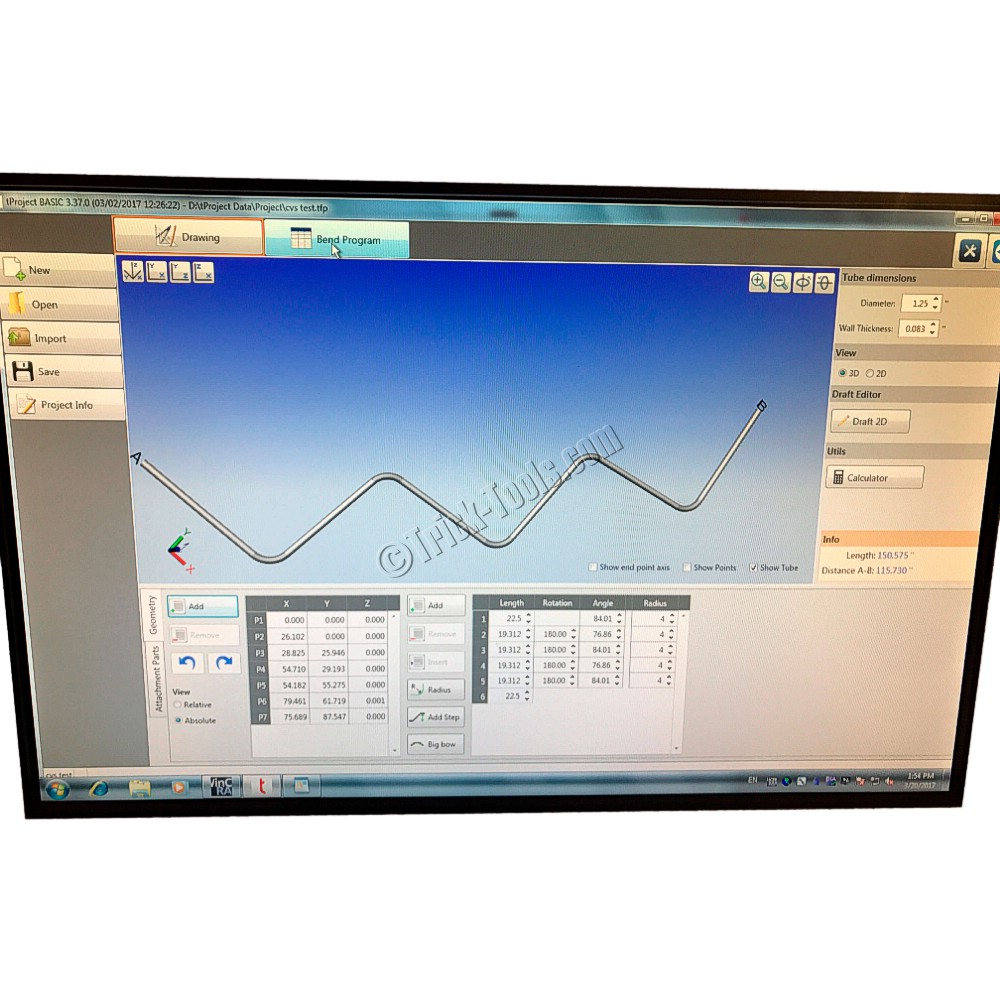

Complete design, simulation and collision avoidance software
Optional STEP file import converter

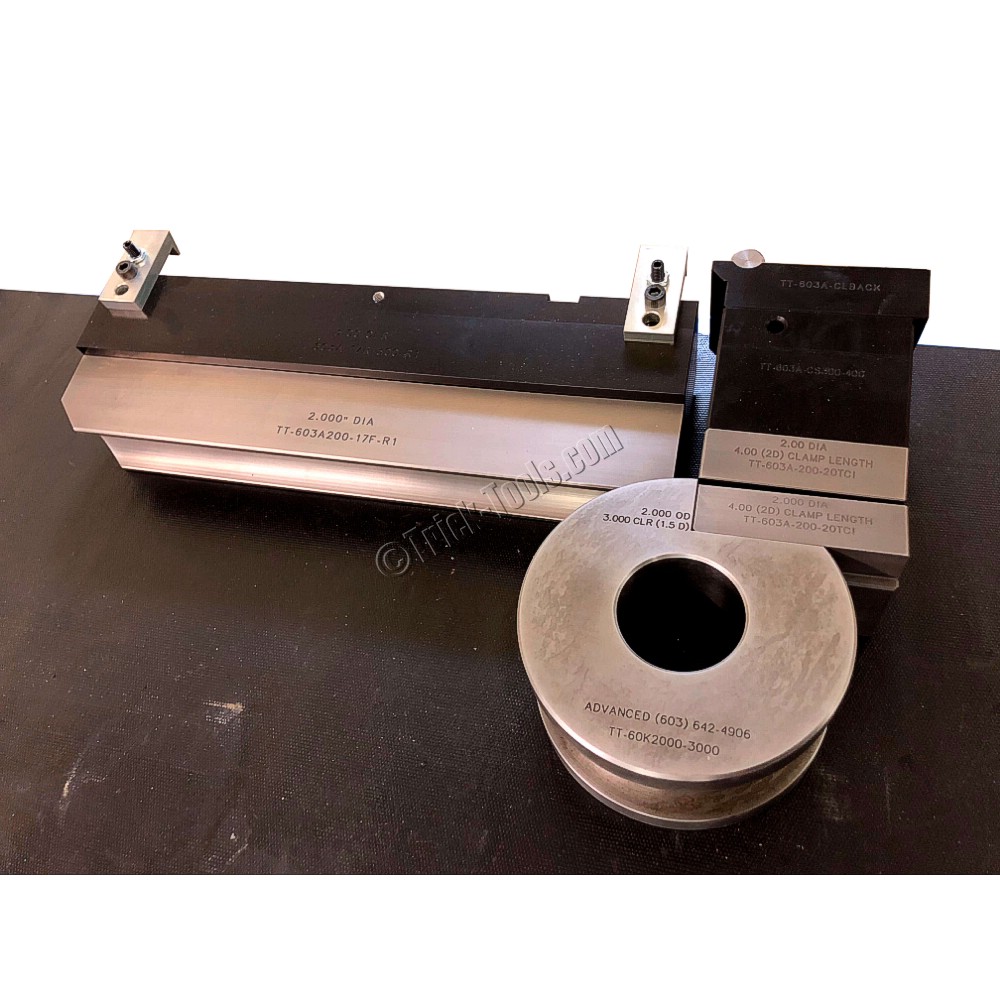

Please call us with your application for a formal quote with tooling.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 3 x .120
•Nominal PIPE Capacity: 2 inch schedule 40
•Minimum OD (inches): 1/4
•Max Bending Speed: 21 degrees per second
•Bending Style: mandrel
•Max Center Line Radius (inches): 6
•Max Degree of Bend: 190
•Motor: 440 volt 3 phase
•Accuracy: .2 degrees bend angle and rotation, .012 inches length
•Maximum OD (inches): 3
•Weight (pounds): 11500
