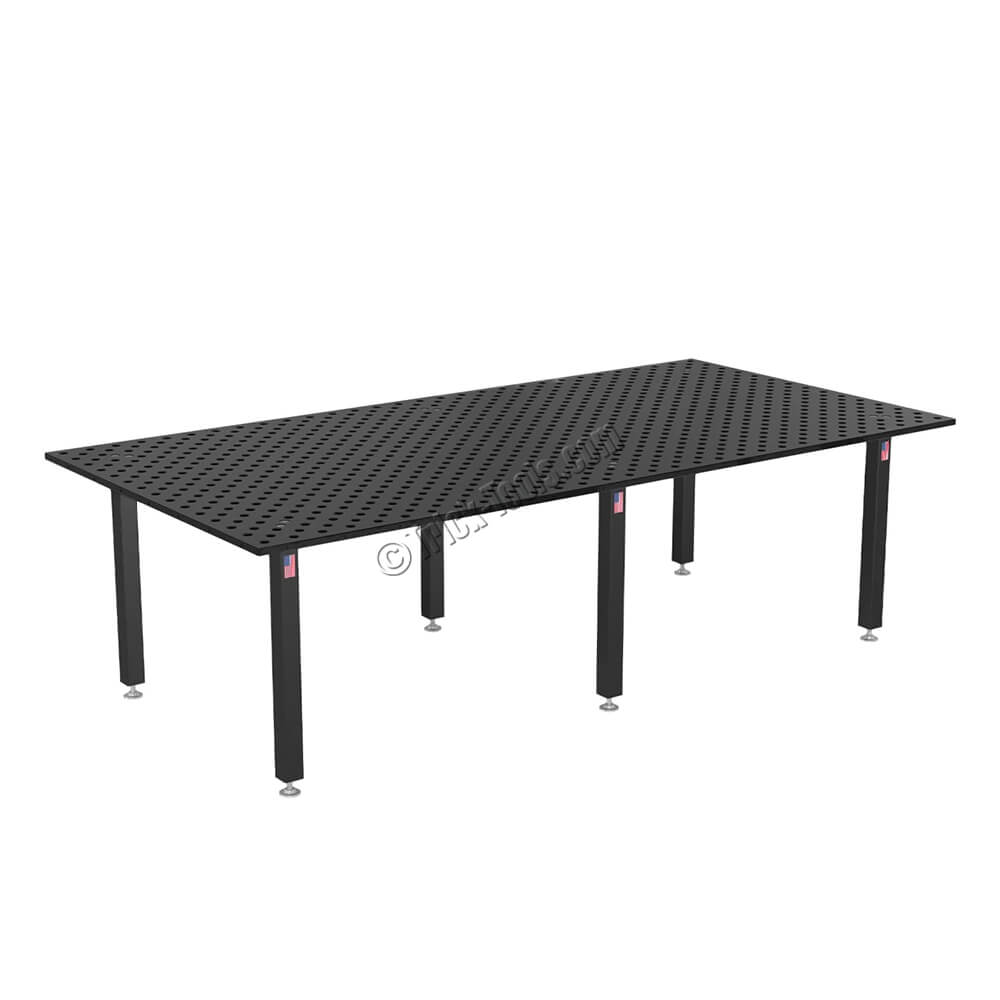

Siegmund Imperial 28 Basic Welding Table, 60 x 120 inch

Name: Siegmund Imperial 28 Basic Welding Table, 60 x 120 inch
Brand: Siegmund
SKU: US281040.XD7
Price: 9525.00 USD
Availability: InStock

Part #: US281040.XD7
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $9,525.00

NEW

1-inch thick work surface
28mm holes spaced 4 inches apart
Nitride plasma finish for corrosion protection and anti-spatter
Includes stationary legs

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The Basic series is an economical way to get into the Siegmund line of fixture tables. They feature the same 28mm holes on a 4-inch diagonal grid and are made with Professional Extreme 8.7 Hardened Tool Steel with Plasma Nitration. This 1-inch top has M12 threaded holes on the sides along with 1/10-inch radius table edges and 1/4-inch radius corners for a nice clean finish. The Siegmund Basic series tables are great for use in robotic welding cells, on lighter weight projects, or as an economical way to enter the Siegmund lineup.

Note: *Oversized Item* Please reach out to our sales team to request a shipping quote.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Capacity: Total static load based on even distribution

Standard Legs: 10,977
Caster Legs: 417 lbs

•Size: 60 x 120 inches
•Finish: Nitrided
•Hole diameter: 28mm
•Hole spacing: 4 inch
•Plate thickness: 1 inch
•Weight (pounds): 2223
