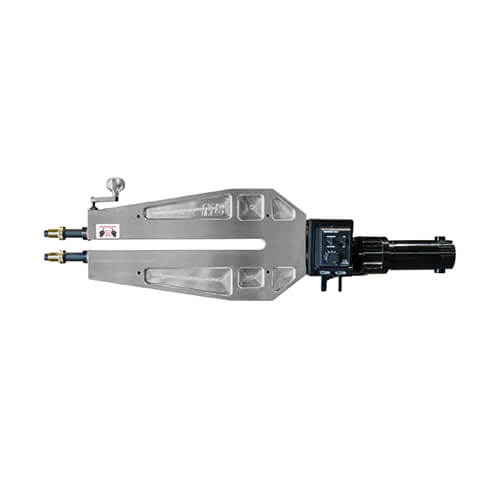

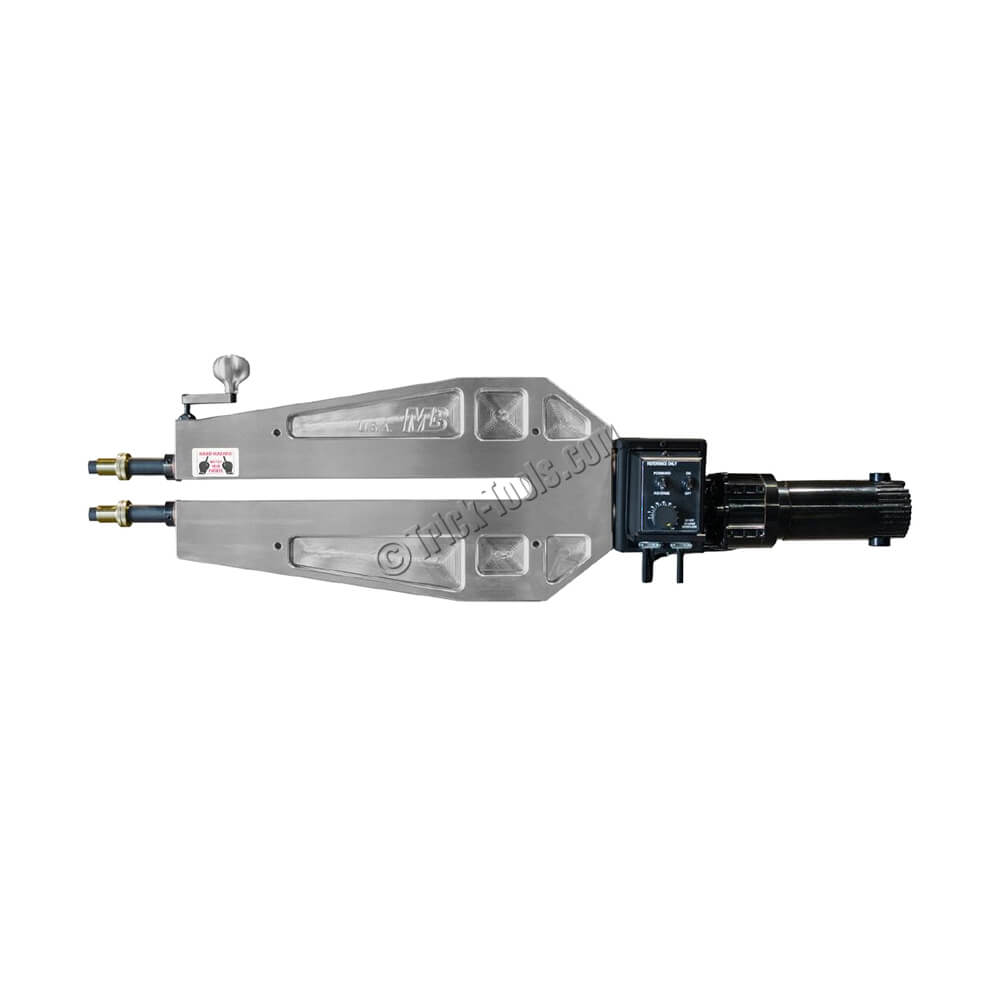

Mittler Bros. 24 inch Bead Roller with Adjustable Shafts

Part #: 210-24NV-A
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,175.00

24 inch throat depth

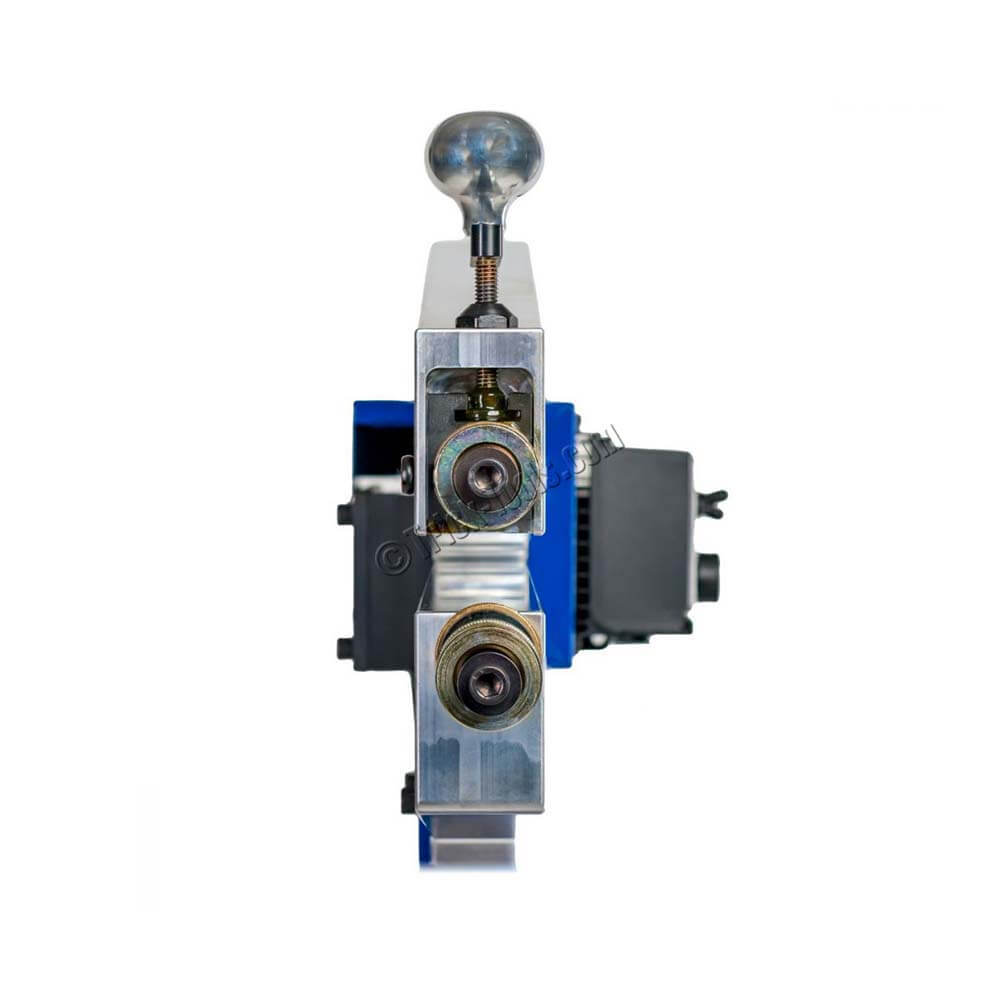

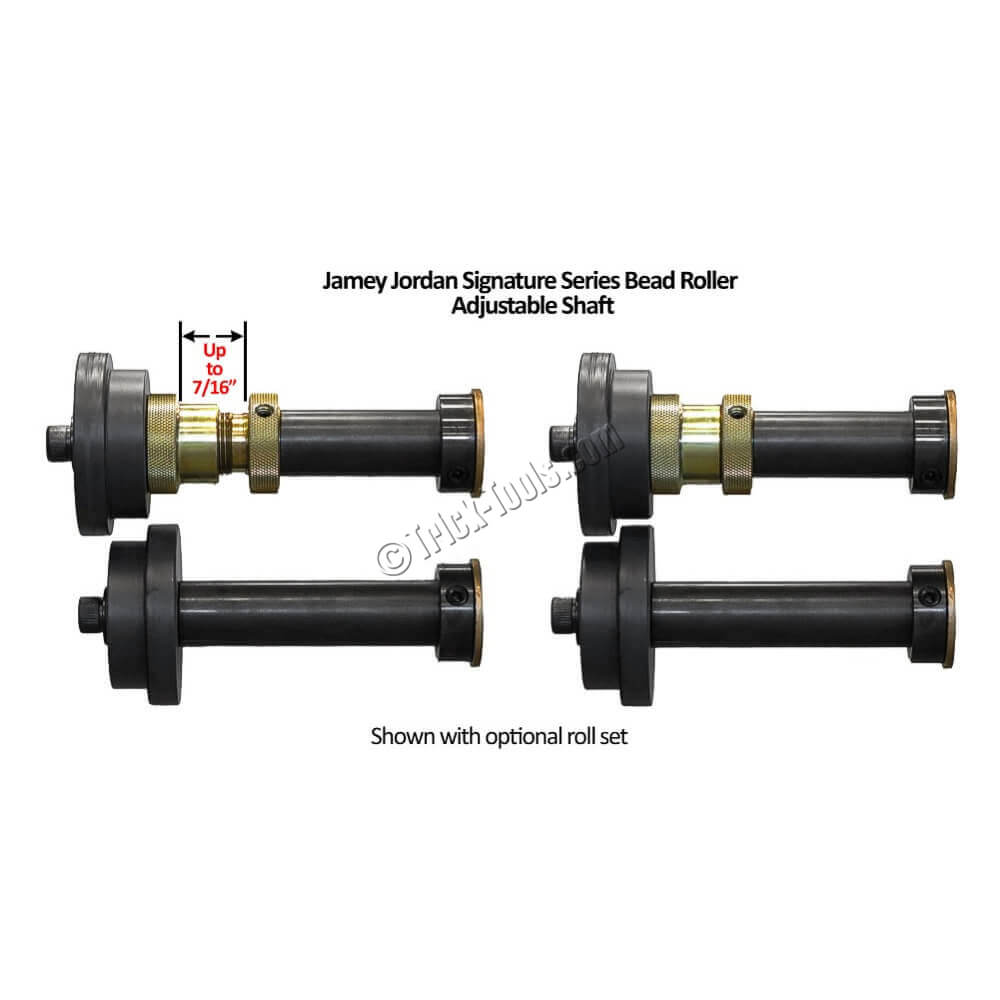

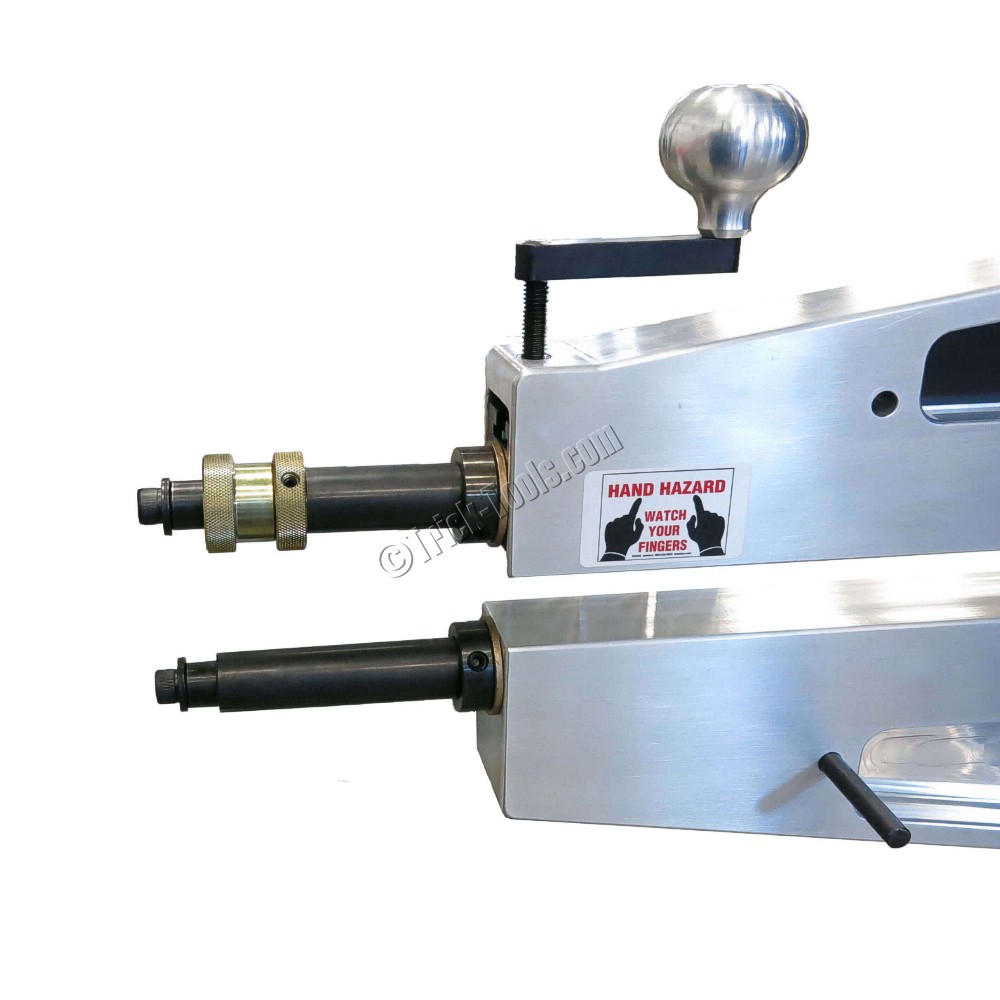

Adjustable upper and lower shaft
16 gauge mild steel, .063 aluminum capacity
Variable speed foot pedal control and max speed dial

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

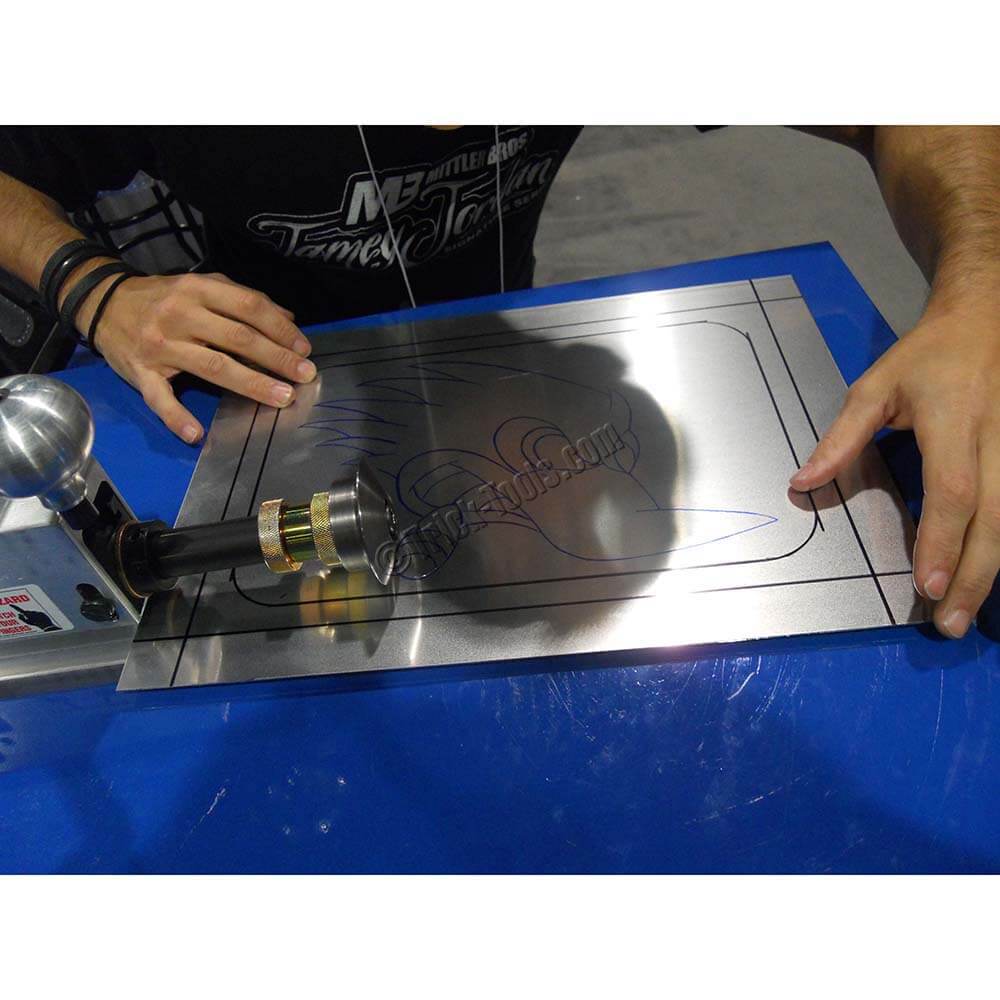

The Mittler Bros 24 inch Bead Roller is perfect for custom built sheet metal panels in street rods, aircraft restorations, and race cars. This machine is specially equipped with an adjustable upper and lower shaft for greater flexibility with bead profiles.

Machined from billet aluminum, with 3/4 inch heavy duty shafts and hardened drive gears, this bead roller is built very ruggedly.

The machine features a variable speed foot pedal control with a reversible 110 volt motor. Capacity is rated for 16 gauge (.059) steel and .063 aluminum.

Options such as a rolling pedestal, adjustable depth stop, and one of the largest selections of rolls available make this bead roller one of the best values available.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Steel Capacity (inches): .059 (16 gauge)
•Aluminum Capacity: .063
•Stainless Capacity (inches): .038 (20 gauge)
•Throat Depth (inches): 24
•Throat Height (inches): 1-1/8
•Motor: 1/8 hp 110 volt
•Construction: billet aluminum
•Dimensions (LxWxH): 36 x 5 x 12
