Mittler Bros. 36 inch Bead Roller with Adjustable Shafts - Ultimate Kit

Part #: 200-36NV-A-K2
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $5,079.50
Sale Price: $4,720.00

NEW

Adjustable upper and lower shafts
16 gauge mild steel, .063 aluminum capacity
Variable speed foot pedal control and max speed dial
Includes bead roller, 27 roll sets, pedestal, support table

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

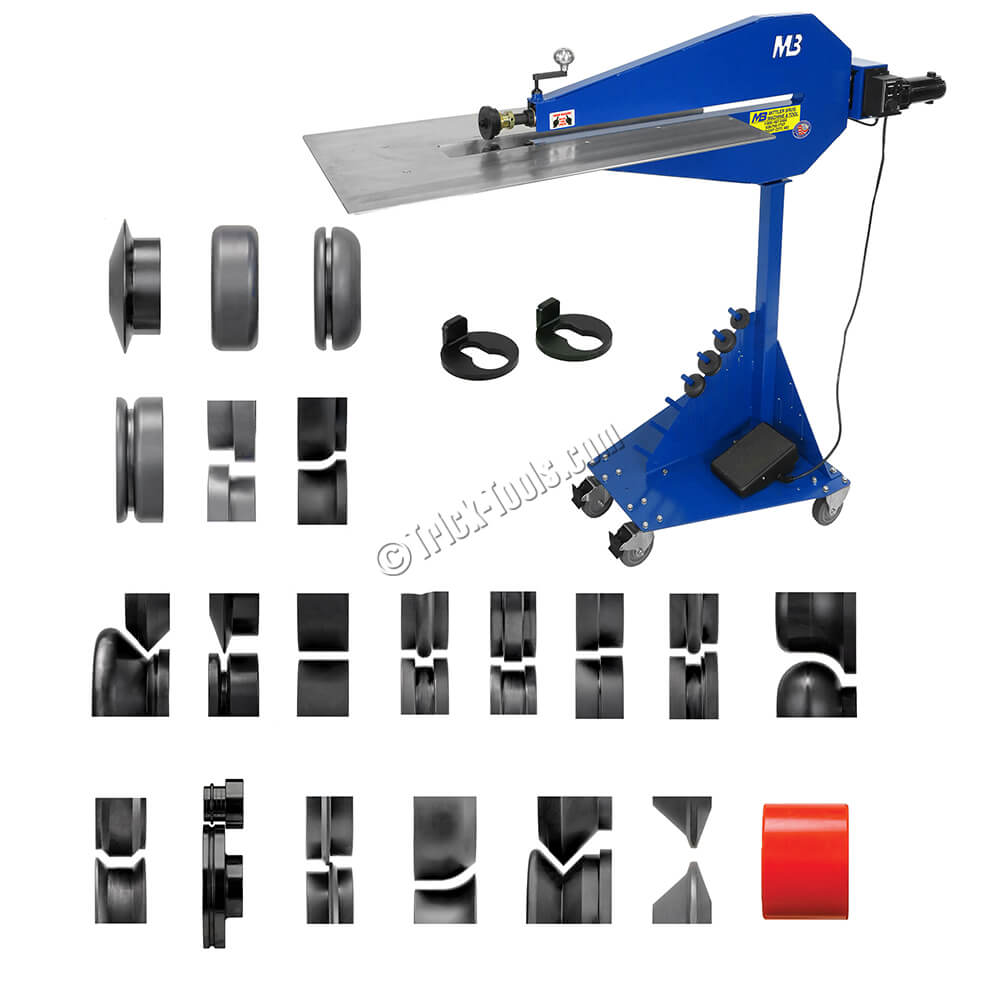

This Mittler Bros. 36 inch Bead Roller Ultimate Kit is just that, ULTIMATE. It includes 27 dies for shearing, beading, hemming, tube beading, edge flanging, custom artwork, and more. This machine is specially equipped with adjustable upper and lower shafts for greater flexibility with bead profiles.

Built from plate steel, with 3/4 inch heavy duty shafts and hardened drive gears, this bead roller is built to last. The included industrial motor will bead up to 16 (.059) gauge mild steel and .063 aluminum.The reversible 110 volt motor features a variable speed foot pedal control with a and a speed range adjustment dial, which allows the operator to limit the maximum speed of the bead roller motor.

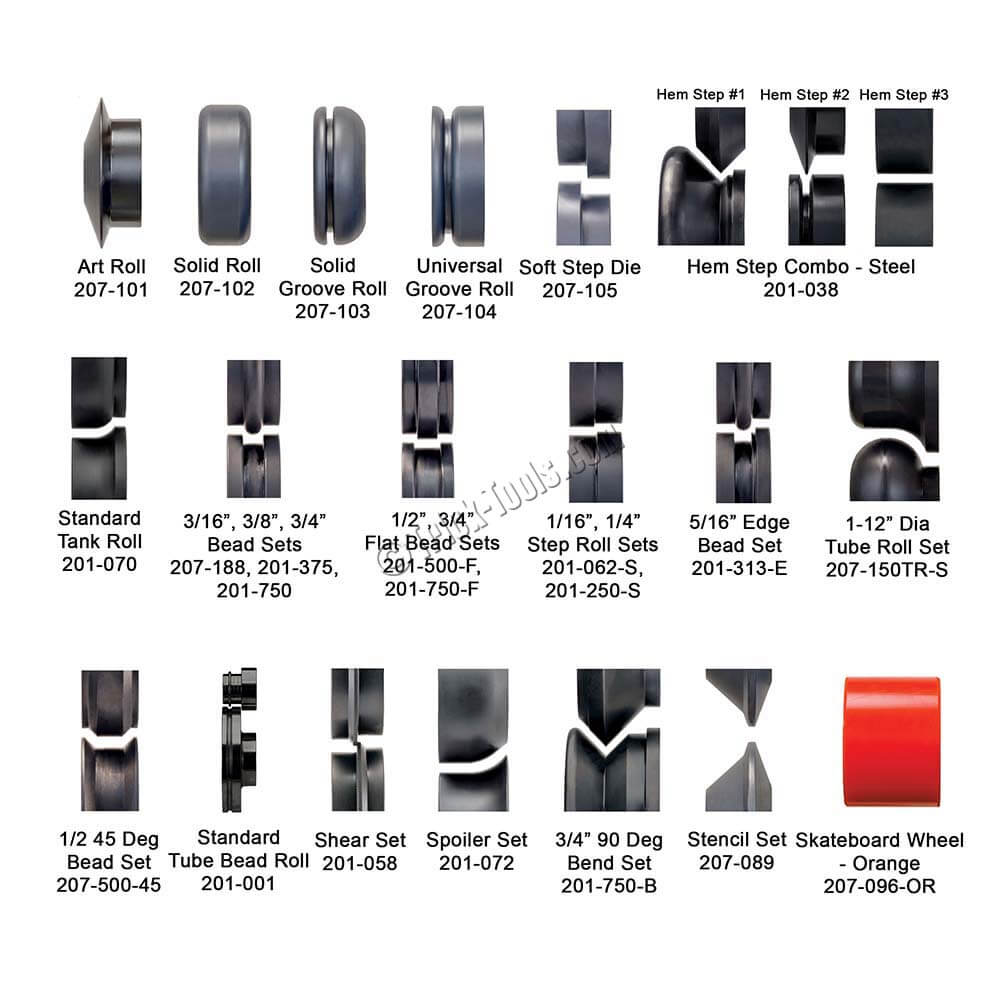

This deluxe kit includes: 4 piece art roll set, soft step dies, 3-piece hem set, 3/16 inch 3/8 inch and 3/4 inch round bead sets, 1/2 inch and 3/4 inch flat bed sets, 1/16 and 1/4 inch step roll sets, 5/16 inch edge bead set, 1-1/2 inch diameter tube roll set, 1/2 inch 45 degree bead set, standard tube bead roll set, standard tank roll set, shear set, spoiler set, 3/4 inch 90 degree bend set, stencil set, and an orange skateboard wheel.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Steel Capacity (inches): .059 (16 gauge)
•Aluminum Capacity: .063
•Stainless Capacity (inches): .038 (20 gauge)
•Throat Depth (inches): 36
•Throat Height (inches): 1-1/8
•Motor: 1/8 hp 110 volt
•Construction: steel
•Weight (pounds): 240
•Dimensions (LxWxH): 59 x 20 x 54
