PrestonEastin PC-20A 3 Jaw Gripper Chuck

Part #: 9901017
Ships From: Factory shipped

Lead Time: Usually ships within 6-8 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Call For Price

NEW

3 jaw chuck with quick-change jaws
1000 lbs capacity
1 to 16-1/2 OD clamping range
Fits PrestonEastin welding positioners

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

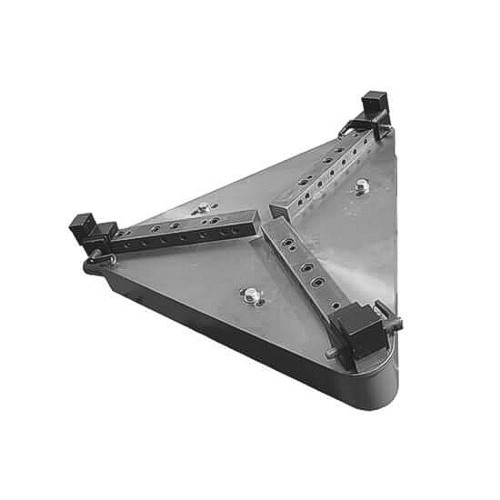

The PC-20A Gripper Chuck fits most PrestonEastin rotary welding positioners to expand the versatility and clamping ability of the machine. It features a quick-change ball lock pin for fast jaw position changes or swapping jaw types. Clamping capacities range from 6 inches to 20 inches ID and 1 inch to 16-1/2 inches OD with a 1000 lbs weight capacity. Additional chuck sizes and jaws such as carbide insert, serrated, and extended uppercut are available. Please give us a call or send us an e-mail for more information.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Capacity: 1000 lbs
•Max Clamp Opening (inches): 16-1/2
•Vertical Weight Cap (pounds): 1000
•Weight (pounds): 140
•Dimensions (LxWxH): 18-1/2 x 18-1/2 x 7
