Baileigh BP-3142NC Hydraulic Press Brake, 42 ton

Part #: BP-3142NC
Model: BA9-BP3142NC
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $28,257.09
Sale Price: $22,999.99

FREE SHIPPING

31 inch width
Digital read-outs for back gauge and ram position

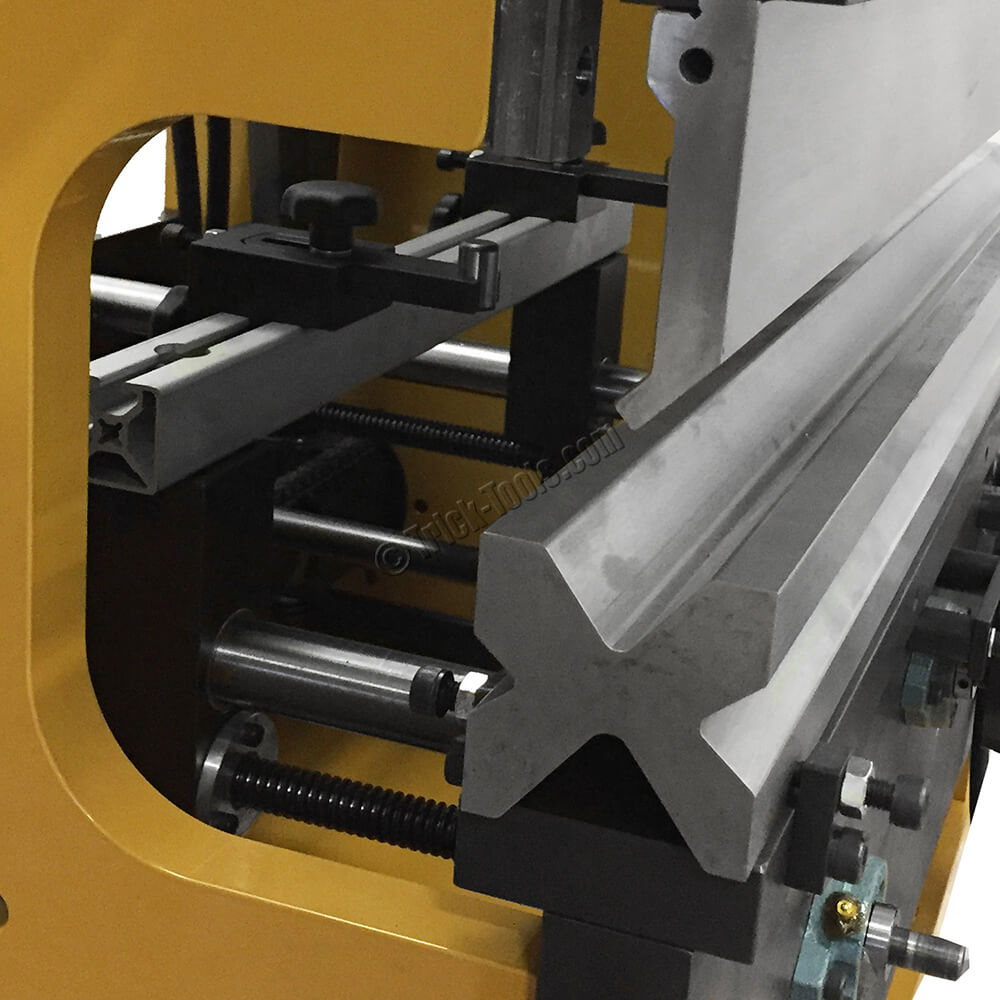

includes Multi-V die for up to 1/4 inch steel

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

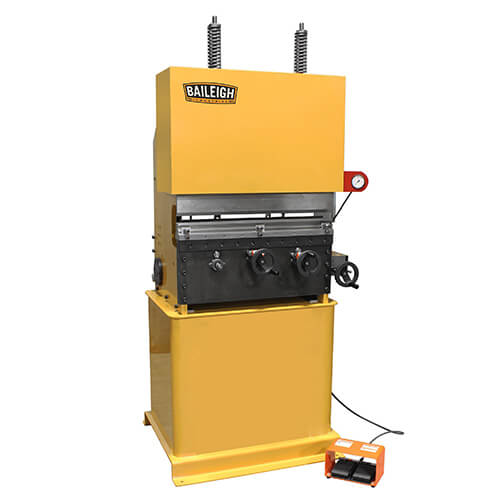

This Baileigh Industrial press brake is great for shops of any size. Operating on 220-volt single-phase power and touting a large 42-ton capacity, this brake is the perfect complement to a plasma table for bending small parts up to 1/4 inch mild steel. The hands-free foot pedal operation and digital read-outs for the included back gauge and ram position ensure safety and repeatability. Plug and play ready with an included Multi-V lower die and punch tooling, this machine can also handle bump die tooling with its 2-inch stroke and large 7-3/4 open height.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: electric
•Capacity: 42 tons
•Working Length (inches): 31
•Max Lift Of Beam (inches): 2
•Max Forming Length (inches): 29 inches between frames
•Motor: 220 volt, 1 phase
•Weight (pounds): 2000
•Dimensions (LxWxH): 48x48x72
