Baileigh PH-19 Power Hammer

Part #: PH-19
Model: 1005946, 1005947
Ships From: Factory shipped
Lead Time: Usually ships within 1 week
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $13,207.09
Sale Price: $10,749.99
  • 16 gauge mild steel capacity
  • 19 inch throat
  • Variable speed option
  • Made in the USA
FREIGHT:
Freight
ORIGIN:
BRAND:
Baileigh Industrial logo
Options:
Quantity:

Configuration

DESCRIPTION

The Baileigh PH-19 reciprocating power hammer is the little brother of the popular MH-19 Multi-Hammer and uses much of the same tooling. The PH-19 is a fixed throw machine similar to a Pullmax and can be used for shrinking, stretching, doming, beading, offsetting and edge turning. The robust design and reasonably small portable design along with 110 volt power requirement make this machine a great choice for production environments as well as hobby shops.

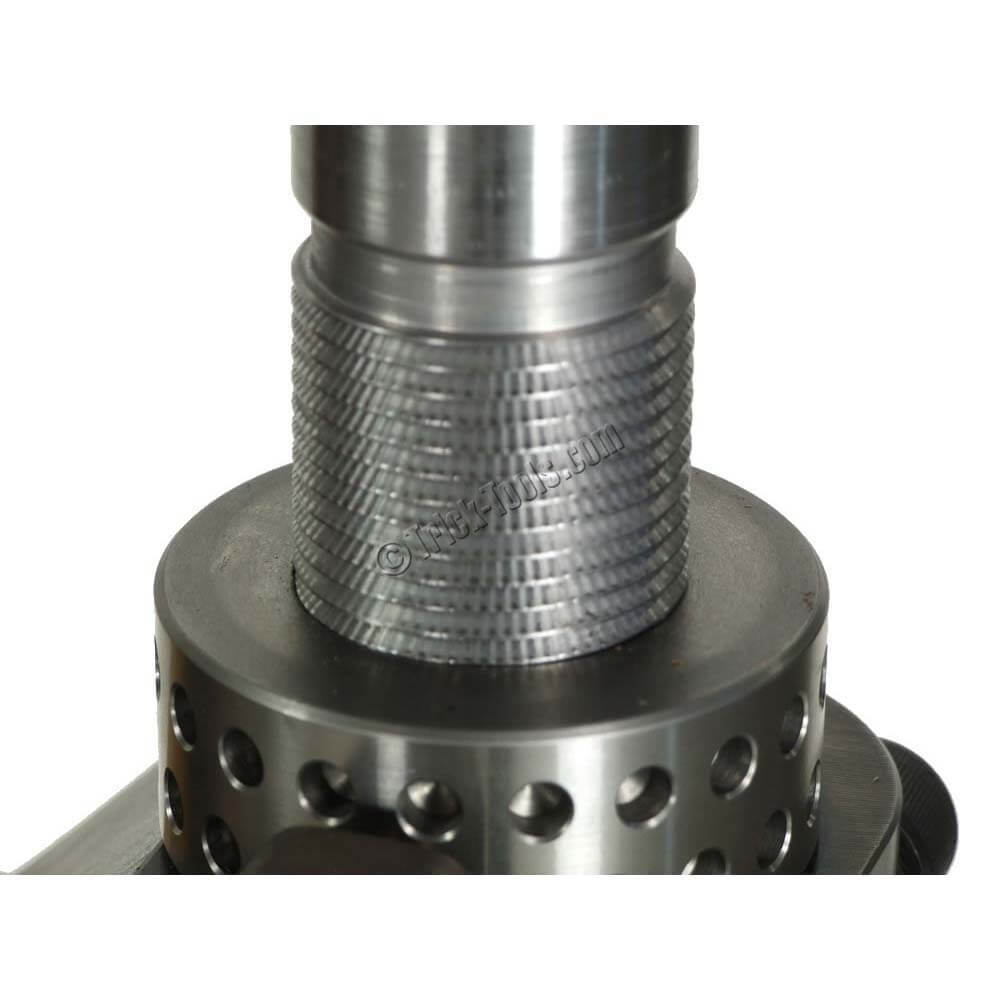

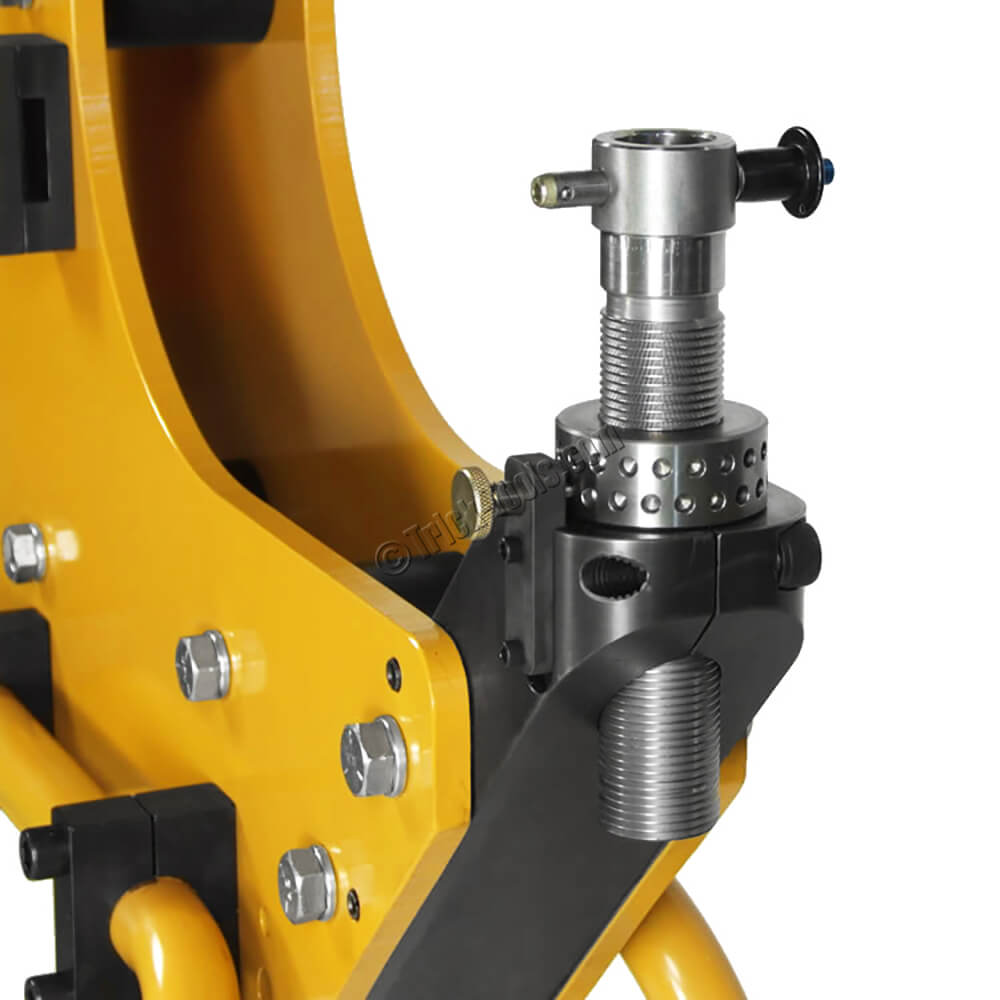

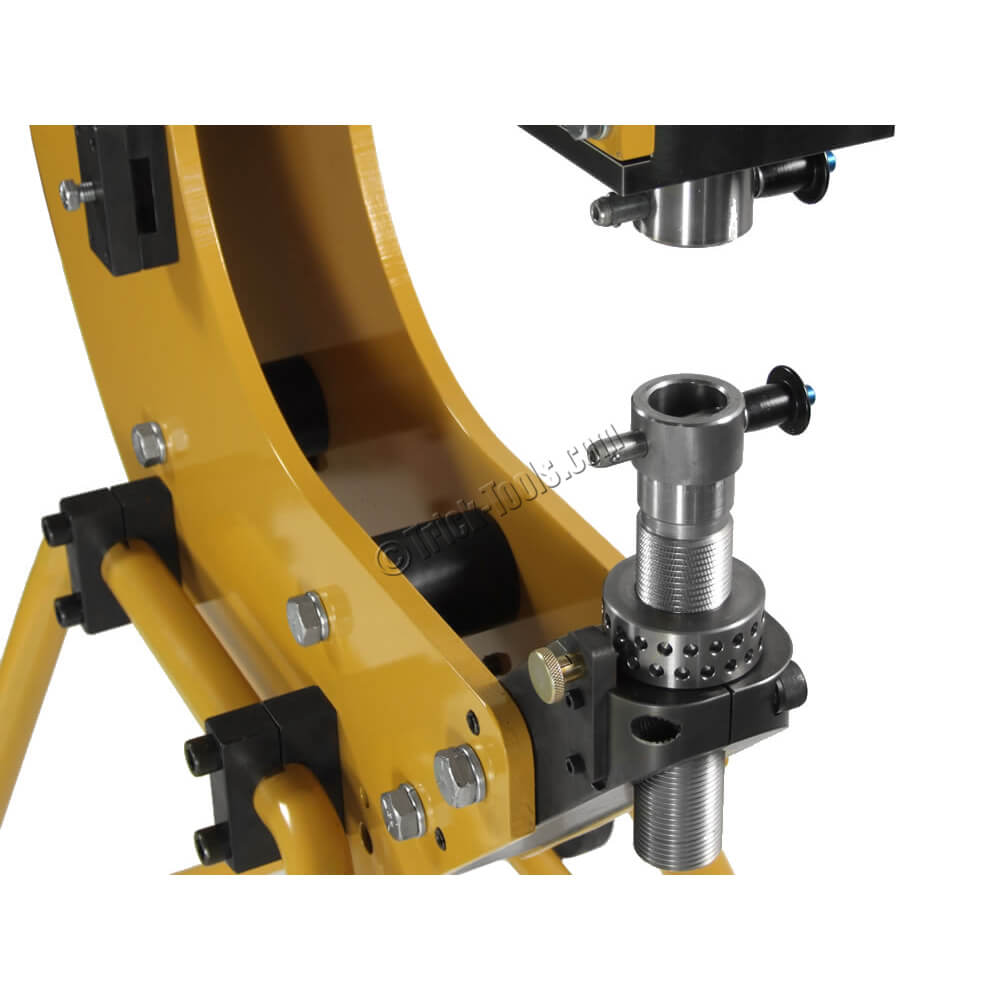

The PH-19 produces 1700 beats per minute and is available with optional inverter driven variable speed for more precise control in delicate operations. The 19 inch throat and quick release bottom tool holder allow the operator to start working in the middle of a panel while keeping the working pressure constant. Tooling changes out quickly and easily and has a 5 inch height adjustment allowing for a variety of standard and custom dies to be used for several metalshaping operations.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Throat Depth (inches): 19
Steel Capacity: 16 gauge (1.5mm)
Aluminum Capacity (inches): .080 (2.0mm)
Strokes per Minute: 1,700 w/ optional variable speed
Motor: 110 volt
Weight (pounds): 1000
Dimensions (LxWxH): 48 x 60 x 84

INCLUDES

  • Power hammer on rolling stand
  • Mini thumbnail shrink dies
