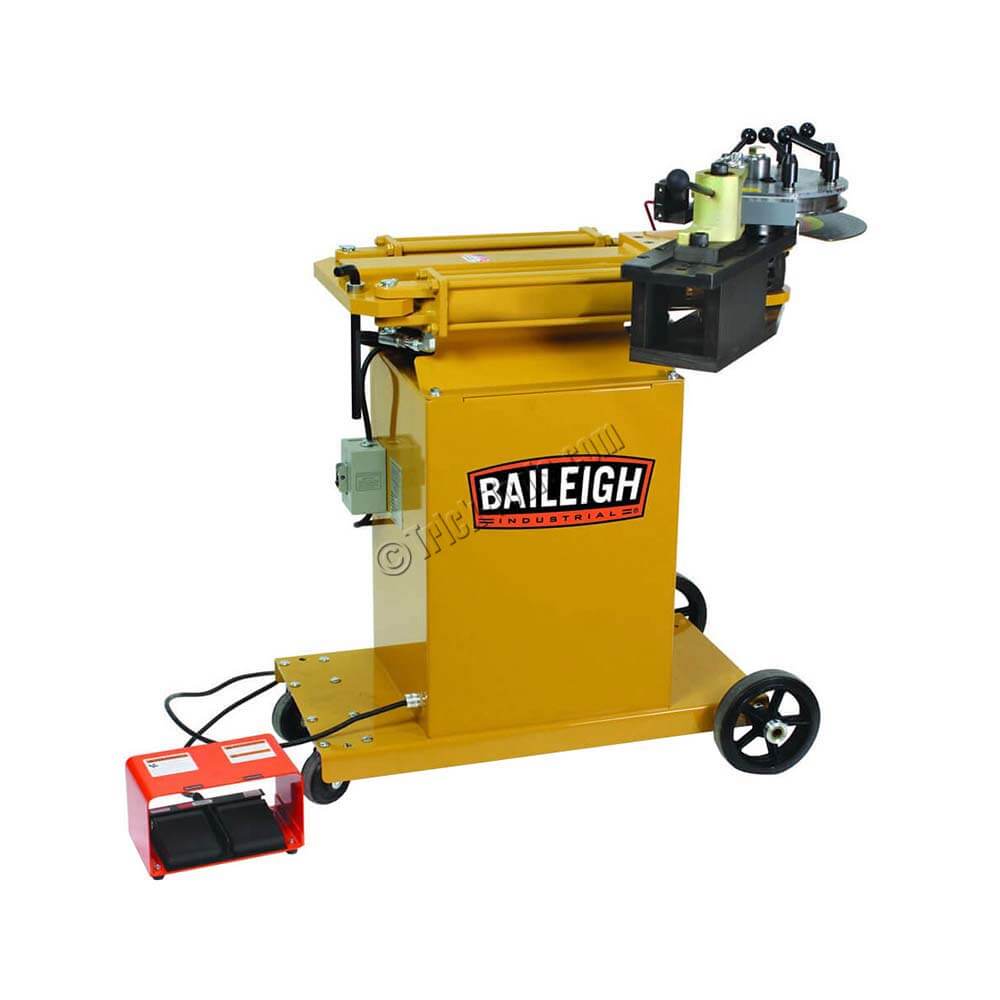

Baileigh RDB-150 Hydraulic Tubing Bender

Part #: RDB-150
Model: 1006778
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $9,091.39
Sale Price: $7,399.99

FREE SHIPPING

2-1/2 inch OD capacity

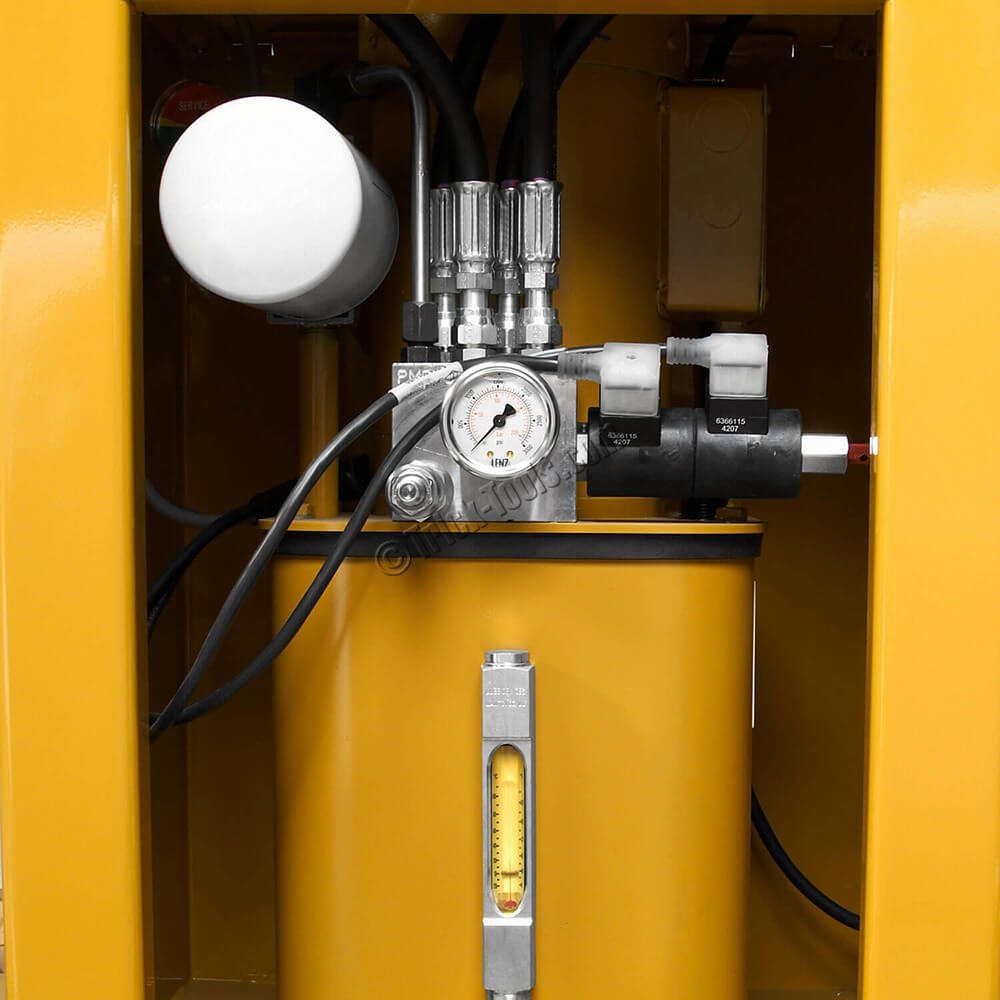

Electric/hydraulic power
180 degree bends in one shot
Optional auto stop

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

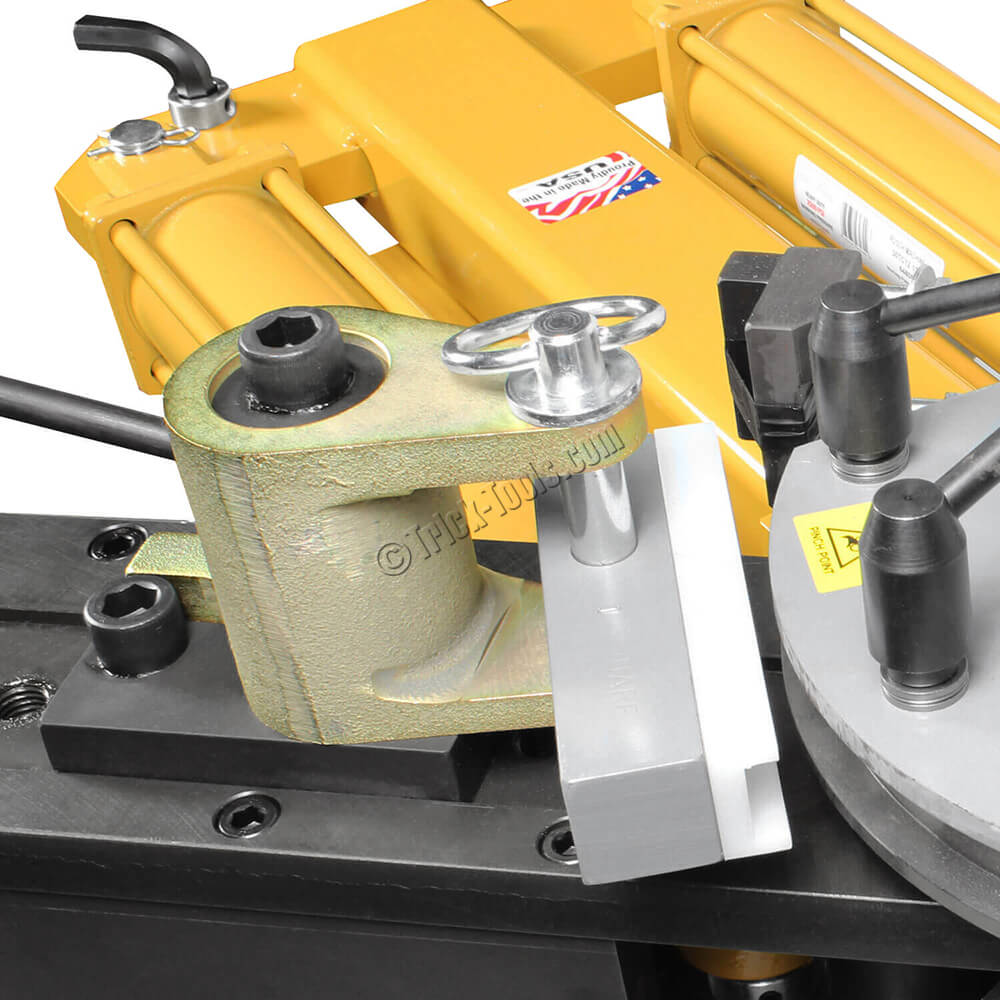

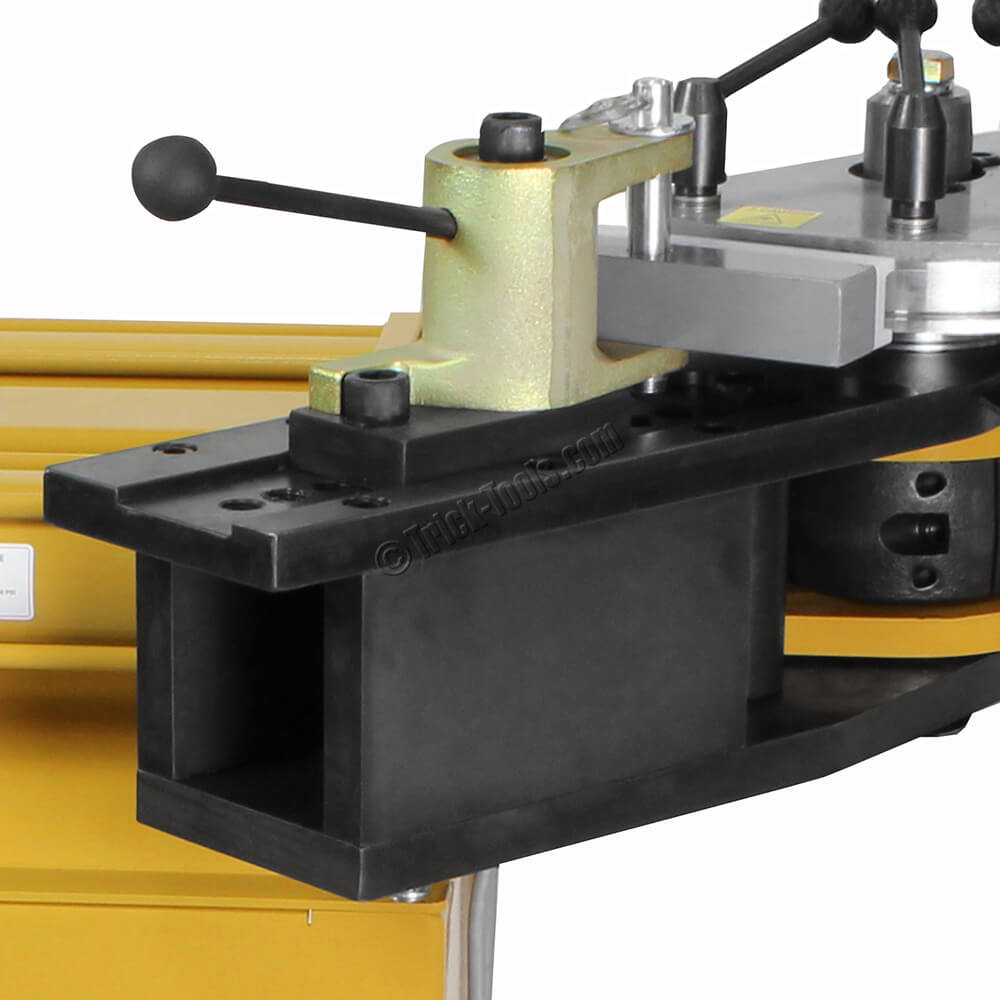

The RDB 150 features a large capacity and an optional auto-stop for fast, repeatable bending. The machine can make a full 180-degree bend with one stroke of the hydraulic cylinders. Material can be easily removed with a quick counter-bend die release, and tooling changes can be made in seconds. The ease of repeatability with this bender makes it the perfect solution for small production runs where consistency and speed are key. The bender is also a great solution for job shops who need to bend multiple types of material; with tooling available for round tube, pipe, square, and solid profiles.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-1/2 x .120
•Round Chrome Moly Capacity (inches): 2 x .120
•Round Aluminum Capacity (inches): 2-1/2 x .156
•Nominal PIPE Capacity: 2 inch schedule 40
•Square Mild Steel Capacity (inches): 2 x .125
•Solid Bar Mild Steel Capacity (inches): 1-1/4
•Minimum OD (inches): 1/4
•Degrees Per Stroke: 180
•Max Bending Speed: 30 seconds to 180 degrees
•Bending Style: rotary draw
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 9-1/2
•Max Degree of Bend: 180
•Motor: 110 volt
•Control Method: hand control
•Repeatability Control: optional
•Maximum OD (inches): 2-1/2
•Weight (pounds): 600
