Bend-Tech PB Profile Bending Software

Part #: BTPB

Lead Time: Discontinued

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $599.00

NEW

Design roll-bent parts
Use profiles already loaded into software, or add your own
Features a history log to accumulate real life data for increased accuracy

SHIPPING:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

Bend-Tech Profile Bending (PB) software has been designed to work with bending machines often referred to as section, large radius, roll bending, or profile bending machines. The software will help with the bending of any material profile, even allowing custom profiles to be created by the user. Some of the helpful functions PB software offers are:

Find your material cut length.
Show the start and end of the bend zones.
Input the settings for the roller locations and lateral guides.
Calculate the true radius for spiral bending.
Graphical designer that shows your part as it is being created.
History log that accumulates real life data and allows the program to increase accuracy.

The design portion of the software lets you create a part by entering the length between bends, bend angles, radii, pitch, and a chosen environment. You may enter as many bends as desired and also add rotation between any of the bends if needed.

Bend Tech PB features predefined material profiles built into the material library that allow you to input your specific dimensions. PB also includes a feature to import the end profile of any shape from a drawing or CAD system via a .dxf file. Using this tool means that there are limitless shapes you can use in the software.

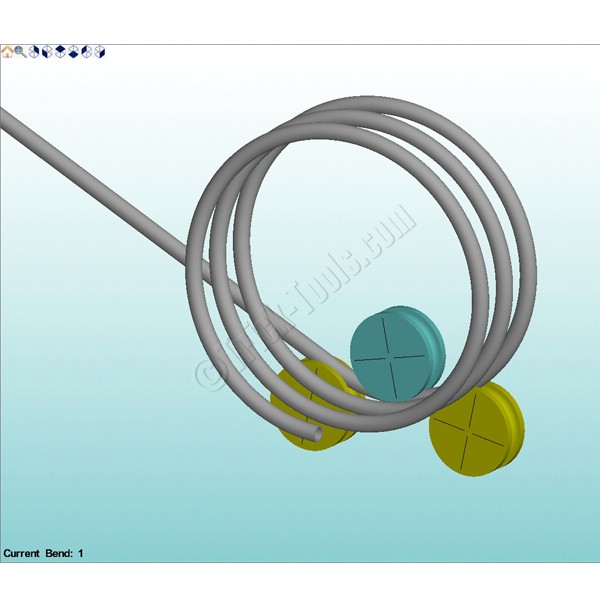

Finally, an animated representation is available that shows the material being processed through the forming dies. This is especially useful as a last check for bend profile as well as machine interference.
