Beveler USA UZ47 Skillmaster Beveler

Part #: UZ47
Model: UZ47 Skillmaster, 4701, 4702
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $22,999.00

NEW

Adjustable from 0 to 90 degrees
Bevel, cladding removal, face, J-bevel, and more
Up to 47mm bevel widths
Feeds up to 4.59 feet per minute

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

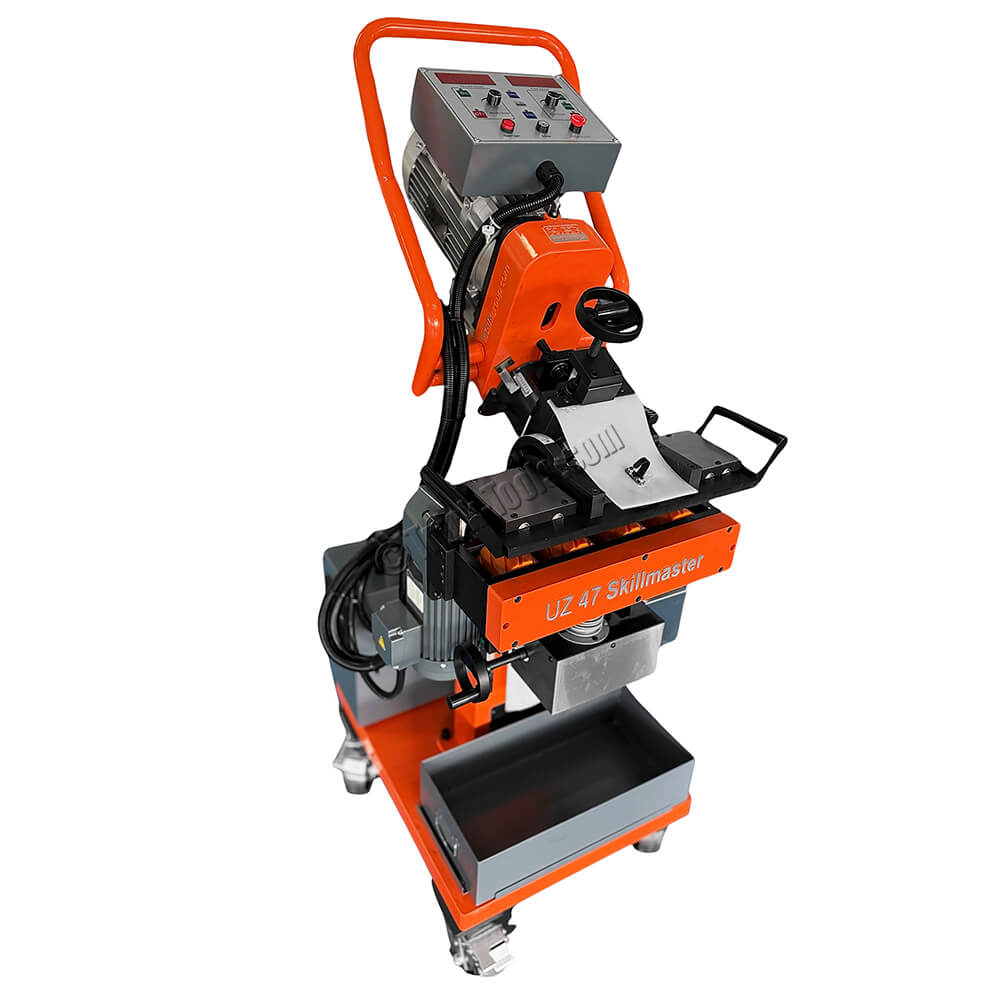

The UZ47 Skillmaster from Beveler USA is a multi-purpose, self feeding beveling machine that can v-bevel, j-bevel, cladding removal, facing, and +70 degree chamfers. It uses a powerful 4000 watt (5hp) motor along with a milling head with cutting inserts for a smooth, near mirror finish bevel. The adjustable head on the UZ47 makes changing the bevel angle anywhere from 0 degrees to 90 degrees very quick and easy. Suitable for machining harder material such as stainless steel, Hardox, Domex, and more, the UZ47 Skillmaster is ready for your next beveling project.

Additional Specs:

Power input: 220/480 volt 3 phase, 5hp (4000 watt)
Bevel angle: Adjustable from 0° to 90°
Bevel width maximum: 1.87 inches (47 mm)
Material thickness: 0.23-2.36 inches (6-60mm)
Feed type: automatic
Feed rate: 0 to 4.59 ft/min (0 to 1.4 m/min)
Weight: 540 lbs (245 kg)

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Motor: 5hp, 220/480 volt, 3 phase
•Size (inches): max bevel width - 1.87 inches (47mm)
•Weight (pounds): 540
•Dimensions (LxWxH): 32 x 23 x 50
