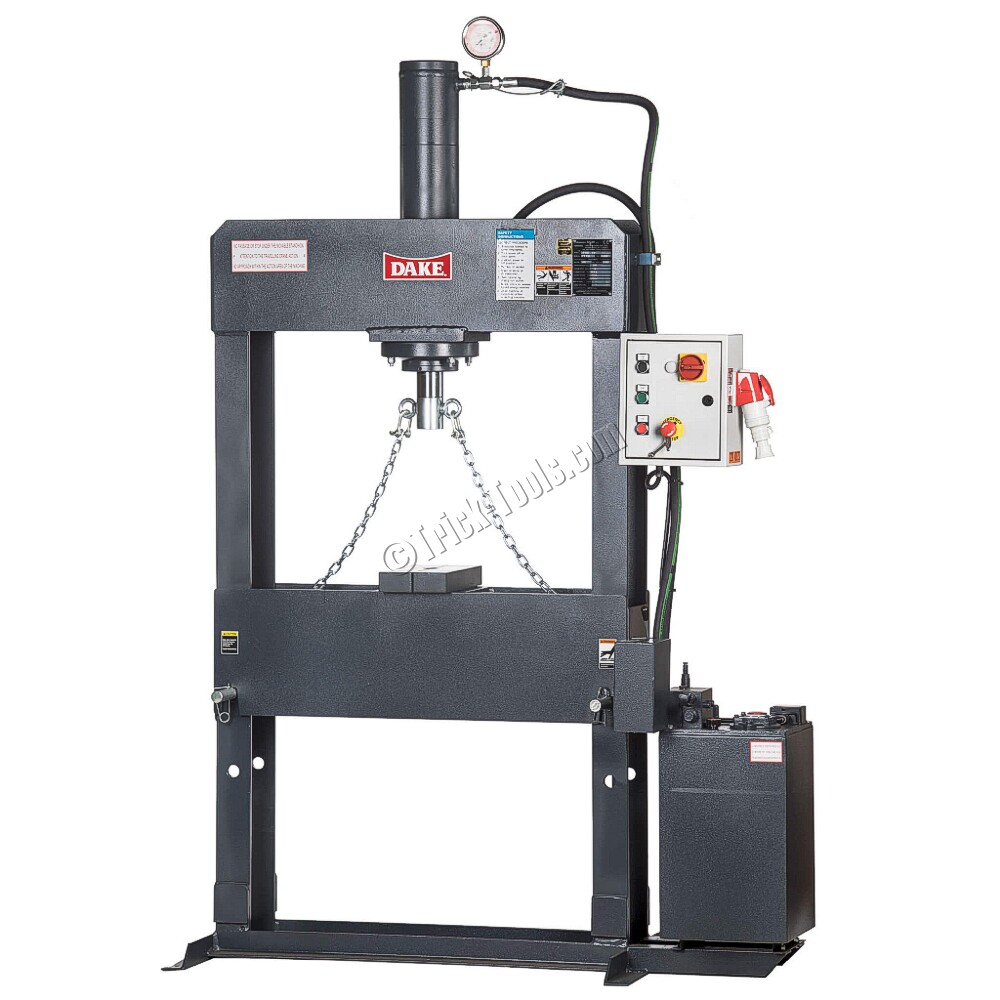

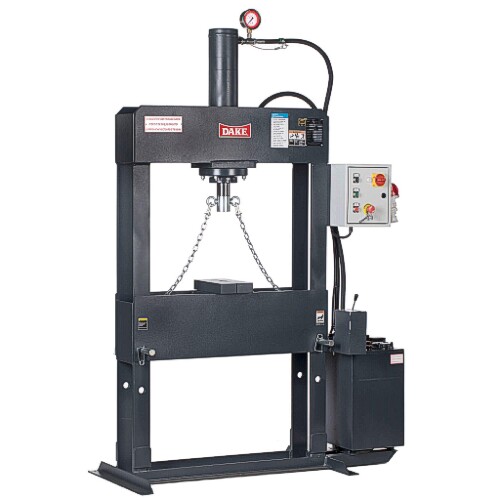

Dake Force 40 Electrical H-Frame Press, 40 ton

Part #: 972003
Model: Force 40
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $11,695.00

40 ton capacity
2 hp, 220 volt, 3 phase electric pump
Adjustable table
Rapid ram advance

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The Dake Force 40, 40-ton Dura Press features a double-acting cylinder for fast reliable cylinder return. The rapid advance of the ram is done with a two-speed system that automatically changes speeds when ram contact is made. The 2 hp submerged motor drives 2 centrifugal pumps for quiet, steady operation. The table is easily moved using the lifting chains on the ram.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Maximum Capacity: 40 tons
•Width Between Uprights (inches): 35
•Width Between Table Chnls (inches): 8
•Min Ram To Table (inches): 7
•Max Ram To Table (inches): 32
•Ram Travel (inches): 19
•Ram Speed (advance): 68
•Ram Speed (pressing): 7
•Cylinder: 40 ton
•Motor: 2 hp
•Voltage: 220 volt, 3 phase
•Weight (pounds): 1210
•Dimensions (LxWxH): 63 x 27 x 88
