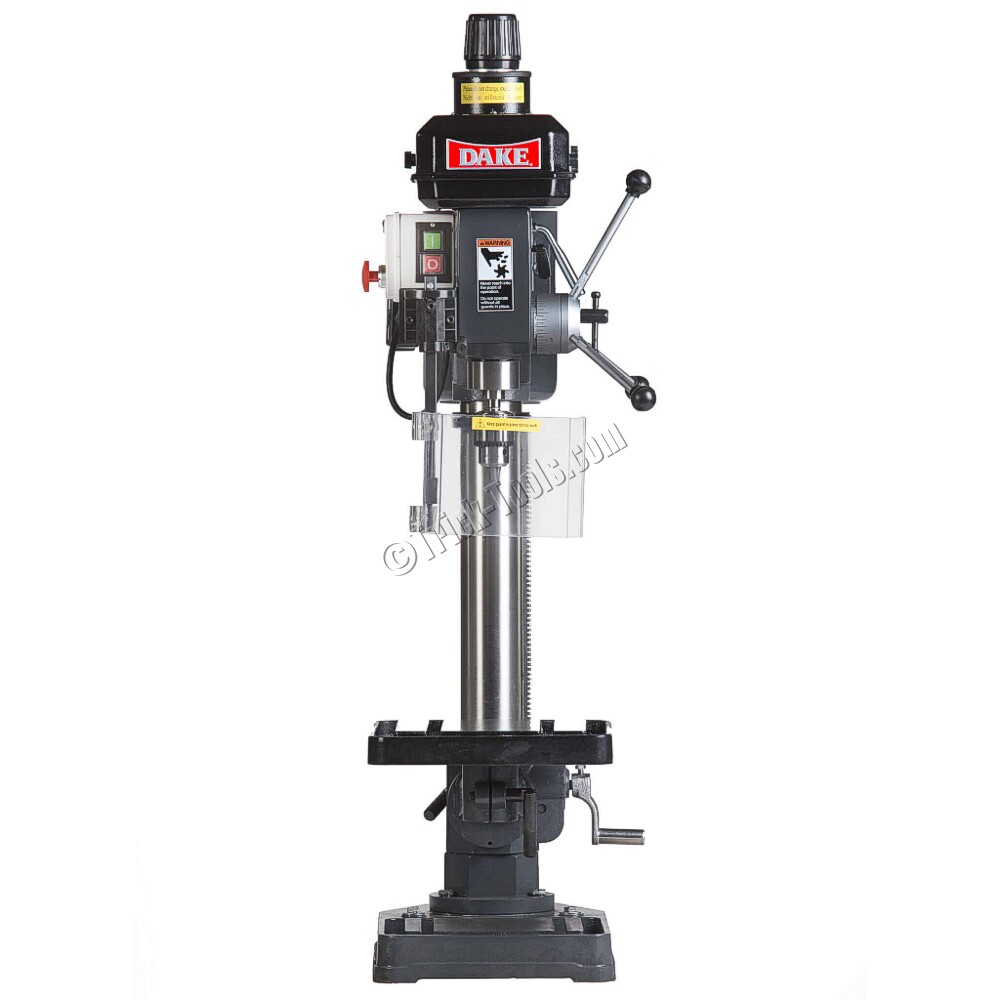

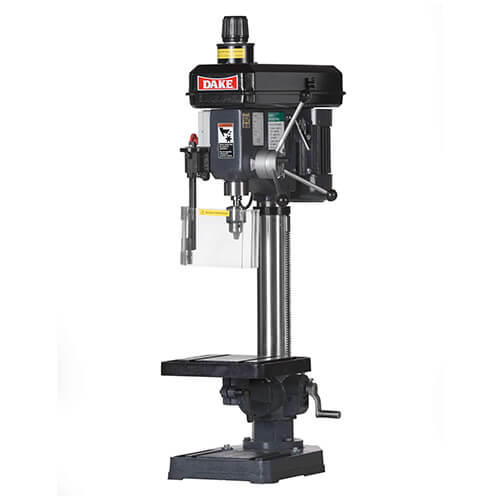

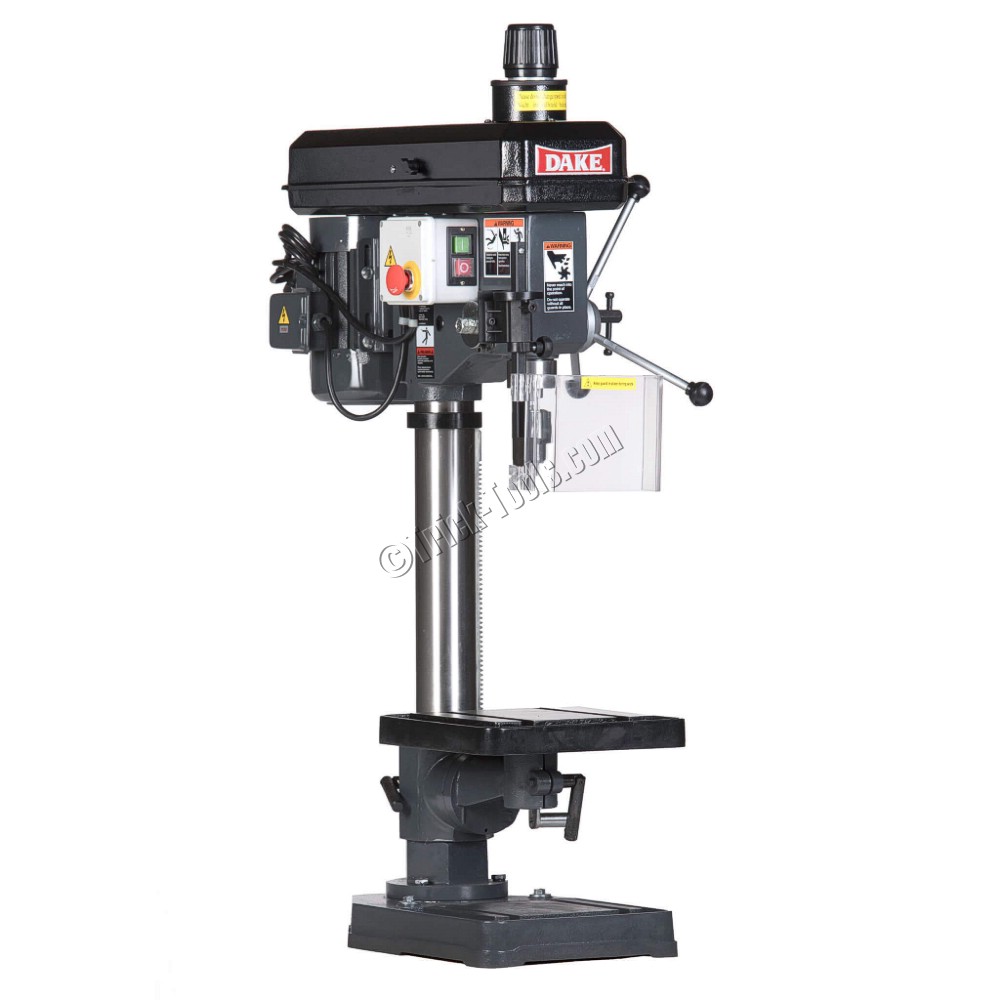

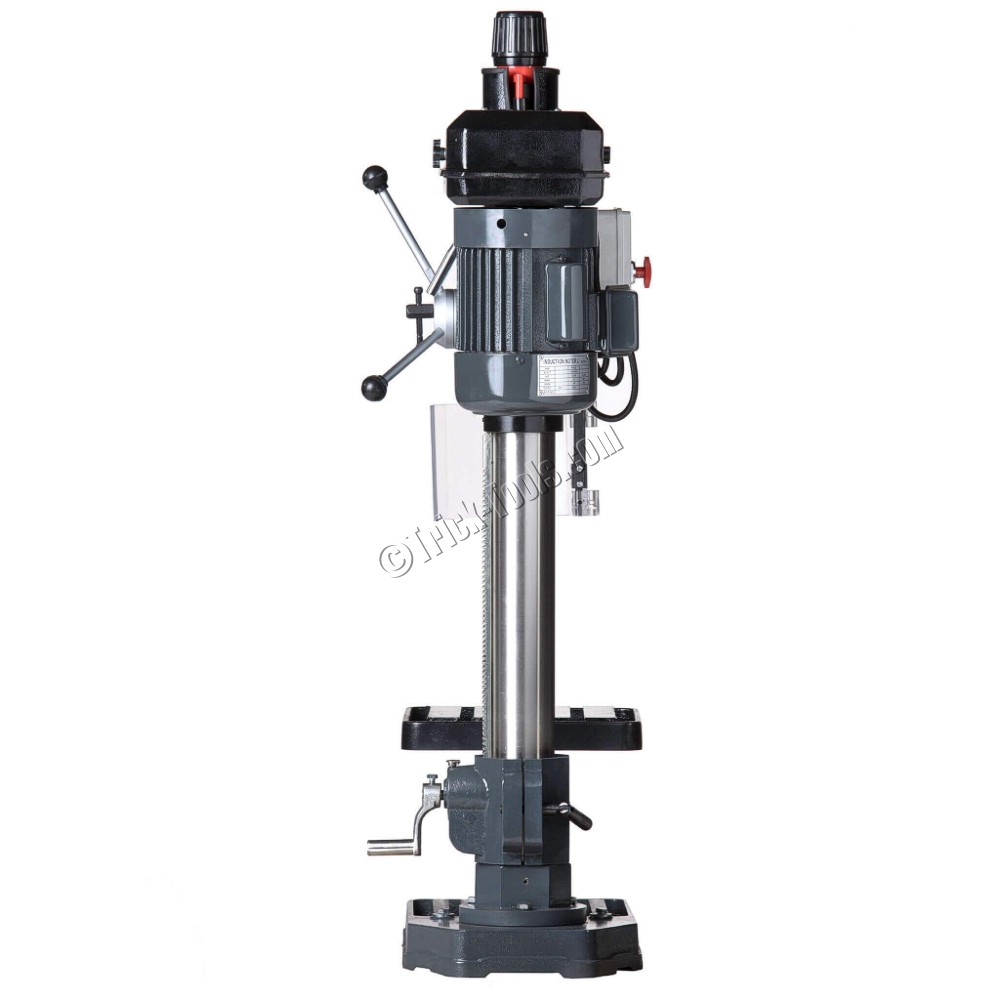

Dake TB-16V Bench Model Variable Speed Drill Press

Part #: 977102-1
Model: TB16V
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $2,395.00

Drilling capacity up to 5/8 inch
1/2 hp motor
Variable speed
Bench model

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

This bench model Dake Drill Press features a locking handle hub for repeatable drilling depth, CE safety electrical packages, a large diameter sturdy spindle, and massive cast head. Both the table and base feature machined t-slots for mounting and fixturing.

In addition to these robust qualities, this drill press features a stepless variable speed pulley for adjustable RPM from 545 to 4000 RPM. Simply turn the top mounted speed selector knob to dial in the optimal speed.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Motor: 1/2 hp, 110 volt
•Number of Speeds: Variable Speed
•Spindle Speed(s)Range: 545-4000 rpm
•Drills To Center (inches): 14.125
•Drilling Capacity (inches): 5/8
•Spindle Taper: Morse no. 2
•Column Diameter (inches): 3.125
•Spindle Travel (inches): 3.125
•Spindle To Table Max (inches): 16.5
•Spindle To Base (inches): 25.5
•Table Size (inches): 11.75 x 11.75
•Base (inches): 17.75 x 12.125
•Weight (pounds): 180
•Dimensions (LxWxH): 17.75 x 12.25 x 42.5
