Eagle CP20 Benchtop Roll Bending Machine

Part #: CP20
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $5,020.00
Sale Price: $4,990.00

SALE

Benchtop model
1 x .065 inch round tube capacity
3/4 x .065 inch square capacity
Manual adjustment

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

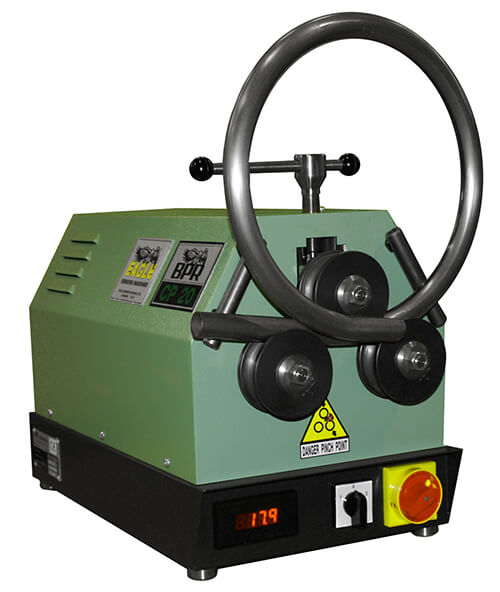

The Model CP20 is a benchtop three roll bender. It is an electro-mechanical bending machine complete with adjustable lateral material supports and an electronic digital display to monitor roll position.

The unit is ideal for rolling sections plus small diameter tube and pipe. The unit's small size makes it highly portable and versatile. Top roll position is adjusted by means of a lever handle and the lower rolls are driven for optimum profile traction. No other machine compares for cost-effectiveness in bending small material.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 1 x .062
•Nominal PIPE Capacity: 1/8 inch schedule 40
•Square Mild Steel Capacity (inches): 3/4 x .062
•Solid Bar Mild Steel Capacity (inches): 1/2
•C Channel Mild Steel Capacity (inches): 1-1/8 x 5/8 x .156
•Minimum OD (inches): 1/4
•Max Bending Speed: 9 feet per minute
•Driven Rolls: 2
•Bending Style: roll bending
•Size: 20mm shafts
•Max Degree of Bend: 360
•Motor: .44 hp, 220 volt 3 phase
•Control Method: on board controls
•Repeatability Control: LED readout
•Bending Roll Adjustment: manual
•Maximum OD (inches): 1-1/8
•Weight (pounds): 160
•Dimensions (LxWxH): 26 x 15 x 25
