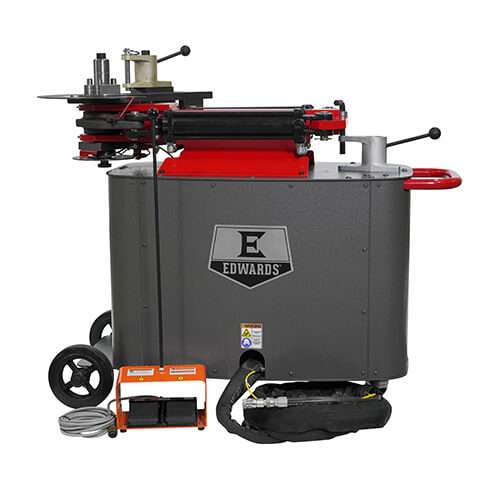

Edwards HAT2375 Hydraulic Tubing Bender

Part #: ED1-61
Model: HAT2375
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,142.79
Sale Price: $4,999.99

FREE SHIPPING

2-1/2 inch OD capacity
Requires Edwards Ironworkers with PowerLink
180 degree bends in one shot
Includes auto stop

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

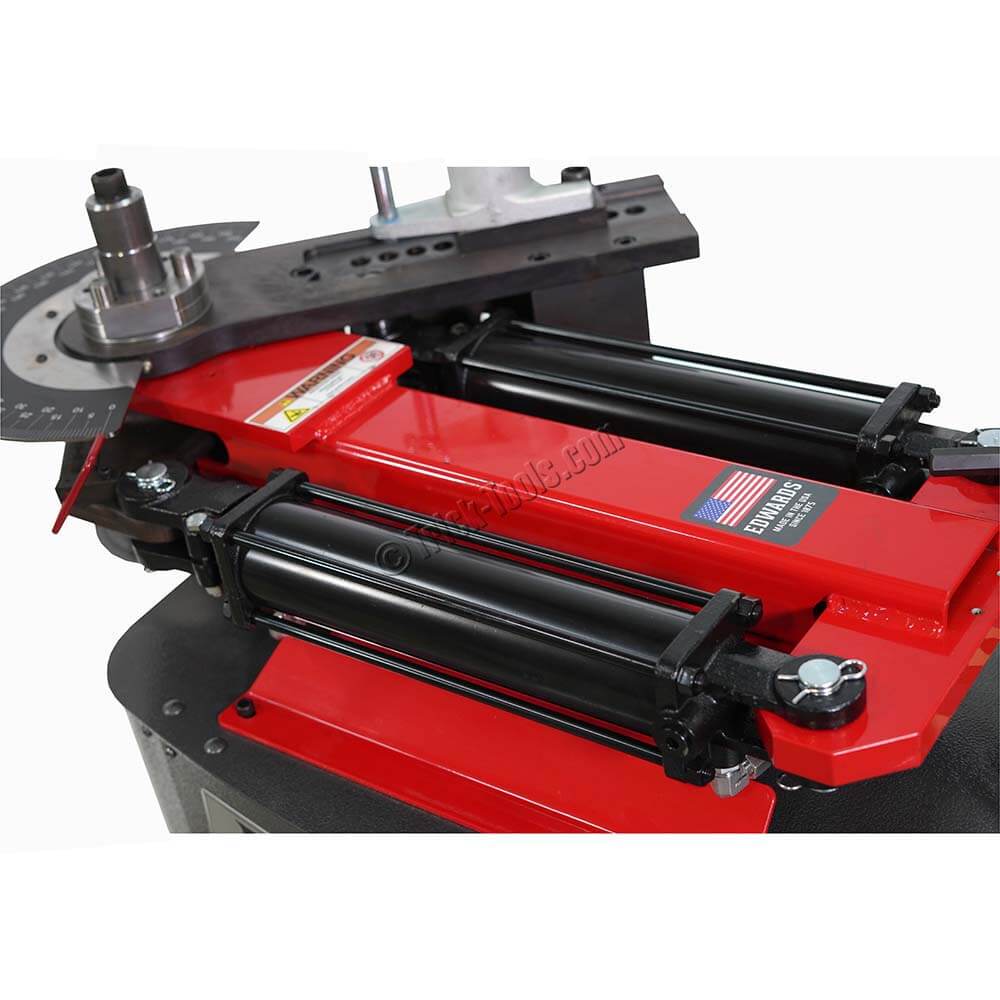

The Edwards HAT2375 Hydraulic Tubing Bender easily connects to an Edwards Ironworker with PowerLink hydraulic accessory ports and is a great way to add a professional tubing bender to your shop at a fraction of the cost. The HAT2375 is a USA made, one-shot bender that features an auto stop to easily repeat bends and a capacity rating of 2-1/2 inch OD x .120 wall tubing, 2 inch schedule 40 pipe, or 2 inch square.

The Edwards HAT2375 uses the same high-quality USA made die sets as the Baileigh benders. Please check out the accessories tab for links to the available tooling options.

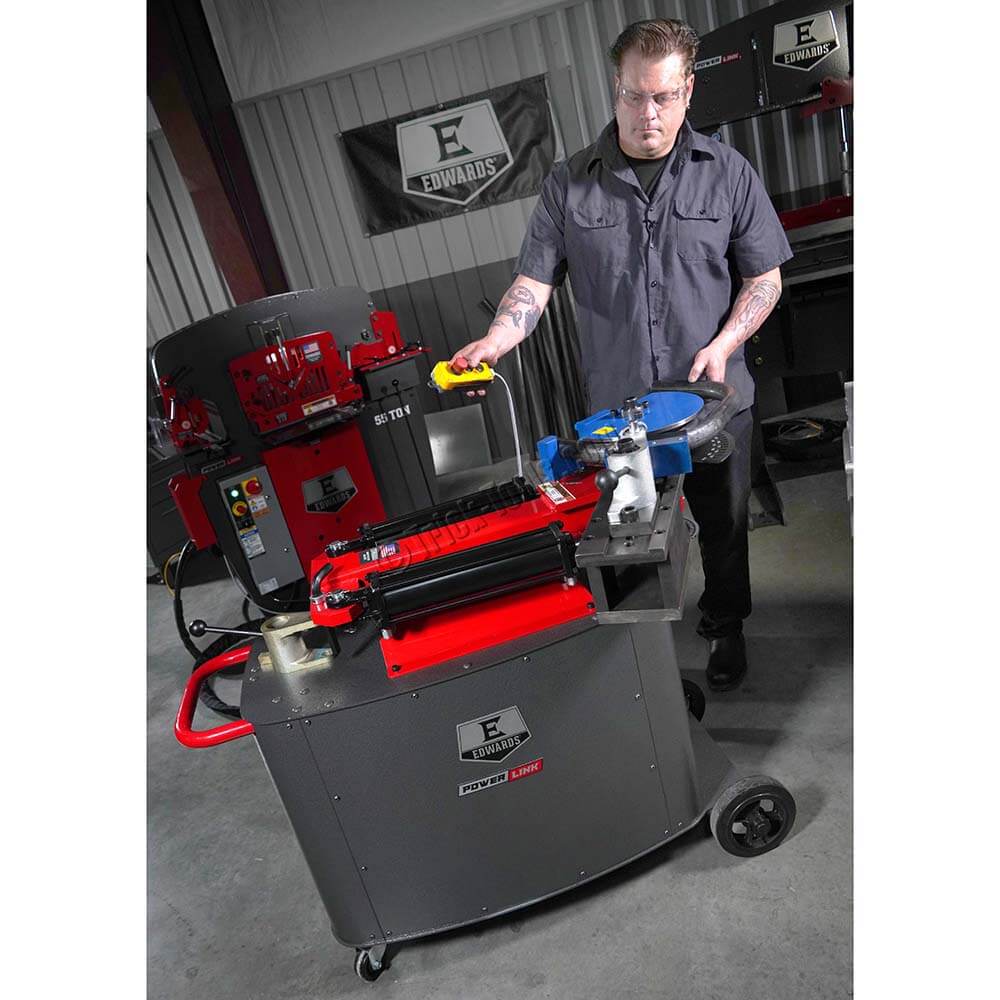

Special note: This bender does not include a power source and requires the use of an Edwards Ironworker with PowerLink hydraulic accessory ports or the Edwards Porta Power.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-1/2 x .120
•Round Chrome Moly Capacity (inches): 2 x .120
•Round Aluminum Capacity (inches): 2-1/2 x .156
•Nominal PIPE Capacity: 2 inch schedule 40
•Square Mild Steel Capacity (inches): 2 x .125
•Solid Bar Mild Steel Capacity (inches): 1-1/4
•Minimum OD (inches): 1/4
•Degrees Per Stroke: 180
•Max Bending Speed: 30 seconds to 180 degrees
•Bending Style: rotary draw
•Min Center Line Radius (inches): 1/2
•Max Center Line Radius (inches): 7-8
•Max Degree of Bend: 180
•Control Method: foot control
•Maximum OD (inches): 2-1/2
•Weight (pounds): 486
•Dimensions (LxWxH): 55 x 23 x 45
