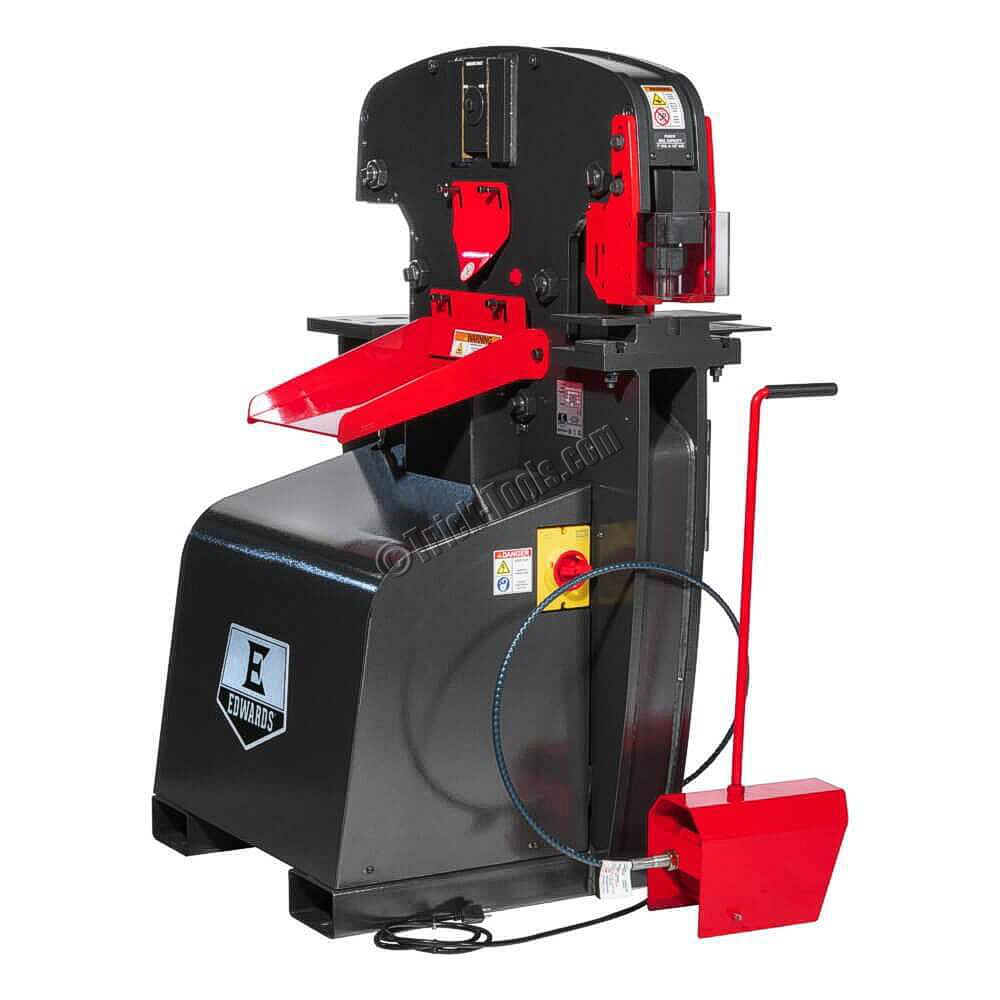

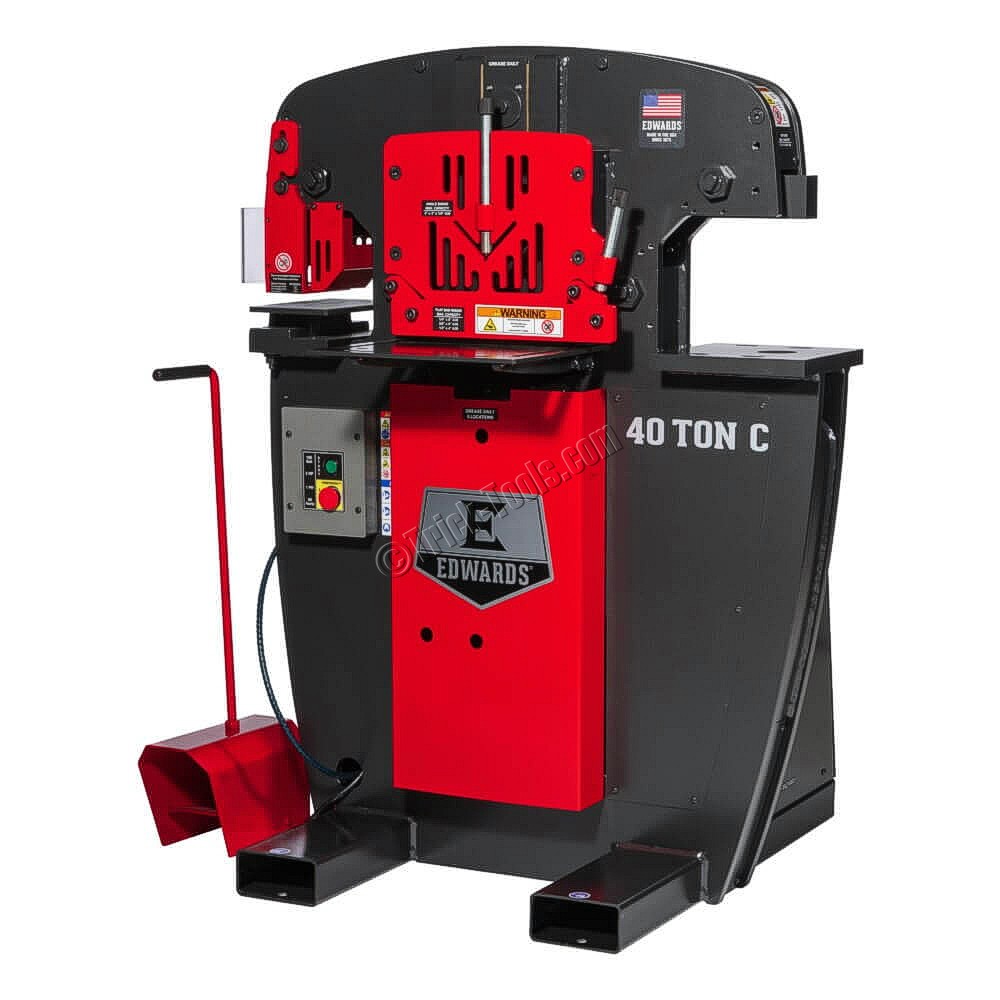

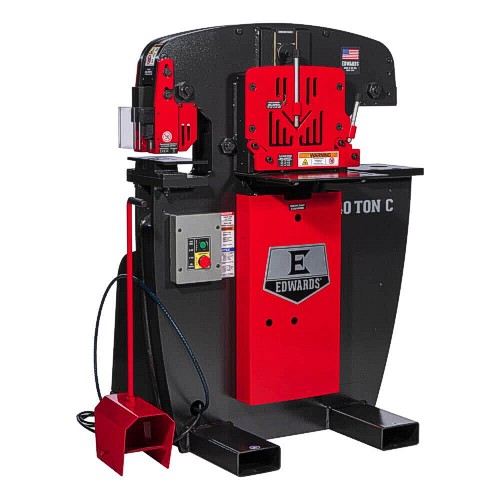

Edwards Jaws 40 ton C Ironworker

Part #: IW40C-1P120
Model: Jaws 40 C
Ships From: Factory shipped
Lead Time: Usually ships within 1-2 weeks
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $14,825.21
Sale Price: $12,209.00
  • 115 volt operation
  • Open station for optional tooling
  • 8 x 1/4 inch capacity shear
  • Punch 1 inch holes thru 1/2 inch plate
  • 3 x 3 x 1/4 angle shear
FREIGHT:
Freight
ORIGIN:
BRAND:
Edwards Mfg. Co logo
We're sorry but this product is currently unavailable.

DESCRIPTION

The Edwards 40 ton C Ironworker is a fully featured ironworker and recently redesigned to be used anywhere there is 110 power available. Featuring four available workstations, the Jaws 40 ton incorporates an 8 inch bar shear, angle shear, heavy duty punch station, and an open tooling cavity that can hold an array of optional tooling.

Like all Edwards machines, this unit works in a completely vertical motion - straight down on the work. There is no arc of tool against the material to be cut or punched. All stations operate as a unit so you can move from punch to shear to angle shear without changing or adding any new equipment.



Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Stations: 4
Rated Capacity (tons): 40
Punching Capacity (Std): 1 inch diameter in 1/2 plate
Punching Throat Depth (inches): 7
Punching Work Height (inches): 36.5
Flat Bar Shearing Max Width (inches): 1/4 x 8
Flat Bar Shearing Max Thickness (inches): 1/2 x 4
Flat Bar Shearing Max Round Cap (inches): 1/2
Flat Bar Shearing Max Square Cap (inches): 1/2
Flat Bar Shearing Work Height (inches): 34.75
Angle Shear Max Size 90 Deg (inches): 3 x 3 x 1/4
Angle Shear Work Height (inches): 40
Open Station Work Height (inches): 34.5
Throat Depth (inches): 10.5
Stroke (inches): 1-5/8
Cycle Time: 2 seconds
Motor (Std): 2 hp, 115 volt
Hydraulics: 5 gpm
Valve Pressure: 2750 psi
•Weight (pounds): 1720
•Dimensions (LxWxH): 36 x 40 x 53

INCLUDES

  • 4 stations
  • Shear: 8 x 1/4 inch capacity bar shear
  • Punching station: 1 inch thru 1/2 inch plate
  • Angle shear: 3 x 3 x 1/4
  • Open station for optional tooling
