Edwards Roll Bending Accessory

Part #: ED9-HAT5000
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $13,170.29
Sale Price: $10,719.99

FREE SHIPPING

2-1/2 inch capacity
Uses Edwards ironworker hydraulics or standalone with optional powerpak
Vertical or horizontal bending

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

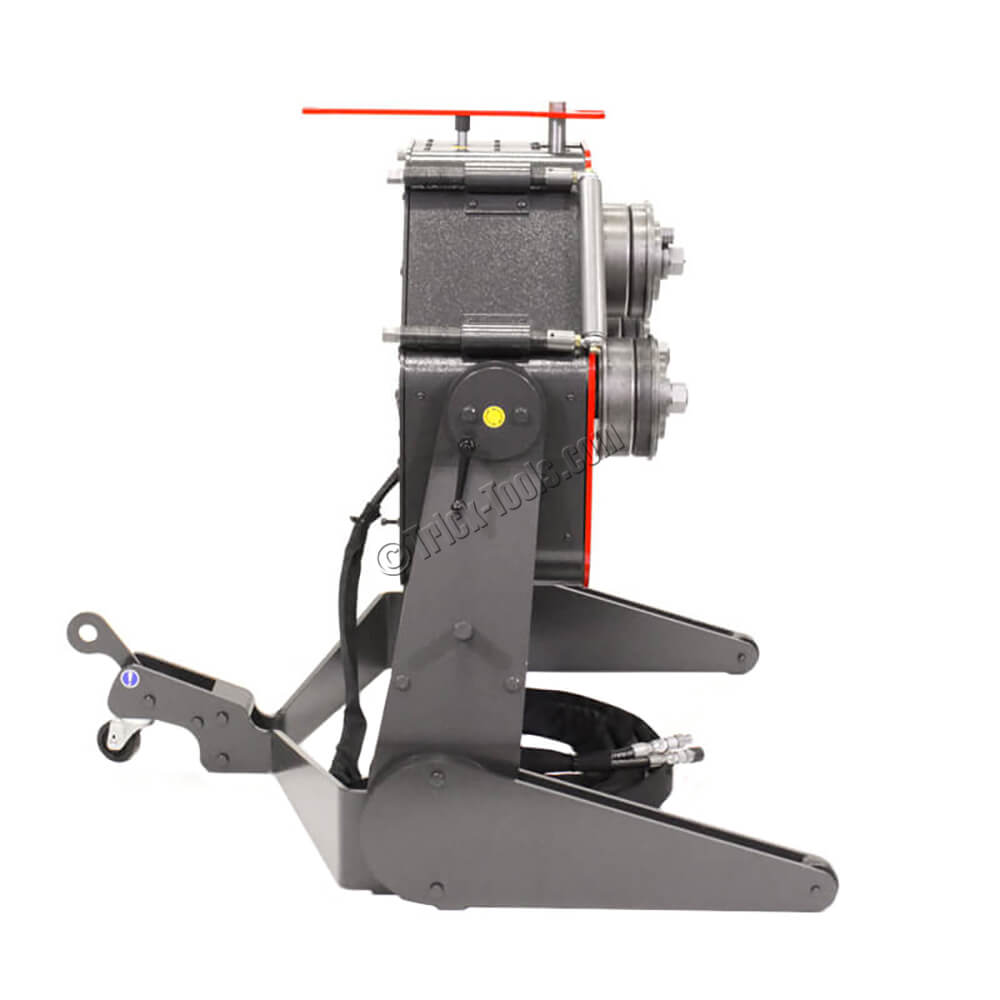

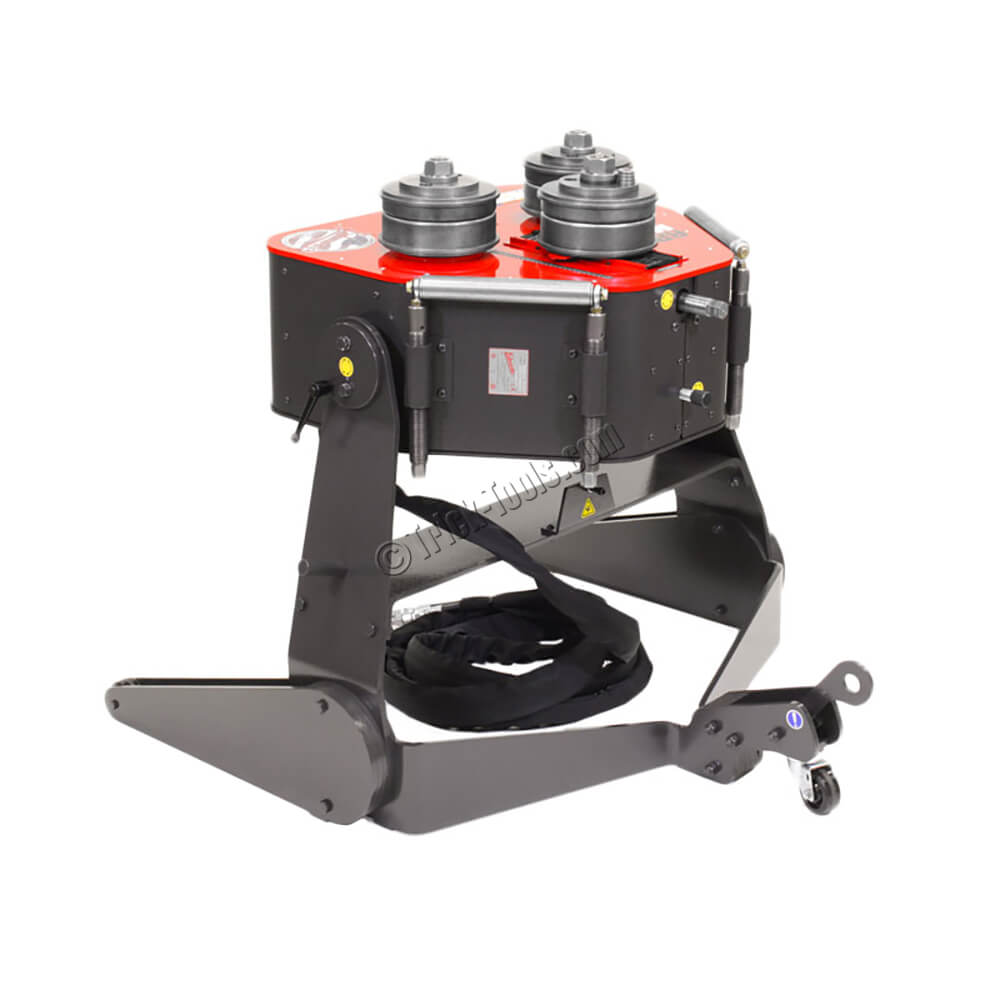

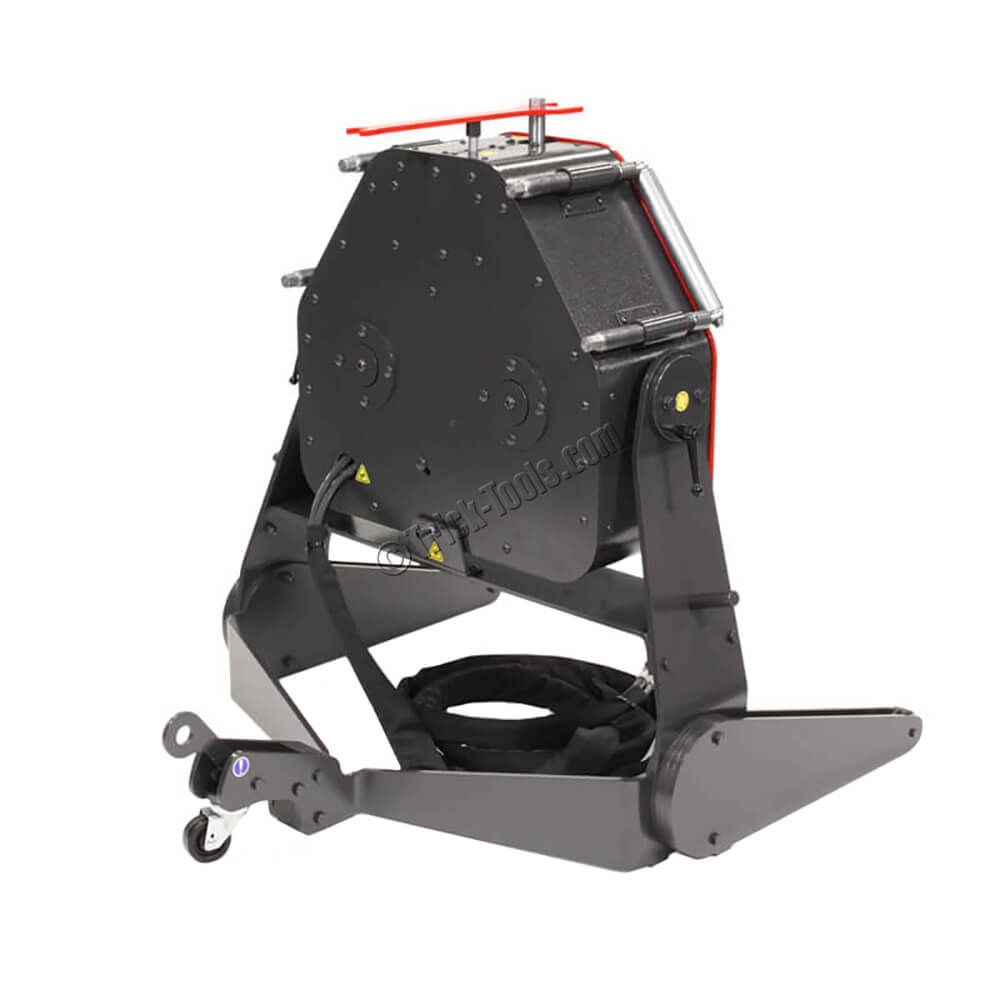

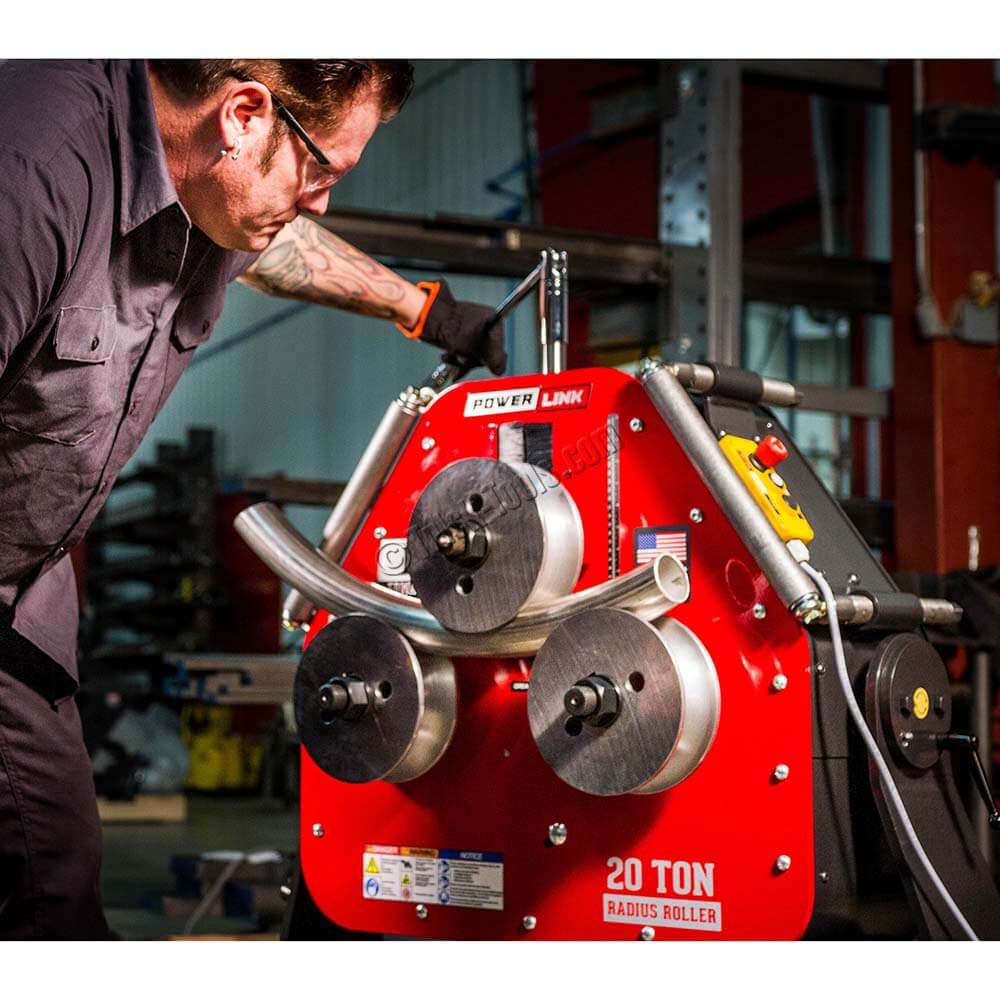

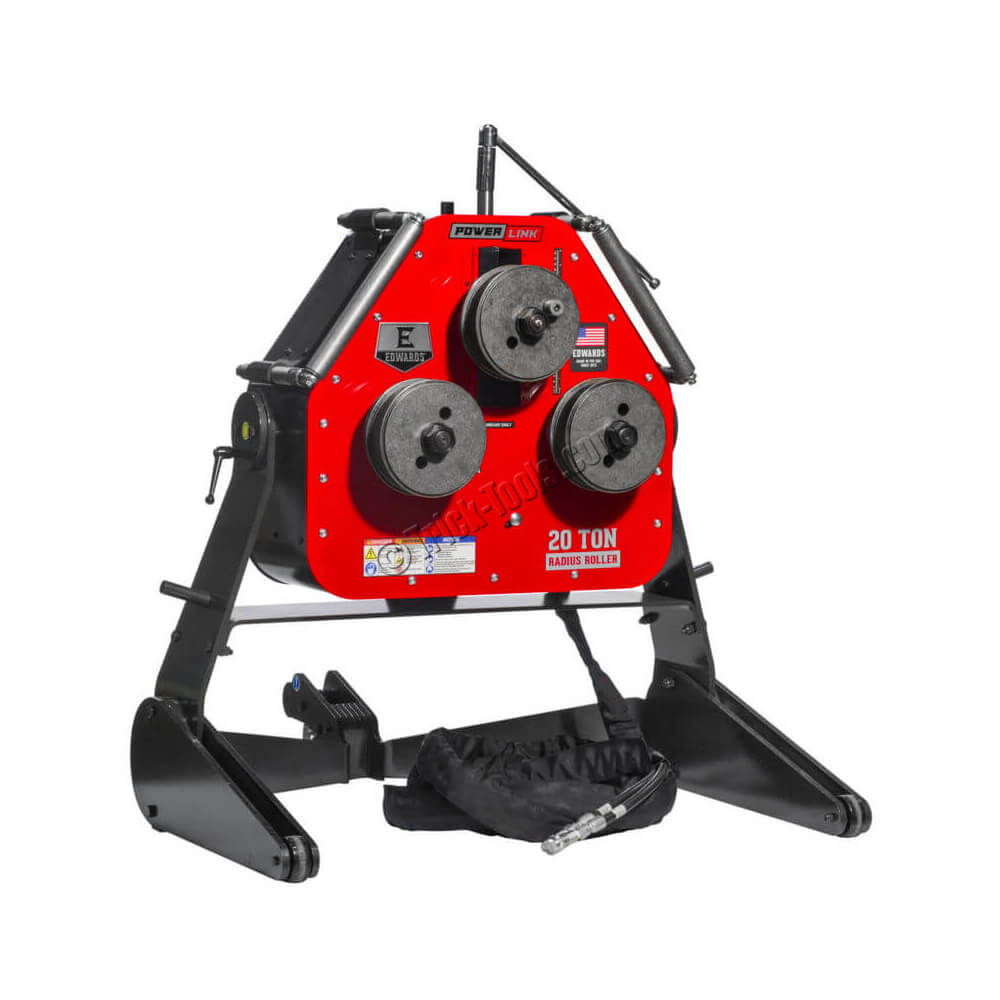

The Edwards Radius Roller is another essential quick-connect hydraulic tool that can be powered by your Edwards Ironworker with the Hydraulic Accessory Pack. Designed for medium to heavy material, the Edwards Radius Roller powers through your job quickly and accurately. The variable speed hydraulic drive allows you to dial in the appropriate speed for various materials. Quickly change the orientation from vertical for smaller projects to horizontal for those larger, heavier jobs. The manual pinch roll adjustment is tracked with a scale for repeatability and the lateral guides allow for offsetting for coiling and angle rolling. Includes a 15 piece universal tooling set for bending square, angles, flats and more. Tube and pipe rolls sold separately.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-1/2 x .095
•Nominal PIPE Capacity: 2 inch schedule 40
•Square Mild Steel Capacity (inches): 2 x .120
•Solid Bar Mild Steel Capacity (inches): 1.375
•C Channel Mild Steel Capacity (inches): 2 x .250
•Max Bending Speed: variable
•Driven Rolls: 2
•Bending Style: roll bending
•Size: 2 inch shafts
•Max Degree of Bend: 360
•Motor: hydraulic
•Bending Roll Adjustment: manual
•Maximum OD (inches): 2-1/2
•Weight (pounds): 950
•Dimensions (LxWxH): 49 x 45 x 43
