Edwards Jaws Jr. 25 ton Ironworker

Part #: IW25
Model: Jaws 25
Ships From: Factory shipped

Lead Time: Usually ships within 2-4 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

FREE SHIPPING

2 stations
Universal open tooling station
Punching station: 1 inch thru 5/16 plate

FREIGHT:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

The Jaws Jr 25 ton Ironworker is made for small shops but offers big capabilities. Featuring two available workstations, the Jaws Jr. incorporates a universal open tooling cavity along with a heavy duty punch station.

Like all Edwards machines, this unit works in a completely vertical motion - straight down on the work. There is no arc of tool against the material to be cut or punched. Both stations operate as a unit so you can move between stations without changing or adding any new equipment.

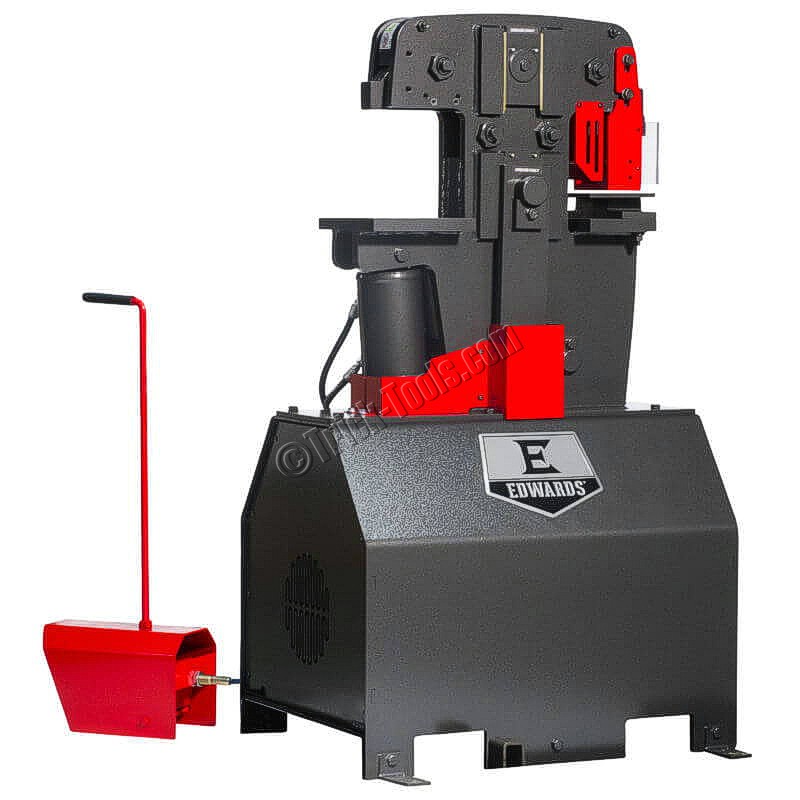

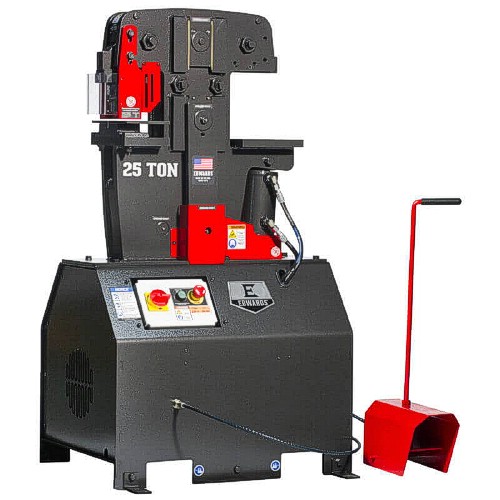

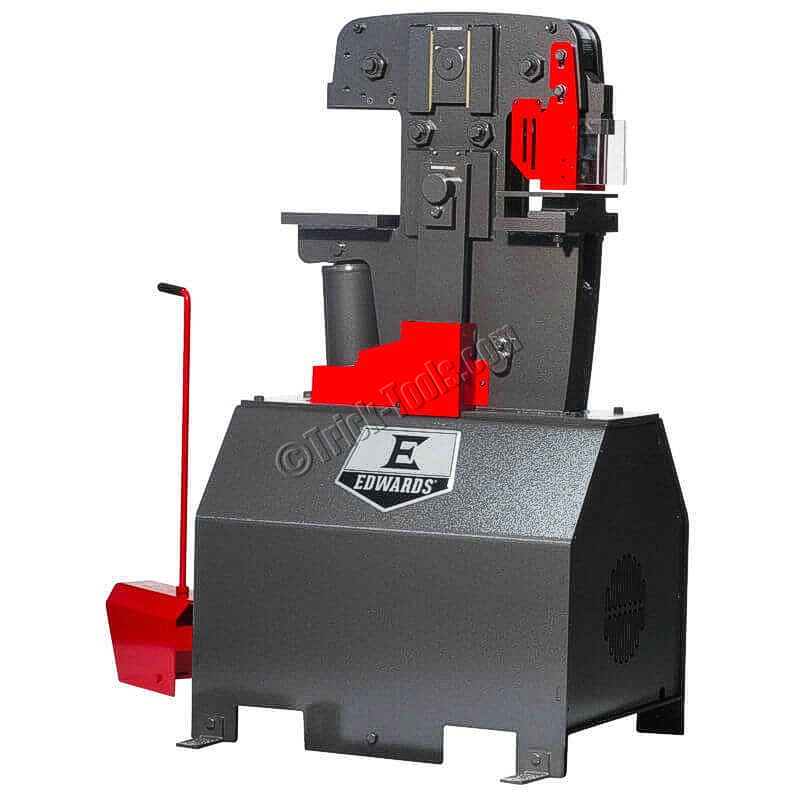

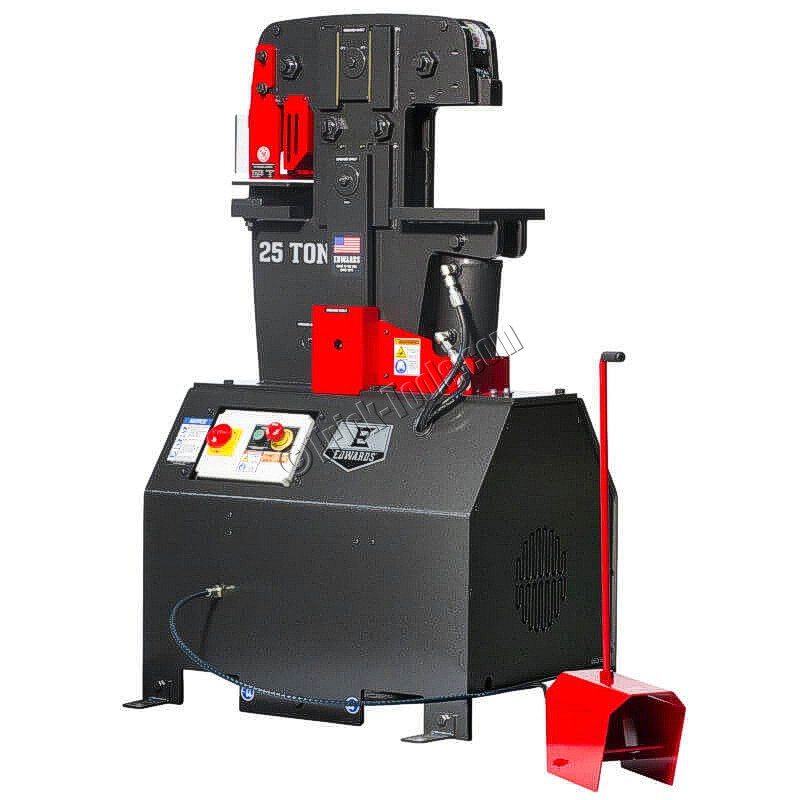

Machine is shown with the optional Multi-shear tool in the open station.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Stations: 2
•Rated Capacity (tons): 25
•Punching Capacity (Std): 1 inch diameter in 5/16 plate
•Punching Throat Depth (inches): 5.5
•Punching Work Height (inches): 38.5
•Open Station Work Height (inches): 35.75
•Throat Depth (inches): 5
•Open Height (inches): 8
•Shut Height (inches): 7
•Brake Capacity (inches): 8
•Stroke (inches): 1
•Motor (Std): 1 hp, 1725 rpm
•Hydraulics: 11 gpm - 2 stage
•Valve Pressure: 2200 psi
•Reservoir Capacity: 3 gallon
•Cylinder: 1-3/4 inch ram
•Weight (pounds): 1000
•Dimensions (LxWxH): 29 x 23 x 55
