HB1 Small Diameter Hand Tubing Bender

Part #: HB1
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $409.99

EXCLUSIVE

5/8 inch OD capacity
Lots of radius die options
Great for fuel, brake, or hydraulic lines
Pedestal or vise mount

SHIPPING:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

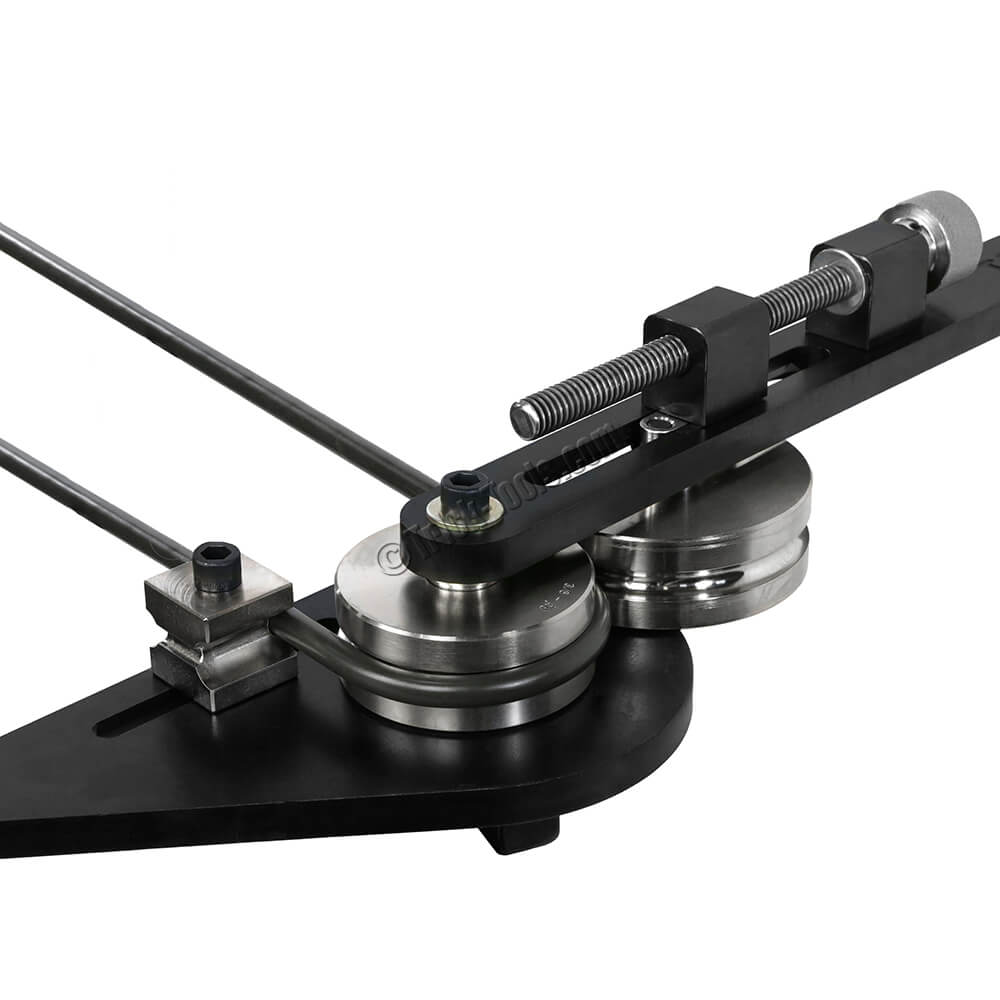

Introducing the HB1 Hand Tube Bending Machine for up to 5/8 inch OD tubing. Heavy-duty steel construction ensures lasting quality for bending custom fuel, brake, and hydraulic lines, even small diameter chassis tubing. Quick setup and simple operation make this the right choice for light production, repair, and prototype work. The HB1 Tubing Bender produces quality bends in various materials and wall thicknesses with the flexibility required for any project.

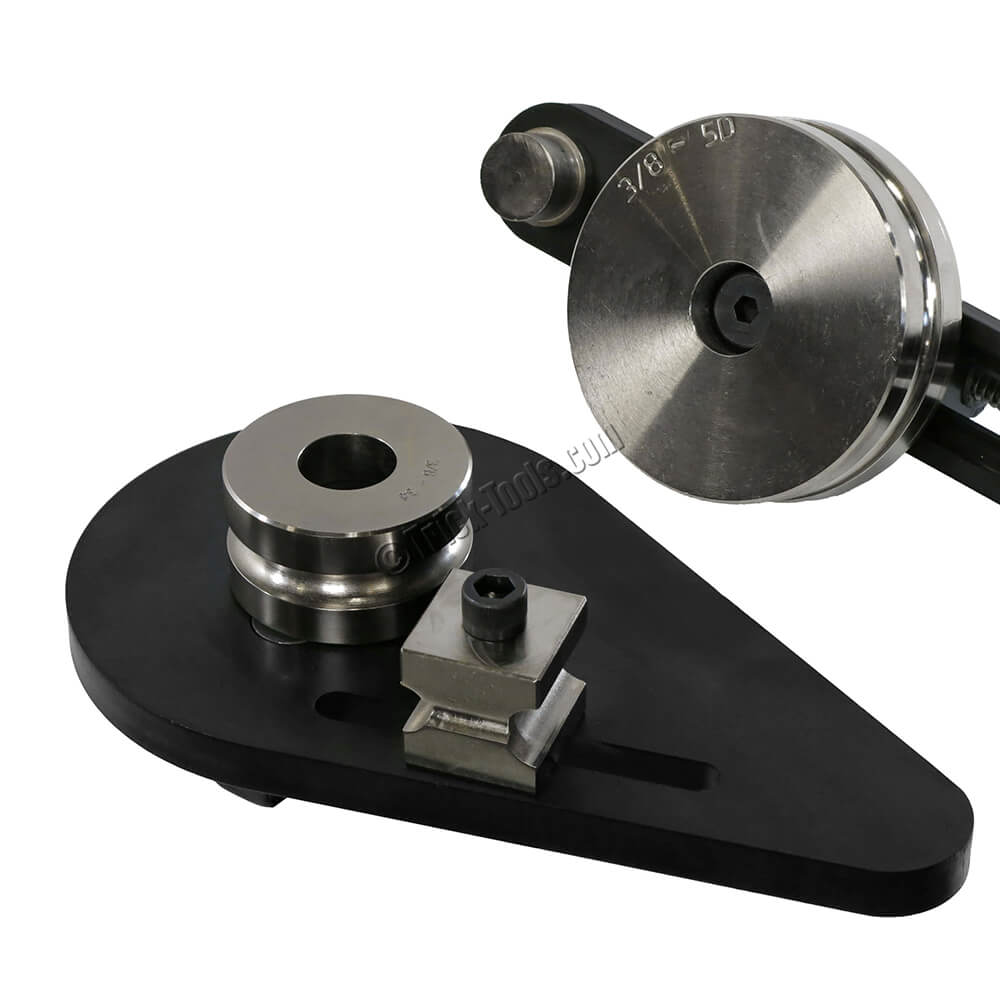

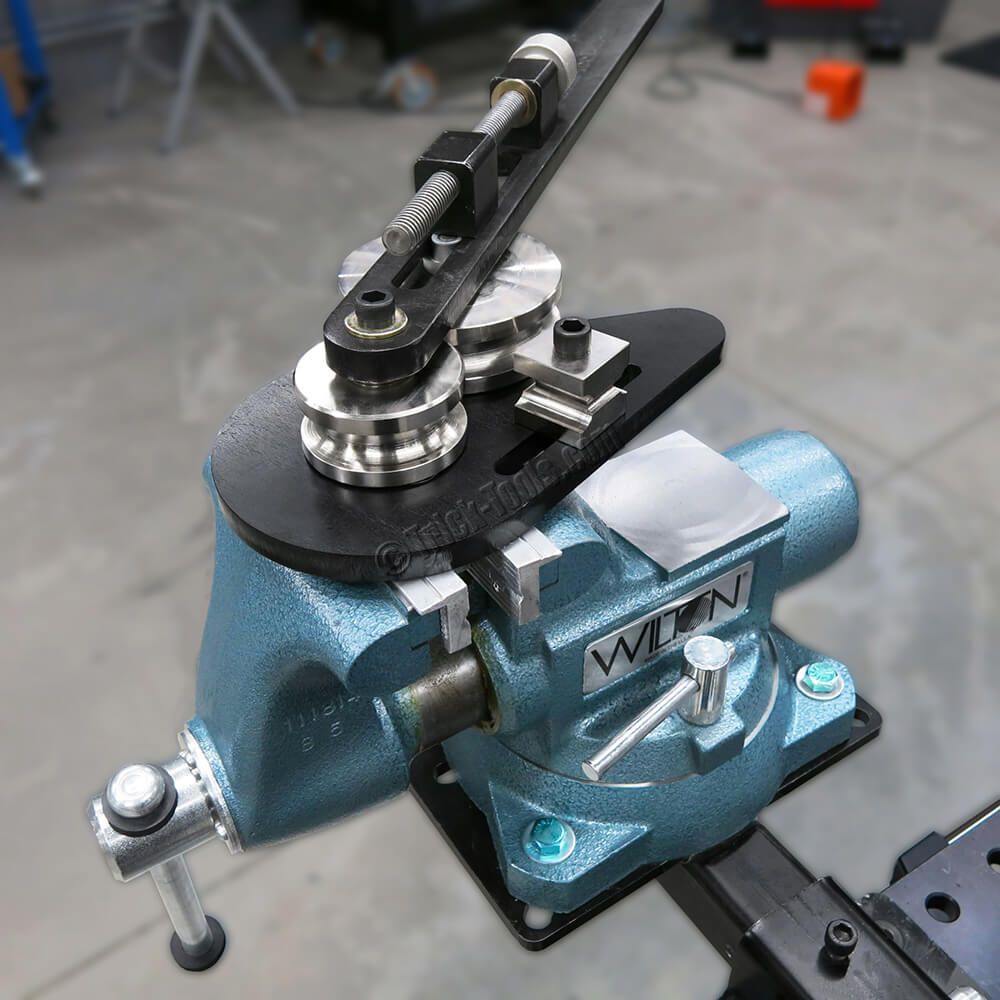

The unique design of this bender allows for right or left-handed bending and close bend-to-bend distances. It can be clamped in a vise or bolted to the optional stand and anchored to the floor. Each die set is reversible so you have two radius options for each size and the adjustable bend die allows for easy repositioning and removal of the tube.

Dies included in the optional Die Kit:

3/16 inch 4D & 5D Radius
1/4 inch 3D & 5D Radius
5/16 inch 3D & 5D Radius
3/8 inch 3D & 5D Radius
1/2 inch 3D & 5D Radius

Requires at least two dies of equal OD. For example, 1/2 inch 3D and 1/2 inch 5D die. Dies sold separately.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 5/8 x .065
•Solid Bar Mild Steel Capacity (inches): 3/8
•Minimum OD (inches): 3/16
•Bending Style: rotary compression
•Min Center Line Radius (inches): 0.62
•Max Center Line Radius (inches): 3.12
•Max Degree of Bend: 180
•Maximum OD (inches): 5/8
