HB1 Small Diameter Hand Bender Deluxe Kit

Part #: DeluxeHB1
Ships From: Our warehouse
Availability: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $909.99
Sale Price: $719.99
SALE
  • 3/16 thru 5/8 inch OD capacity
  • Great for fuel, brake, or hydraulic lines
  • Pedestal and dies included
SHIPPING:
UPS
ORIGIN:
BRAND:
Quantity:

DESCRIPTION

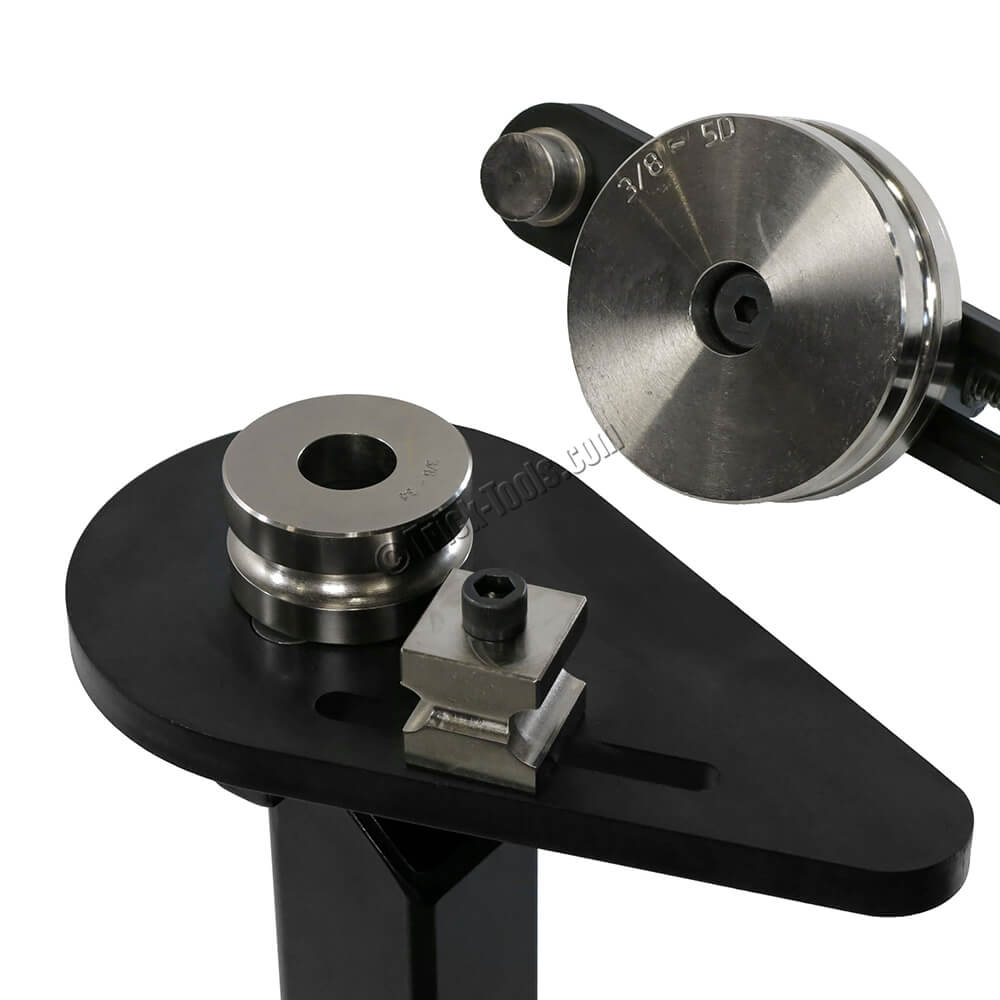

Introducing the HB1 Hand Tube Bending Machine for up to 5/8 inch OD tubing. Heavy duty steel construction ensures lasting quality for bending custom fuel, brake, and hydraulic lines, even small diameter chassis tubing. Quick setup and simple operation make this the right choice for light production, repair, and prototype work. Each die set is reversible for bending 3 or 5 times the diameter of the tube radii and the adjustable bend die allows for easy repositioning and removal of the tube.

The unique design of this bender allows for right or left handed bending and close bend to bend distances. It can be clamped in a vise or bolted to the optional stand and anchored to the floor. The HB1 Tubing Bender produces quality bends in a variety of materials and wall thicknesses with the flexibility required for any project.

Now includes 3/16 inch dies!

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

Mild Steel Capacity (inches): 5/8 x .065
Round Aluminum Capacity (inches): 5/8 x .065
Solid Bar Mild Steel Capacity (inches): 5/16
Minimum OD (inches): 3/16
Bending Style: rotary compression
Min Center Line Radius (inches): 0.62
Max Center Line Radius (inches): 3.12
Max Degree of Bend: 180
Maximum OD (inches): 5/8

INCLUDES

  • Bender
  • 3/16 inch 4D & 5D radius dies
  • 1/4 inch 3D & 5D radius dies
  • 5/16 inch 3D & 5D radius dies
  • 3/8 inch 3D & 5D radius dies
  • 1/2 inch 3D & 5D radius dies
  • 5/8 inch 3D & 5D radius dies
  • Floor pedestal
