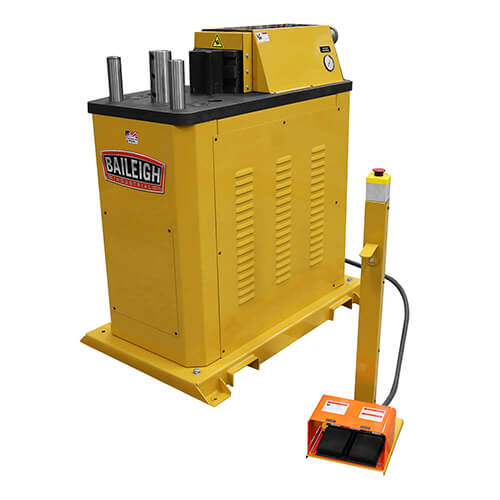

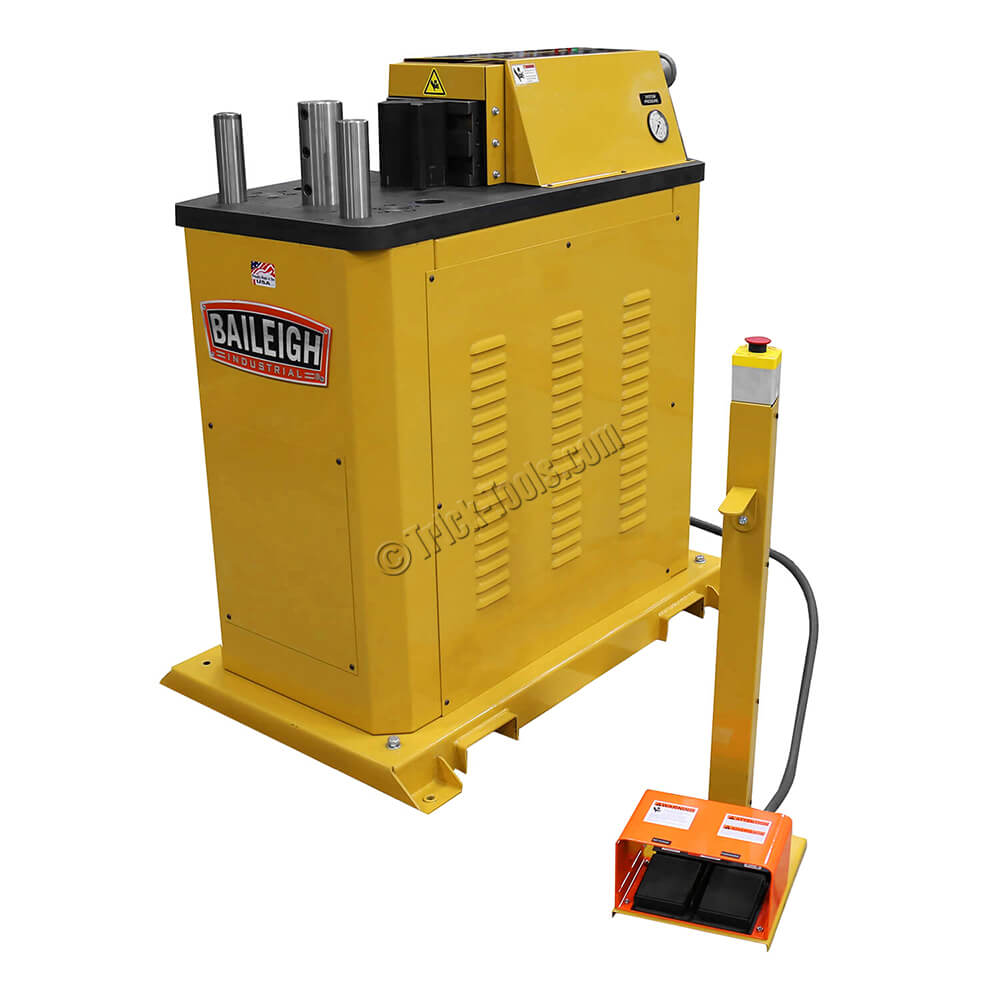

Baileigh HPB-20 Horizontal Press Brake, 20 ton

The Baileligh HPB-20 Horizontal Press Brake is great for bending brackets and bar stock, or used with custom tooling for a wide range of applications. The advantage of a worktable perpendicular to the bending dies means that parts come out square every time without time-consuming measuring and squaring. The 20-ton cylinder is run by a 5hp, 220 volt 3 phase motor and has up to a 12-inch stroke. The HBP-20 is USA made and features a stroke limiter for repeatable bends, a foot pedal for hands-free operation, a 39-inch working height with machined tabletop, and a quick-release tooling system that includes a two-sided v-die with 2 and 2-1/2 inch V's along with a 40-degree punch.

Additional tooling available by request

• 20 ton press

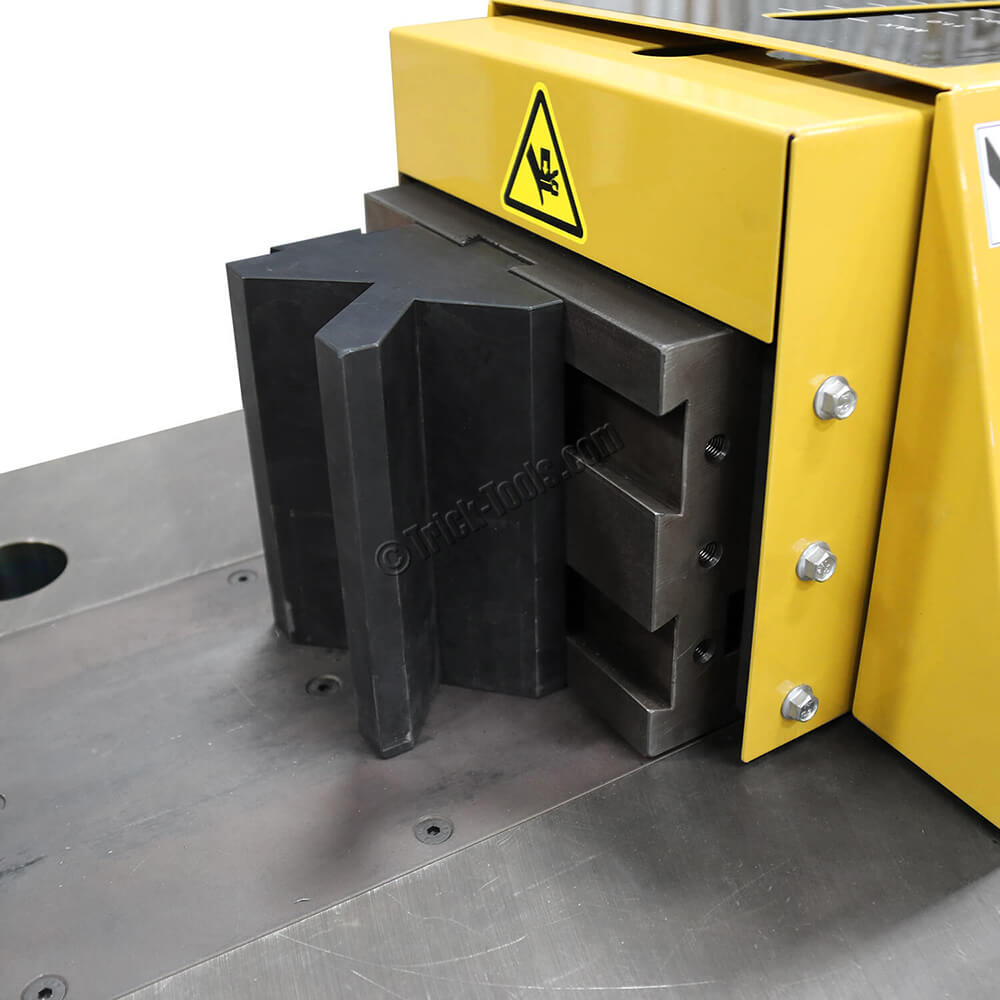

• Universal 2 way V-die and 40 degree punch
• Outside tool posts are not included
