HammerFab Raised Recess Dimple Die Set

Part #: HF-RR5
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $325.00

NEW

5 piece raised recess set
Add strength and a unique design feature
Great for flat head screws
Made in the USA

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

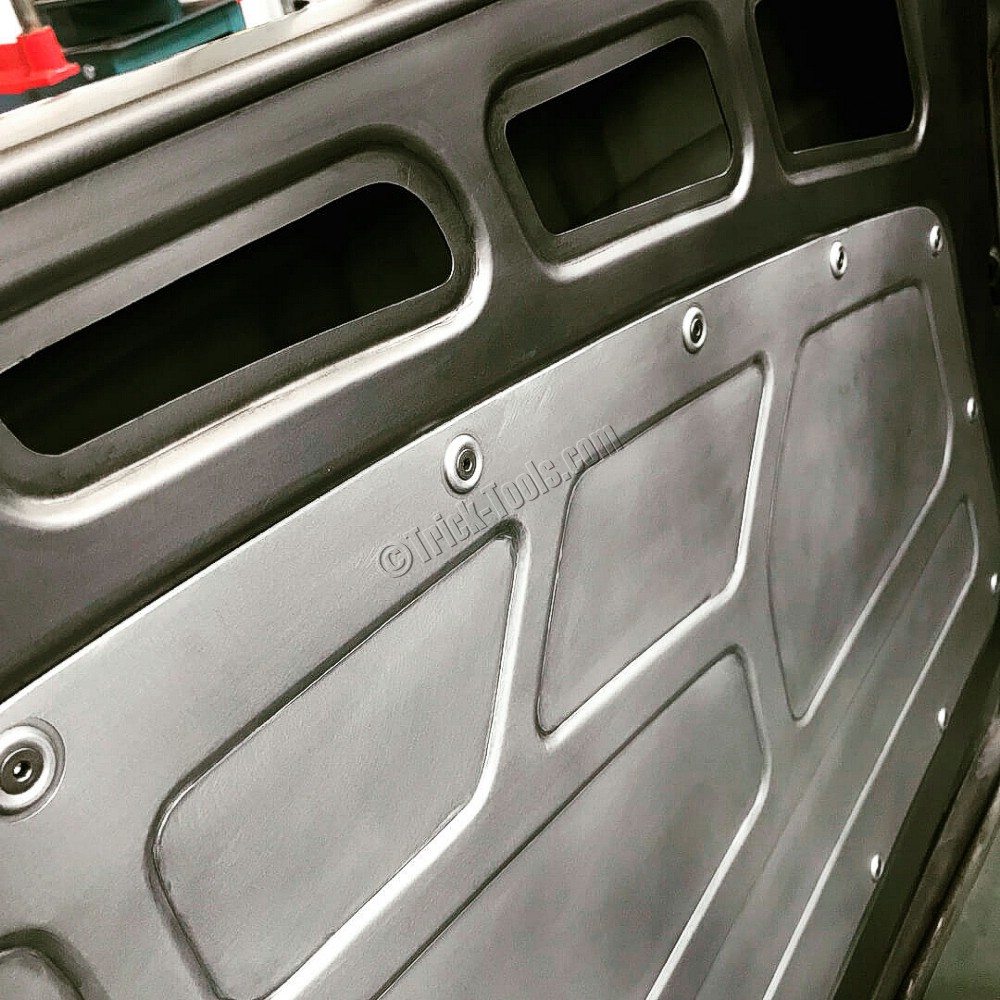

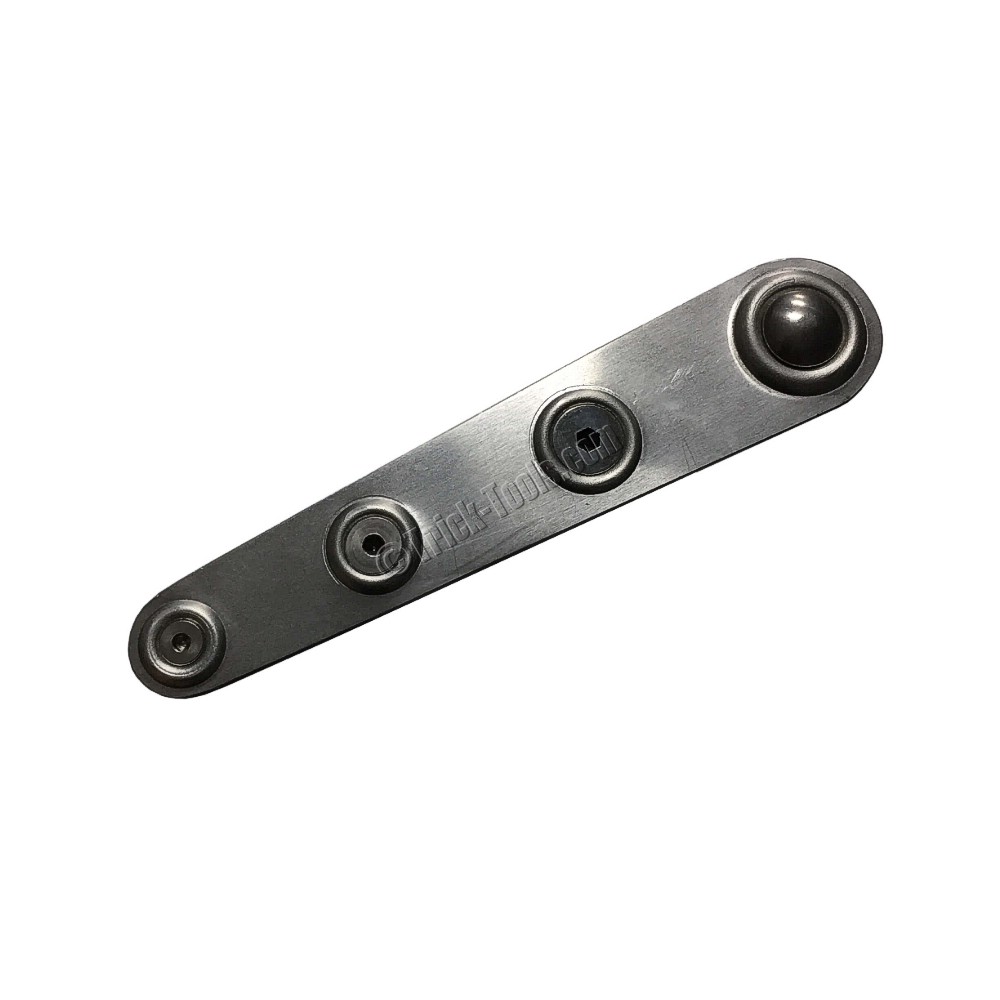

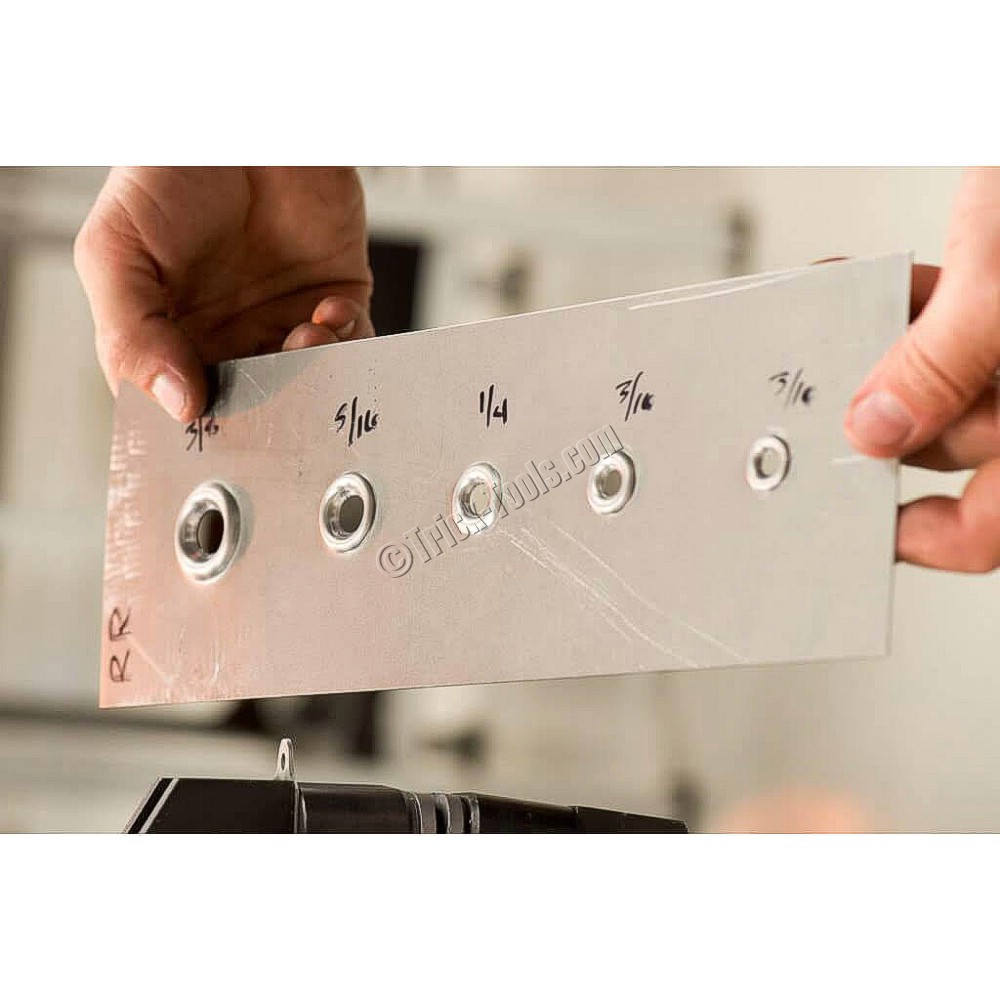

Add that custom look to your project while adding strength with these Raised Recess Dimple Dies from HammerFab. This kit features 5 sizes to fit most standard 82-degree countersunk fasteners and includes dies for #8, #10, 1/4, 5/16, and 3/8 inch. The raised shape allows for the countersunk fastener to be used without clearance issues on the back of the panel. Made in the USA and machined from 4140 pre-hard alloy steel ensures years of use.

Maximum capacity: 18 gauge mild steel, 20 gauge stainless steel, 16 gauge aluminum.

The overall outside diameter of the dimple dies are as follows:
#8 die = .750 inch OD
#10 die = .875 inch OD
1/4 inch die = .875 inch OD
5/16 inch die = 1.000 inch OD
3/8 inch die = 1.250 inch OD
