HammerFab Master Dimple Die Set

Part #: HF-Master
Ships From: Our warehouse

Lead Time: Usually ships within 1 day

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

In Stock

Price: $1,899.95
Sale Price: $1,699.95

NEW

Includes all 28 HammerFab dimple dies
Bonus drawer organizer with room for future sizes
Dimples add strength and a unique design feature
Perfect for door panels, engine bays, and more

SHIPPING:

ORIGIN:

BRAND:

DESCRIPTION

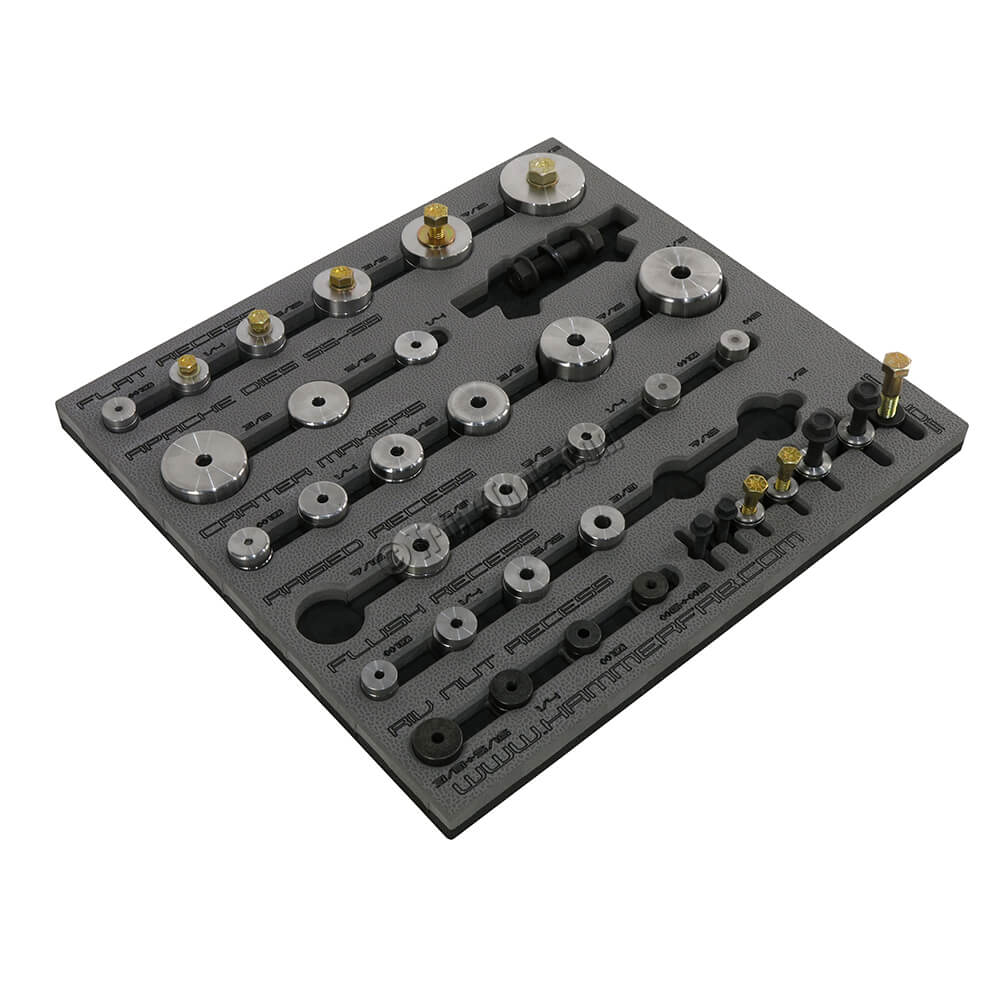

Give your project a unique look while adding strength with the Master Dimple Die Set from HammerFab. This set includes Crater Makers, flat recess, flush recess, RivNut and the Apache dies along with a foam drawer liner to keep everything organized and easily accessible.

All HammerFab dies are CNC machined from 4140 alloy steel and heat-treated for years of use. Most of the dies can be used in a press or vise and many can also be used with one of the supplied draw bolts. The HammerFab dimple dies are designed for best results in 18 gauge mild steel and require around 7 to 10 tons of pressure.

The overall outside diameter of the dimple dies are as follows:

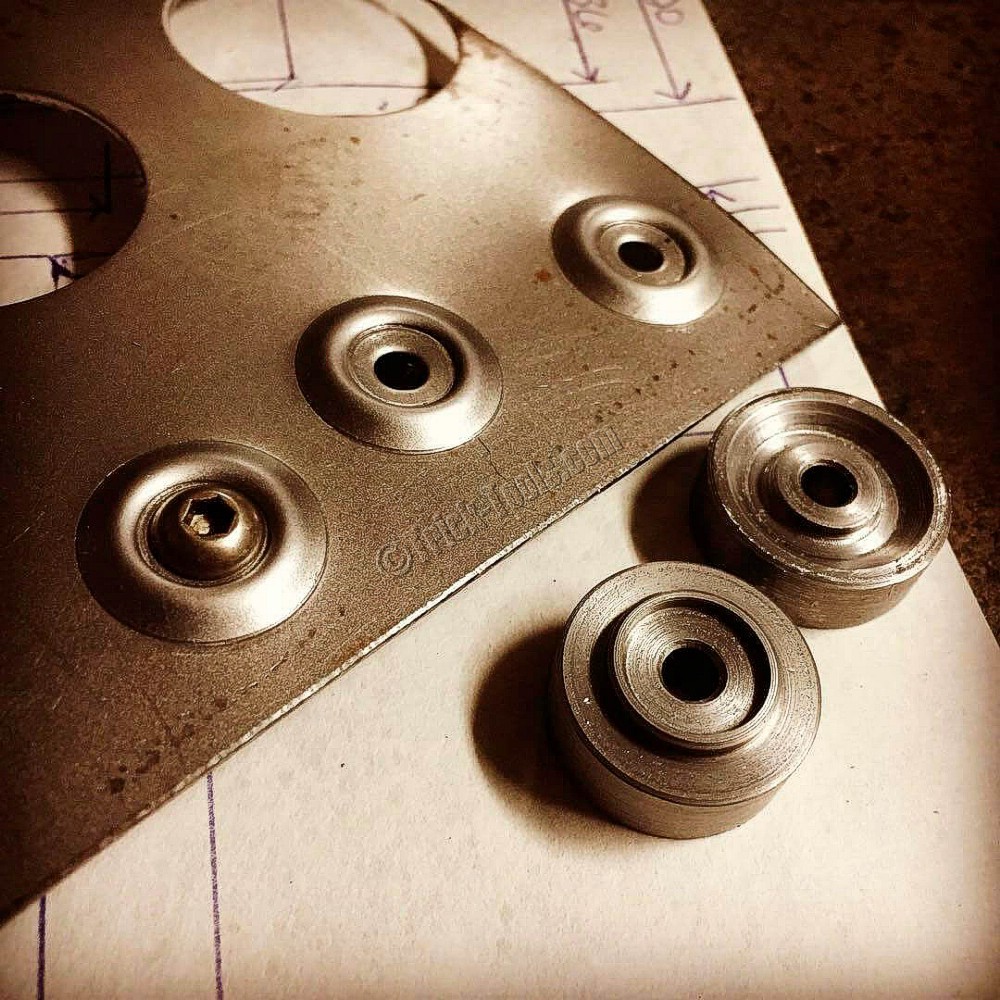

Crater Maker
#10 die = .9375 inch OD
1/4 inch die = 1.135 inch OD
5/16 inch die = 1.250 inch OD
3/8 inch die = 1.500 inch OD

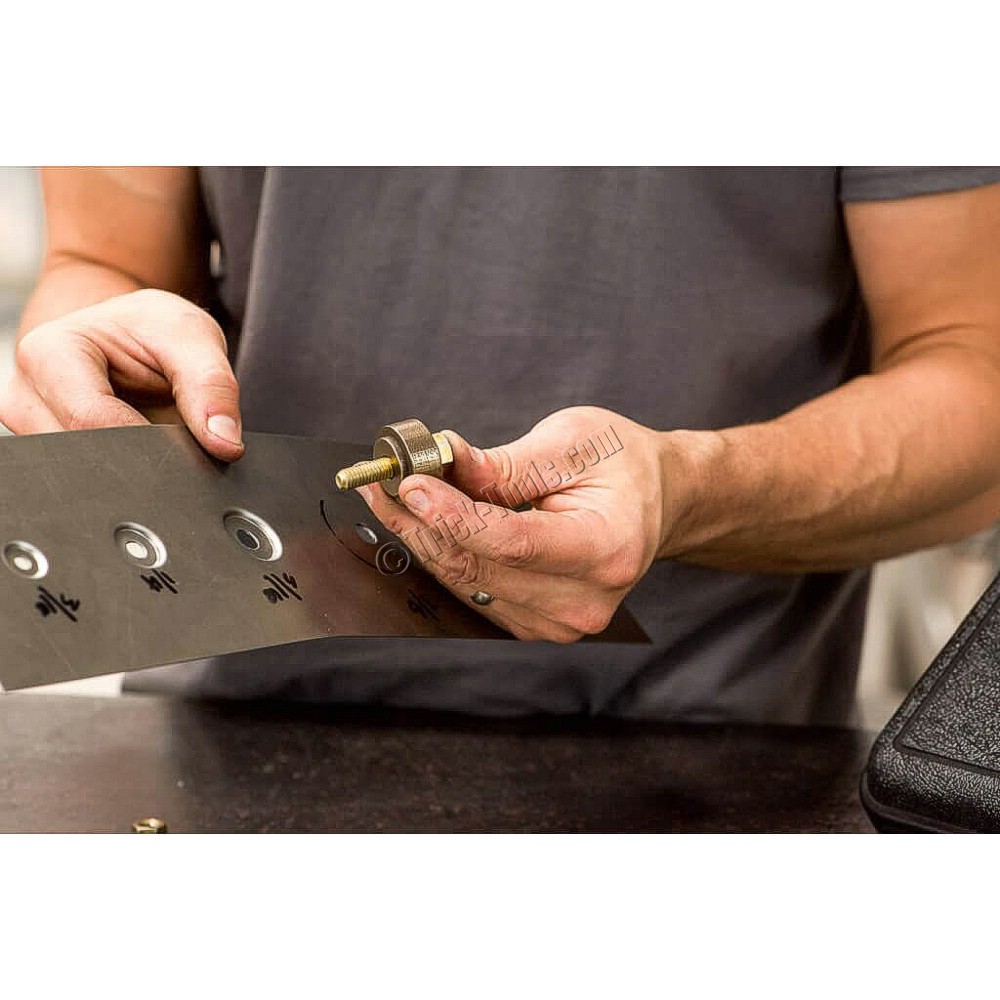

Flat Recess
#10 die = .800 inch OD (recess is approximately .525 inches)
1/4 inch die = .950 inch OD (recess is approximately .700 inches)
5/16 inch die = 1.190 inch OD (recess is approximately .875 inches)
3/8 inch die = 1.480 inch OD (recess is approximately 1.090 inches)
7/16 inch die = 1.850 inch OD (recess is approximately 1.400 inches)
1/2 inch die = 2.310 inch OD (recess is approximately 1.700 inches)

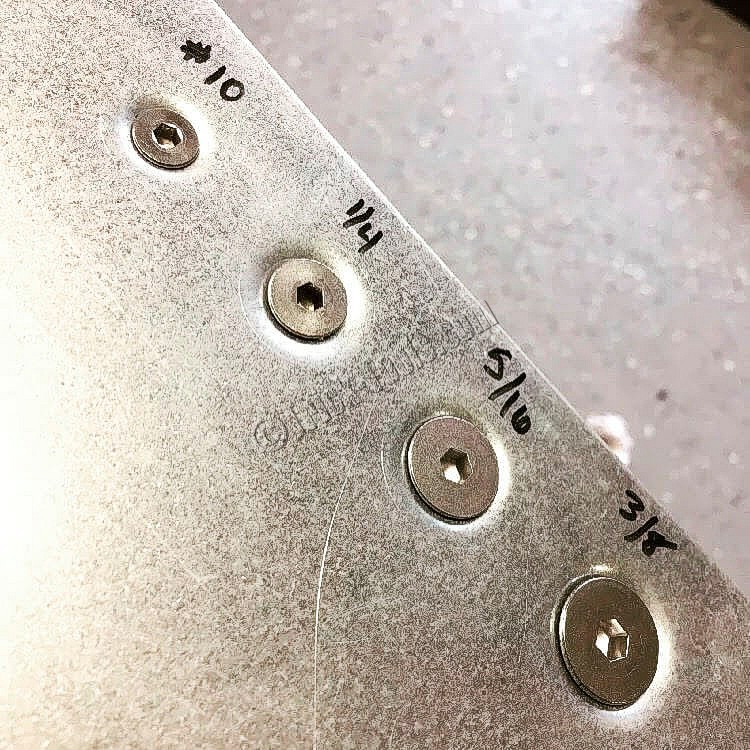

Flush Recess
#10 die = .750 inch OD
1/4 inch die = .875 inch OD
5/16 inch die = 1.00 inch OD
3/8 inch die = 1.00 inch OD

Raised Recess
#8 die = .750 inch OD
#10 die = .875 inch OD
1/4 inch die = .875 inch OD
5/16 inch die = 1.000 inch OD
3/8 inch die = 1.250 inch OD

Note: Draw bolts are a wear item and are not intended to last the life of the die sets.
