Hardcore Maximizer 2 x 72 inch Premium Belt Grinding Machine

Part #: MAXIMIZER
Model: MAX-FL
Ships From: Factory shipped

Lead Time: Lead times vary - Call for availability

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,499.00

7 unique work stations
2 x 72 inch belt
1.5hp variable speed motor
Includes tilting pedestal
8 work rests

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

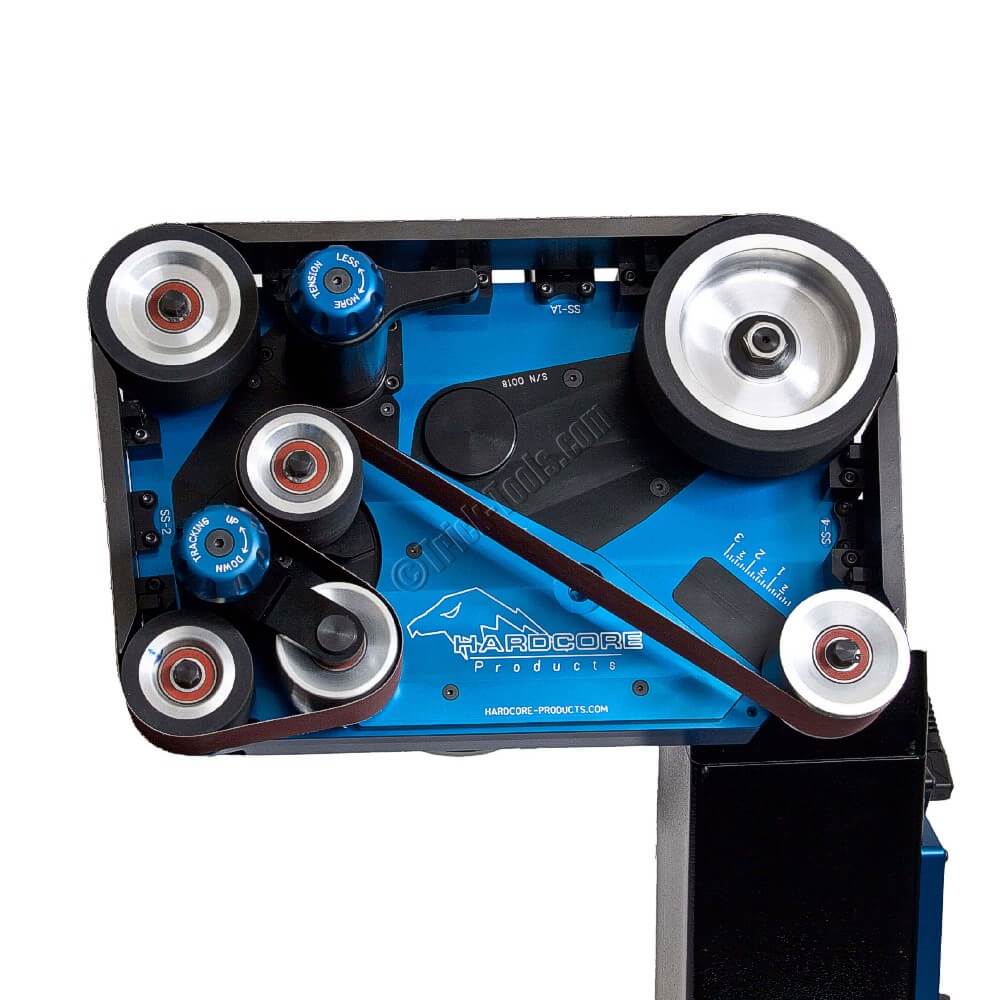

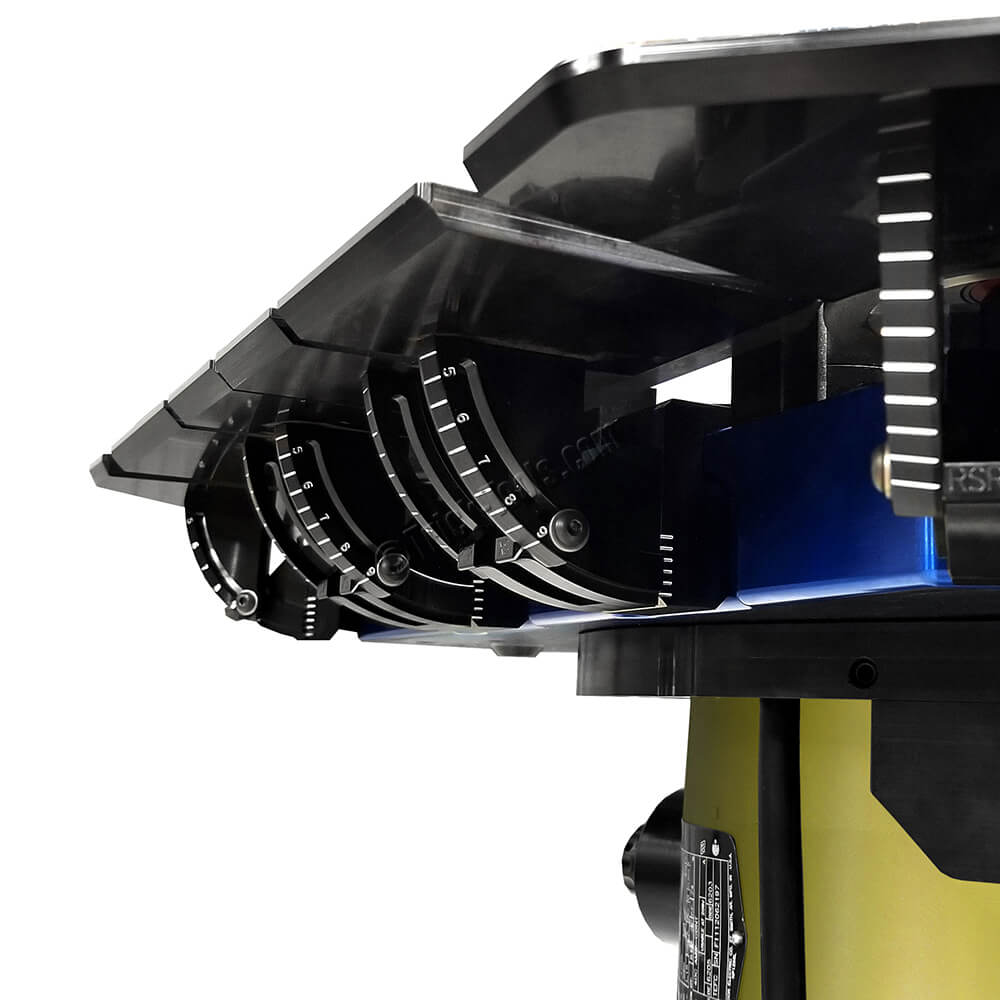

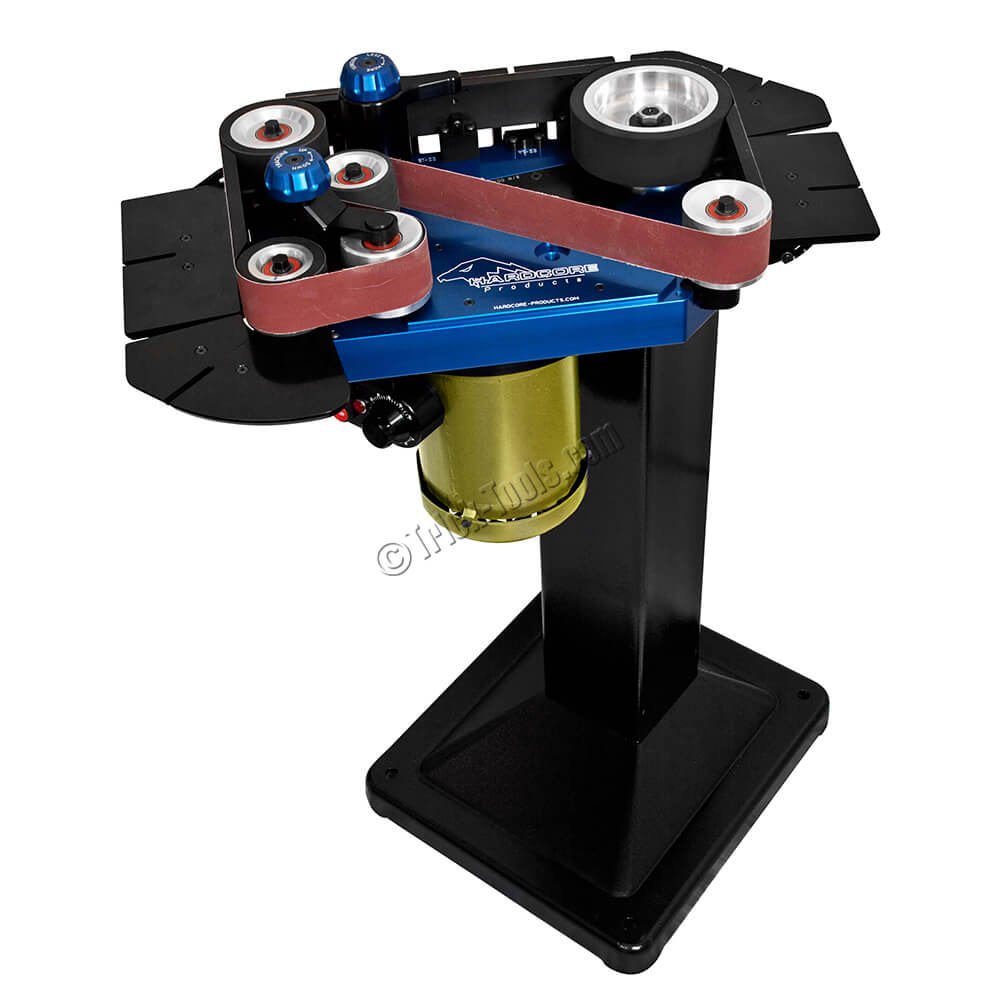

The Hardcore Maximizer is a Premium Belt Grinder in a class of its own. The quality and flexibility of this machine must be seen to be believed. Seven different work stations are available and can be used in a vertical or horizontal configuration. Each work station comes with a tilting and height-adjustable table. Production work can benefit greatly because each station can be set up for a given angle and the height adjustment ensures maximum usage from your abrasives.

Optional contact wheels can go up to 10 inches and with the addition of the small wheel attachment, down to 5/16. The infinitely adjustable variable speed motor allows precise control and optimum grinding speed for the 2 x 72-inch belt. maximum belt speed with the 6-inch drive wheel allows for belt speeds up to 4500 SFM. By changing to an optional 8 or 10-inch drive wheel the belt speed can be increased to 6000 & 7500 SFM, accordingly.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Motor: 1.5 hp, 110 volt variable speed
•Belt Width (inches): 2
•Belt Length (inches): 72
•Belt Speed: 4500 SFPM with 6 inch contact wheel
•Contact Wheel Diameter (inches) : 3.00; 4.00; 6.00 standard
•Platen Size (inches): 2) 8 inch, 1) 12 inch
