Hougen HMD130 Ultra Low Profile Magnetic Drill

Part #: 0130101
Model: HMD130
Ships From: Our warehouse
Lead Time: Usually ships within 1 day
We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.
Price: $1,471.25
Sale Price: $1,324.00
  • Drilling capacity up to 1-3/8 inch hole 1 inch deep
  • LED pilot light

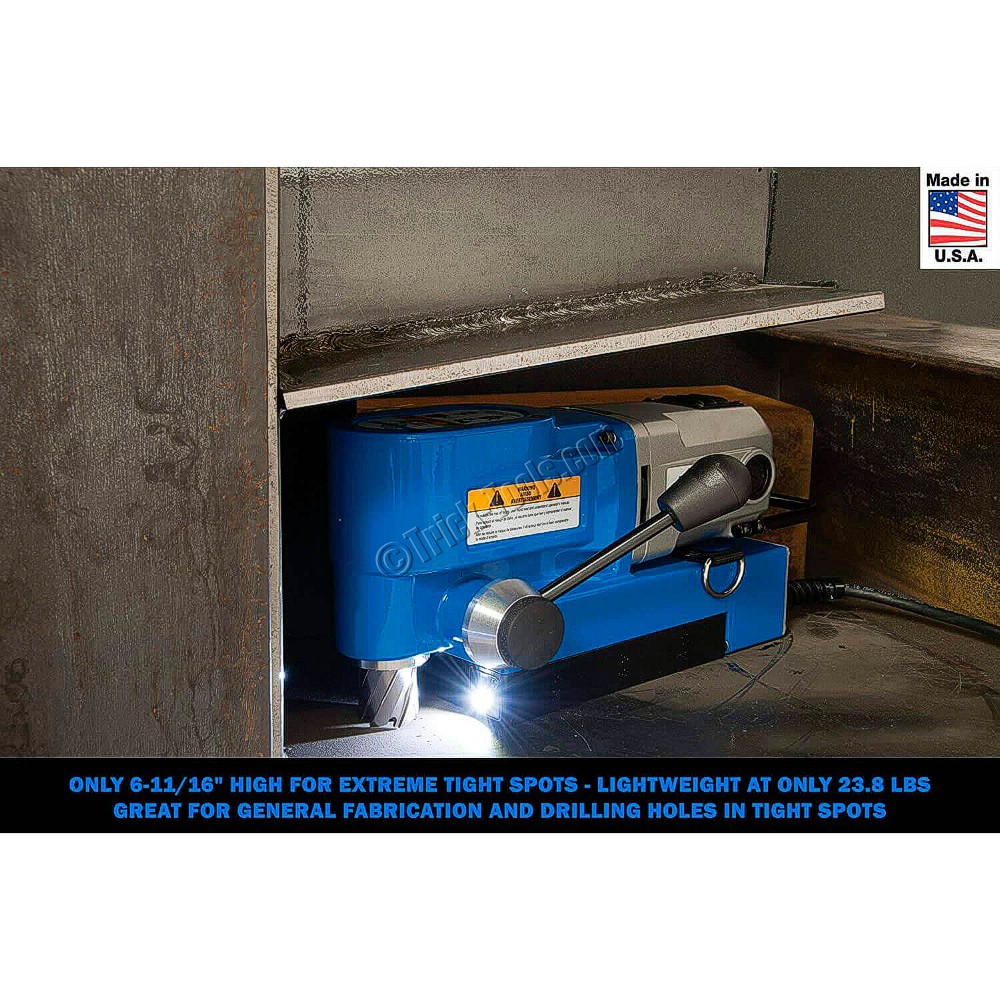

  • Only 6-1/2 inches tall

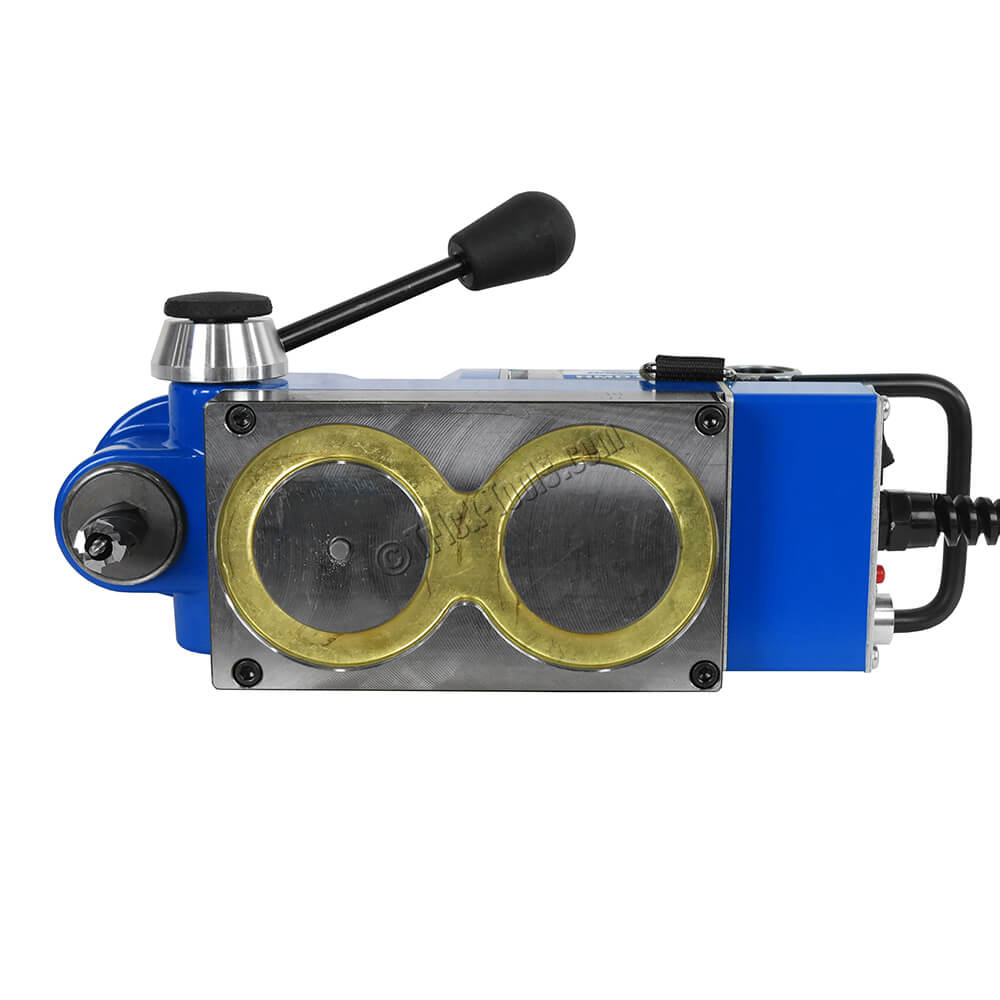

  • 2,165 lbs of magnetic force
  • Low profile design
SHIPPING:
UPS
ORIGIN:
BRAND:
Hougen logo
Voltage:
Quantity:

Configuration

DESCRIPTION

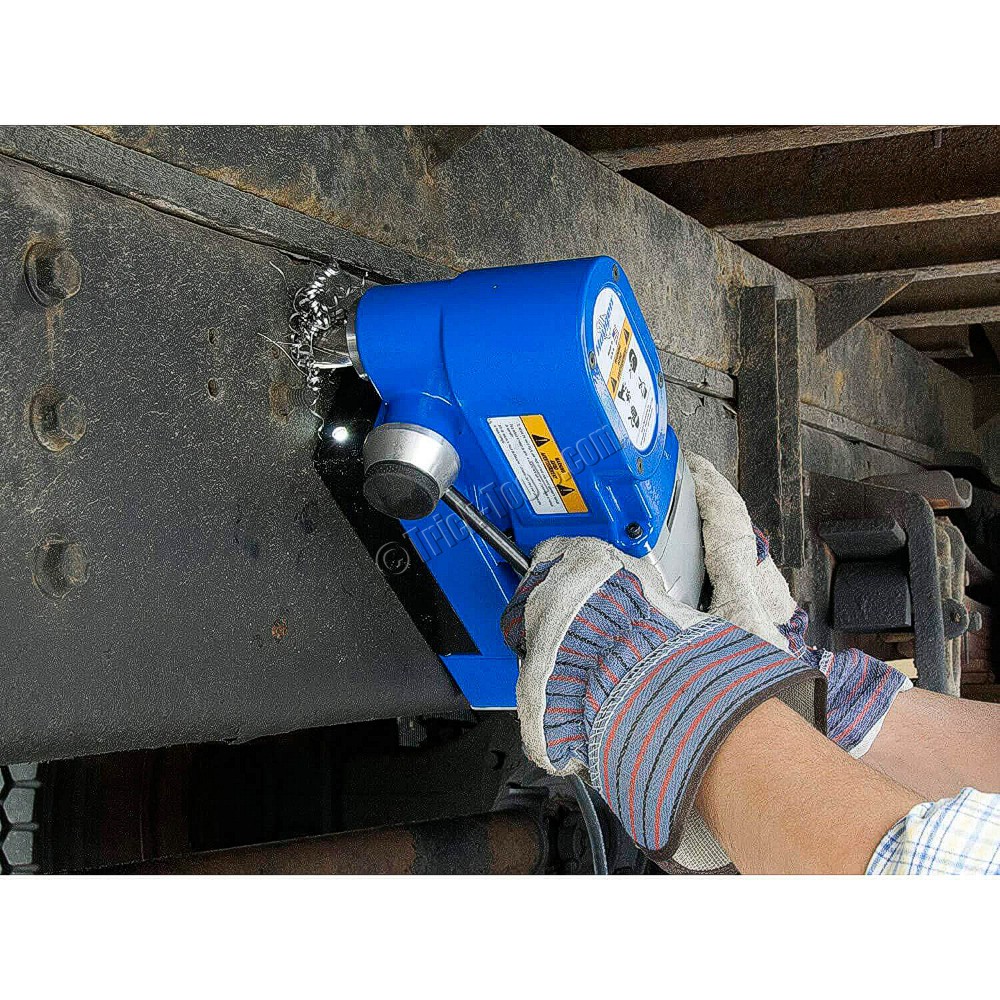

Small enough to drill in places where even hand held electric drills can’t go, the HMD130 by Hougen has the power to cut holes up to 1-3/8 inch diameter thru materials up to 1 inch thick. Featuring Hougen's RotaLoc tool-less cutter mounting system, the HMD130 was designed for fast, efficient holemaking in confined spaces yet is powerful enough for general fabrication. The powerful Hougen motor and high-torque gearing allow for a broad range of applications including truck frame modification, plant maintenance and on-site assembly and installation projects.

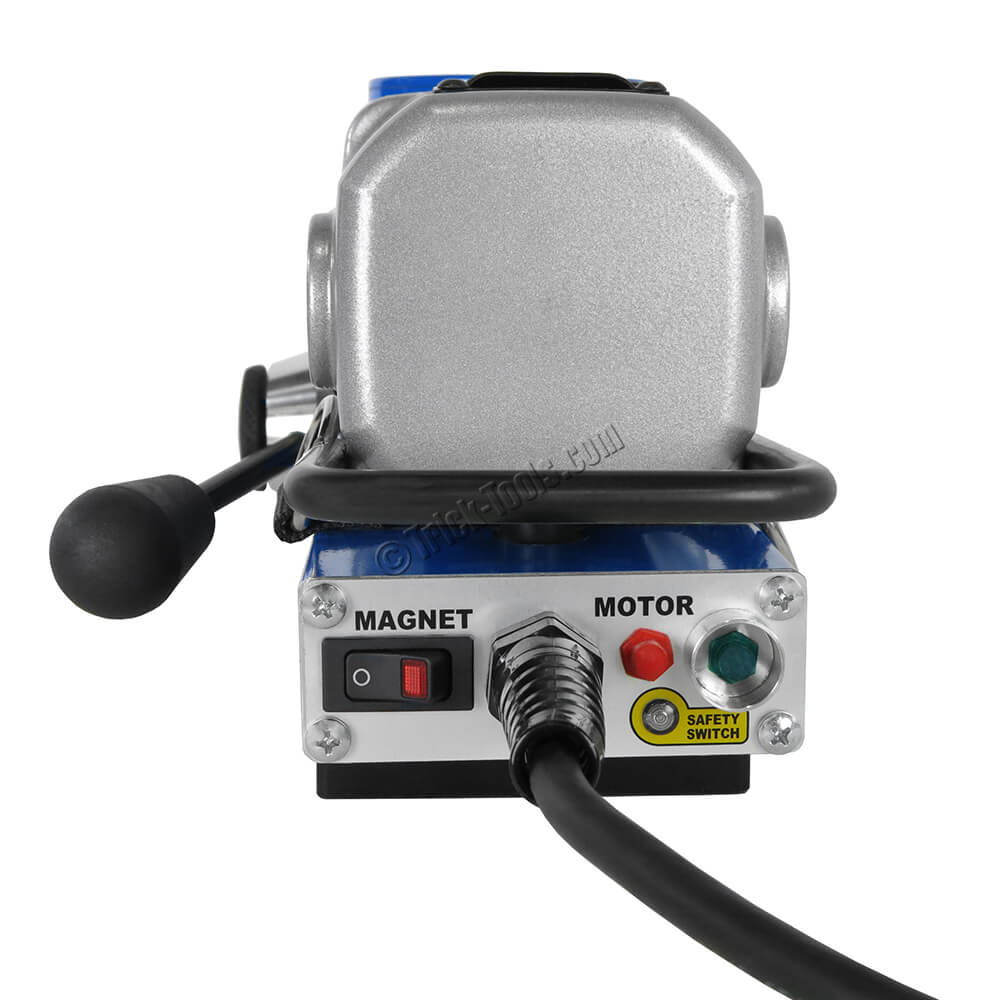

For safety, Hougen provides exclusive features to insure a safe work environment. A no-adjustment safety switch shuts down the drill motor if lift of the magnetic base is detected plus an LED indicator that monitors this sensor alerts if the switch is not engaged. A two stage power-on switch prevents drill rotation unless the magnet has first been engaged, and in the case of power interruption.



Warranty:

2 year manufacturer's warranty

SPECIFICATIONS

Motor: 115 volt, 9 amp
Number of Speeds: 1
Spindle Speed(s)Range: 450
Drilling Capacity (inches): 7/16 to 1-3/8
Spindle Taper: RotaLoc tool-less spindle
Spindle Travel (inches): 1
Weight (pounds): 23.8
Dimensions (LxWxH): 14.68 x 6.75 x 6.47
