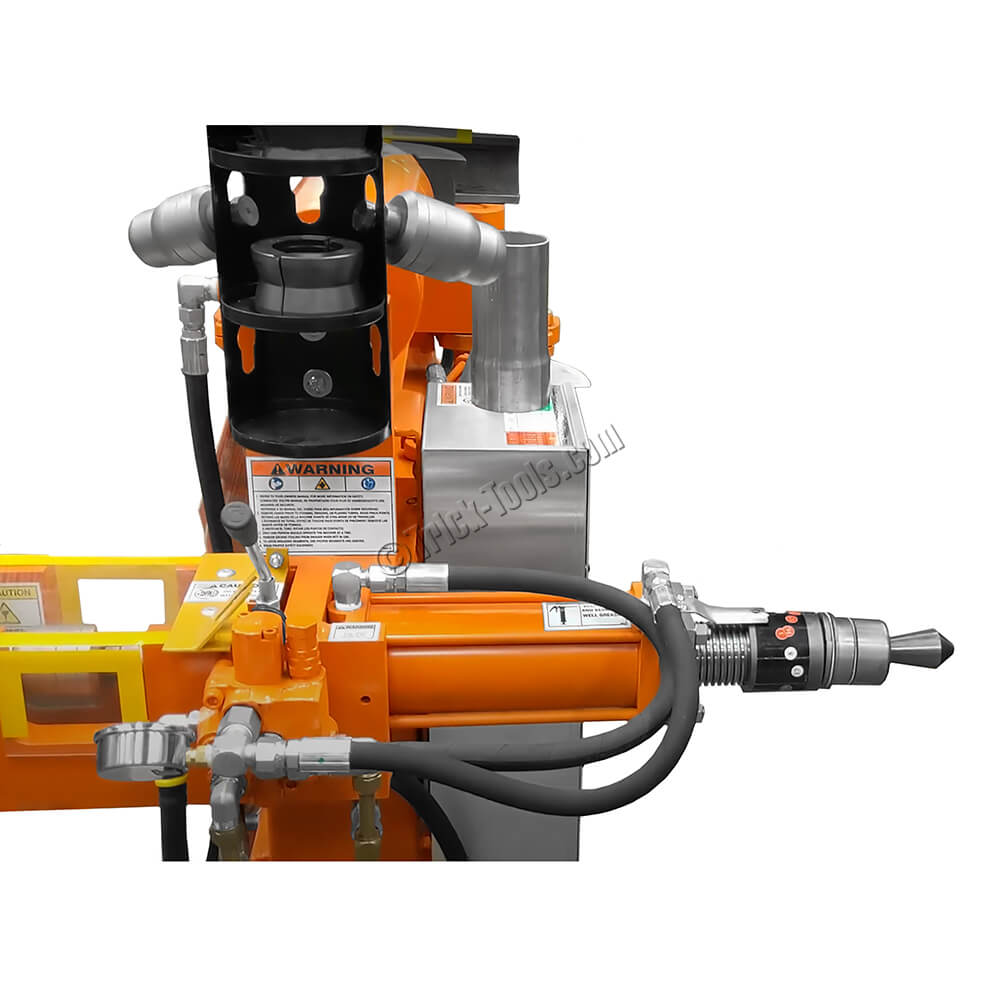

Huth 2660 Fabrication Bender

Part #: HB2660
Ships From: Factory shipped

Lead Time: Usually ships within 6-8 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $18,671.00
Sale Price: $17,737.45

FREE SHIPPING

3 inch square capacity
Auto-stop for repeatable bends
85,000 lbs of bending force

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The Huth 2660 fabrication bender is perfect for the manufacturer looking for a heavy duty machine able to run for multiple shifts. The 2660 is great for building anything from green houses to picnic tables. It offers the convenience of a knee pedal control and a compact control panel. This allows the operator to get closer to the work area for more precision and less fatigue. The Smart Automatic Mode features an adjustable return-to–home position control. This unique, time saving feature increases efficiency by assuring fast and easy transitions between multiple bends.

The motor is a 7.5 hp unit and 6 inch cylinder that provides 85,000 lbs of bending force! In the automatic mode, the automatic depth-of-bend selector ensures precise bending control through the use of an easy-to-read, easy-to-adjust depth of bend plate.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-1/4 x .250, 3 x .120
•Round Aluminum Capacity (inches): 3 x .120
•Nominal PIPE Capacity: 2-1/2 inch schedule 40
•Square Mild Steel Capacity (inches): 3 x 14 gauge
•Solid Bar Mild Steel Capacity (inches): 1-7/8
•Minimum OD (inches): 1/2
•Bending Style: ram-style
•Min Center Line Radius (inches): 3
•Max Center Line Radius (inches): 5
•Motor: 7-1/2 hp, 220 volt
•Control Method: knee control
•Repeatability Control: auto-stop
•Maximum OD (inches): 3
•Dimensions (LxWxH): 54 x 24 x 48
