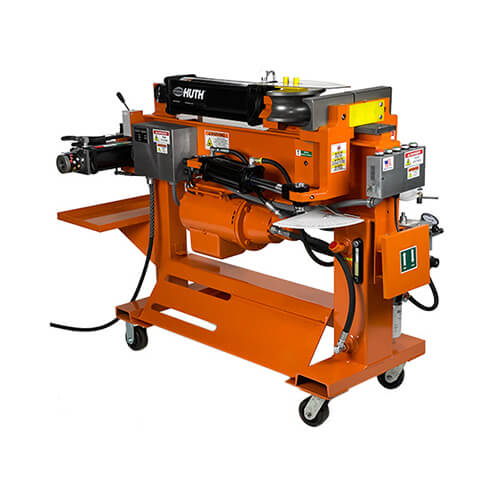

Huth 2008 Bender

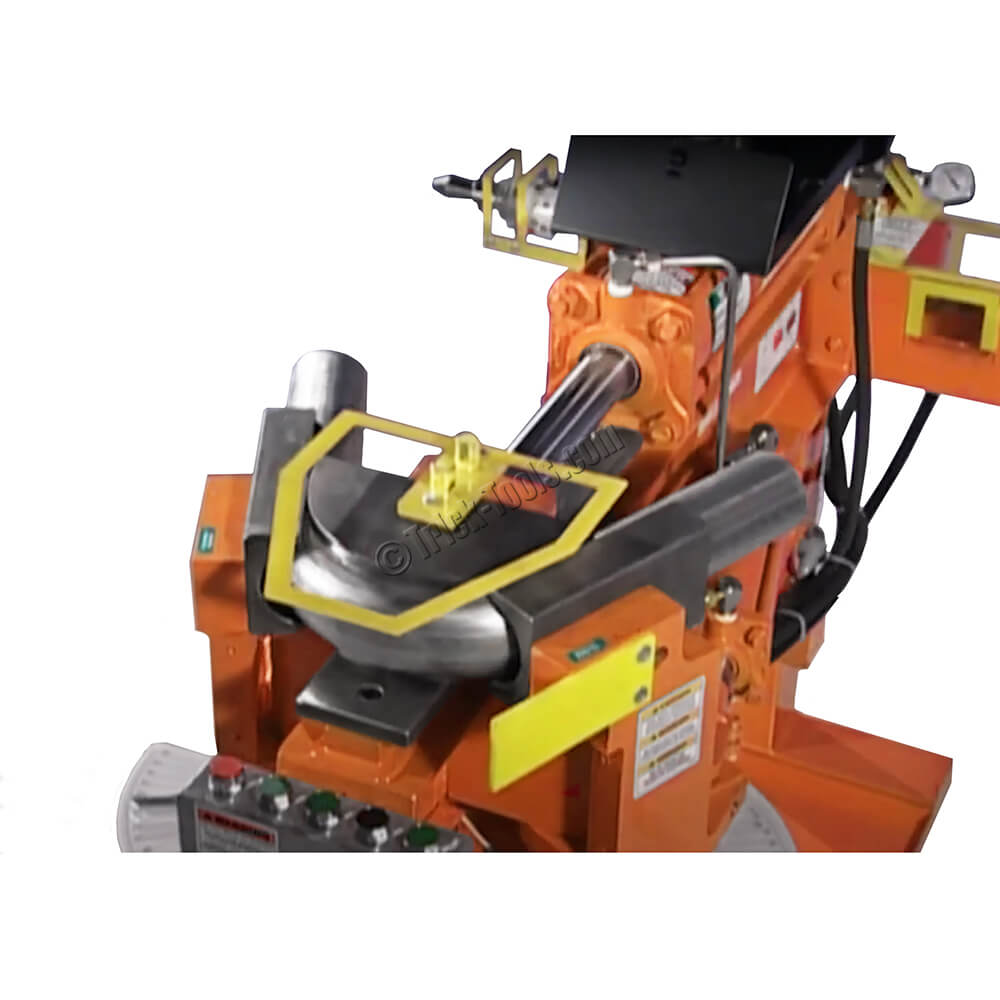

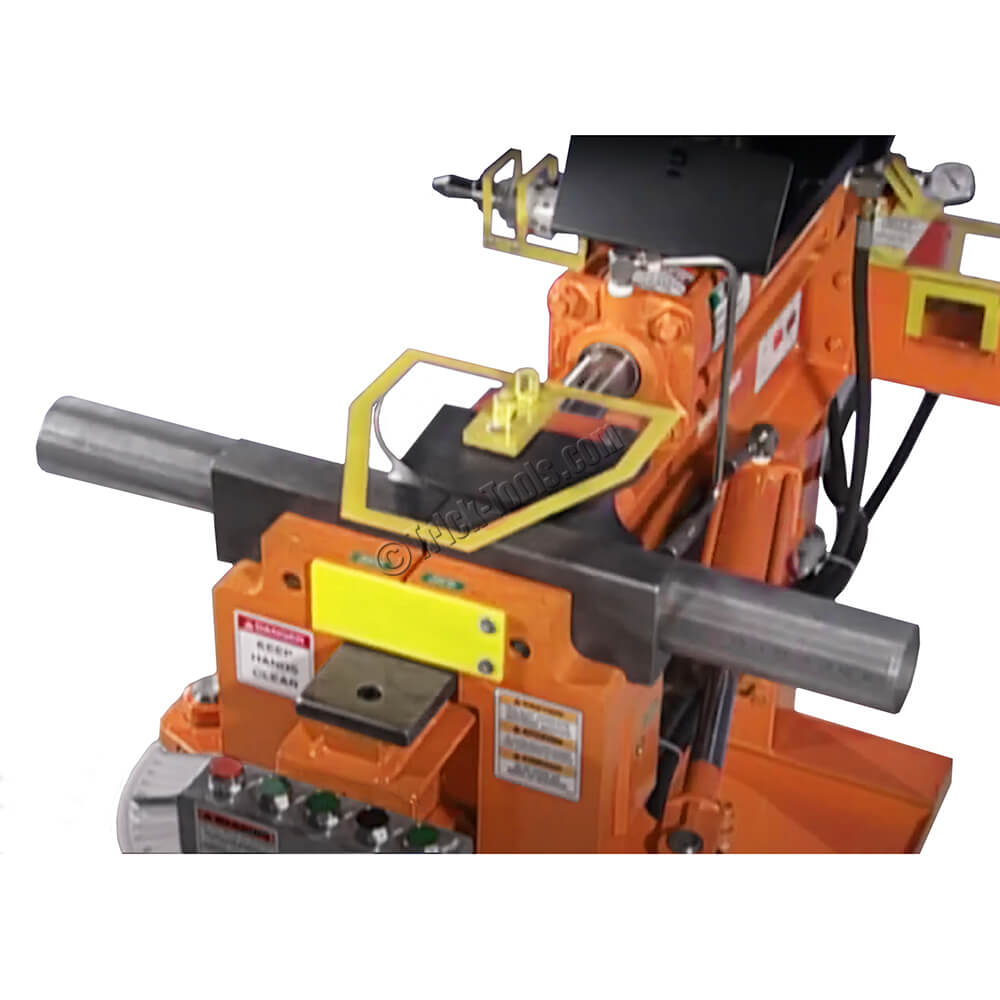

The Huth HB-2008 bender is designed for high volume shops that need quick, precise, bending and end forming. It offers the convenience of a knee pedal control and a compact control panel. This allows the operator to get closer to the work area for more precision and less fatigue. The 2008 bender includes industrial grade hydraulics, a deluxe tool tray for bending tooling, and an additional tool tray under the reducer/expander. The Smart Automatic Mode features an adjustable return-to-home position control. This unique, time-saving feature increases efficiency by assuring fast and easy transitions between multiple bends. In the automatic mode, the automatic depth-of-bend selector ensures precise bending control through the use of an easy-to-read, easy-to-adjust depth of bend plate.

The standard motor is a 5 hp unit that provides 58,000 lbs of bending force. An optional 7.5 hp motor is available for 25% faster bending. The heavy duty swager/expander gives you complete end finishing capabilities. The swager end accommodates 1 to 3 inch tubing. The expander end allows for expansions from 1 to 5.5 inch. With Huth’s Accu-Sizer bull’s-eye expanding system, you can dial in precise expansions every time. Optional equipment includes a rod and bracket bender, oil filter crusher, square bending tooling, and custom end-forming tooling.

Save 10% on select Huth Bending and End Forming Tooling for a limited time! Customers can save 20% on tooling when purchased with a machine. Please contact our sales staff to take advantage of this limited time offer! This sale excludes HB10, HB05, and 028 Tooling Packages. Sale ends 8/31/25.
Optional 028 Tooling Package Kit Includes:

• 5 inch Radius dies for 2, 2-1/4, 2-1/2 and 3 inch material
• 4 inch Radius dies for 2 and 2-1/4 inch material
• 3 inch Radius dies for 1-1/2 and 1-3/4 inch
• Full back shoes for 1-1/2 through 3 inch material
• Half shoes for 1-1/2 through 2-1/2 inch material
• Clamping collets for 1-1/2 inch through 2-1/2 inch material
• Flare Tool
• 1-3/4 to 2-1/2 inch Domer Die
• 2-5/8 to 2-3/4 inch Domer Die
• 1-3/4 to 2 inch Female Ball Die
• 2-1/4 to 2-1/2 inch Female Ball Die
• Male Ball Die 1-3/4 inch : Swage 2 inch
• Male Ball Die 2 inch : Swage 2-1/4 inch
• Male Ball Die 2-1/4 inch : Swage 2-1/2 inch
• Male Ball Die 2-1/2 inch : Swage 2-3/4 inch
• 1-1/2 inch Swage die
• 1-3/4 inch Swage Die
• Arbors, Tips, and Expanders for 1-3/8 to 3 inch material
• Extra O-rings
• Die Spring
• Die Holder
• Instructional Video

Tooling package sold separately

Warranty:

1 year manufacturer's warranty

•Mild Steel Capacity (inches): 3 x .083
•Round Aluminum Capacity (inches): 3 x .083
•Nominal PIPE Capacity: 1-1/2 inch schedule 40
•Square Mild Steel Capacity (inches): 2-1/2 x 14 gauge
•Minimum OD (inches): 1/2
•Bending Style: ram-style
•Min Center Line Radius (inches): 3
•Max Center Line Radius (inches): 5
•Motor: 5 hp, 220 volt, 3 phase
•Control Method: knee control
•Repeatability Control: auto-stop
•Maximum OD (inches): 3
•Dimensions (LxWxH): 85 x 52 x 36
