Huth 1600 Basic Bender

Part #: HB1600
Model: 1600, HB10
Ships From: Factory shipped

Lead Time: Usually ships within 6-8 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $10,708.50
Sale Price: $10,173.08

FREE SHIPPING

Save 10% on select Huth Bending and End Forming Tooling for a limited time!
3 inch OD capacity
Built-in swager/expander
220 volt single or three phase power
Hands-free controls

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

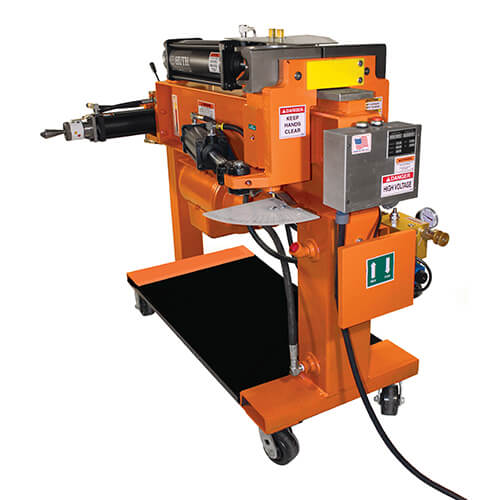

The HB-10 is Huth's entry level bender, designed to introduce you to Huth quality while showing you incredible profit potential with its standard features. Not only is this machine capable of bending up to 3 inch OD material, but it can also expand and reduce tubing, and form exhaust ball joints and slip joints. Included in the HB-10 package is the model 1600 bender, and tooling for bending and creating joints for exhaust tubing from 1-1/2 to 3 inch OD. Additional options allow for bending exhaust brackets, bending square tubing, and even crushing oil filters for recycling. The bender's 58,000 lbs of bending force is controlled with a convenient knee-pad control that leaves the operator's hands free for material positioning. Heavy duty locking casters mean that this powerful machine can be moved wherever the work is in the shop.

Save 10% on select Huth Bending and End Forming Tooling for a limited time! Customers can save 20% on tooling when purchased with a machine. Please contact our sales staff to take advantage of this limited time offer! This sale excludes HB10, HB05, and 028 Tooling Packages. Sale ends 8/31/25.

Included with the optional HB-10 Tooling Kit:

5 inch Radius dies for 2, 2-1/4, 2-1/2 and 3 inch material
4 inch Radius dies for 2 and 2-1/4 inch material
3 inch Radius dies for 1-1/2 and 1-3/4 inch
Full back shoes for 1-1/2 through 3 inch material
Half shoes for 1-1/2 through 2-1/2 inch material
Clamping collets for 1-1/2 through 2-1/2 inch material
Flare Tool
1-3/4 to 2-1/2 inch Domer Die
2-5/8 to 2-3/4 inch Domer Die
1-3/4 to 2 inch Female ball Die
2-1/4 to 2-1/2 inch Female Ball Die
Male Ball Die 1-3/4 inch : Swage 2 inch
Male Ball Die 2 inch : Swage 2-1/4 inch
Male Ball Die 2-1/4 inch : Swage 2-1/2 inch
Male Ball Die 2-1/2 inch : Swage 2-3/4 inch
1-1/2 inch Swage Die
1-3/4 inch Swage Die
Arbors, Tips, and Expanders for 1-3/8 to 3 inch material
Extra O-rings
Die Spring
Die Holder
Instructional Video

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 3 x .083
•Round Aluminum Capacity (inches): 3 x .083
•Nominal PIPE Capacity: 1-1/2 inch schedule 40
•Square Mild Steel Capacity (inches): 2-1/2 x 14 gauge
•Minimum OD (inches): 1/2
•Bending Style: ram-style
•Min Center Line Radius (inches): 3
•Max Center Line Radius (inches): 5
•Motor: 5 hp, 220 volt, 3 phase
•Maximum OD (inches): 3
•Dimensions (LxWxH): 83 x 52 x 36
