Huth 2600 Heavy-Duty Bender

Part #: HB2600HD
Model: 2600HD, 2601HD
Ships From: Factory shipped

Lead Time: Usually ships within 6-8 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $16,814.00
Sale Price: $15,973.30

FREE SHIPPING

Save 10% on select Huth Bending and End Forming Tooling for a limited time!
2 x 3 inch rectangular capacity
Auto-stop for repeatable bends
85,000 lbs of bending force

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The Huth 2600 industrial duty bender is the most powerful bender of its kind. Designed for large diameter or heavy wall applications that cannot be done on conventional machines. It offers the convenience of a knee pedal control and a compact control panel. This allows the operator to get closer to the work area for more precision and less fatigue. The Smart Automatic Mode features an adjustable return-to–home position control. This unique, time saving feature increases efficiency by assuring fast and easy transitions between multiple bends.

Save 10% on select Huth Bending and End Forming Tooling for a limited time! Customers can save 20% on tooling when purchased with a machine. Please contact our sales staff to take advantage of this limited time offer! This sale excludes HB10, HB05, and 028 Tooling Packages. Sale ends 8/31/25.

The standard motor is a 7.5 hp unit that provides 85,000 lbs of bending force! In the automatic mode, the automatic depth-of-bend selector ensures precise bending control through the use of an easy-to-read, easy-to-adjust depth of bend plate.

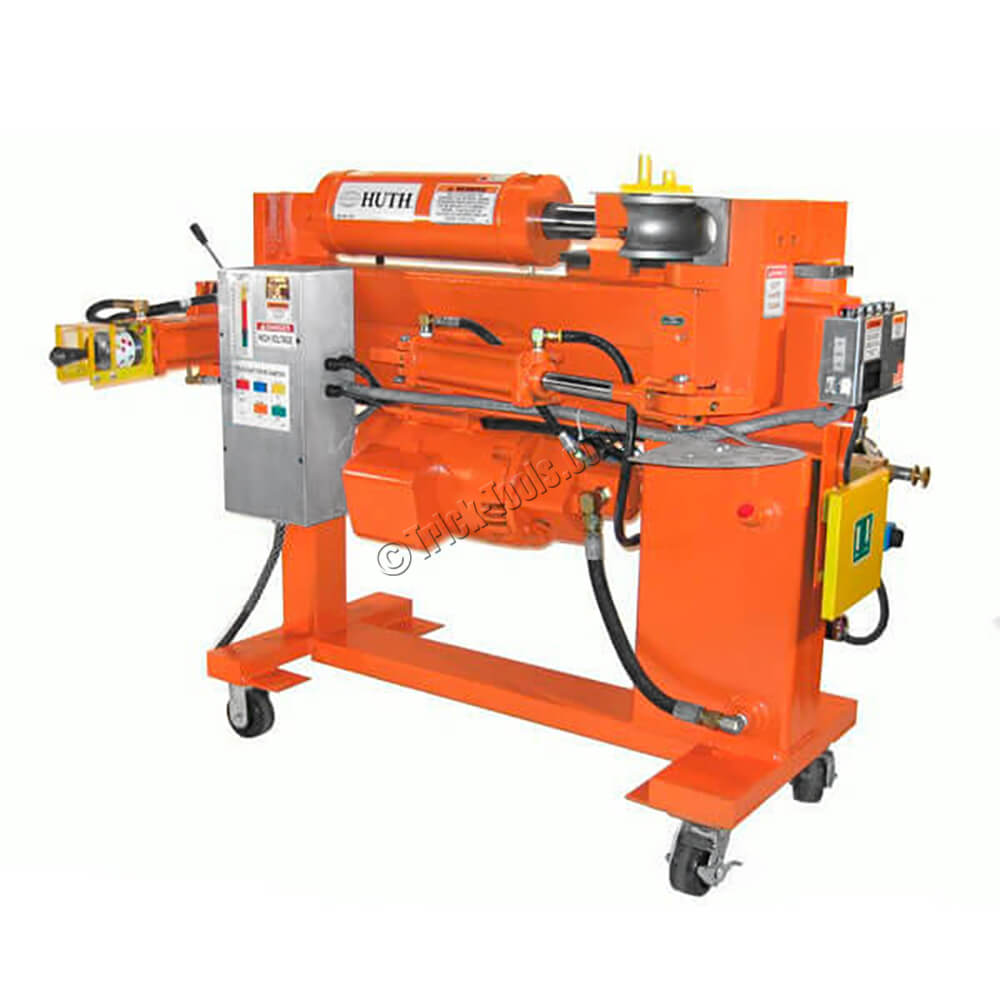

Photo shown with optional swager / expander

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Mild Steel Capacity (inches): 2-1/4 x .250, 3 x .120
•Round Aluminum Capacity (inches): 2-1/4 x .250
•Nominal PIPE Capacity: 2 inch schedule 80
•Square Mild Steel Capacity (inches): 3 x 14 gauge
•Solid Bar Mild Steel Capacity (inches): 1-7/8
•Minimum OD (inches): 1/2
•Bending Style: ram-style
•Min Center Line Radius (inches): 3
•Max Center Line Radius (inches): 5
•Motor: 7-1/2 hp, 220 volt
•Control Method: knee control
•Repeatability Control: auto-stop
•Maximum OD (inches): 3
•Dimensions (LxWxH): 79 x 52 x 36
