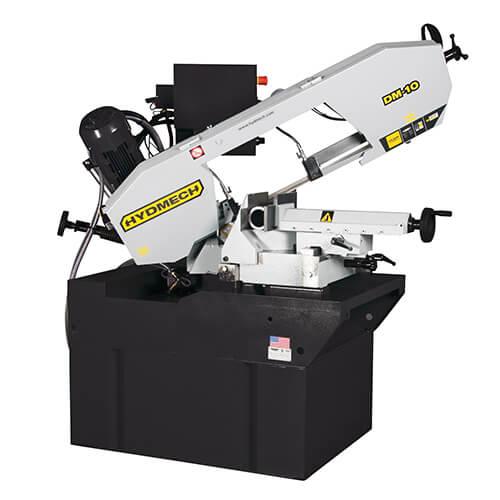

Hyd-Mech DM-10 Dual Mitering Head Band Saw

Part #: DM-10
Ships From: Factory shipped

Lead Time: Usually ships within 6-8 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $10,900.00

2.5 hp motor
9-3/4 inch capacity
Miters 60 degrees left and 45 degree right
Quick cam vise
Includes calibrated work stop

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

The Hyd-Mech DM 10 double-miter horizontal band saws provide exceptional cutting capability. These versatile saws save operator set-up time and their compact design makes them ideal for use in tight working spaces. Cast iron heads and vises are designed to absorb vibrations and ensure accuracy and rigidity. Mitering capabilities range from 60 degrees left to 45 degrees right. High cutting accuracy is obtained through the use of carbide blade guides that allow less vibration and extended blade life. From user-friendly operator controls, to easily accessible electrical panels and cabinets, each DM 10 machine is solidly built to give maximum productivity.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Type: stationary
•Motor: 2.5 hp
•Blade Width (inches): 1
•Blade Length (inch): 116
•Blade Thickness (inches): .035
•Number of Speeds: 2
•Speed(s): 140, 280 feet per minute
•Mitering Range: 60 degrees left, 45 degrees right
•Round Solid Capacity 90 Deg (inches): 9-3/4
•Round Tube Capacity 90 Deg (inches): 9-3/4
•Square Tube Capacity 90 Deg (inches): 9
•Rectangle Tube Capacity 90 Deg (inches): 7 x 11
•Weight (pounds): 1100
•Dimensions (LxWxH): 70 x 30 x 72
