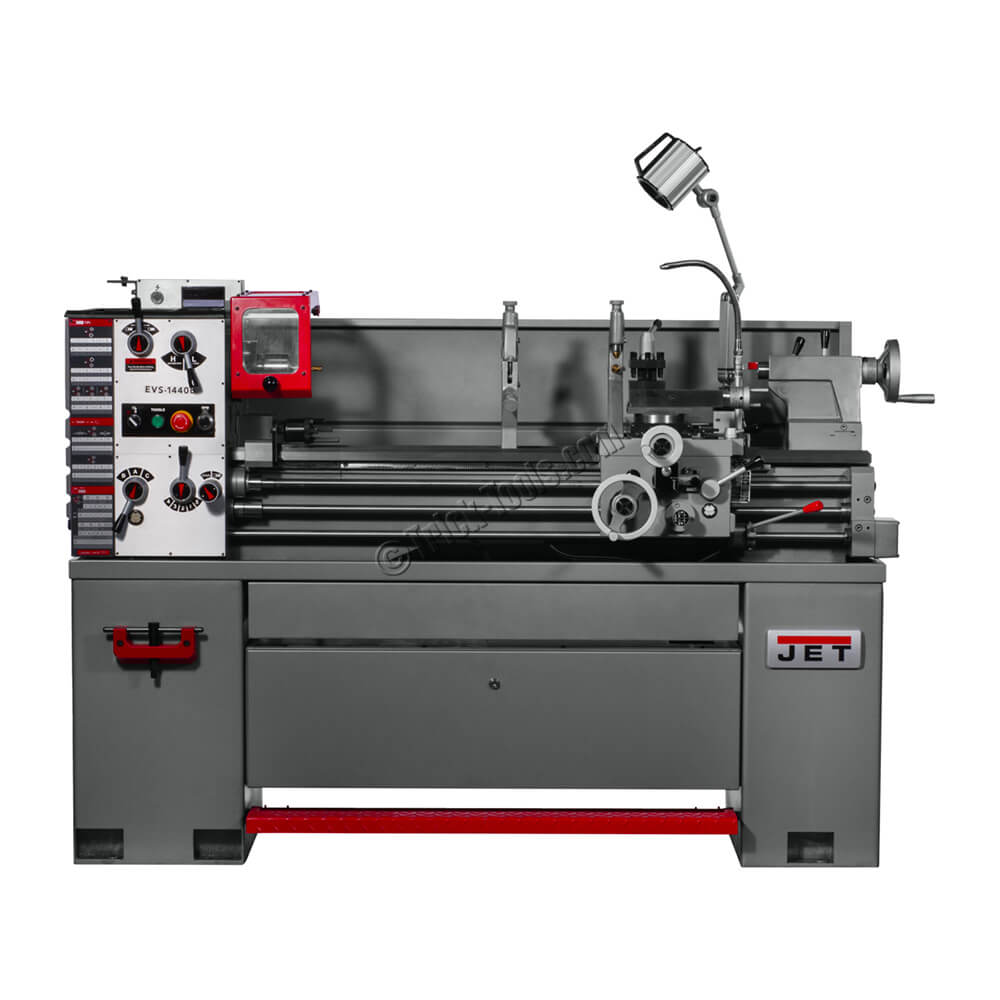

JET EVS-1440B Electronic Variable Speed Lathe

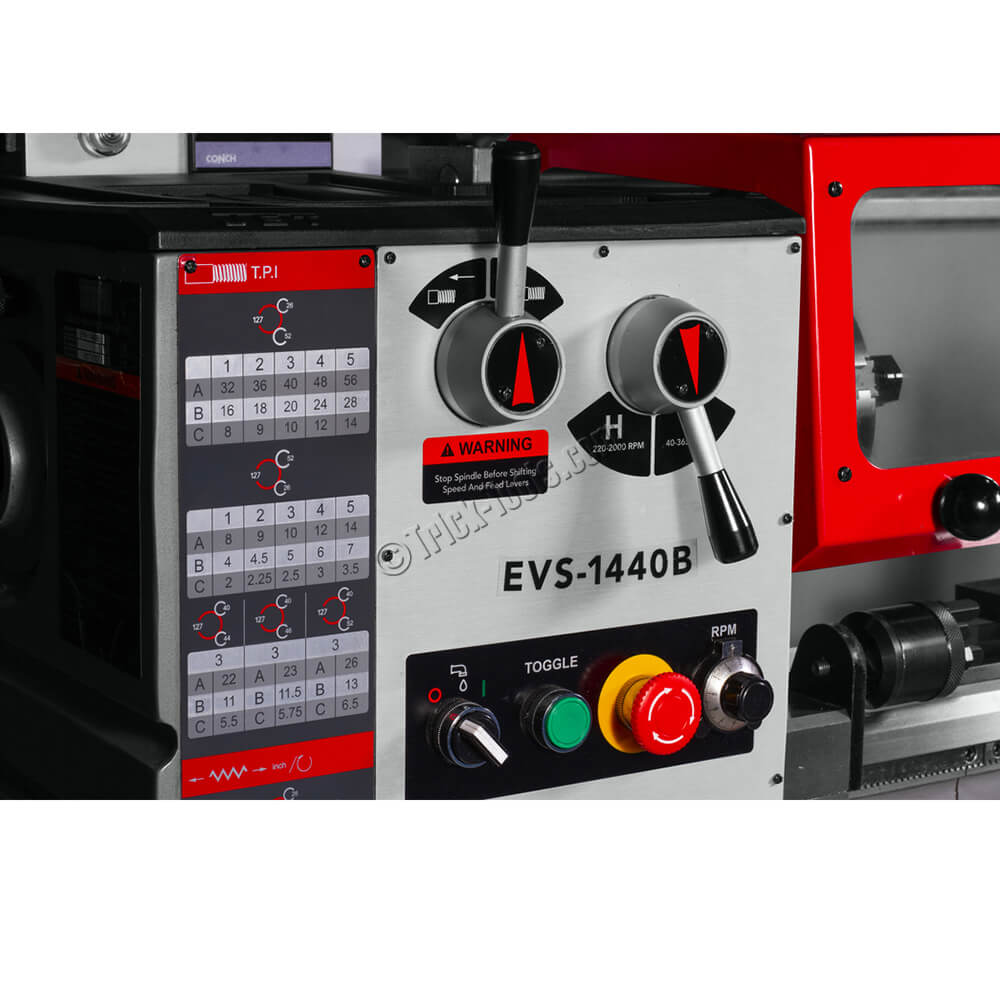

The JET EVS-1440B lathe is designed for optimal performance in any workshop, featuring a robust construction that ensures longevity and precision. With its D1 4 Spindle, precision ground for accuracy and supported by class 7 tapered roller bearings, it achieves a maximum run out of .0004 inches. Operators will appreciate the convenience of the apron-mounted actuation control and jog button, facilitating easy gear engagement and spindle inching. The versatile two-speed gearbox allows for operation at low speeds ranging from 40 to 365 RPM and high speeds from 220 to 2,000 RPM and the electronic variable speed control ensures your machine is at the optimal speed for a variety of machining tasks. Additionally, the tailstock can be offset for taper turning, enhancing the machine's versatility. Constructed from Meehanite castings, the EVS-1440B retains its tolerance and rigidity over years of use, making it a reliable choice for any machining environment.

Safety is always a top priority and the EVS-1440B is one of a few machines that offer an Electronic Chuck Key Docking Station. This ensures the machine will not active without the chuck being seated in the docking station. Another important safety feature on this machine is the foot pedal e-brake to quickly stop the machine in case of an emergency.

Not seeing the configuration you are wanting or have additional questions? Reach out to us by phone or email and one of our knowledgeable sales staff would be happy to help.

Motor and Electrical:
• Input power: 230v, 3ph or 1ph (user configurable)
• Drive system: VFD-B inverter, dual v-belts and gear train
• Recommended circuit size: 15A
• Main motor: 3hp 230/460v, 3ph 60hz
• Main motor full load amps: 8.4/4.2 A
• Main motor speed: 1800 RPM
• Coolant pump motor: 1/8hp 230v, 3ph 60hz
• Coolant pump motor full load amps: 0.4 A
• Coolant pump motor speed: 3400 RPM

General Capacities:
• Distance between centers: 40 in.
• Swing over bed: 14 in.
• Swing over gap: 19-1/2 in.
• Swing over cross slide: 9-1/16 in.
• Maximum cross slide travel: 6-1/8 in.
• Maximum carriage travel: 35-1/2 in.
• Maximum top slide travel: 3-1/2 in.
• Maximum size cutting tool: 3/4 x 3/4 in.
• Steady rest capacity: Ø 0.23-3.34 in. with copper shaft (standard) Ø 0.20-2.36 in. with bearing roller (optional)
• Follow rest capacity: Ø 0.35-2.2 in. with copper shaft (standard ) Ø 0.393-2 in. with bearing roller (optional)

Headstock and Spindle:
• Spindle bore: 1-9/16 in.
• Spindle nose mounting: D1-4 camlock
• Spindle taper with sleeve: MT-5
• Range of spindle speeds: 40-365 and 220-2000 RPM

Feeds:
• Feed rod diameter: 3/4 in.
• Longitudinal feeds: 25
• Longitudinal feed range: 0.0016 - 0.0460 in. per revolution
• Cross feeds: 25
• Cross feed range: 0.0005 - 0.015 in. per revolution

Threads:
• Lead screw diameter and pitch: 7/8 in., 8 TPI
• Inch threads: 34
• Inch threads range: 2-56 TPI
• Metric threads: 34
• Metric threads range: 0.5-12 mm

Tailstock:
• Tailstock quill taper: MT-3
• Maximum quill travel: 4 in.
• Quill diameter: 1-9/16 in.

Dimensions:
• Overall dimensions: 68.5 x 28.3 x 50 in.
• Length of gap: 9-1/2 in.
• Bed width: 7.48 in.
• Shipping dimensions: 76 x 30 x 61 in.

Lubrication capacities:
• Headstock: 1-1.3 gal (4-5 L)
• Gearbox: 0.24-0.27 gal (0.9-1 L)
• Apron: 0.18-0.21 gal (0.7-0.8 L)
• Coolant tank: 2.38 gal (9 L)

• Made in Taiwan

• JET EVS-1440B Electronic Variable Speed Lathe

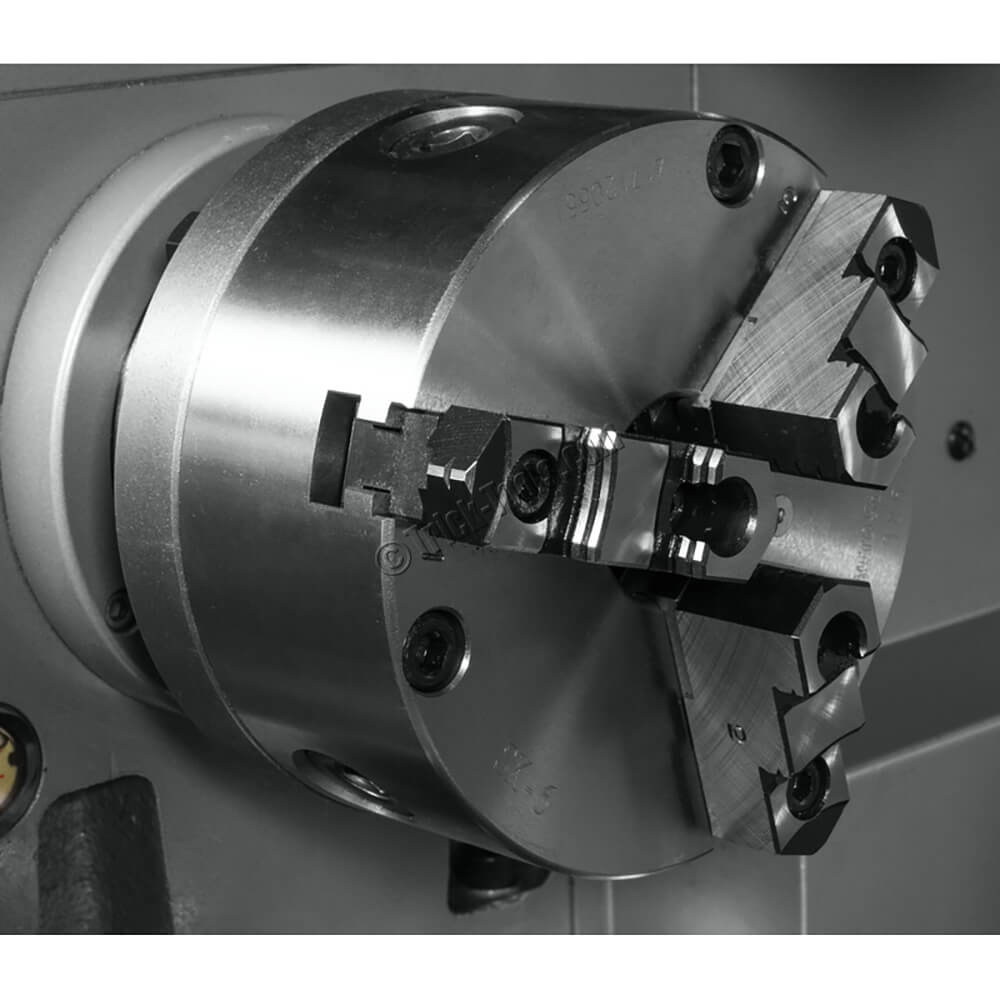

• 6 inch 3 Jaw Chuck
• 6 inch Backplate

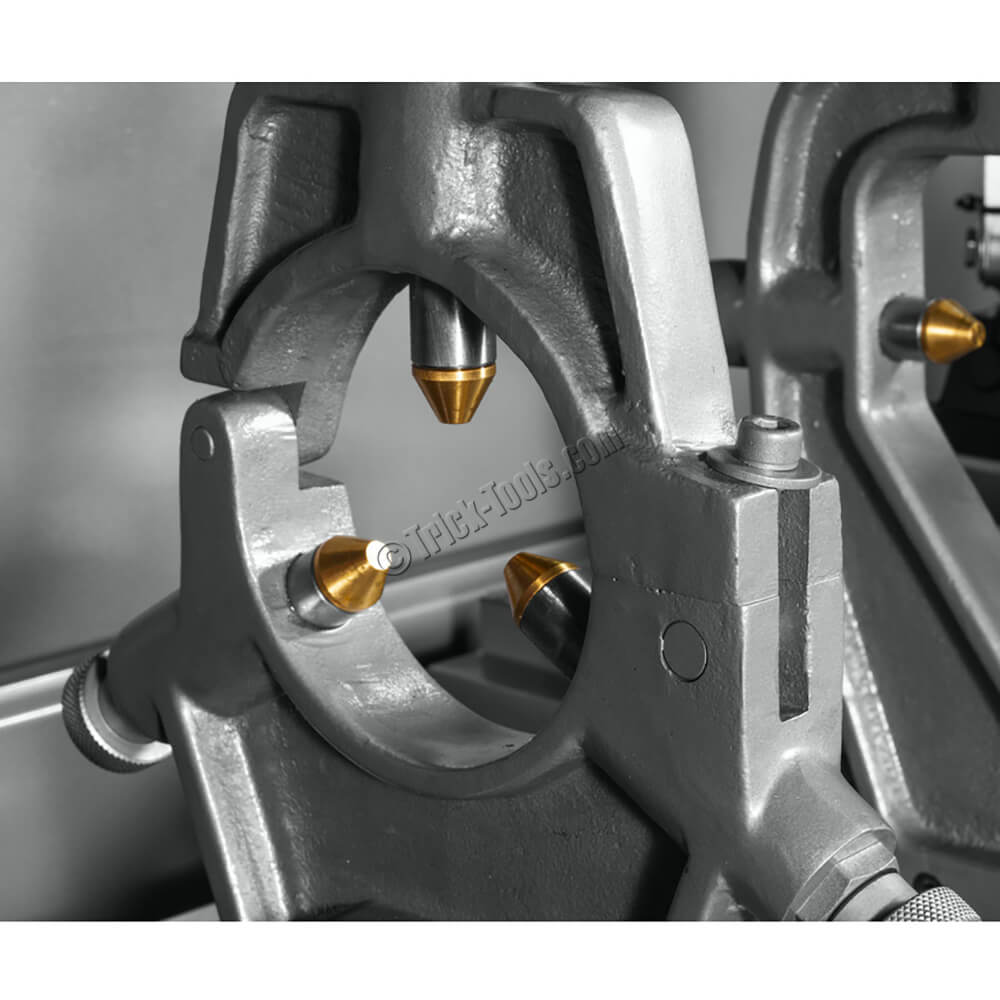

• Steady Rest
• Follow Rest
• Splash Guard
• 4-Position Carriage Stop
• LED Work Light
• Swing Away Chuck Guard
• Coolant Pump
• Leveling Pads
• Tool Box

• ACU-RITE or Newall DRO (Digital Read Out)
• Taper Attachment

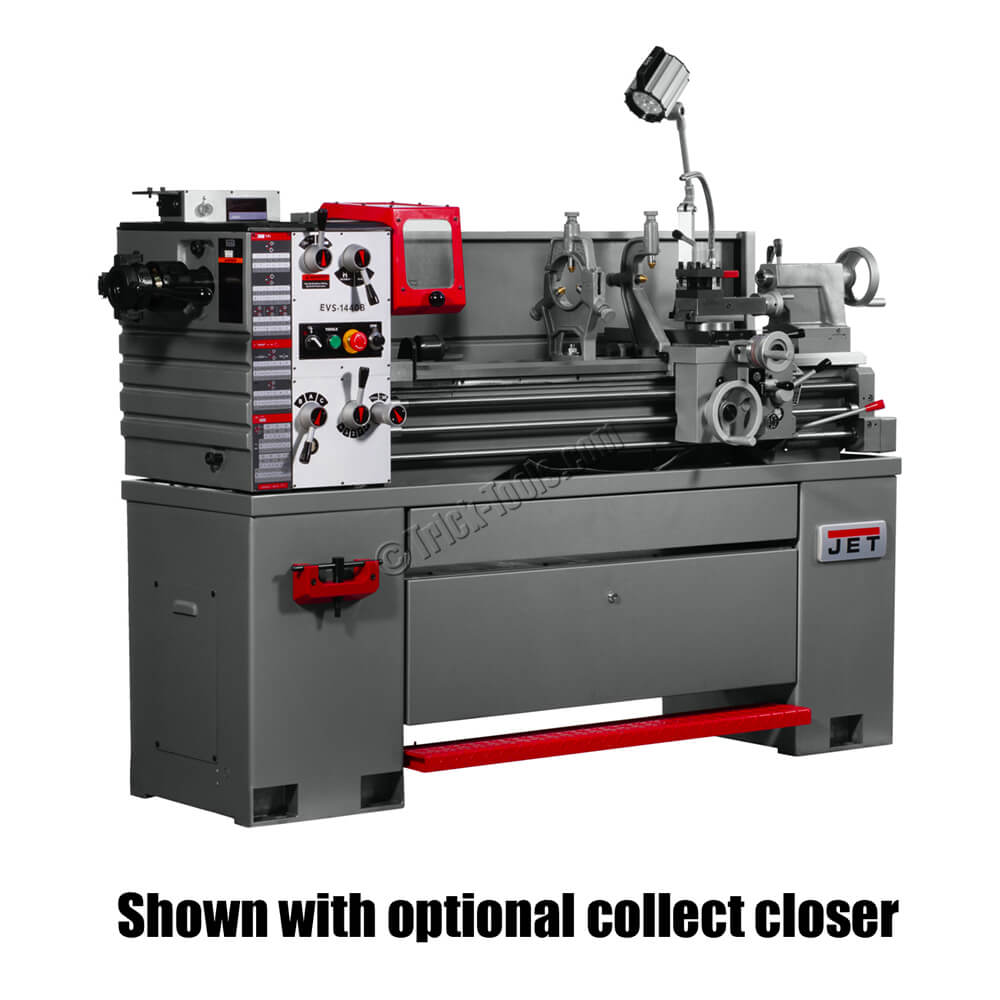

• Collect Closer
