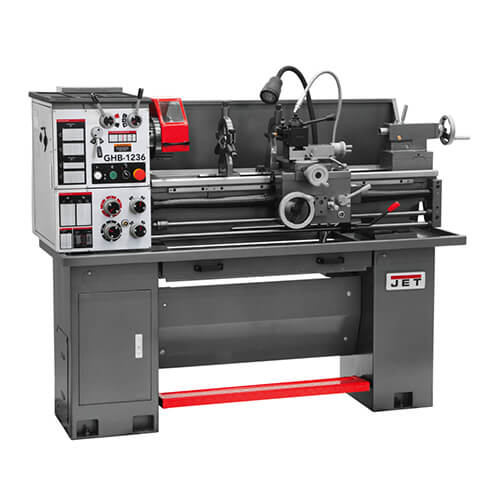

JET GHB-1236 Geared Head Bench Lathe

Name: JET GHB-1236 Geared Head Bench Lathe
Brand: JET
SKU: GHB-1236
Price: 12429.00 USD
Availability: InStock

Part #: GHB-1236
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $12,429.00

FREE SHIPPING

Multiple configuration options available
2hp 230v single phase motor
12 x 36 inch capacity
Great for hobbyist or schools

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

The JET GHB-1236 is a 12 x 36 lathe that is a great entry machine for most job shops or schools. It features an enclosed gearbox that ensures smooth and quiet operation and its precision roller bearings support a hardened and ground spindle, allowing for tight tolerances essential in high-quality machining.

This lathe is equipped with a 6 inch 3-jaw direct mount chuck with a top reversing jaw, a steady rest, follow rest, LED work light, and a FREE stand with built in storage and emergency foot switch for added safety. All JET lathes come with the industry-leading JET Red Assurance Two-Year Warranty.

Have additional questions? Reach out to us by phone or email and one of our knowledgeable sales staff would be happy to help.

Capacities:

Swing Over Bed: 13 inches
Swing Over Cross Slide: 7-1/2 inches
Swing Through Gap: 18 inches
Length of Gap: 8-3/4 inches
Distance Between Centers: 33 inches

Headstock:

Hole Through Spindle: 1-9/16 inch
Spindle Nose: D1-4
Taper in Spindle Nose: MT-5
Spindle Taper Adapter: MT-3
Spindle Bearing Type: Taper Roller Bearing
Number of Spindle Speeds: 9
Range of Spindle Speeds: 75-1400 RPM

Gearbox:

Number of Longitudinal and Cross Feed Rates: 48/36
Range of Longitudinal Feeds (inch/rev): 0.0019 – 0.0472
Range of Cross Feeds (inch/rev): 0.0014 – 0.0116
Number of Inch Threads: 36
Range of Inch Threads: 4 – 60 TPI
Number of Metric Threads: 32
Range of Metric Threads: 0.4 - 7mm
Leadscrew: 7/8 in. × 8 TPI
Feed Rod Diameter: 3/4 inch

Compound and Carriage:

Toolpost Type: Quick Change
Maximum Tool Size: 5/8 x 5/8 inch
Maximum Compound Slide Travel: 3 inches
Maximum Cross Slide Travel: 5-1/2 inches
Maximum Carriage Travel: 27-3/8 inches

Tailstock:

Tailstock Spindle Travel: 3-1/2 inches
Diameter of Tailstock Spindle: 1-1/4 inches
Taper in Tailstock Spindle: MT-3

Miscellaneous:

Steady Rest Capacity: 5/16 – 2-15/16 inches
Follow Rest Capacity: 2-3/16 inches
Width of Bed: 7-1/8 inches
Overall Dimensions: 66-3/16 x 29-1/2 x 57-1/2 inches (LxWxH)
Main Motor: 2HP, 1PH, 230V only
Net Weight (approx.): 1210 lbs.
Shipping Weight (approx.): 1430 lbs.

Warranty:

2 year manufacturer's warranty
