JET 9 x 49 Electronic Variable Speed Mill with ACU-RITE DRO

Part #: JTM-949EVS-AR
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $26,107.09
Sale Price: $21,249.99

FREE SHIPPING

Multiple configuration options available
Electronic Variable Speed
9 x 49 inch bed
Great for hobbyists to machine shops

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

Options:

Quantity:

DESCRIPTION

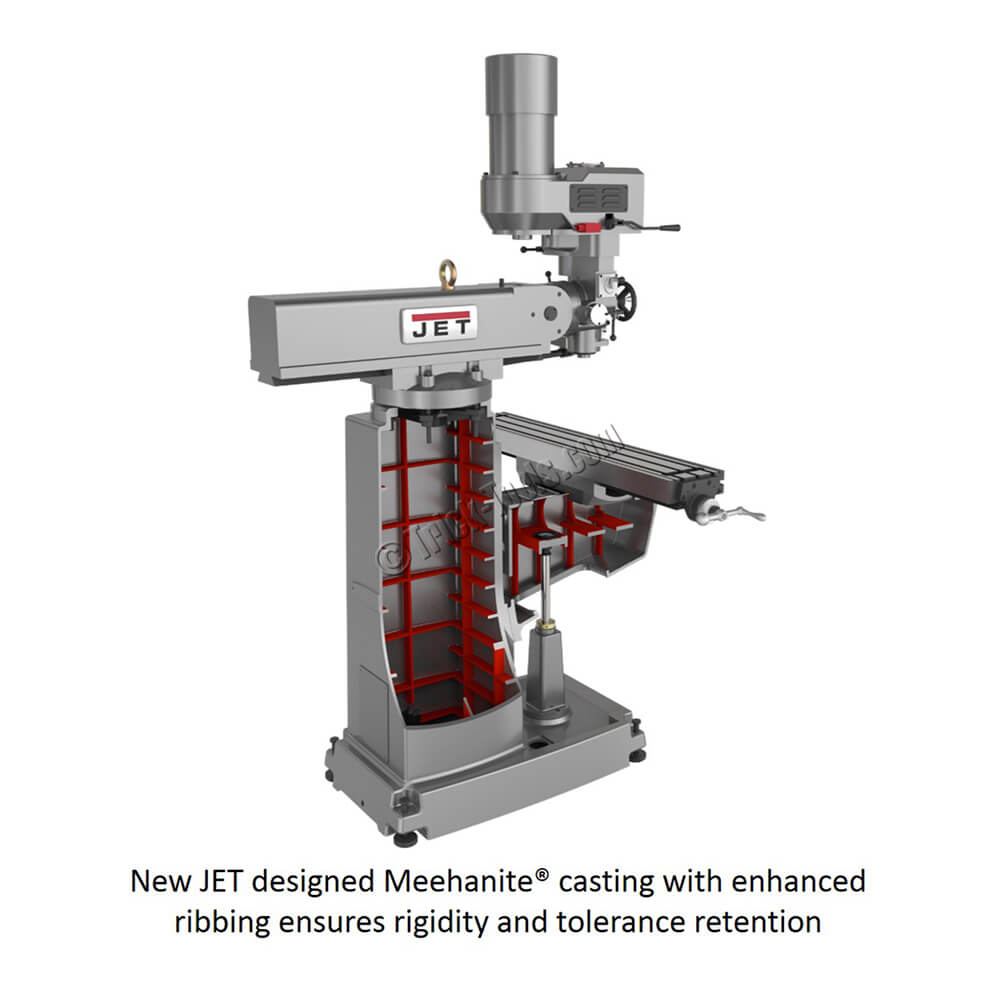

JET Vertical Milling Machines combine precision and reliability to ensure years of service. The JTM-949EVS is constructed using the certified Meehanite® casting process with extra ribbing for a rigid foundation. It features a 9 x 49 inch table, class 7 spindle bearings, table and ways hardened to 54 HRC and precision ground for greater accuracy, and Turcite-B coating on the X and Y-Axis for reduced vibration and smooth movements.

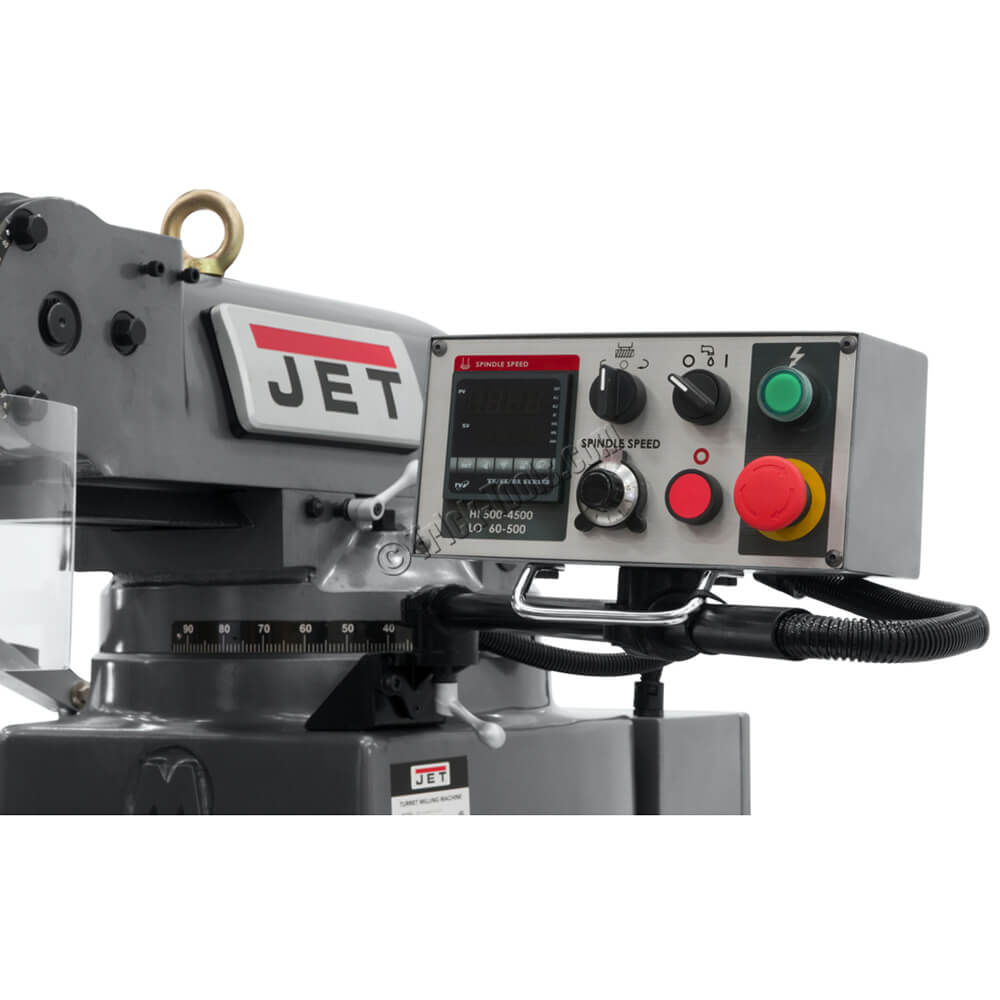

The JTM-949EVS is equipped with a powerful 3hp 230v, 3ph motor with Electronic Variable Speed that is adjustable from 60 - 4,500 rpm and includes a digital readout and speed dial to set your spindle to the optimal cutting speed quickly. For ease of access, the electrical box is located on the back of the column and includes two 115v outlets for additional powered accessories. Other standard features include an automatic oiler, dual locks on all moveable surfaces, a swing away control box with e-stop, heavy-duty electronic spindle brake, swing away safety shield, and an LED work light.

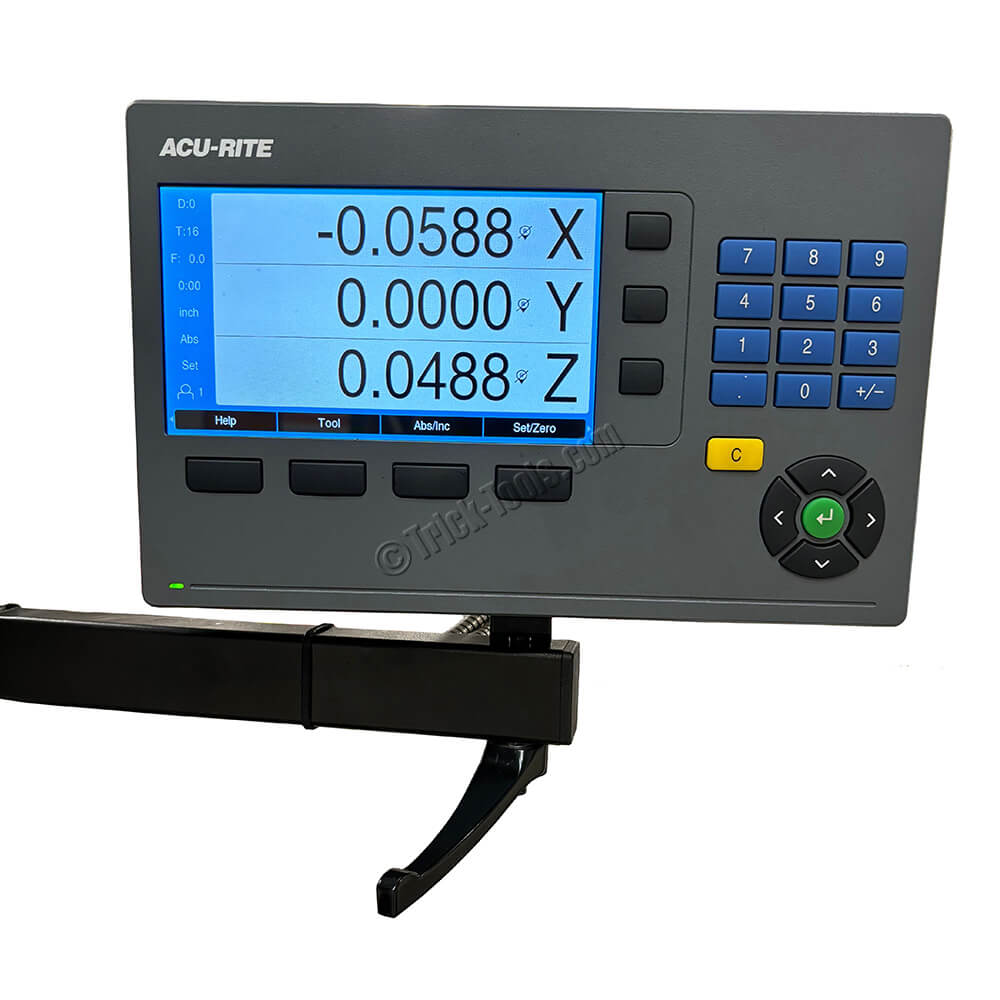

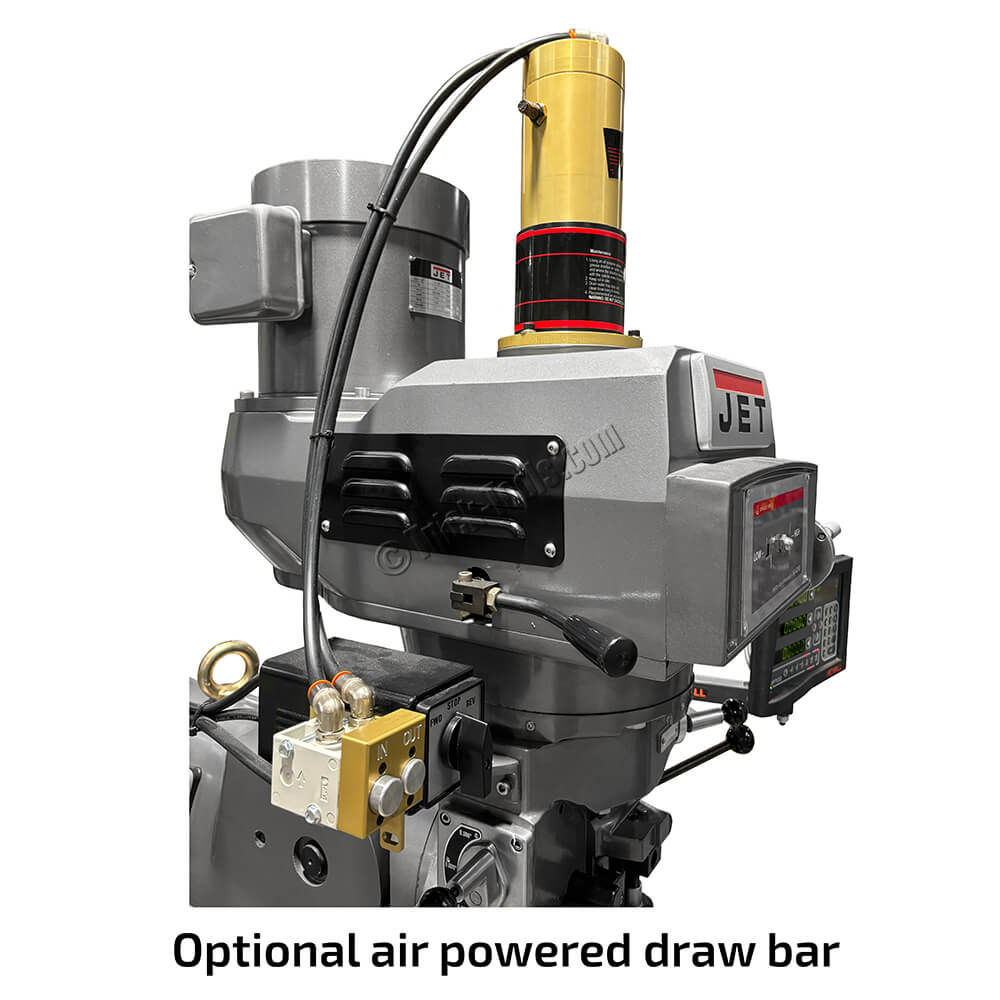

This configuration comes standard with the ACU-RITE 203 2-Axis DRO with a 3-Axis Knee or Quill option available. Several other configurations are available in the options drop-down menu which includes X, Y, and Z power feeds to speed up movements and help achieve a more consistent finish, or an air-powered draw bar to quickly change tooling and reduce the chance of over-tightening.

All JET mills are uncrated in the US to go through a 30-point inspection and are backed by the industry-leading JET Red Assurance Two-Year Warranty.

Not seeing the configuration you are wanting or have additional questions? Reach out to us by phone or email and one of our knowledgeable sales staff would be happy to help.

Specs:

Motor/Voltage: 3hp, 230v, 3ph
Style: EVS - Electronic Variable Speed
Work Table Size: 9 x 49 inches
Work Table Capacity: 720 lbs
Dimensions: 66 x 63 x 86 inches
Weight: 2420 lbs
Spindle Taper: R-8
Collet Capacity: 1/8 - 7/8 inch
Column Width: 18 inches
Distance Spindle to Column: 18-1/8
Inverter Type: Delta, B
Max Distance Spindle to Table: 20-3/4 inches
Quill Diameter: 3-3/8 inches
Quill Downfeed Rates: .0015 - .003 - .006 (IPR)
Range of Spindle Speeds: 60 - 4,500 rpm
Saddle Width: 11-1/2 inches
Spindle Travel: 5 inches
Table Cross Travel: 12-5/8 inches
Table Longitudinal Travel: 36 inches (30-3/4 with powerfeed)
Travel of Knee: 15-3/4 inches
Travel of Ram: 15-1/4 inches
T-Slot Centers: 2-1/2 inches
Made in Taiwan

CSA/CUS Certified

Warranty:

2 year manufacturer's warranty
