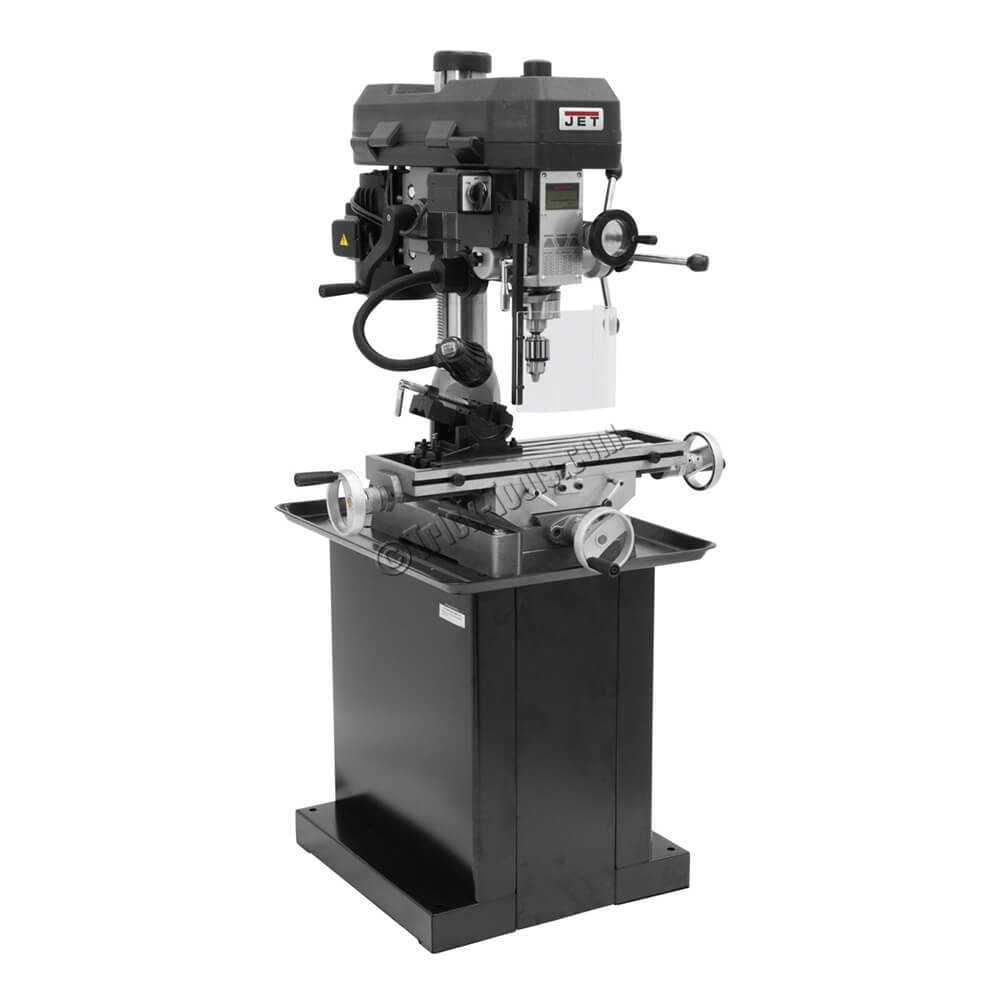

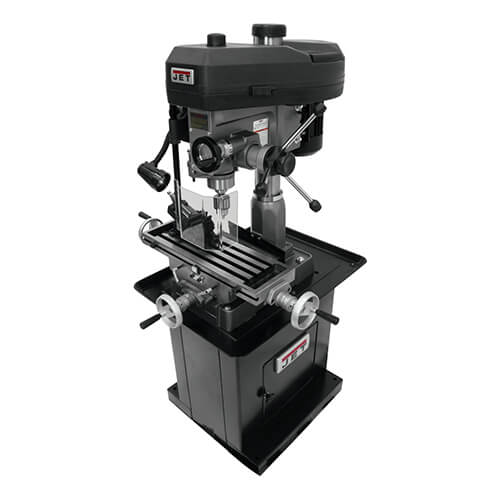

JET JMD-15 Mill/Drill with FREE Stand

Part #: JT9-350017
Model: JMD-15
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $3,378.59
Sale Price: $2,749.99

FREE SHIPPING

Includes free stand ($525 value)
7-1/2 x 23 inch cast table
350 lbs work table capacity
1 hp, 115/230v single phase

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

DESCRIPTION

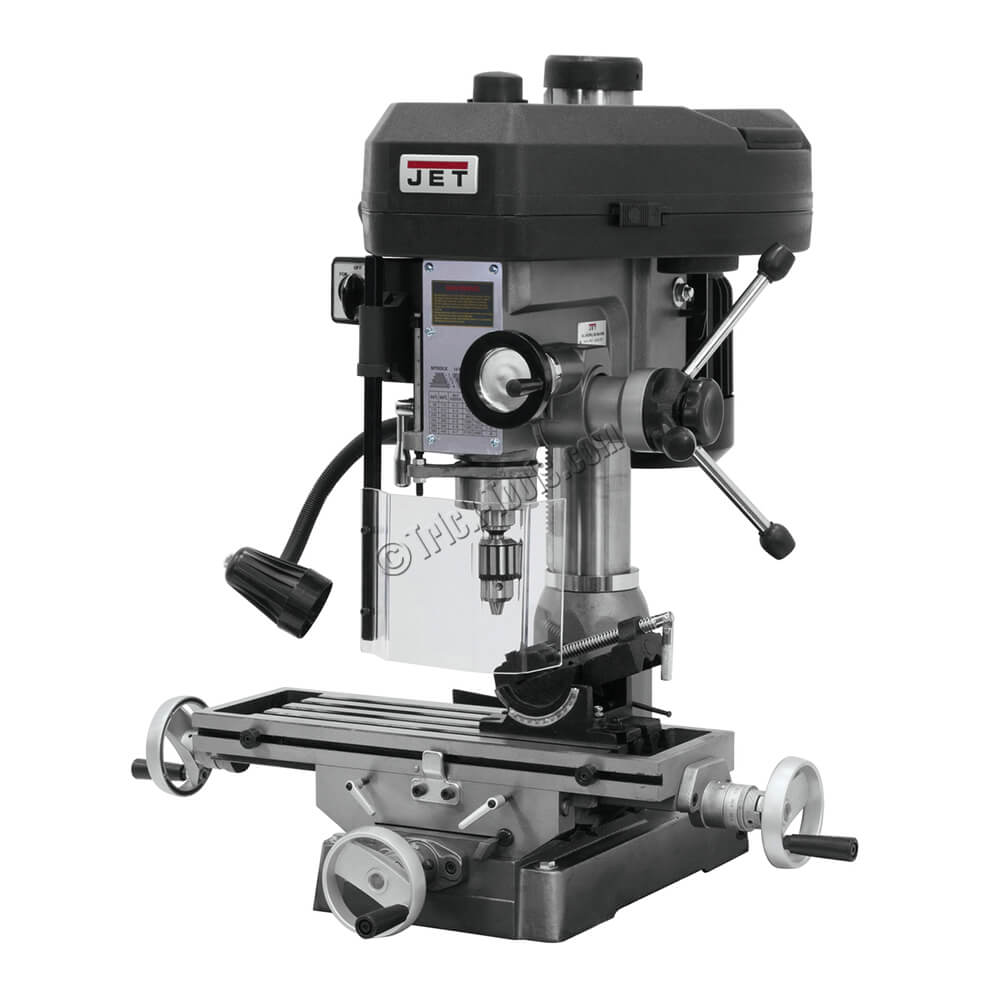

Mill Drills are great for light-duty machine work, drilling, and tapping. The JET JMD-15 is a belt-driven Mill/Drill and features a 1 hp 115/230v single phase motor, 360 degree swiveling head, 7-1/2 x 23 inch table, and R-8 taper spindle. While the footprint may be small, the JMD Mill Drills still include JET's RED Assurance 2 year warranty.

For a limited time, receive a FREE work stand with the purchase of a JET Mill/Drill. ($525 value)

Specifications:

Drilling Capacity: 1 inch
Face Mill Capacity: 2-1/2 inch
End Mill Capacity: 1/2 inch
Swing: 14-1/2 inch
Maximum Distance Spindle to Table: 15 inch
Spindle Taper: R-8
Spindle Travel: 3-1/2 inch
Quill Diameter: 2-1/2 inch
Head Swivel: 360 degrees
Column Diameter: 3-5/8 inch
Power Downfeed: No
Number of Spindle Speeds: 12
Range of Spindle Speeds: 110-2,580 RPM
Maximum Table Travel: 14 inch
Cross Travel: 6 inch
Working Surface of Table: 7-1/2 x 23 inch
Number of T-Slots: 4
T-Slot Size: 9/16 inch
T-Slot Centers: 1-1/2 inch
Overall Dimensions (LxWxH): 36-1/2 x 37-1/2 x 35-1/2 inches (without stand)
Base Dimensions: 12-1/2 x 19-3/4 inches
Motor: 1HP, 115/230V single phase 60Hz (prewired 115V)
Electrical Certifications: UL Listed
Net Weight: 440 lbs
Shipping Weight: 540 lbs

Warranty:

2 year manufacturer's warranty

SPECIFICATIONS

•Motor: 1hp 115/230v single phase
•Number of Speeds: 12
•Spindle Speed(s)Range: 110-2580 rpm
•Drills To Center (inches): 14.5
•Drilling Capacity (inches): 1
•Spindle Taper: R-8
•Quill Diameter (inches): 2-7/16
•Column Diameter (inches): 3-5/8
•Spindle Travel (inches): 3-1/2
•Spindle To Table Max (inches): 14-1/2
•Table Size (inches): 7.5 x 23
•Base (inches): 12.5 x 19.75
