JET 100 inch Box & Pan Brake, 16 gauge

Name: JET 100 inch Box & Pan Brake, 16 gauge
Brand: JET
SKU: JT9-754115
Price: 14424.50 USD
Availability: InStock

Part #: JT9-754115
Model: BPF-16100

Lead Time: Discontinued

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product-by-product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked 'Call for Availability' have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $14,424.50

Wide assortment of finger widths
All welded body construction
Bed and apron bored in line to assure accuracy
16 gauge mild steel capacity

FREIGHT:

WARRANTY:

ORIGIN:

BRAND:

We're sorry but this product is currently unavailable.

DESCRIPTION

DISCONTINUED

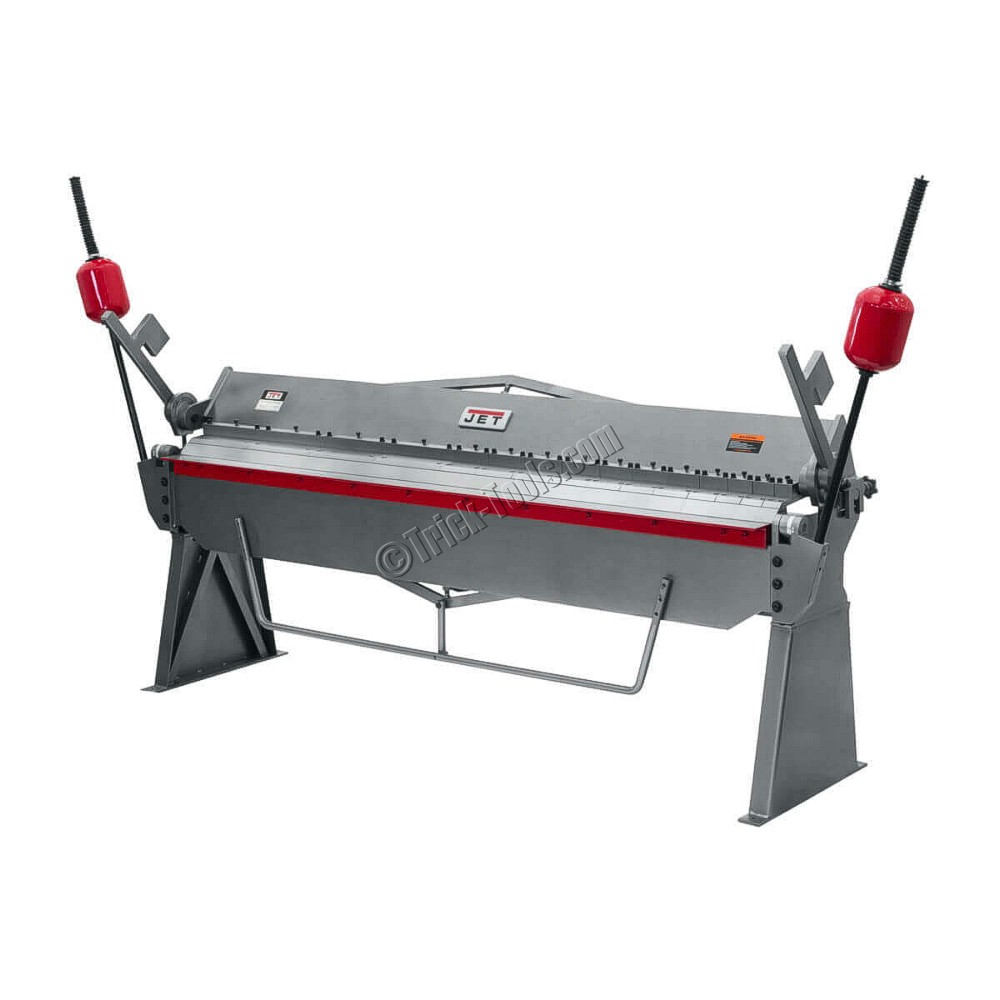

JET offers this 100 inch 16 gauge floor mounted box and pan brake for larger capacity bending operations. Covered under a 2 year warranty, this sheet metal box and pan brake will be very useful in the shop. All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability.

With all fingers installed it can be used as a full-length nose bar, turning the machine into a straight brake. Quick clamping adjustments are also achieved by means of a simple link arrangement. All 15 of the assorted sizes of section fingers are easily removed for box bending and special forming operations.

Warranty:

2 year manufacturer's warranty

SPECIFICATIONS

•Type: manual
•Mild Steel Capacity: 16 gauge (1.5mm)
•Aluminum Capacity: 14 gauge (2.0mm)
•Stainless Capacity: 20 gauge (.9mm)
•Max Depth Of Box (inches): 4
•Max Lift Of Beam (inches): 2.25
•Front To Rear Adj (inches): 1
•Number/Width Of Fingers: (1) 2-1/2 inch, (1) 3 inch, (1) 3-1/2 inch, (1) 4 inch, (3) 5 inch, (4) 6 inch, (4) 12 inch
•Finger Nose Angle: 45 degree
•Weight (pounds): 2450
•Dimensions (LxWxH): 140 x 30 x 76
