METALpro 45 ton Ironworker

Part #: MP4500FS
Ships From: Factory shipped

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,050.00
Sale Price: $5,747.50

BEST SELLER

115 volt operation
8 x 1/4 inch capacity shear
Punch 1 inch holes thru 9/16 inch plate
4 x 4 x 1/4 angle shear
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

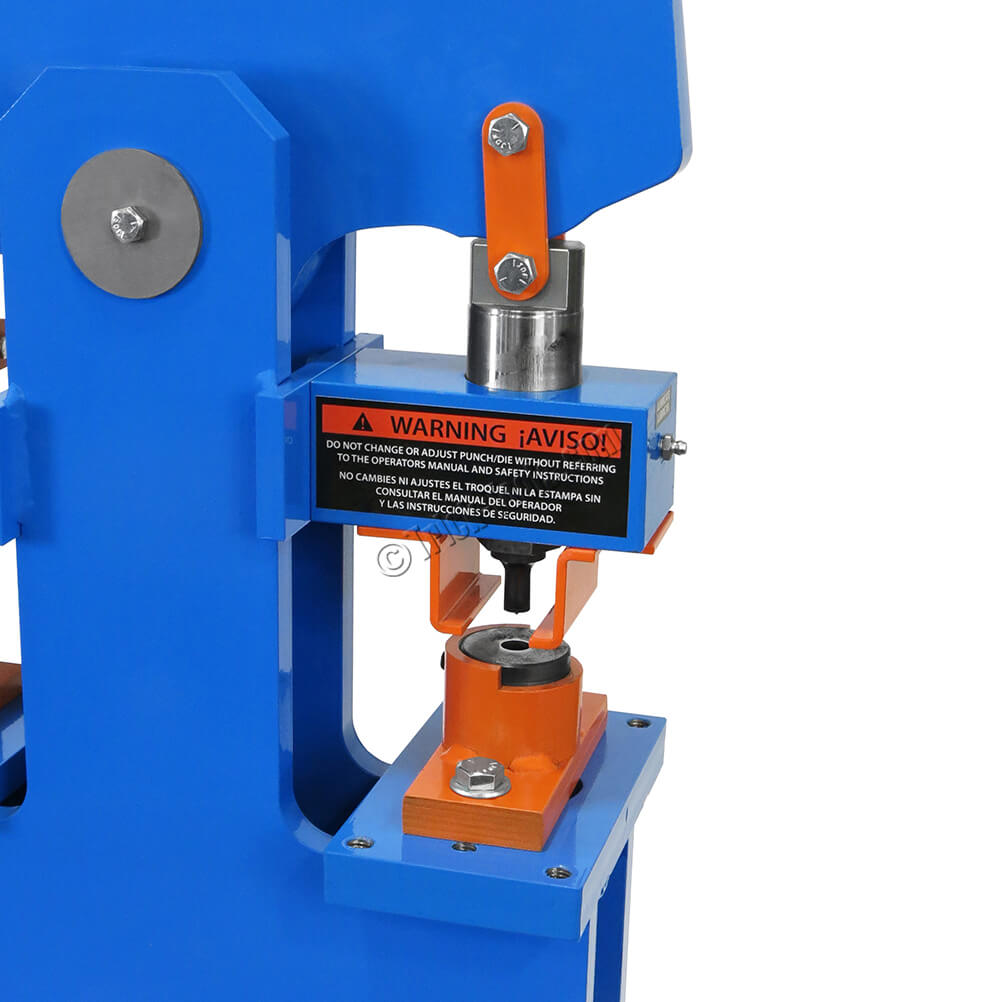

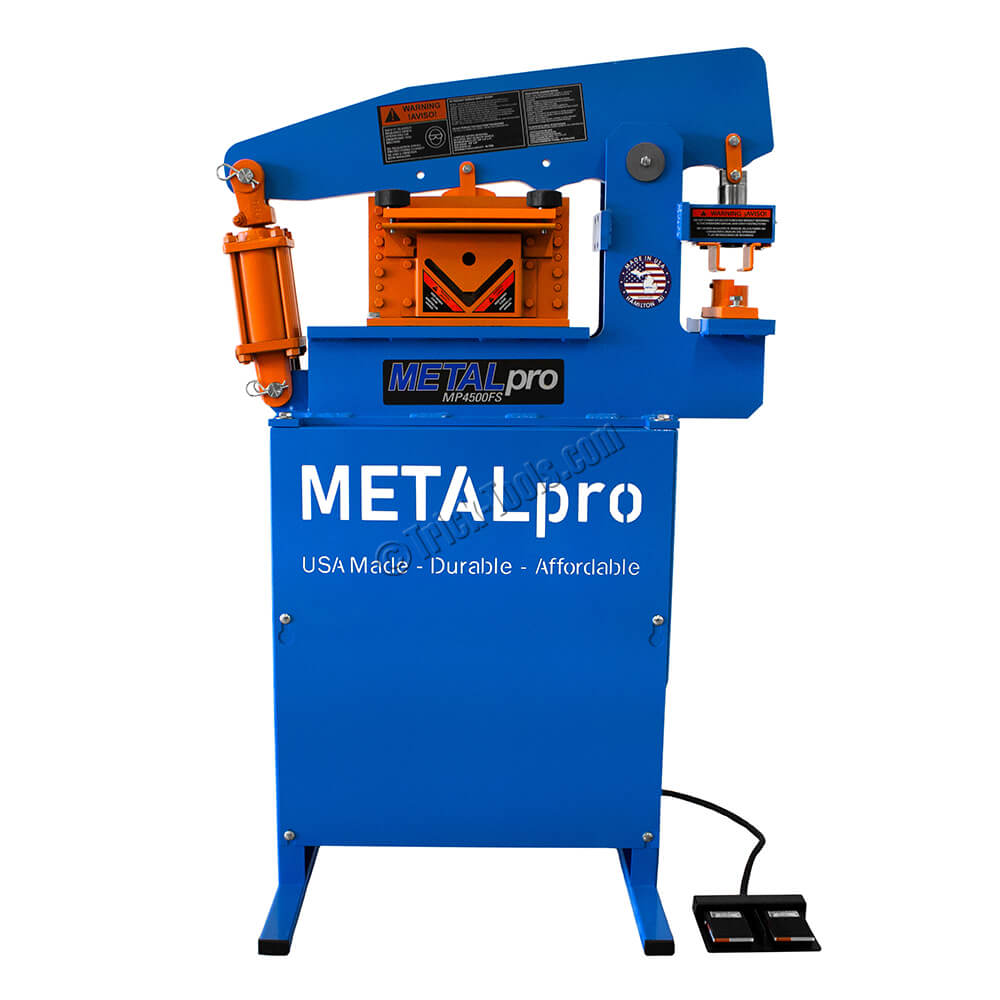

The MP4500FS is a fully equipped 45-ton ironworker that is highly portable and powered by a 110-volt standard wall outlet or generator. Its compact, sturdy design boasts 45 tons of pressure at the punch station and 22.5 tons at the central workstation. This allows the user to punch a 1-1/8 inch round hole through 1/2 mild steel (capable of larger holes through thinner mild steel). Metalpro’s dual footswitch design controls the hydraulic power system.

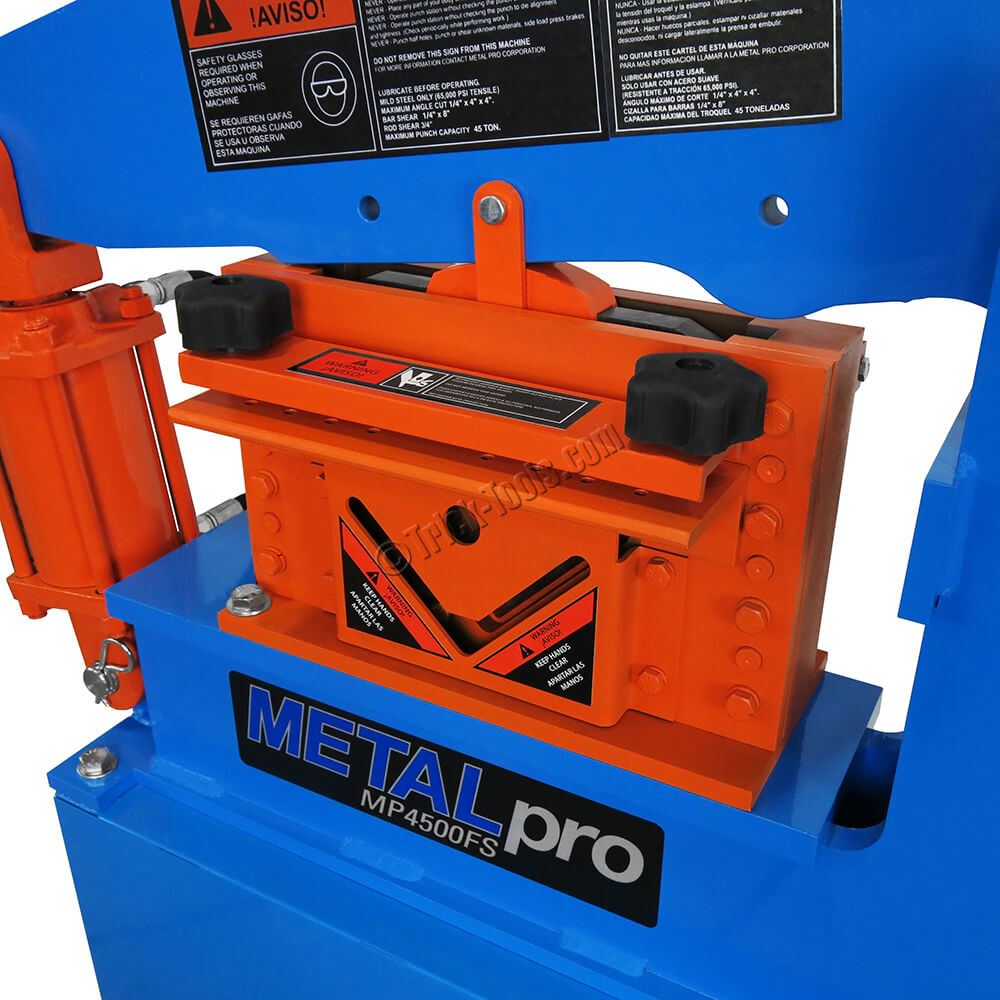

This machine comes standard with Metalpro’s 3-in-1 combination shear. The shear consists of an 8-inch flat bar shear, 4-inch angle iron shear, and round/square rod shear built into one singular unit. Add an additional punch station, brake, or notcher from the Accessories tab.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Stations: 4
•Rated Capacity (tons): 45
•Punching Capacity (Std): 1 inch through 9/16 inch plate
•Flat Bar Shearing Max Width (inches): 1/4 x 8
•Flat Bar Shearing Max Thickness (inches): 3/8 x 6
•Angle Shear Max Size 90 Deg (inches): 4 x 4 x 1/4
•Round Bar Shear Capacity (inches): 3/4
•Square Bar Shear Capacity (inches): 5/8
•Motor (Std): 115 volt
•Valve Pressure: 2900 psi
•Weight (pounds): 575
•Dimensions (LxWxH): 37 x 24 x 55
