METALpro XP 45 ton Ironworker

Part #: MP4500XP
Ships From: Factory shipped

Lead Time: Usually ships within 1-2 weeks

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $13,025.00

NEW

115v, 1.5HP Baldor Motor
Includes brake attachment, limit switch, guide tables, back stops, and wheel kit
Ships fully assembled
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

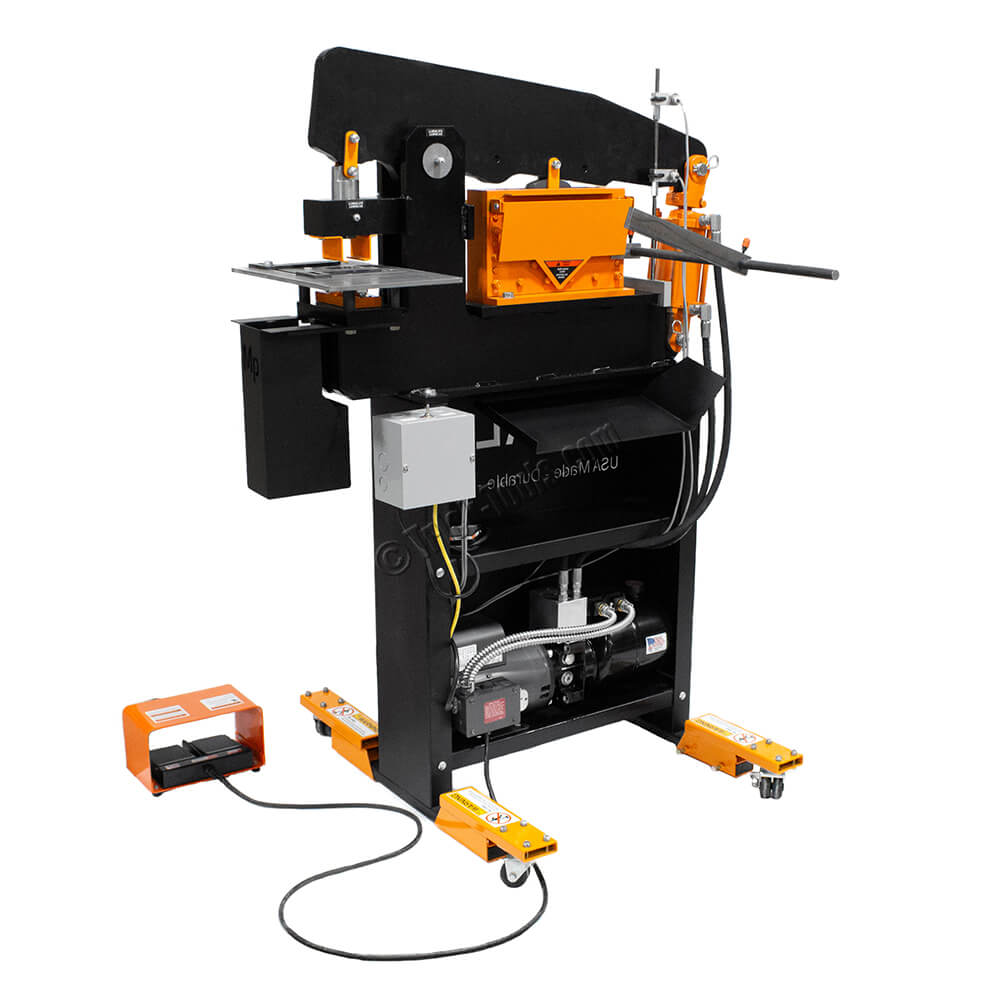

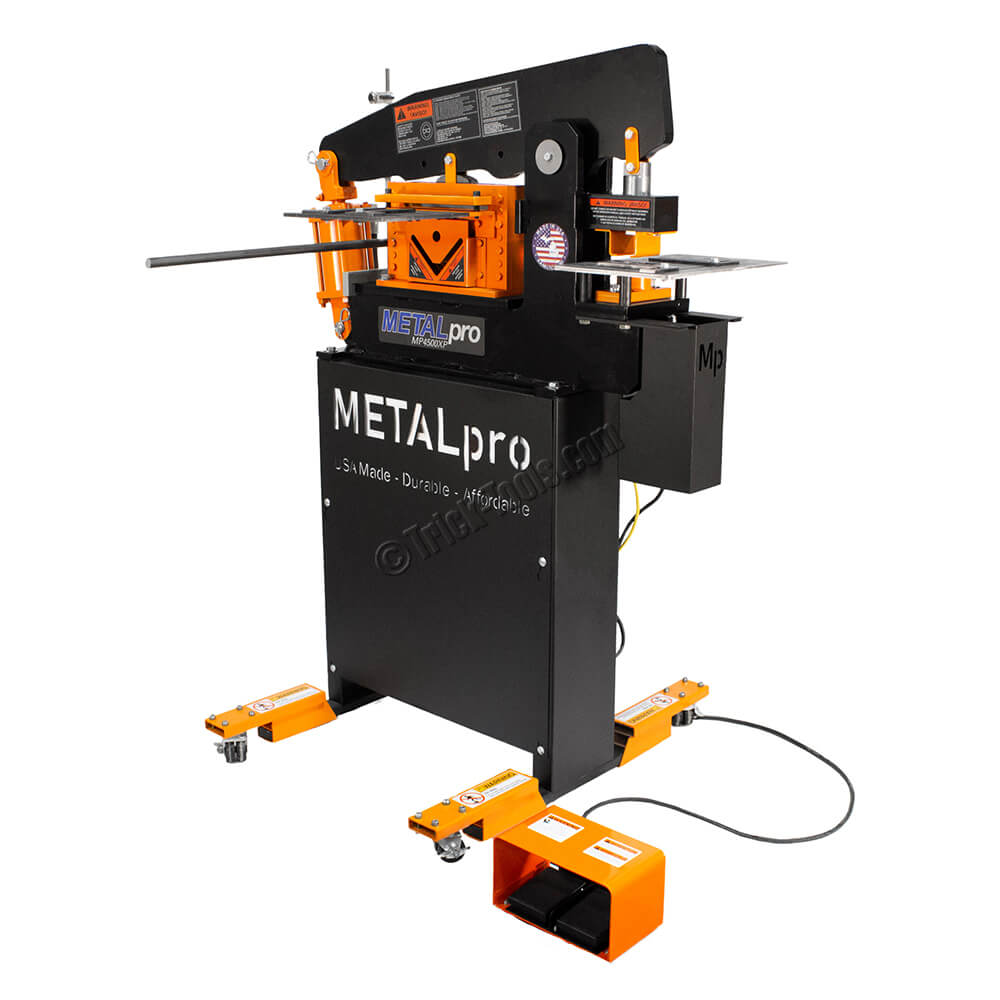

The MP4500XP is a fully equipped 45-ton ironworker that is highly portable and powered by a 110-volt standard wall outlet or generator. Its compact, sturdy design boasts 45 tons of pressure at the punch station and 28 tons at the central workstation. This allows the user to punch a 7/8 inch round hole through 1/2 mild steel (capable of larger holes through thinner mild steel). METALpro’s dual footswitch design controls the hydraulic power system.

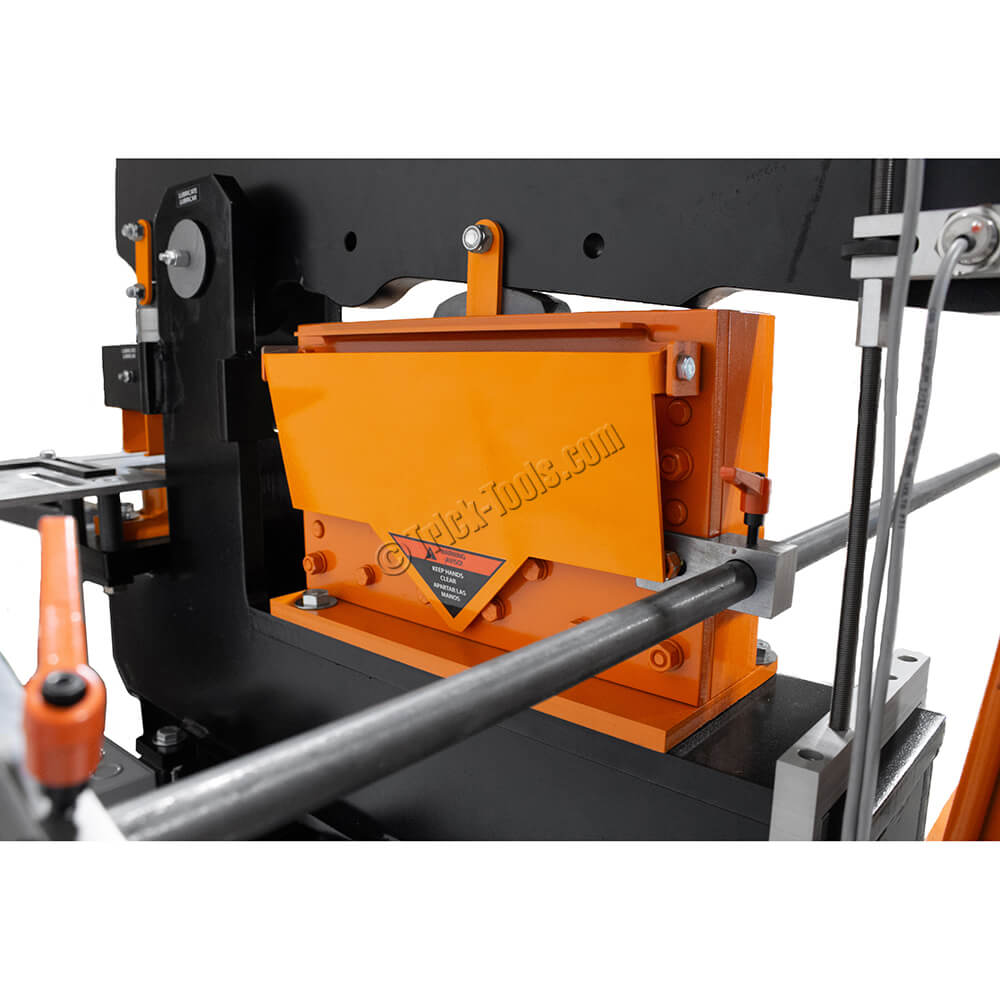

This machine comes standard with METALpro’s 3-in-1 combination shear which consists of an 8-inch flat bar shear, 4-inch angle iron shear, and round/square rod shear built into one singular unit. Also included with the XP series is a 12 inch brake with 3/16 inch brake die tooling, brake back stop, brake guide table, limit switch kit, punch station guide table, shear guide table, slug catcher, wheel kit, shear back stop, and an 8 piece punch and die starter kit.

Warranty:

3 year manufacturer's warranty

SPECIFICATIONS

•Stations: 4
•Rated Capacity (tons): 45
•Punching Capacity (Std): 7/8 inch through 1/2 inch plate
•Flat Bar Shearing Max Width (inches): 1/4 x 8
•Flat Bar Shearing Max Thickness (inches): 1/2 x 4
•Angle Shear Max Size 90 Deg (inches): 4 x 4 x 1/4
•Round Bar Shear Capacity (inches): 3/4
•Square Bar Shear Capacity (inches): 5/8
•Motor (Std): 115 volt
•Valve Pressure: 2900 psi
•Weight (pounds): 575
•Dimensions (LxWxH): 37 x 24 x 55

INCLUDES

MP4500XP 45 ton Ironworker with 1.5hp Baldor motor and 2 stage (Hi-Lo) gear pump
3 in 1 Combination Shear (flat bar, angle, round/square rod)
Shear Guide Table
Shear Back Stop
12 inch Press Brake Attachment with 3/16 inch capacity tooling set
Brake Guide Table
Brake Back Stop
Limit Switch Kit
8 Piece Punch and Die Set (9/32, 11/32, 13/32, 15/32, 17/32, 21/32, 25/32, and 29/32)
Punch Station Guide Table
Wheel Kit
Slug Catcher
